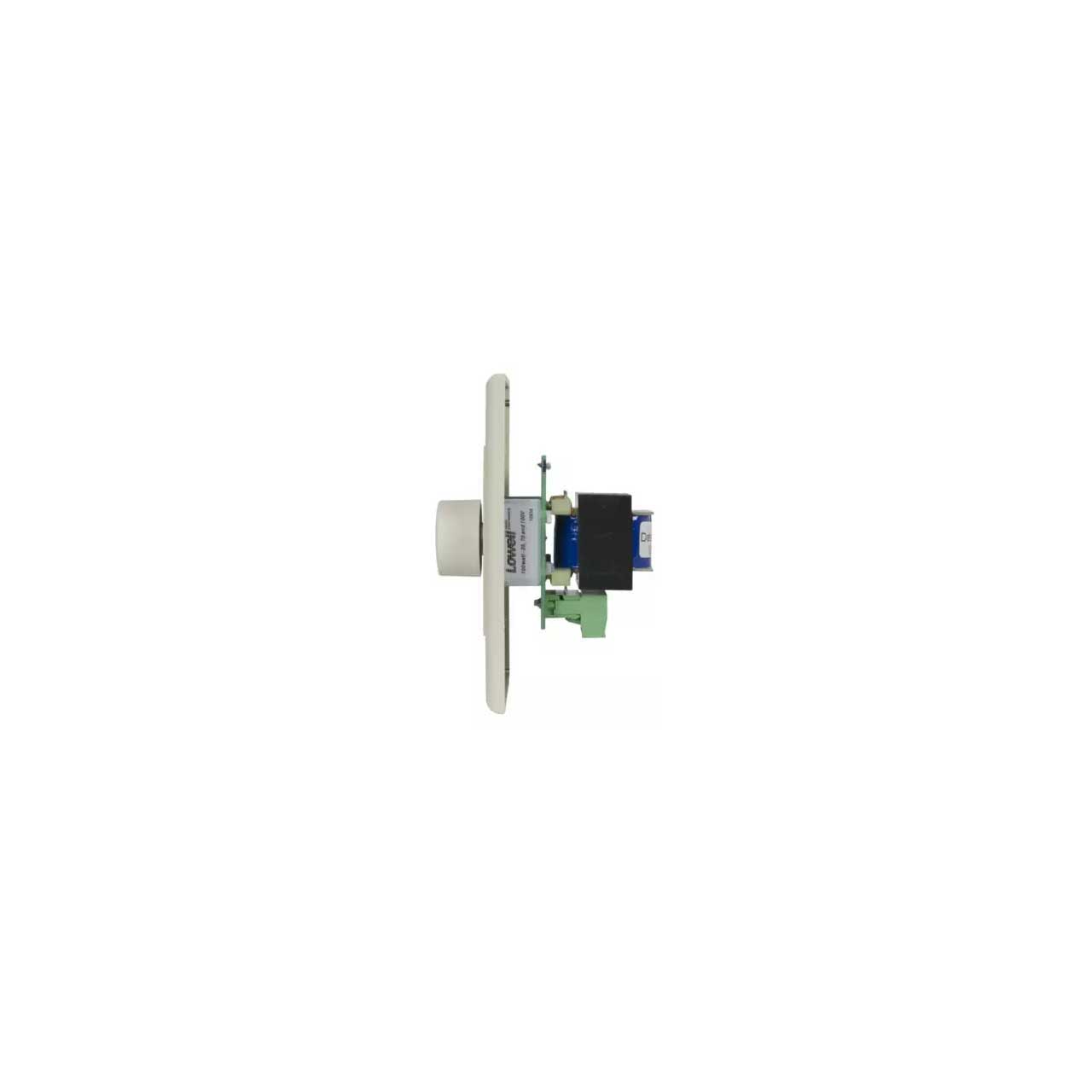

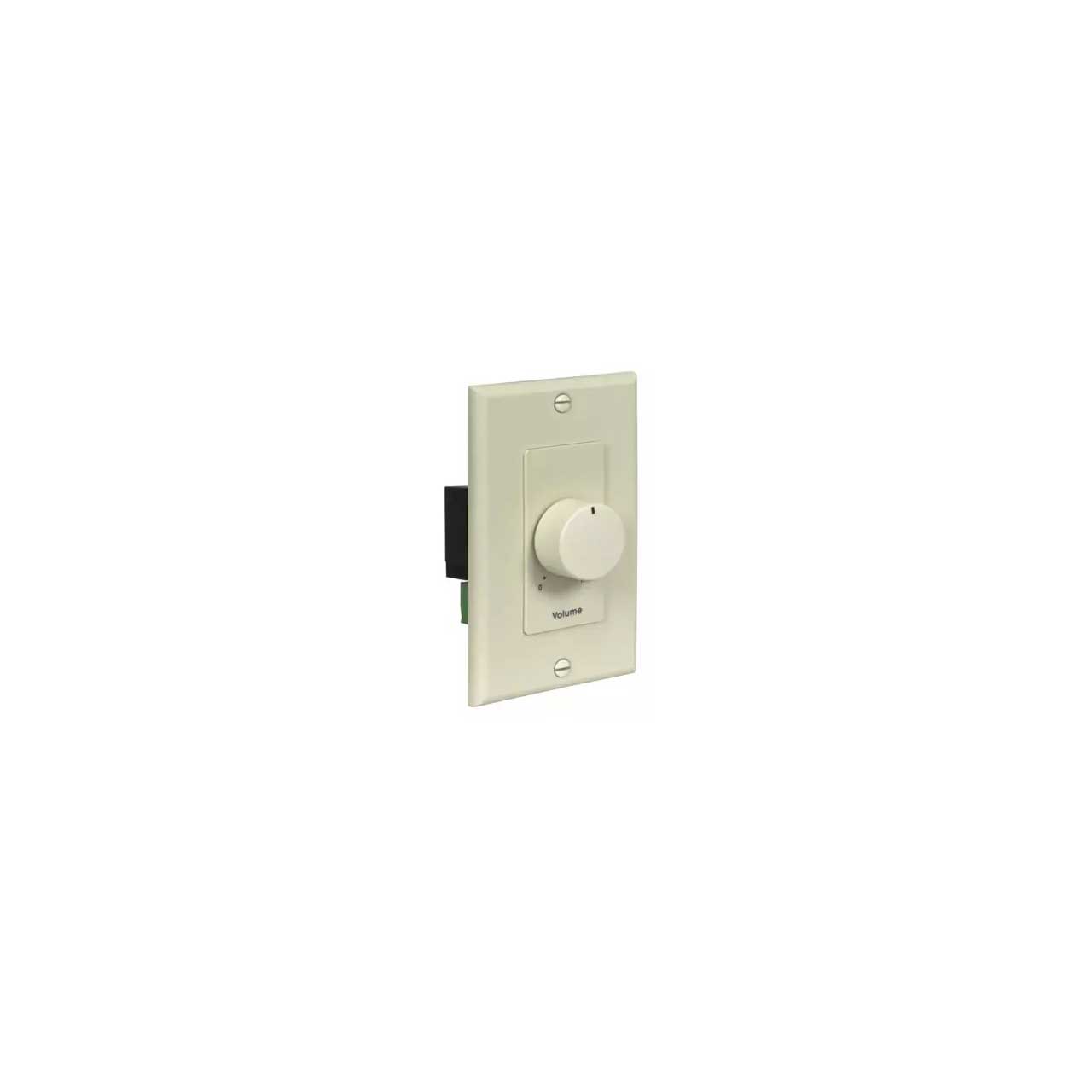

Lowell 100LVC-DA Attenuator-100W/ 70V/25V - 3dB-Step - 1-Gang Decora Wallplate - Almond

100LVC-DA - Overview

• Features:

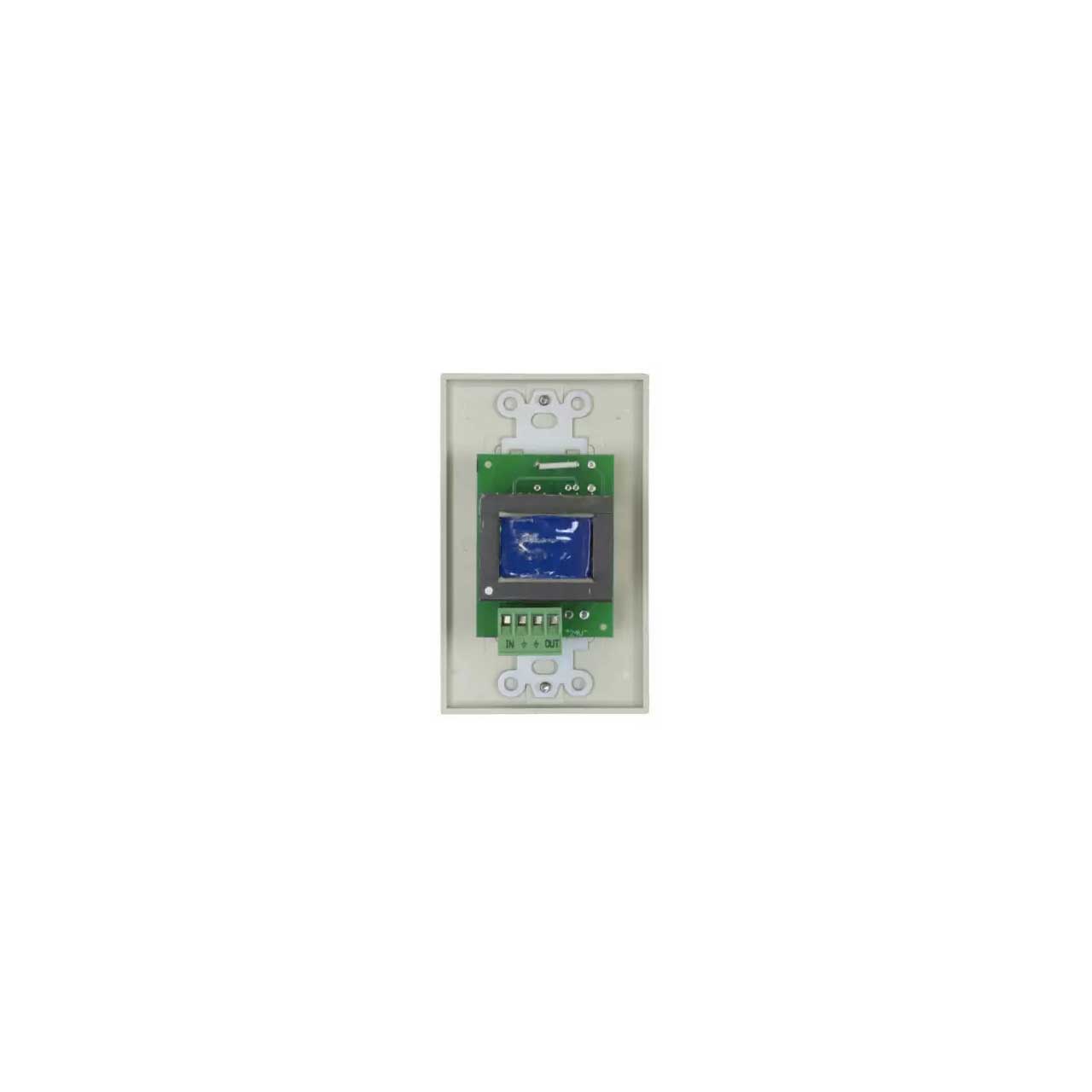

  • Mono autoformer attenuator with rotary switch for use with 25V/70V/100V speaker line
  • 100W power rating
  • 3dB per step attenuation (33dB total, two steps of 6dB each before off)
  • Phoenix style plug-in screw termination strips for pre-wire convenience
  • Wire capacity to 14 gauge

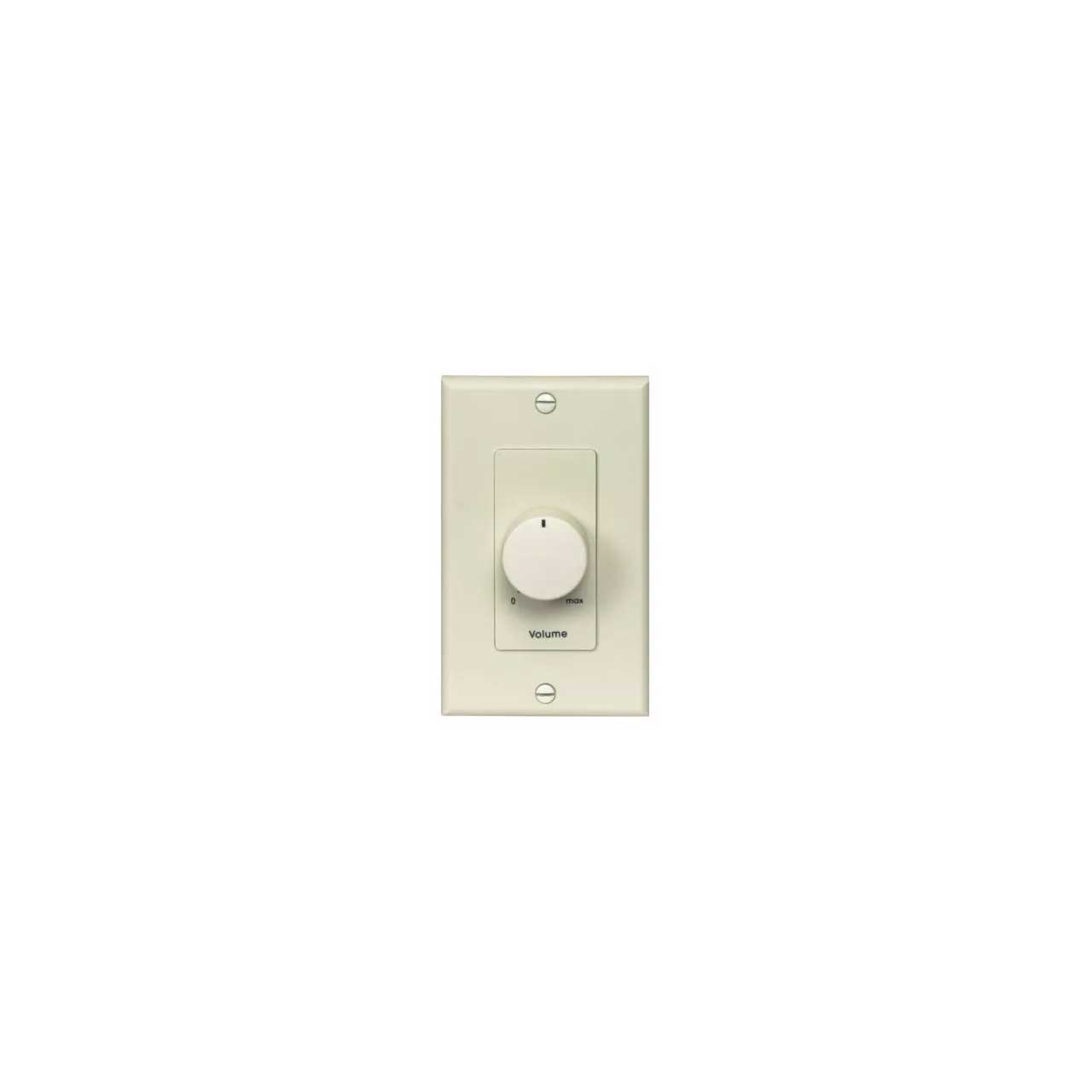

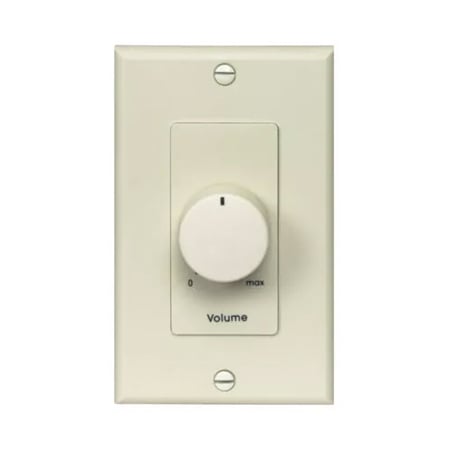

  • Decorator-style one-gang almond wall plate (2.75" x 4.5"), with printing
  • Rotary switch, non-continuous rotation - Off-max (10)

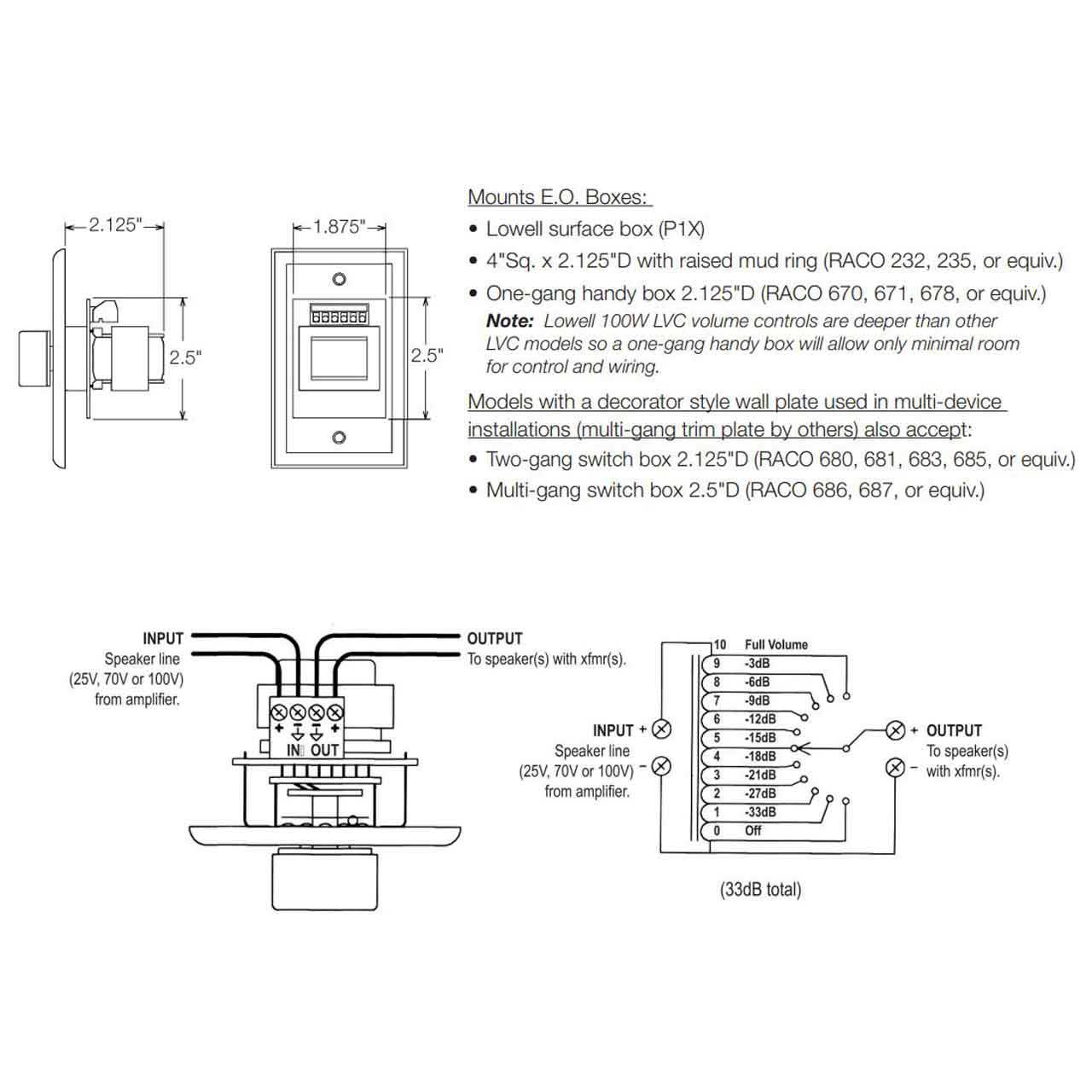

  • Designed to fit a standard one-gang E.O. box with minimum depth of 2.125" (box not included)
  • ETL Listed (UL60065, UL2043)
  • Assembled in the U.S.A. with global components


• Specifications:

  • Power Rating: 100W
  • Attenuation: 3dB per step (33dB total)
  • Use With: 25/70/100V speaker line
  • Activation: Rotary dial
  • Volume Positions: 0-10
  • Termination: Phoenix-style
  • Wire Capacity: 14-gauge
  • Wall Plate: 1-gang decorator style
  • Finish: Almond
  • Fits: Standard E.O. box (2.125 in. min. depth)

    Compliance & Certification
  • Made in the U.S.A. with global components
  • ETL Listed (UL60065, UL2043)


• Item Includes:

  • 1x Lowell 100LVC-DA Attenuator-100W/ 70V/25V - 3dB-Step - 1-Gang Decora Wallplate - Almond


• GTIN:

  0811859030076
