The ESE LX 5212U NTP6-C/POE is a 12" Digital and Analog Clock with with the NTP6-C/PoE Options factory installed. The unit is designed to read and display time as received from most any source of time code. Alternatively, the clock may be manually set and operated in stand-alone mode. Six 1" high LEDs display hours, minutes and seconds. Simultaneously, 60 discrete LEDs simulate the "analog" sweep of the Second Hand. Twelve other discrete LEDs, located around the dial at 5-second increments, stay lit continuously and serve as reference indicators. Three Brightness controls allow the intensity of the three "sets" of LEDs to be set independently.

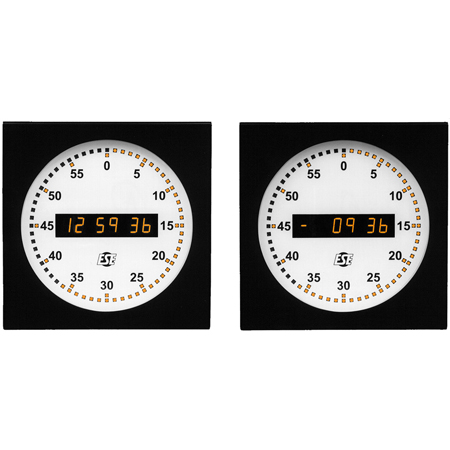

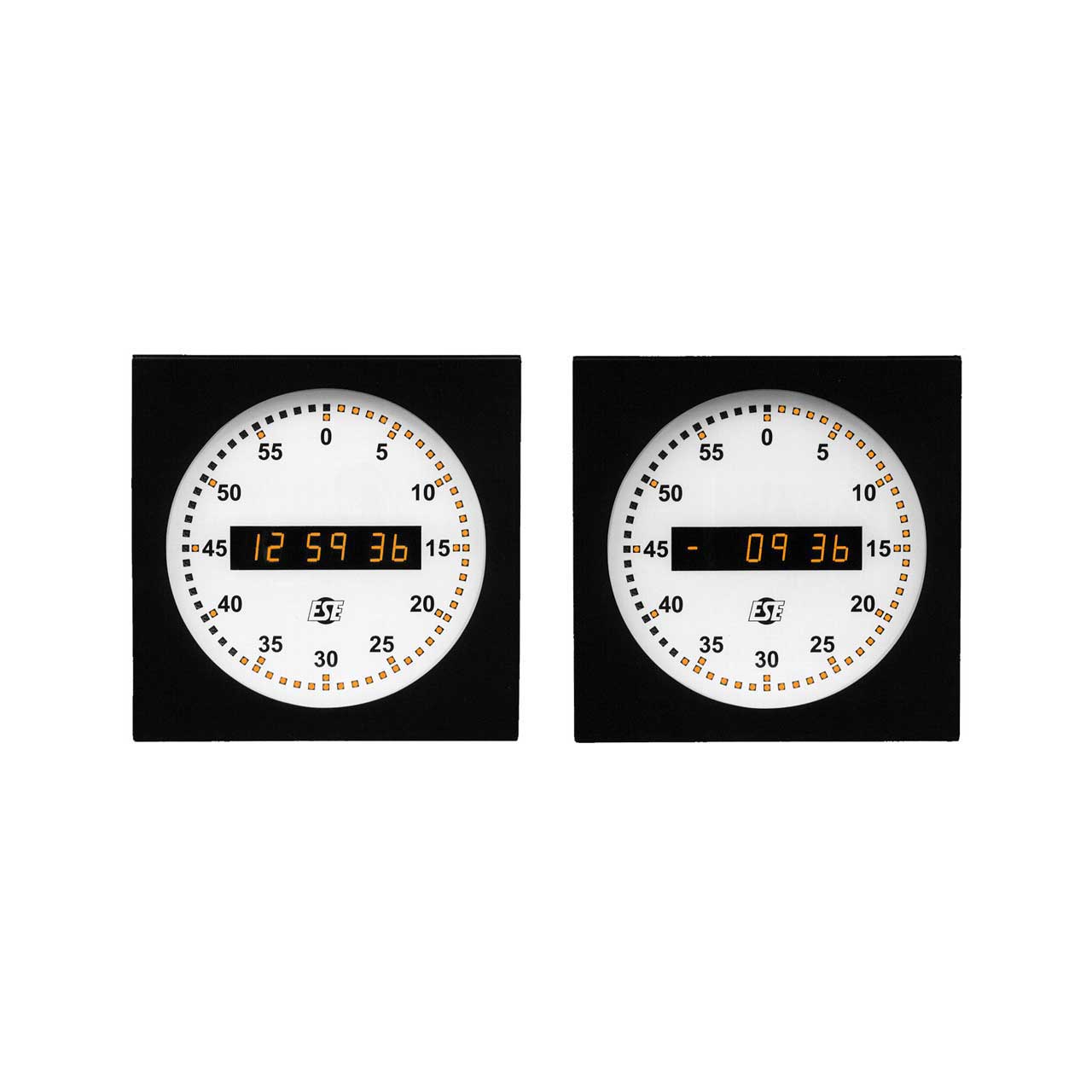

The unit accepts several types of input data: SMPTE/EBU time code, ESE Time CodeT (or ESE Timer Code™ - the right hand picture above shows a Countdown Timer display) or ASCII time code.
Note: This version is the LX5212U with the NTP6-C/PoE Options. NTP6-C adds NTP Client Display that will synchronize exclusively with an NTP server, IPv6 Compatible (replaces time code inputs). PoE or Power over Ethernet provides the ability to pass electrical power over Ethernet
