18 RU, 26 Inches deep with 4" Deep Vented Door & 12 - 24 Rack Rail Type

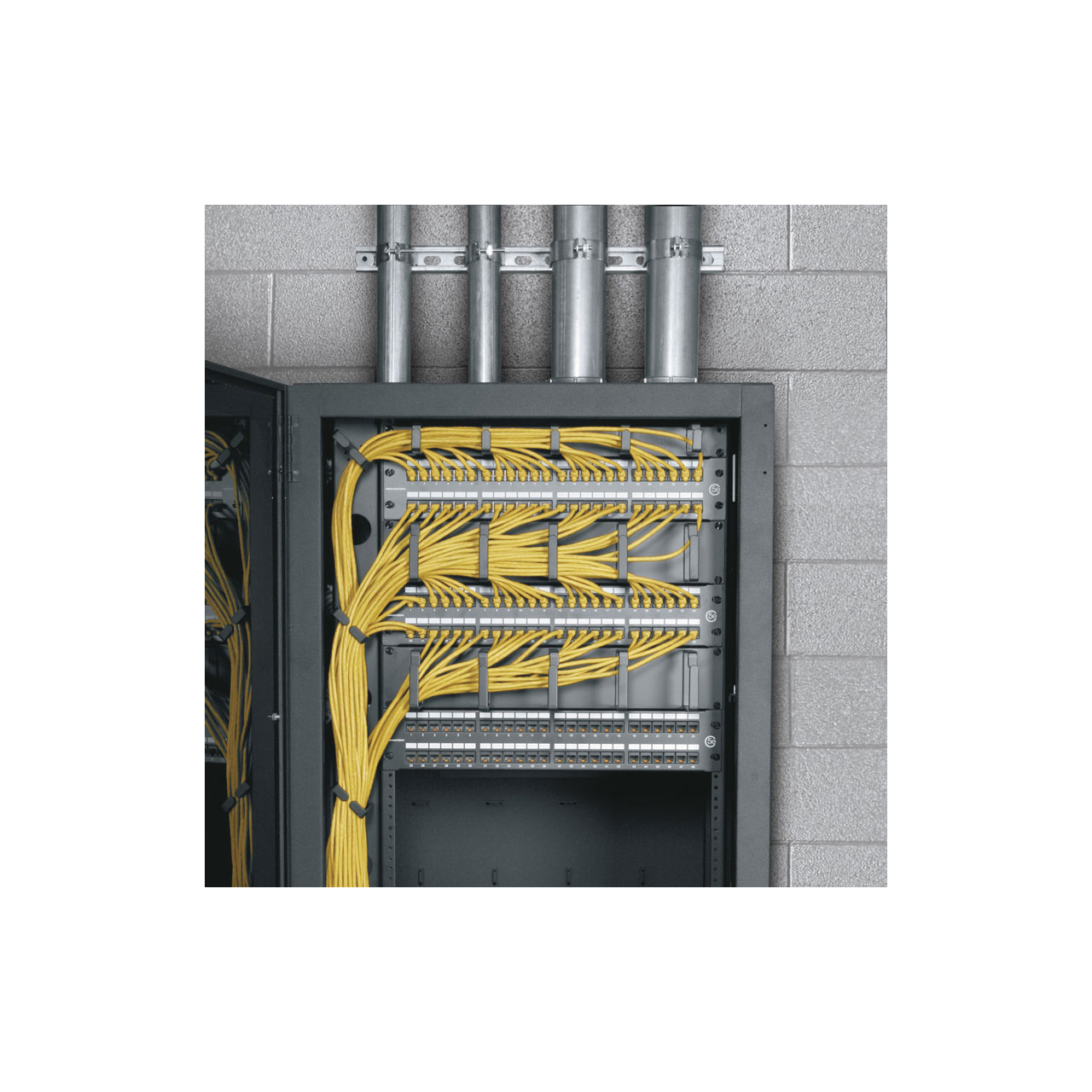

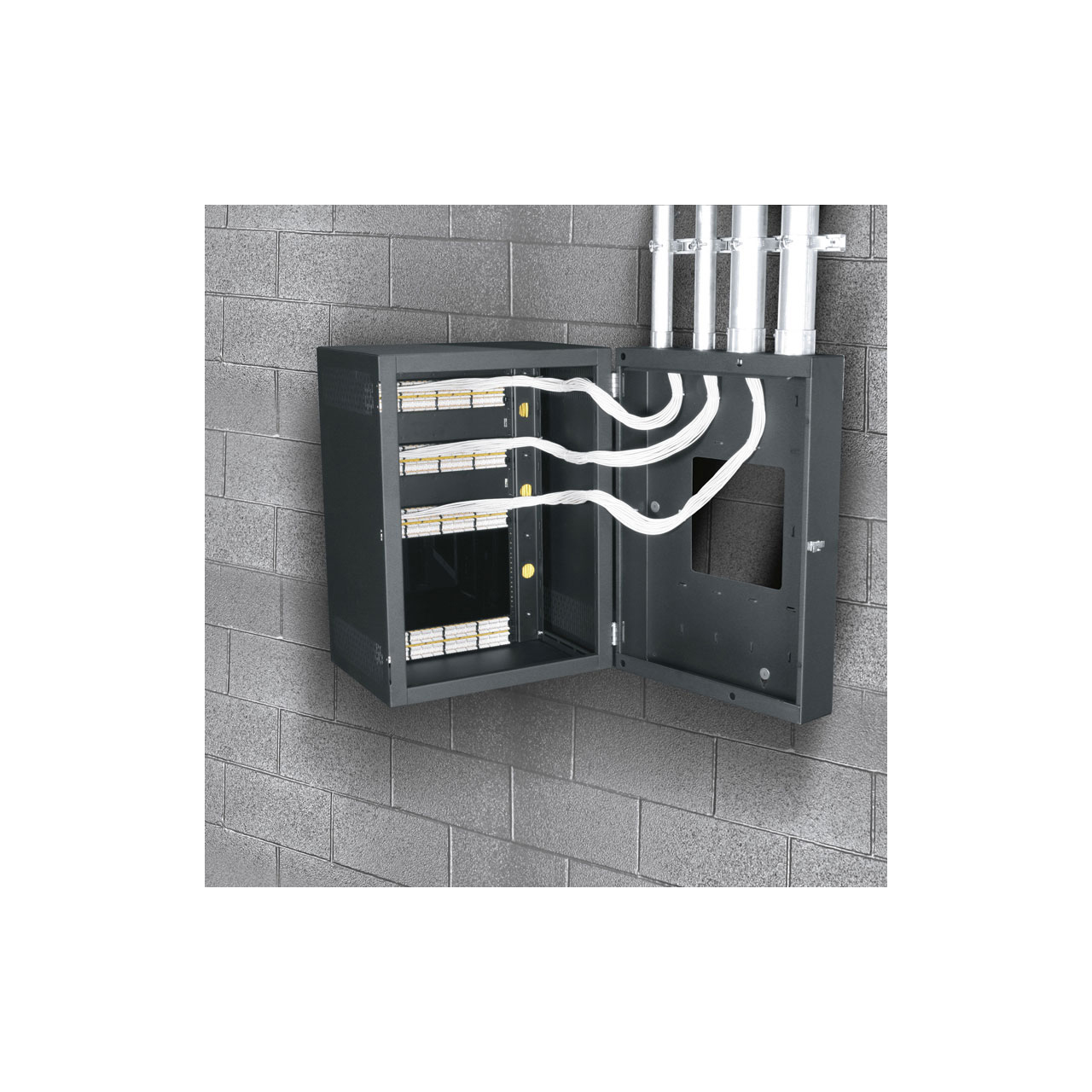

Specifically designed for structured cabling, the Middle Atlantic CWRseries is a versatile system for mounting multiple patch panels and other voice/data equipment where floor and wall space are at a premium.
-
- Welded steel construction for strength
- 26" width provides extra space for cables and patching
- Comes standard with adjustable wide-face rackrail

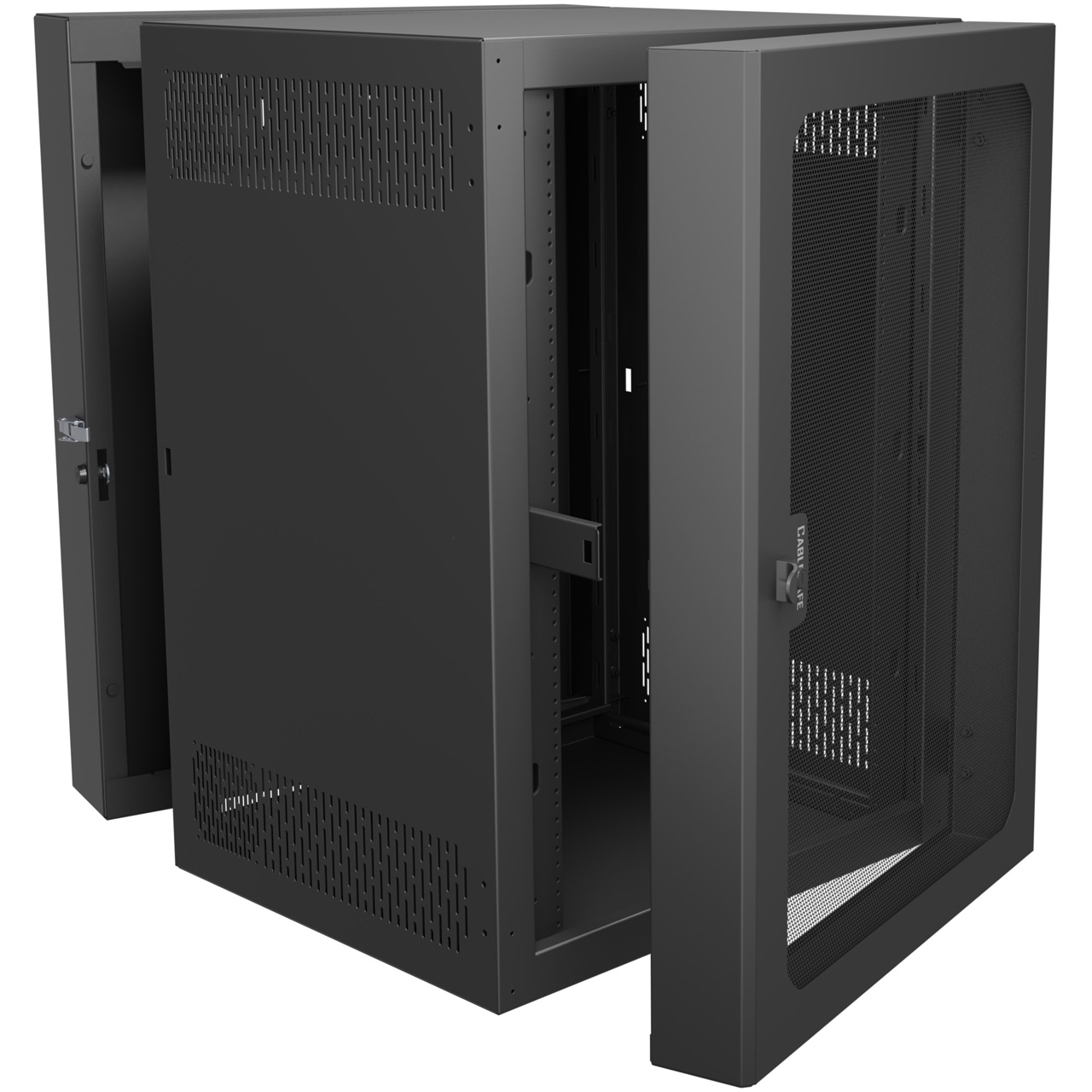

- Locking swing open center section for front and rear access
- Includes a locking/latching plexi front door for added security
- Front door can be easily reversed for left or right hand swing
- Engineered for passive thermal management; optional fan kit available
- Bag of 50 mounting screws included
-
- Depth: 26" (66cm)
- Height: 35.38" (89.9cm)
- Panel Width: 19" (48.3cm)
- Product Weight: 112lbs (50.8kg)
- Rack Units: 18 RU
- UL Load Capacity: 200lbs (90.7kg)
- Usable Depth: 24" (61cm)
- Usable Height: 31.5" (80cm)
- Width: 26" (66cm)
- Door Type: 4" Deep Vented Door
- Material: Steel
- Rack Rail Type: 12-24
- Rack Type: Wall
