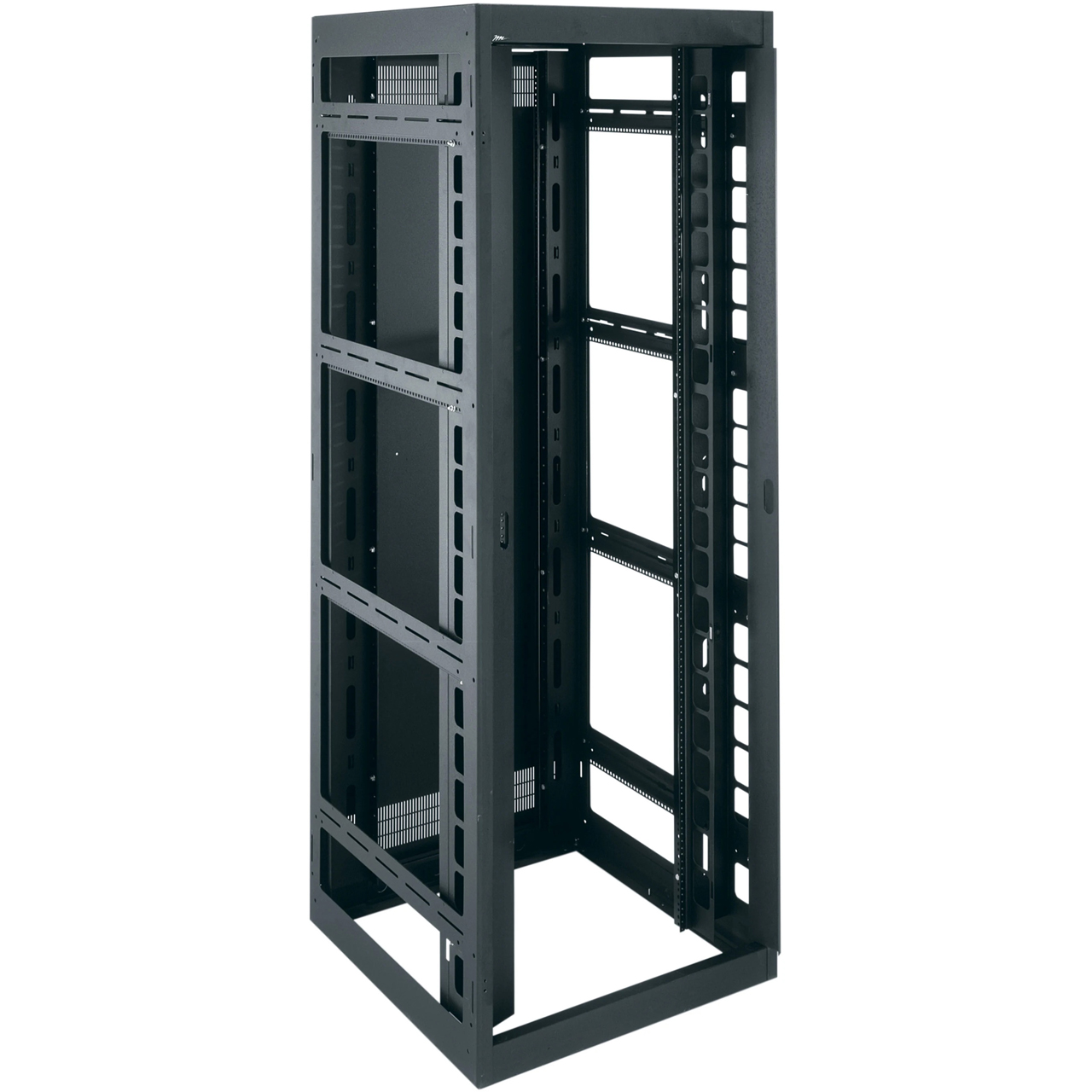

Middle Atlantic DRK19-44-42 DRK Series 30 Inch Wide Rack with Pre-installed Cable Ducts & Hinged Steel Doors

ITEM #: MAP-DRK19-44-42 MFG #: DRK19-44-42

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4,785.00

Our Price:

$4,306.50

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


DRK19-44-42 - Overview

Purpose-built to support high-density cable management, the Middle Atlantic DRK Series rack enclosures has a 30" wide footprint for abundant internal cable space and can accommodate 19" panel width equipment. Specify a DRK for use in network patching and other cable-heavy applications, and where seismic certification and open or removable sides are required or preferred.

  • Features:

    • Fully welded construction for strength
    • Racks gang together when fully loaded
    • Includes pre-installed cable ducts with hinged steel doors and magnetic closures
    • Cable duct is factory mounted in front, can also be mounted to rear
    • Cable ducts accommodate copper and fiber cables equally well
    • Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
    • Includes 100 rack screws
    • Includes partially vented locking-rear door
    • Includes a MW-10FT

  • Specifications:

    • Available Internationally: No
    • Federal Ops Country of Origin: USA
    • Gangable: Yes
    • Material: Steel
    • Product Configuration: Frame Only
    • Rack Rail Type: 10-32
    • Rear Door: Yes
    • Seismic Rated: Yes
    • Depth: 42 in (106.7 cm)
    • Height: 83.49 in (212.1 cm)
    • Panel Width: 19 in (48.3 cm)
    • Primary Package Weight: 291 lbs (132 kg)
    • Rack Units: 44 RU
    • UL Load Capacity: 2500 lbs (1,134 kg)
    • Usable Depth: 34.85 in (88.5 cm)
    • Usable Height: 77 in (195.6 cm)
    • Weight Capacity: 10000 lbs (4,535.9 kg)
    • Width: 30 in (76.2 cm)
    • ASCE Number: 7-10
    • Certifications: ASCE, TAA, UL Listed
    • OSHPD Number: 96-967
    • Seismic Load Capacity: 755 lbs (342.5 kg)

  • Item Includes:

    • 100x Rack screws
    • 1x Partially vented locking-rear door
    • 1x MW-10FT fan top for 10" fane
