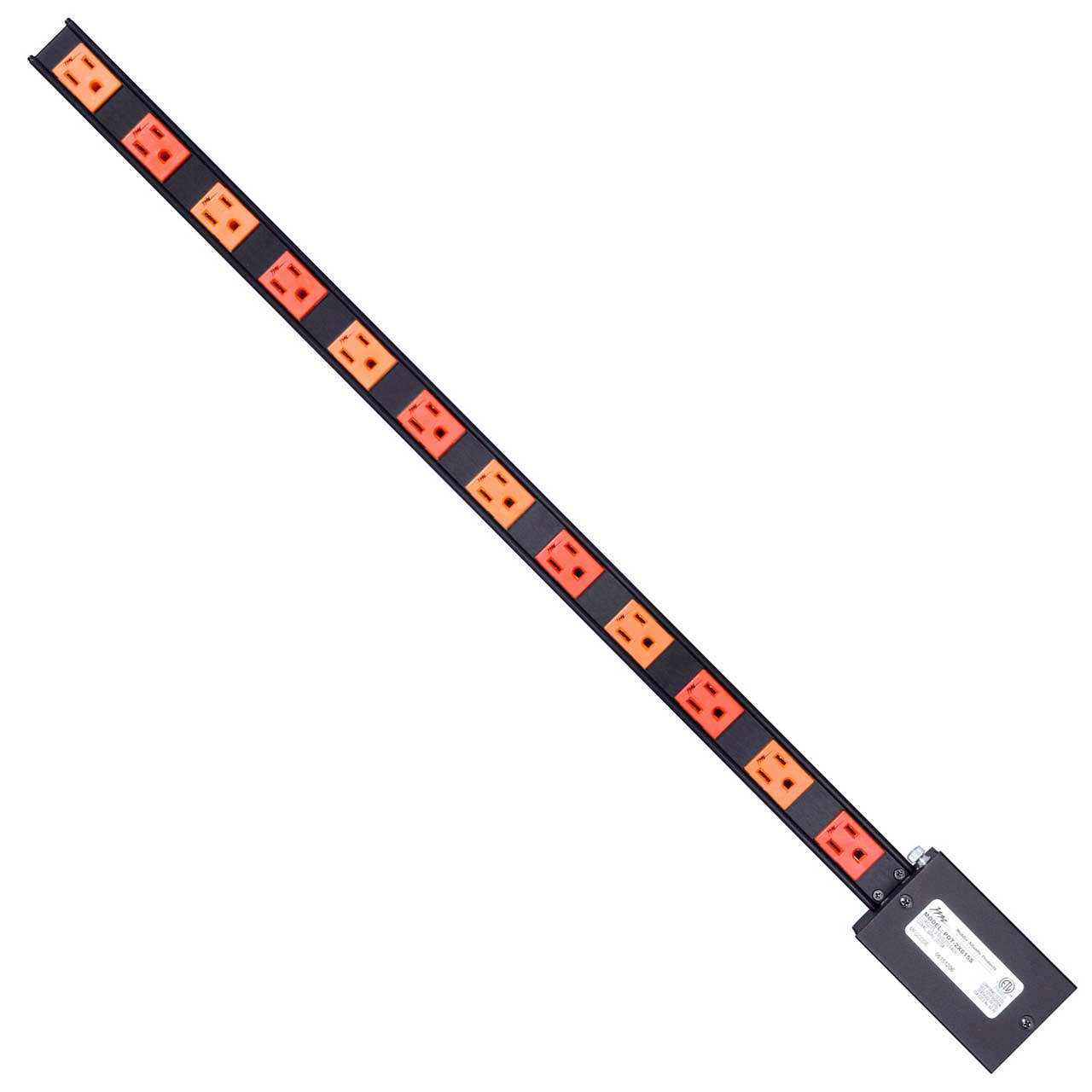

Middle Atlantic PDT-2X615S 12 Outlet PDT Strip

PDT-2X615S - Overview

• Features:

  • Small size uses a minimum of space
  • Dual circuit models can be field configured to operate as a single circuit
  • Unique design allows for isolated ground configurability in the field
  • Saves time - ships fully assembled with all needed accessories including cable management clips
  • Outlets are spaced to provide enough room for plug-in power supplies
  • Top feed models with J-Box on the top of the power strip, available to meet code requirements in select areas
  • Easy to order - a single part number includes all needed accessories
  • Mounts easily with provided clips
  • 15 Amp models are prewired with 12-gauge wiring and can be attached to a 20 Amp branch circuit
  • Surge protected modelsVideo Available include LEDs for convenient local status indication, and also have dry contact closure for remote status notification
  • Metered Video Available models include high visibility red LED display; indicates current to tenths of Amps
  • Corded models feature SignalSAFE(T) cords to virtually eliminate AC magnetic fields
  • NRTL Listed in the US and Canada


• Specifications:

  • Circuits - (2) 15A
  • # of Outlets - 12
  • Chassis Length - 30"
  • Termination - J-Box
  • Wire Gauge - 12
  • Isolated (Technical) Ground - Field Configurable


• GTIN:

  0656747191725
