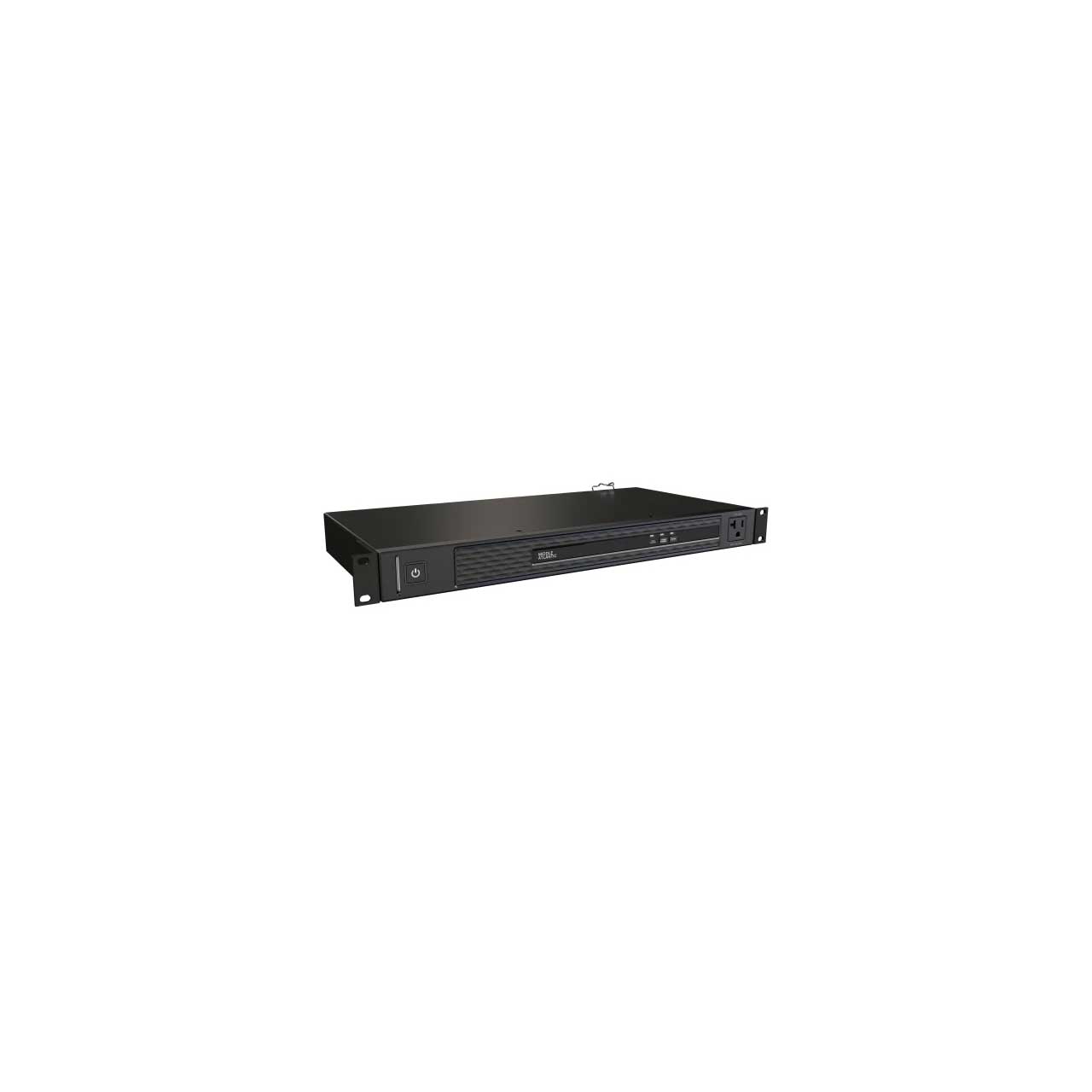

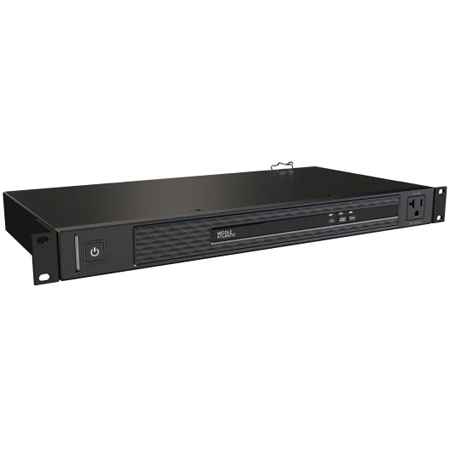

Middle Atlantic PDX-920R NEXSYS 20 Amp Rackmount PDU with Multi-Stage Surge Protection - 9 Outlet with 9 Foot Cord

Name: Middle Atlantic PDX-920R NEXSYS 20 Amp Rackmount PDU with Multi-Stage Surge Protection - 9 Outlet with 9 Foot Cord
Brand: Middle Atlantic Products
SKU: MAP-PDX-920R-9
Price: 387.00 USD
Availability: InStock

ITEM #: MAP-PDX-920R-9 MFG #: PDX-920R

Middle Atlantic Products

List Price:

$430.00

Our Price:

$387.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PDX-920R - Overview

The NEXSYS PDUs are built on a promise that has been kept for over two decades that their products are designed, engineered, and built for AV. Every NEXSYS rackmount PDU is available in 15A and 20A and always have surge and voltage protection making it easy to select the right PDU for the job. Still need more? Each NEXSYS rackmount PDUs can be controlled remotely via contact closure. Just choose NEXSYS.

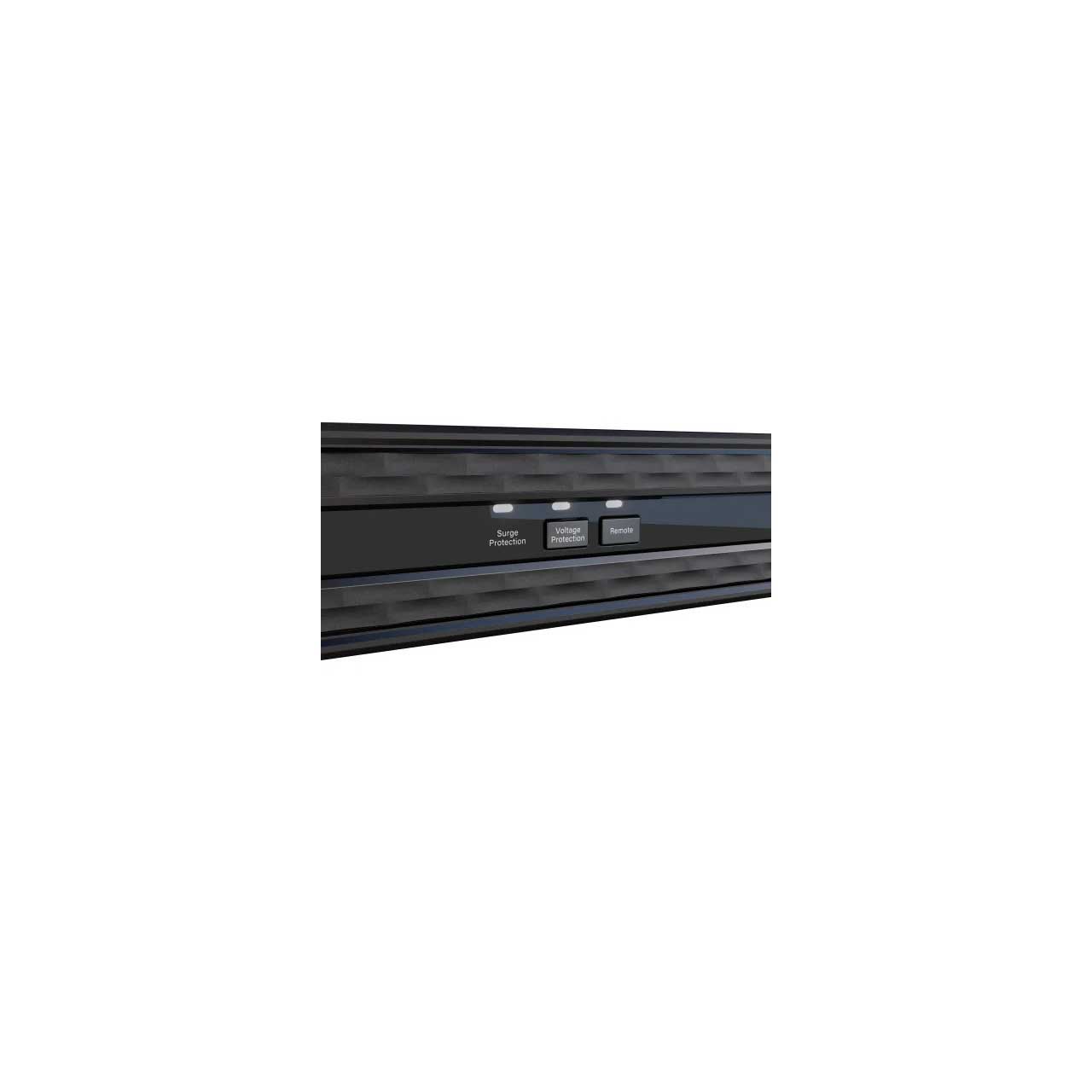

The Middle Atlantic PDX-920R features 3 stages of MOV surge protection, as well as visual indicators of the surge status on the front of the device.

Features:

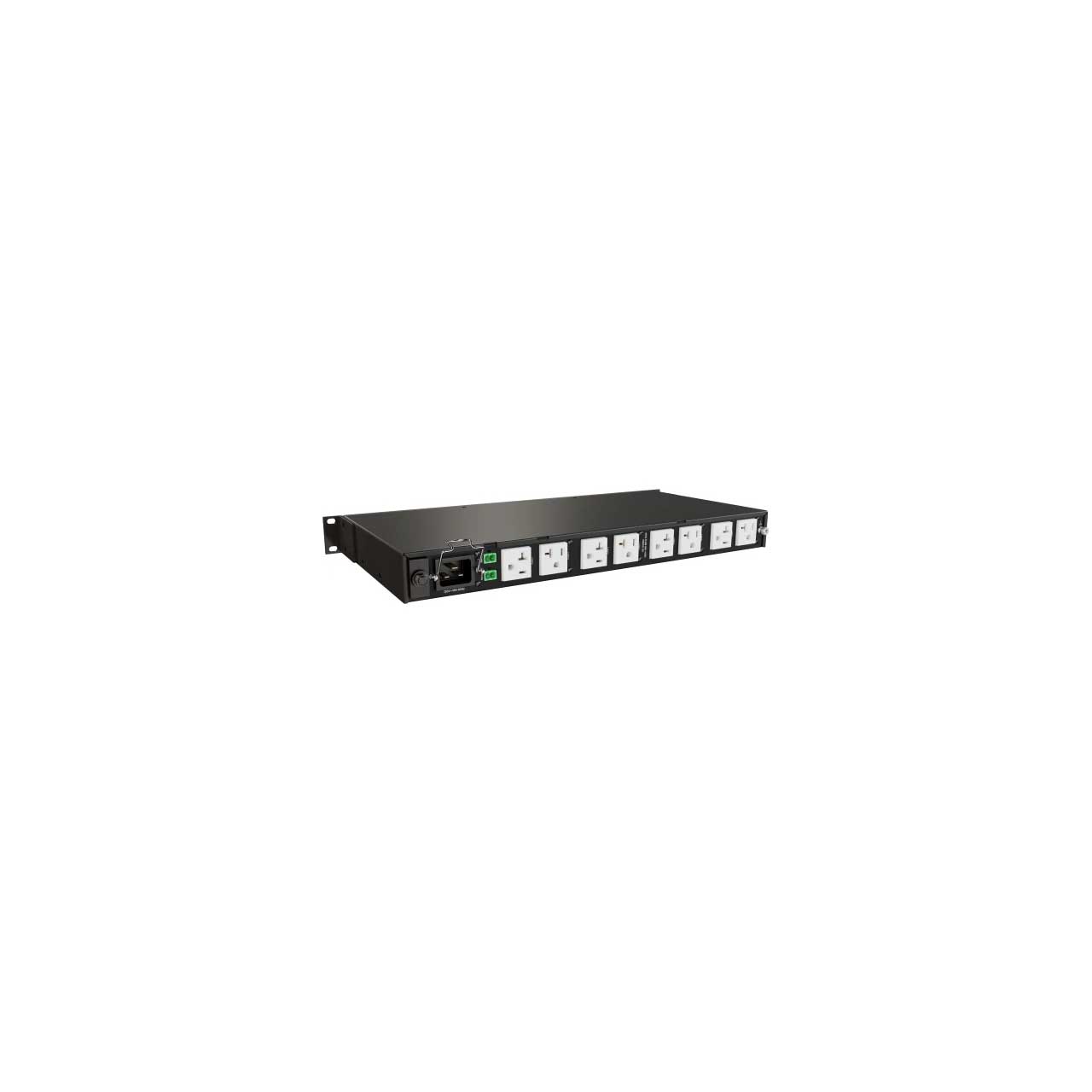

- 9 outlets
- NEXSYS PDU's always have surge protection. Choose from enhanced multi-stage MOV or the patented Series Protection Surge technology.
- With the selectable on/off voltage protection from the front of the unit, it gives the option to protect sensitive equipment from over/under voltage scenarios.
- If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.
- Remote notification of surge status via remote contact closure.
Specifications:
- Nominal Voltage: 120VAC
- Voltage Range: Minimum: 80VAC, Maximum: 140VAC
- Frequency: 60 Hz
- Maximum Peak Load: 20A
- Rated Load: 16A
- Number of Outlets: 9
- Outlet Type: NEMA 5-20R
- Overload Protection: Circuit Breaker
- Outlet Control: Contact Closure
- No Load Power Dissipation: < 1W

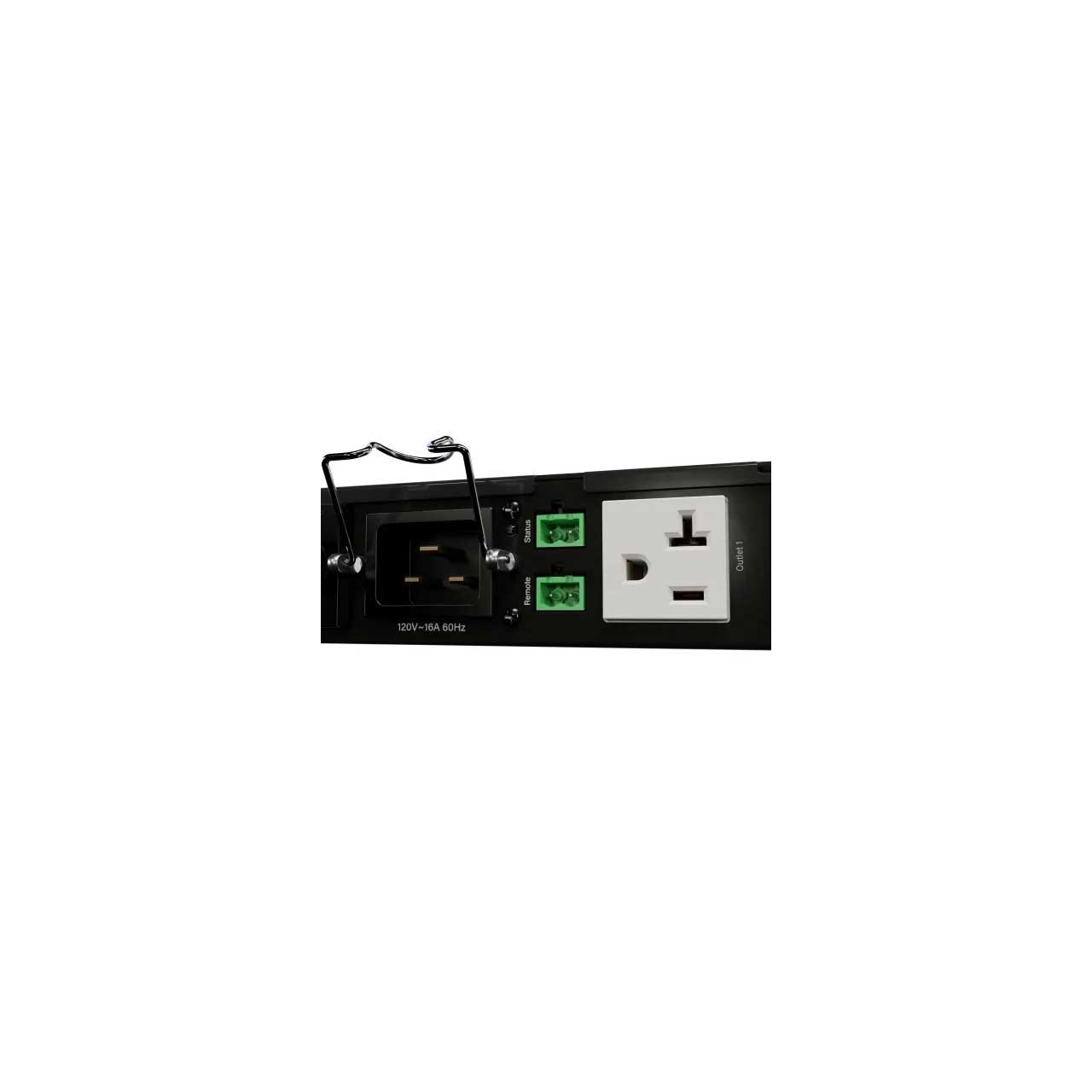

- Input Power Cord: SignalSAFE IEC to 5-20P, 10' (3M)
- Certifications: UL 62368, UL 1449, FCC Class B, ICES 7
- Surge Protection: Multi-Stage MOV
- Peak Impulse Current(8/20&MU;S Waveform): 45,000 Amps, one time - Maximum peak impulse current pulse as defined between line and neutral. 19,500 Amps, two times within 5 minutes - Maximum multiple impulse current derated per spec.
- Protection Mode: Line to Neutral only; no ground contamination.
- Response Time: Less than 1 nanosecond.
- Surge Energy Dissipation: 705 Joules (10/100&NU;S)
- Voltage Protection Rating: 500V (L-N); Type 3 SPD
- EMI/RF Suppression: >20dB Calculated Line to Neutral - 100kHz to 1Mhz - based on nominal impedance.
- Overvoltage Threshold: Upper Limit Cutoff: 135V RMS; Upper Limit Restore: 126V RMS
- Undervoltage Threshold: Lower Limit Cutoff: 100V RMS; Lower Limit Restore: 105V RMS
- Dimensions: (WxHxD) 19" (483mm) x 1.735" (44mm) x 8.75" (222mm)
- Product Weight: 6.84 lbs (3.1 kg)
- Shipping Weight: 9.92 lb (4.5 kg) 10.58 lb (4.8 kg)
- AC Voltage Input: 120 VAC
- AC Voltage Output: 120V
- Amps: 20 Amp
- Certifications: UL Listed
Warranty:
- 3 Year Warranty
GTIN:
0656747396250
