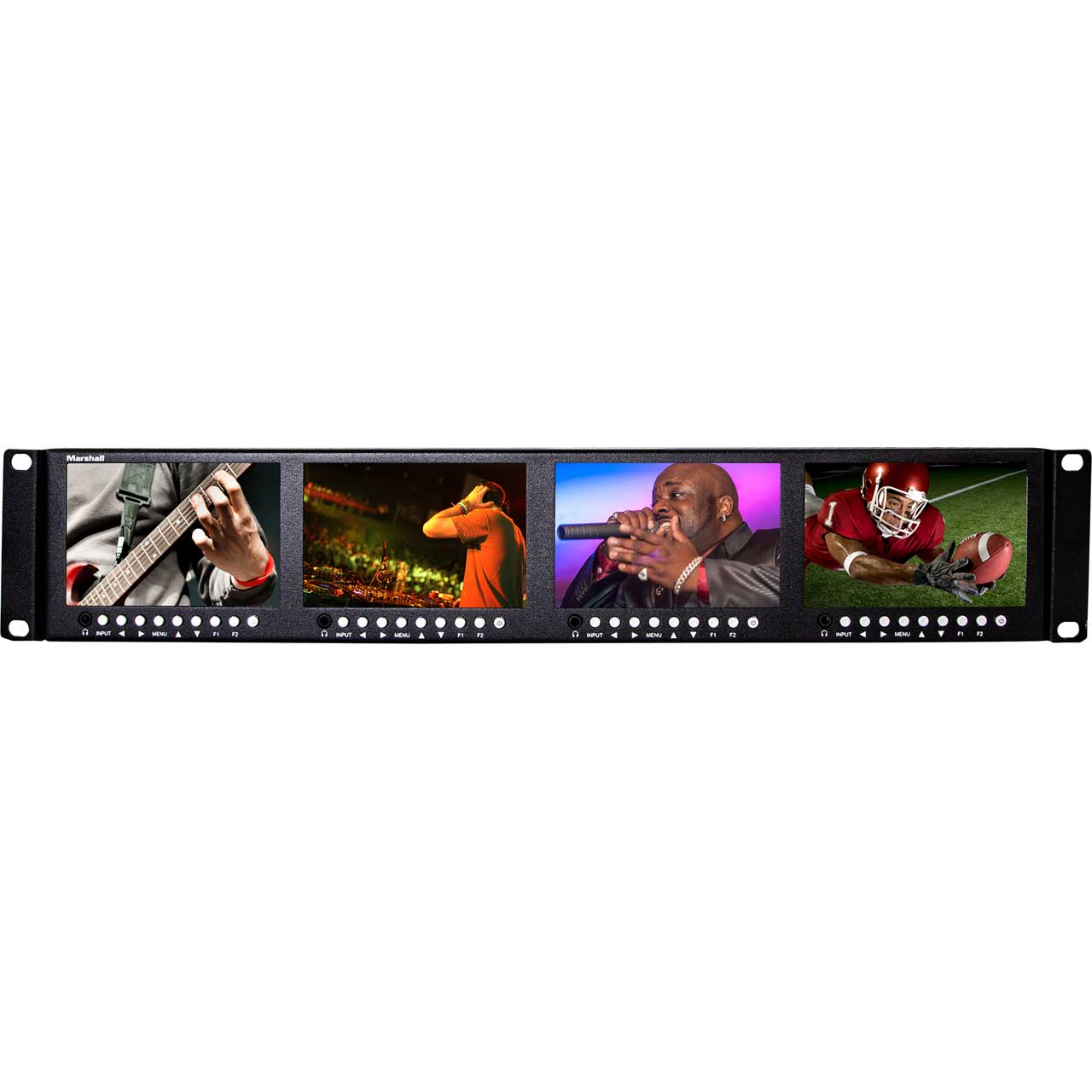

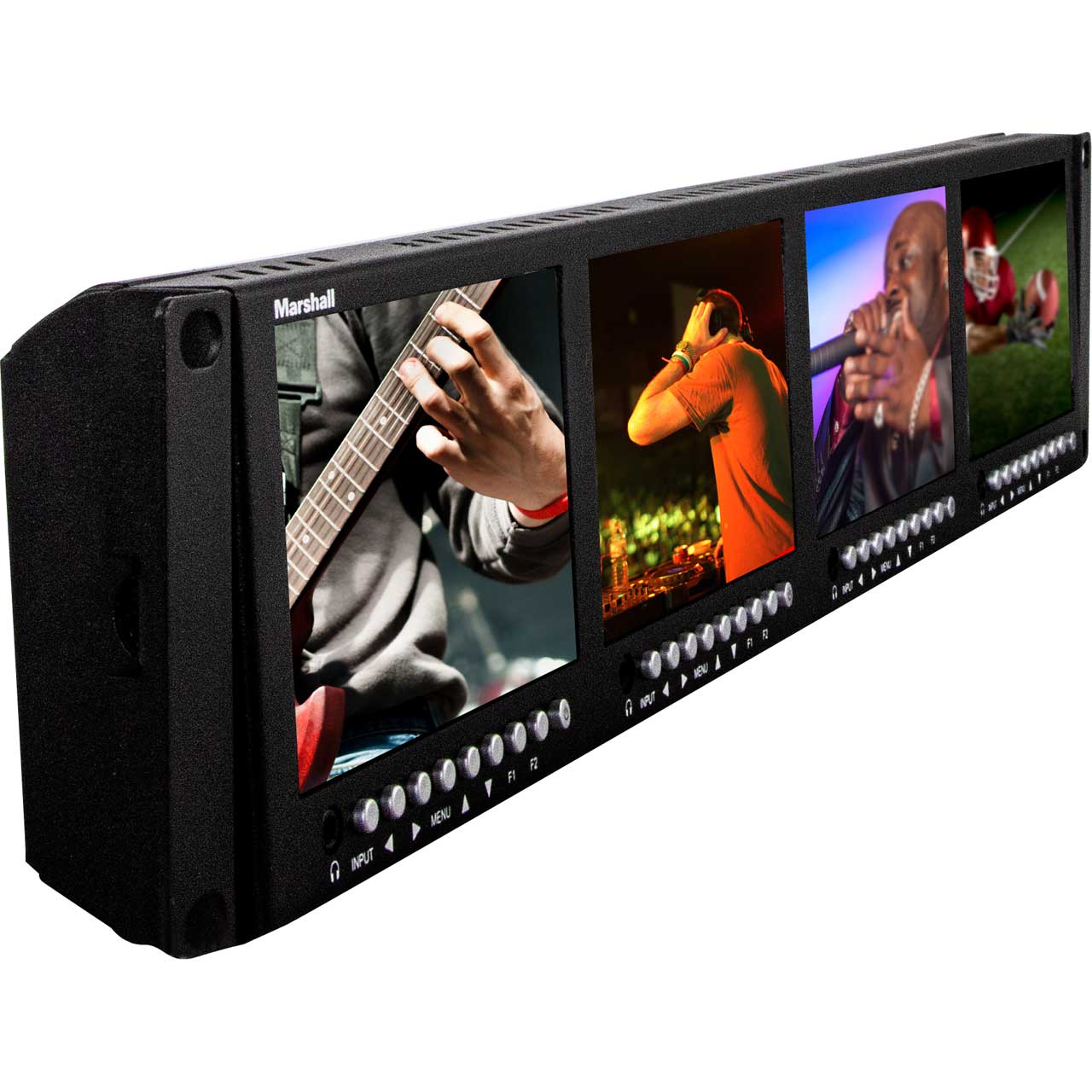

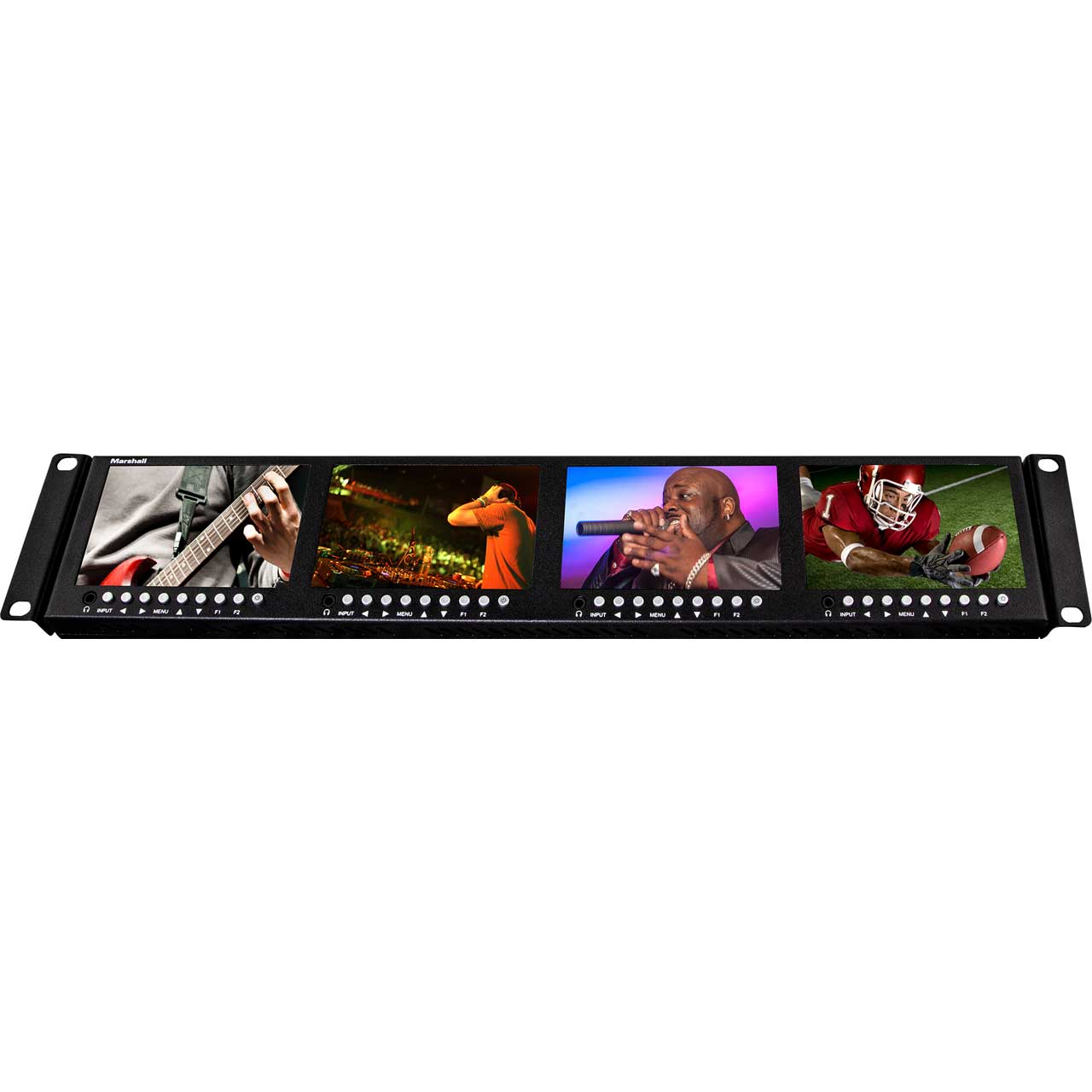

Marshall ML-454 Quad 4.5-Inch Rack-Mountable Monitor with HDMI - 3G-SDI & Composite Inputs

ITEM #: MAR-ML-454 MFG #: ML-454

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MAR-ML-454

ML-454 - Overview

The Marshall ML-454 Quad 4.5" LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products. With the ML-454, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.

4 HD Panels
Four high compliance 3G panels provide full time viewing access to multiple production sources with very accurate rendition. The panels are easily matched and and maintain calibration almost indefinitely.

On-Screen 3 Color Tallies
Easily visible border tallies provide instantaneous process control feedback to the operator.

Compact Panel
Rugged, all metal construction makes the ML-454 at home in any rack mount or standalone application.

Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.

  • Features:

    • High resolution 1280 x 800 bright, colorful display with no-compromise input selections for each screen
    • Digital inputs: HDMI, 3GSDI
    • Multi-screens in 2RU Height
    • Slim Compact Panel - only 1.4" deep
    • Bright screens with great off-axis performance
    • Compare to space wasting, complex multi-view systems
    • Very good Power Efficiency
    • SDI and AVBS inputs have active loop through outputs
    • On-screen 3-color Tallies

  • Specifications:

    • Number of Panels: 4
    • Panel Size: 4.5" rack mount, 2RU High
    • Resolution (Pixels): 1280 x 800
    • Aspect Ratio: non-standard 16:10 - aspect ratio allows for reduced letter-boxing when viewing 2.35:1 cinematic material
    • Backlight: Adjustable LED Backlight
    • Viewing Angle: 80°/80°(L/R), 80°/80°(U/D) - excellent off-axis color and brightness
    • Brightness: 470cd/m²
    • Contrast Ratio: 900:1

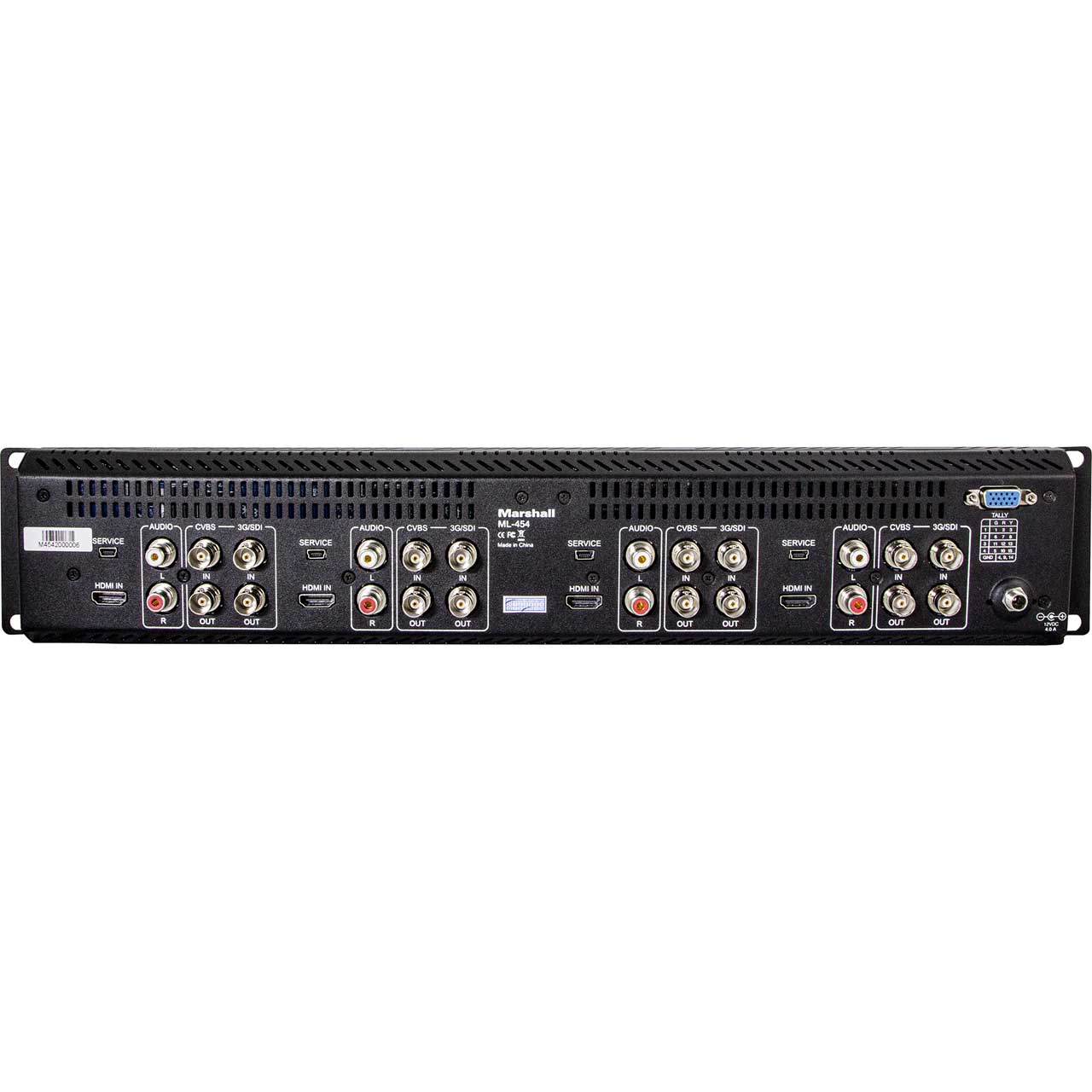

    • Video Inputs: 3G-SDI x4, HDMI x4, CVBS x4
    • Video Loopout: 3G-SDI x4, CVBS x4
    • Audio Inputs: Accepts HDMI and SDI embedded audio
    • Audio Outputs: Front panel 3.5mm stereo headphone jack
    • Tally Connector: 15-pin D-Sub port for Tally control
    • Power: 25 Watts typical at 12 volts via 5.5mm jack or 4-pin XLR
    • Compliance: FCC-Class A, CE
    • Dimensions (WxHxD): 19 x 3.3 x 1.4" (482.5 x 84 x 35.8mm)
    • Weight: 3.80Lbs (1.72kg)

  • Warranty:

    • One year standard
    • Two years with product registration

  • GTIN:

    0801813187526
