Marshall V-557.6-5MP-VIS-IR 1/2 CS Mount Lens 7.6mm F2.0 1/2 Inch 5MP

V-557.6-5MP-VIS-IR 1/2 - Overview

• Features:

  • 3.9mm, 5.0mm, 7.6mm focal lengths Visible - IR Corrected performance
  • 5MP 1/2 sensor optical design.
  • High performance 5MP image quality in visible to near zero light; broadcast, OEM, machine vision, security,
  • med process applications.
  • High performance Broadcast quality imaging.
  • High performance MTF > 70% at center field; > 63% at full field.
  • Experienced observers remark; "Better image quality, sharper image to the corners, almost no observed visual distortion.

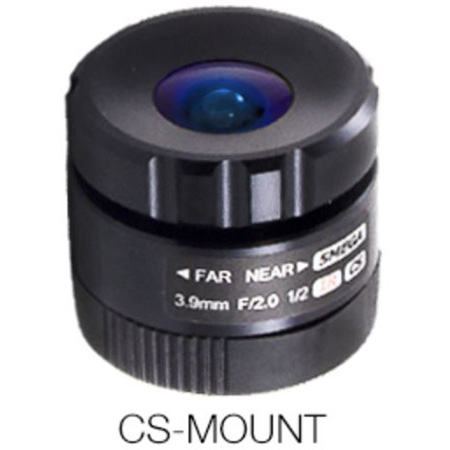

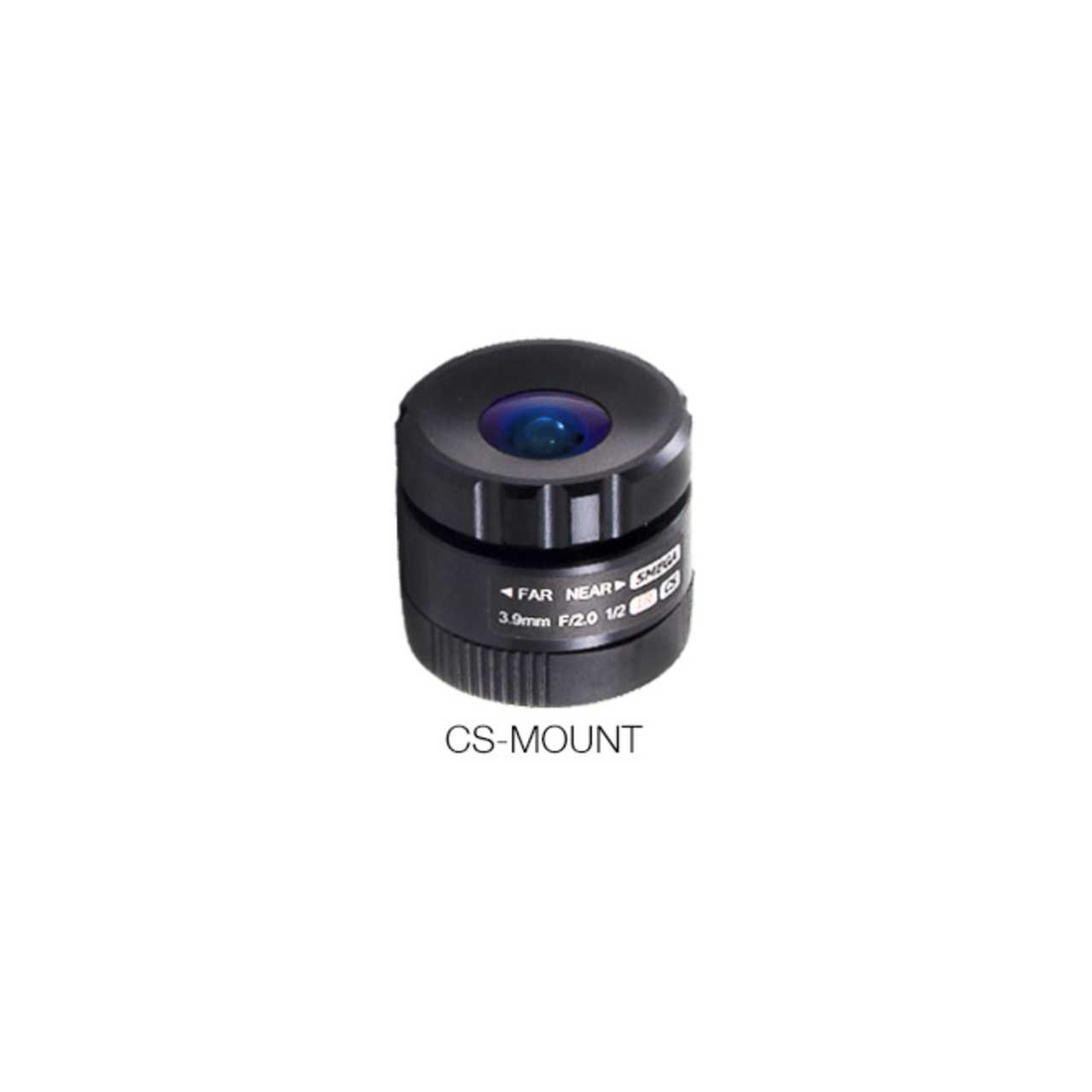

  • New compact mechanical, smooth tactile adjustment CS-Mount housing.
  • M12 Mount / S-Mount / CS-Mount models
  • Glass optics
  • Anodized aluminum housing
  • RoHS compliant

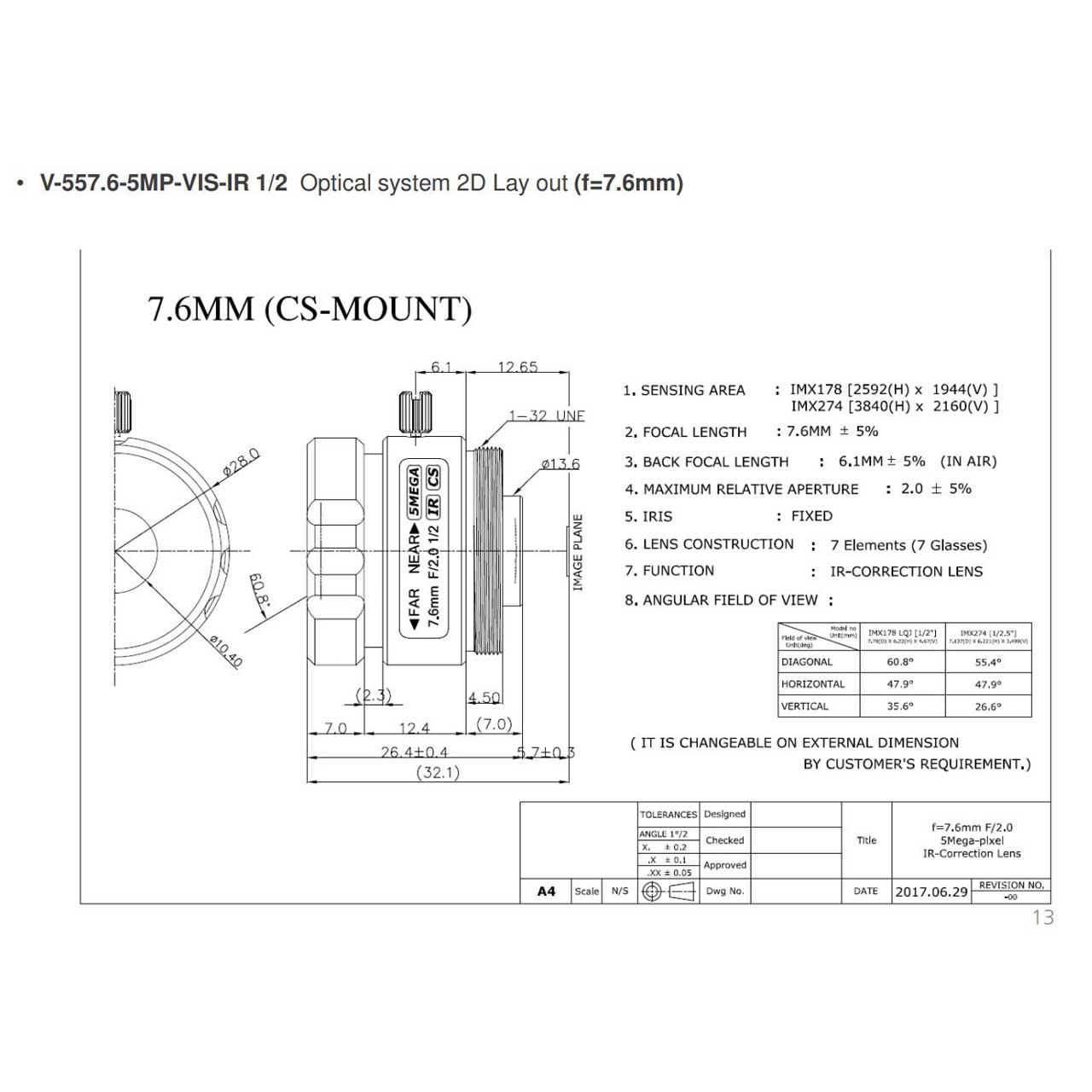

• Specifications:

  • Basic System Parameters
  • Focal Length (EFL): 7.6mm ± 0.1mm
  • Back Focal Length (BFL): 6.1mm ± 5%
  • Flange Back Length (FBL): 5.7mm ± 0.3mm
  • Full Field of View (FOV): 60.8° / 47.9° / 35.6°
  • F-Number (F/#): 2.0
  • Sensor Model No.: IMX178LQJ (5M 4:3)
  • Sensor Model Size: 7.78mm(D) x 6.22mm(H) x 4.67mm(V)
  • Wavelengths: 486.1nm~656.3nm / 780nm, 850nm
  • M12 Total Track Length (TTL): 30.5mm
  • M12 Over All Length (OAL): 24.8mm
  • Barrel Thread/Mount Format: M12 X P0.5 & CS-Mount

    Lens System
  • Lens Number of Elements: 7 components 7 elements
  • Coating MgF2: Element 1~7 (SLAR Coating)
  • Image Circle Error: >=8.0mm
  • M12 Out Diameter (OD): Ø17.0

    Optical Performance
  • Realative Illumination: 44.5%
  • MTF as a Function of Line Pairs/mm: MTF≥0.732 at 100 (LP/mm); MTF(T)≥0.607 at 100 (LP/mm); MTF(S)≥0.636 at 100 (LP/mm)
  • Optical Distortion: < -12.7%


• GTIN:

  0801813193107
