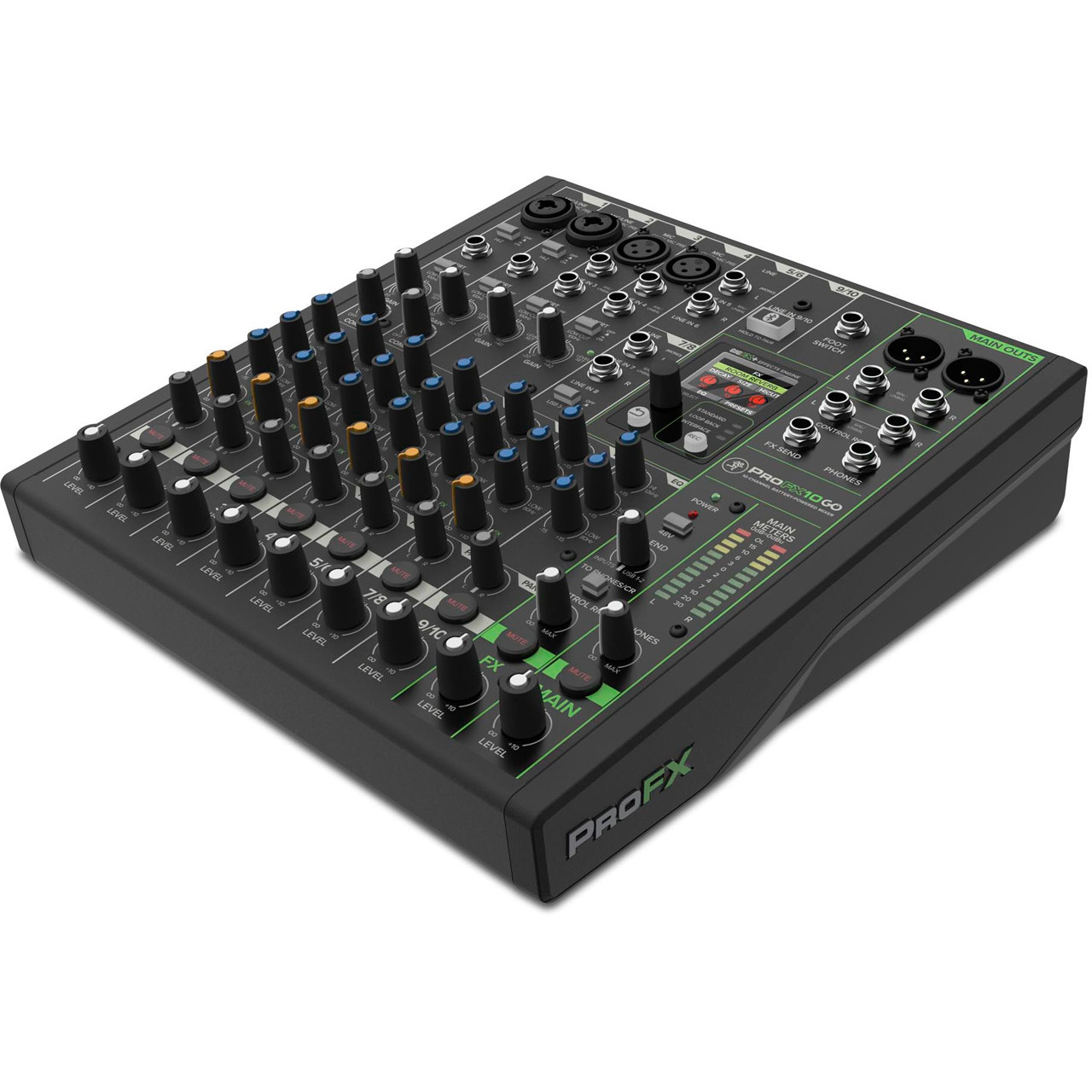

Mackie ProFX10 GO 10-Channel Battery Powered Analog Mixer with Enhanced FX/USB Recording Modes and Bluetooth

PROFX10 GO - Overview

• Features:

  • Includes GB-10 rechargeable battery for up to 8 hours of mixing and recording, miles from a power outlet
  • Connect your phone or tablet via the dedicated Bluetooth channel
  • Send and receive audio wirelessly
  • Play songs or perform over backing tracks
  • Stream your gig or event live on Twitch, YouTube or Instagram with your phone
  • Mix Minus lets you take phone calls through the mixer without the caller hearing themselves
  • High-resolution GigFX+ effects engine includes reverbs, delays, choruses and more

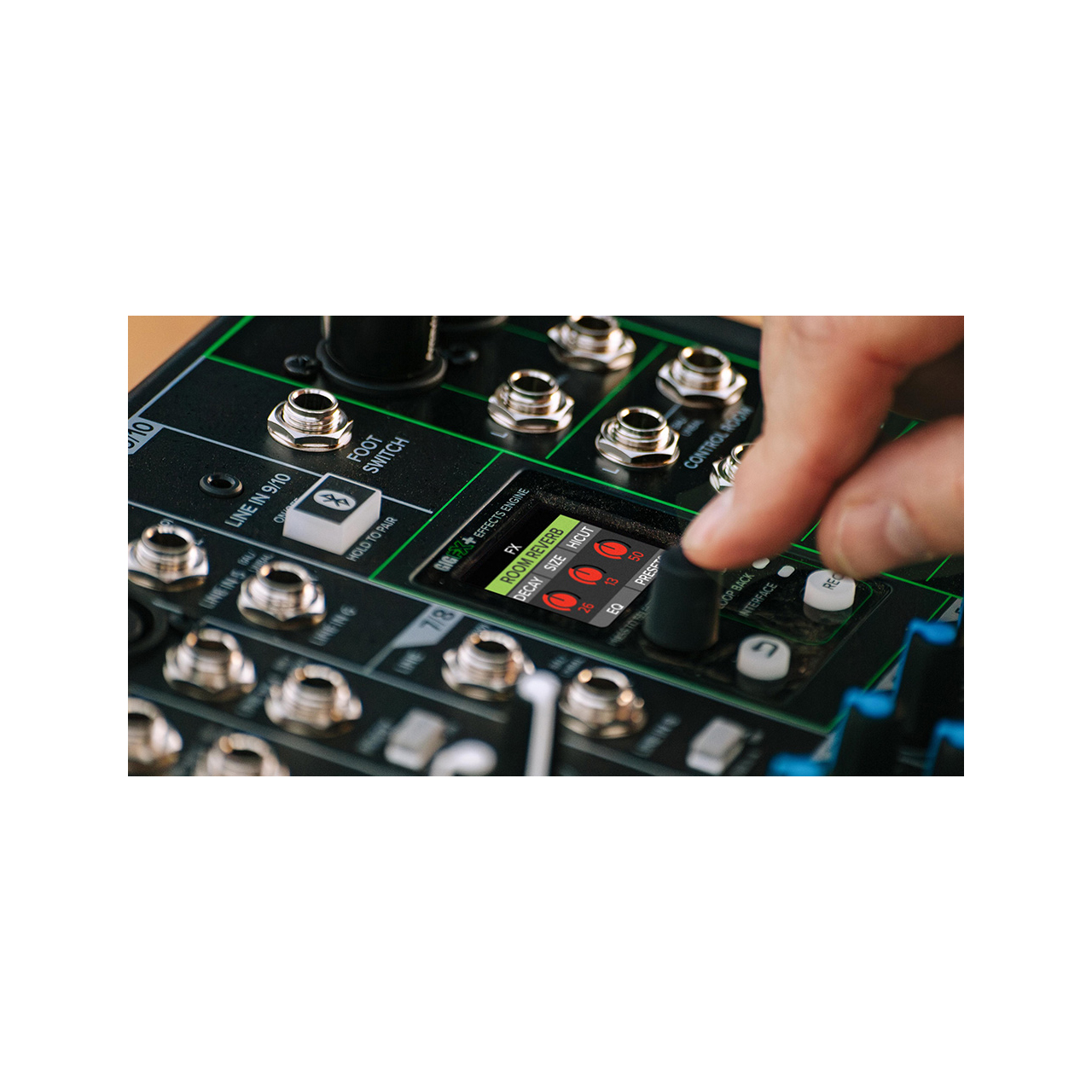

  • Full-color LCD display for editing and saving effects presets
  • 24-bit / 192 kHz 2x4 USB-C audio interface
  • Three USB recording modes: Standard (include FX), Loopback and Interface (channels 1-2 dry)
  • Dedicated USB 1-2 playback with blend control for monitoring computer output and a latency-free feed from the mixer
  • Separate USB 3-4 return on channel 7/8, perfect for playing software instruments and overdubbing
  • Waveform OEM recording software included
  • 4 Onyx mic preamps with up to 60 dB of gain on channels 1-4
  • Hi-Z switches on channels 1 and 2 for direct connection of instruments
  • 100 Hz low-cut filters
  • 3-band EQ on all channels
  • One-knob compression on channels 1 and 2
  • XLR/TRS combo inputs on channels 1 and 2
  • Separate XLR and TRS inputs on channels 3 and 4
  • TRS channel inserts on channels 1-4
  • Stereo 1/4" TRS line inputs on channels 5/6 and 7/8
  • Stereo 1/8" line input on channel 9/10
  • 1/4" footswitch input


• Specifications:

  Noise Characteristics
  • Equivalent Input Noise (EIN) (150Ω Source Impedance, 20Hz - 20kHz):
    - Mic IN to Insert Send OUT, max gain: -126dBu
  • Residual Output Noise:
    - All outputs, master levels off, all channel levels off: -95dBu
    - All outputs, master levels unity, one channel level unity: -80dBu

    Frequency Response
  • Mic Input to Any Output (gain at unity, +0dB/-1dB ): 20Hz - 30kHz

    Distortion (THD-N)
  • Mic Input to Any Output (gain at unity, +0dB/-1dB): 20Hz - 30kHz

    Attenuation and Crosstalk
  • Adjacent Inputs @1kHz: -90dB
  • Inputs to Outputs @1kHz: -80dB
  • Fader Off @ 1kHz: -75dB
  • Mute Switch/Break Switch Mute @ 1kHz: -90dB

    Common Mode Rejection Ratio (CMRR)
  • Mic IN to Main OUT, max gain, 1kHz: 70dB

    Maximum Levels
  • All Inputs: +22dBu
  • Main Mix XLR: +28dBu
  • All Other Outputs: +22dBu

    Impedances
  • Mic IN: 3.3kΩ
  • Channel Insert Return: 10kΩ
  • All Other Inputs: ≥20kΩ
  • Phones Out: 25Ω
  • All Other Outputs: 120Ω Unbalanced, 240Ω Balanced

    Equalization
  • Low: ±15dB @ 80Hz
  • Mid: ±15dB @ 2.5kHz
  • High: ±15dB @ 12kHz
  • Low Cut Filter: 18dB/octave @ 100Hz

    Maximum Voltage Gain
  • Mic Input Channel to:
    - Insert Output: 60dB
    - 1/4" Main Output: 80dB
    - XLR Main Output: 86dB
    - 1/4" Sub Output: 80dB
    - Aux Output (Pre-Fader): 80dB
    - Aux Output (Post-Fader): 90dB
    - FX Send: 80dB
    - USB Output: 70dB
  • Mono Line Input Channel:
    - Insert Output: 40dB
    - 1/4" Main Output: 60dB
    - XLR Main Output: 66dB
    - 1/4" Sub Output: 60dB
    - Aux Output (Pre-Fader): 60dB
    - Aux Output (Post-Fader): 70dB
    - FX Send: 60dB
    - USB Output: 50dB
  • Stereo Line Input Channel:
    - 1/4" Main Output: 20dB
    - XLR Main Output: 26dB
    - 1/4" Sub Output: 20dB
    - Aux Output (Pre-Fader): 20dB
    - Aux Output (Post-Fader): 30dB
    - FX Send: 20dB
    - USB Output: 10dB
  • 1/8" Input To:
    - 1/4" Main Output: 40dB
    - XLR Main Output: 46dB
  • USB Input To:
    - XLR Main Output: 46dB

    Digital Effects
  • Number of Presets: 12

    USB
  • Format: USB 2.0
  • I/O: 1 Stereo Input, 2 Stereo Outputs
  • A/D/A: 24 bit, 44.1kHz, 48kHz, 96kHz, 192kHz

    Phantom Power
  • 48V DC to all Mic channels simultaneously

    Power Requirements
  • Power Connector: 12V 2A Class I Hard-wired wall mount adapter (output), 100V AC - 240V AC, 50 - 60Hz, 0.8A (input)
  • Battery Type: Li-Ion
  • Battery Technology: 11.1V, 5200mAH 57.72Wh, 24V
  • Battery Life: Up to 8 hours
  • Operating Temp: 32°F - 104°F


• Item Includes:

  • 1x Mixer
  • 1x Battery
  • 1x USB Cable
  • 1x Power Cord


• GTIN:

  0810128262507
