Shure SCM-262 1/2 Rack Space Stereo Mixer

ITEM #: SCM-262 MFG #: SCM-262

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$434.00

Our Price:

$310.00

Availability: In Stock
iAvailability Description Popup


SCM-262 - Overview

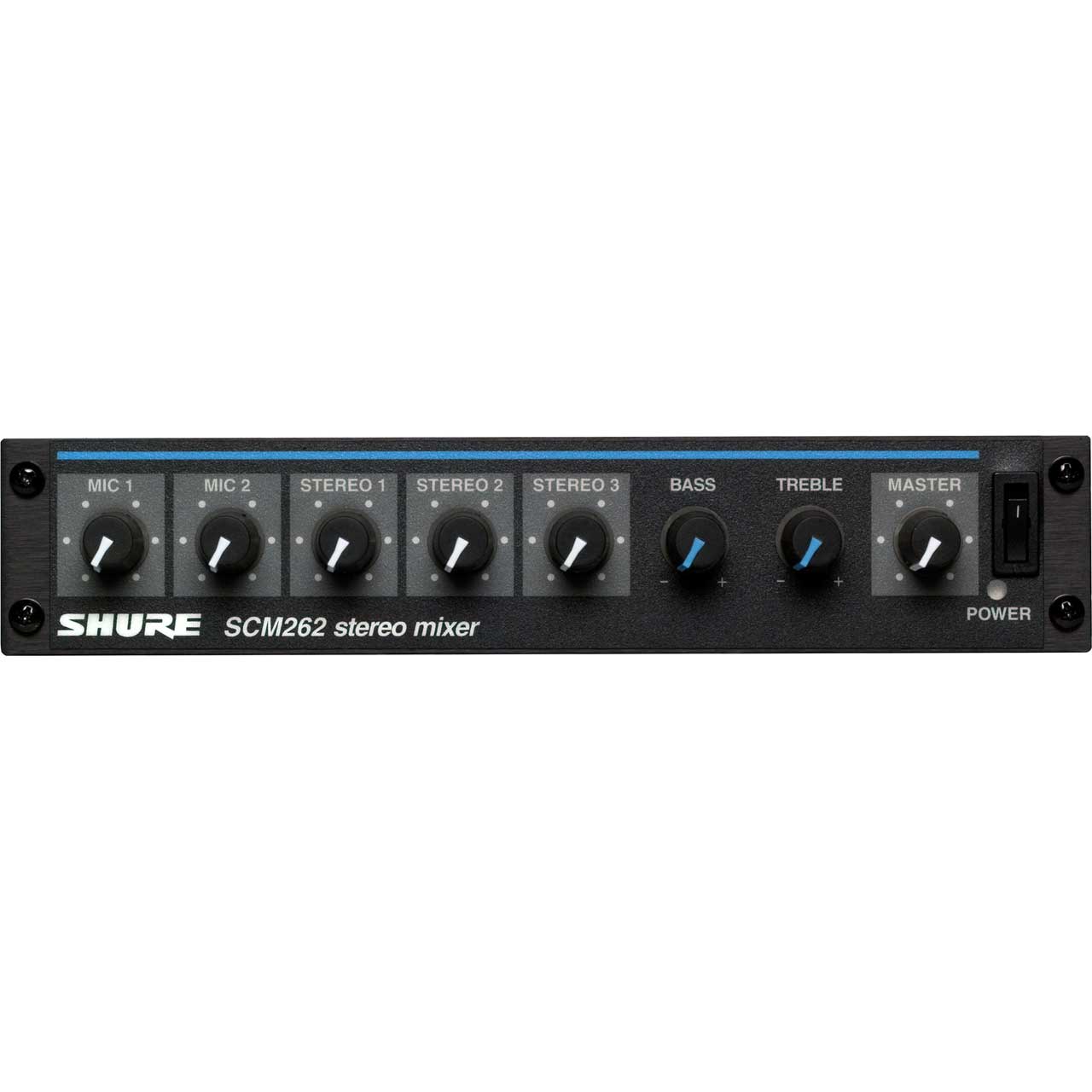

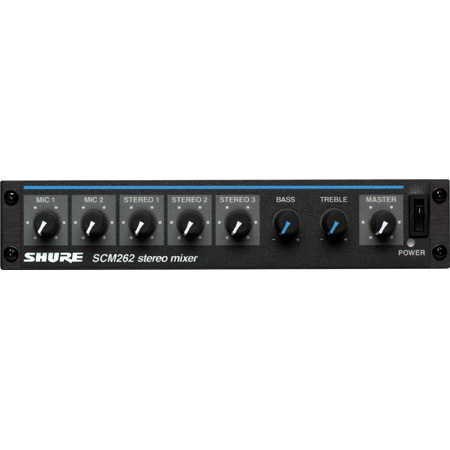

The Right Amount of Mixer! Shure 1/2 Rack Space Stereo Microphone Mixer

The SCM262 Stereo Mixer is designed for restaurants,classrooms, corporate training, aerobics classes, and other situations where a paging/public announcement system is combined with background music or other program material.
*Designed to combine paging with background music.
*One active-balanced, XLR microphone input channel.
*One active-balanced XLR microphone and 1/4-in. TRS
line input channel.
*Three STEREO INPUT channels.

Many smaller installations require an easy-to-use mixer with very specific features and capabilities. You need to integrate your microphones and stereo equipment without paying for features you'll never use. And of course, you'll need dependability. The SCM262 provides features tailor-made for your smaller application -- such as defeatable "ducking," "jukebox mute," and "12V Phantom."

Simplicity
The SCM262 has been designed with simplicity in mind, allowing you to focus on your job, not your audio system.

The SCM262 is the latest addition to our growing Installed Sound category and provides all the performance, durability, and value synonymous with the Shure name.

  • Features:

    • Defeatable "ducking"
    • "Jukebox mute"

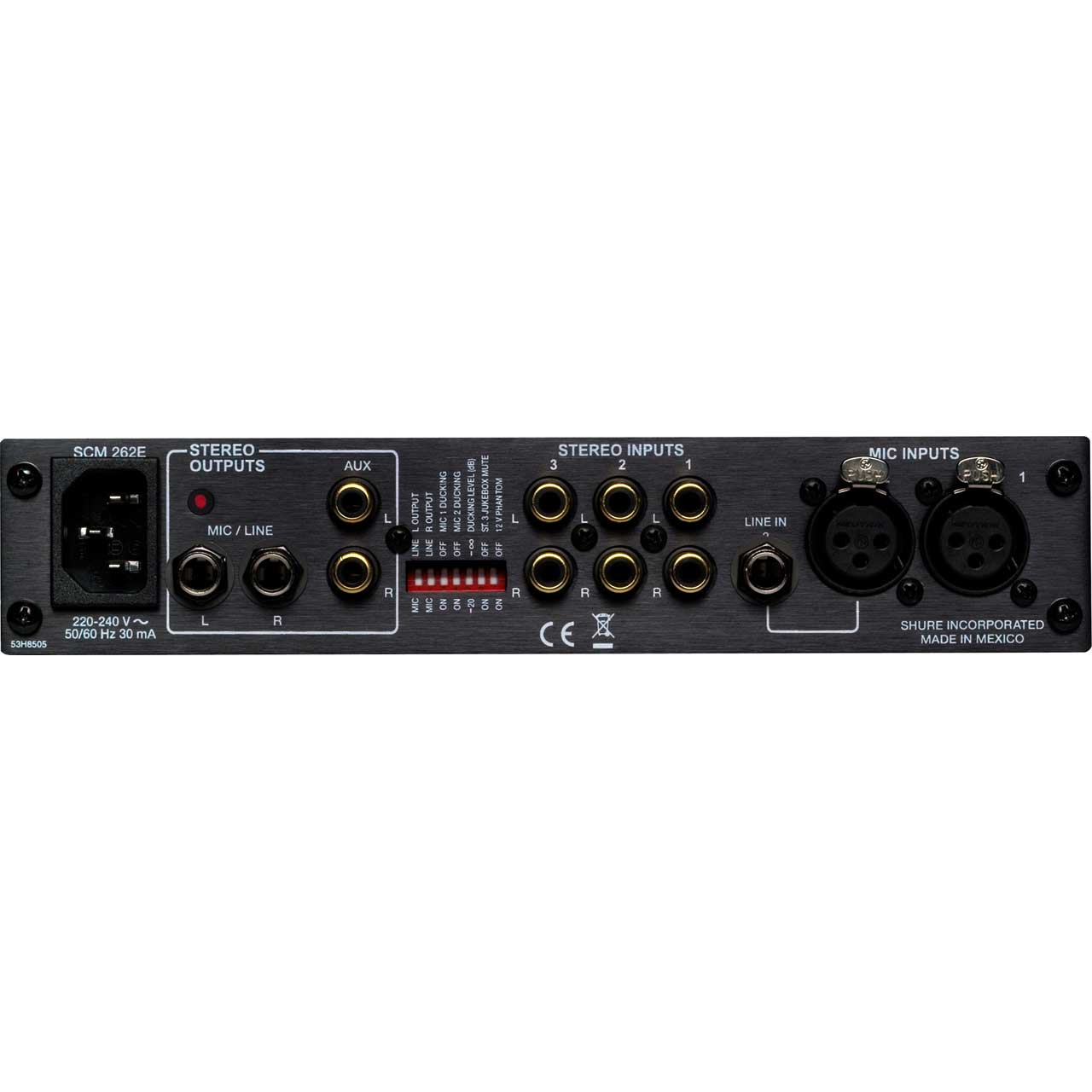

    • One active balanced XLR mic input channel
    • One active balanced XLR mic and 1/4 inch TRS line input channel
    • Three stereo input channels (Six phono connectors)
    • One unbalanced stereo output (Two phono connectors)
    • One balanced stereo mic/line output (Two 1/4 inch TRS connectors)
    • 12V phantom power for condenser microphones
    • All in a half-rack chassis

  • Specifications:

    • Frequency Response (Ref 1 kHz, channel and master controls centered): MIC/LINE Inputs: 150 Hz to 20 kHz +/- 2 dB; AUX Inputs: 20 Hz to 20 kHz +/- 2 dB
    • Low-Cut Filter (Microphone inputs only): 3dB down at 80 Hz, 6 dB/octave
    • Total Harmonic Distortion: <0.25% at +4 dBu output level, (through 22 Hz -- 22 kHz filter; MIC Input 1 and Master at center, all other controls full counterclockwise)
    • Equivalent Input Hum and Noise(150 W source; 22 Hz -- 22 kHz): 125 dBV
    • Output Hum and Noise (22 Hz -- 22 kHz; channel controls full counterclockwise): Master full counterclockwise: -85 dBV; Master full clockwise: -60 dBV
    • Common Mode Rejection: >70 dB at 1 kHz
    • Polarity: All inputs to all outputs are non-inverting.
    • Overload and Shorting Protection: Shorting outputs, even for prolonged periods, causes no damage. Microphone inputs are not damaged by signals up to +10 dBV; Line and Aux inputs by signals up to +28 dBV
    • Equalization: Bass (Low-frequency shelving, corner frequency at 250 Hz): +/- 6 dB; Treble (High-frequency shelving, corner frequency at 4 kHz): +/- 6 dB
    • Phantom Power: 12 Vdc open-circuit through 680 ohm resistors
    • Operating Voltage: SCM262: 100--120 Vac, 50/60 Hz, 60 mA
    • Overall Dimensions: 1.72 x 8.60 x 6.37 in.
    • Net Weight: 2 lbs, 5 oz

  • Item Includes:

    • 1 - Rack Mount kit

  • GTIN:

    0042406060424
