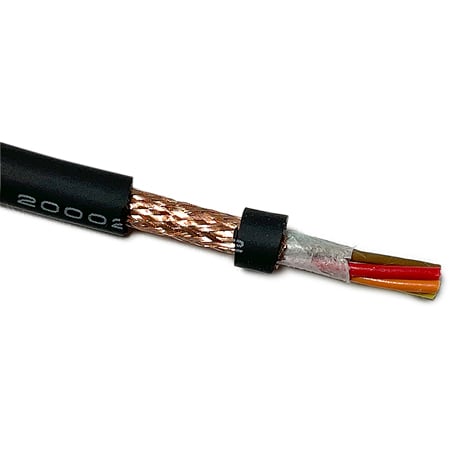

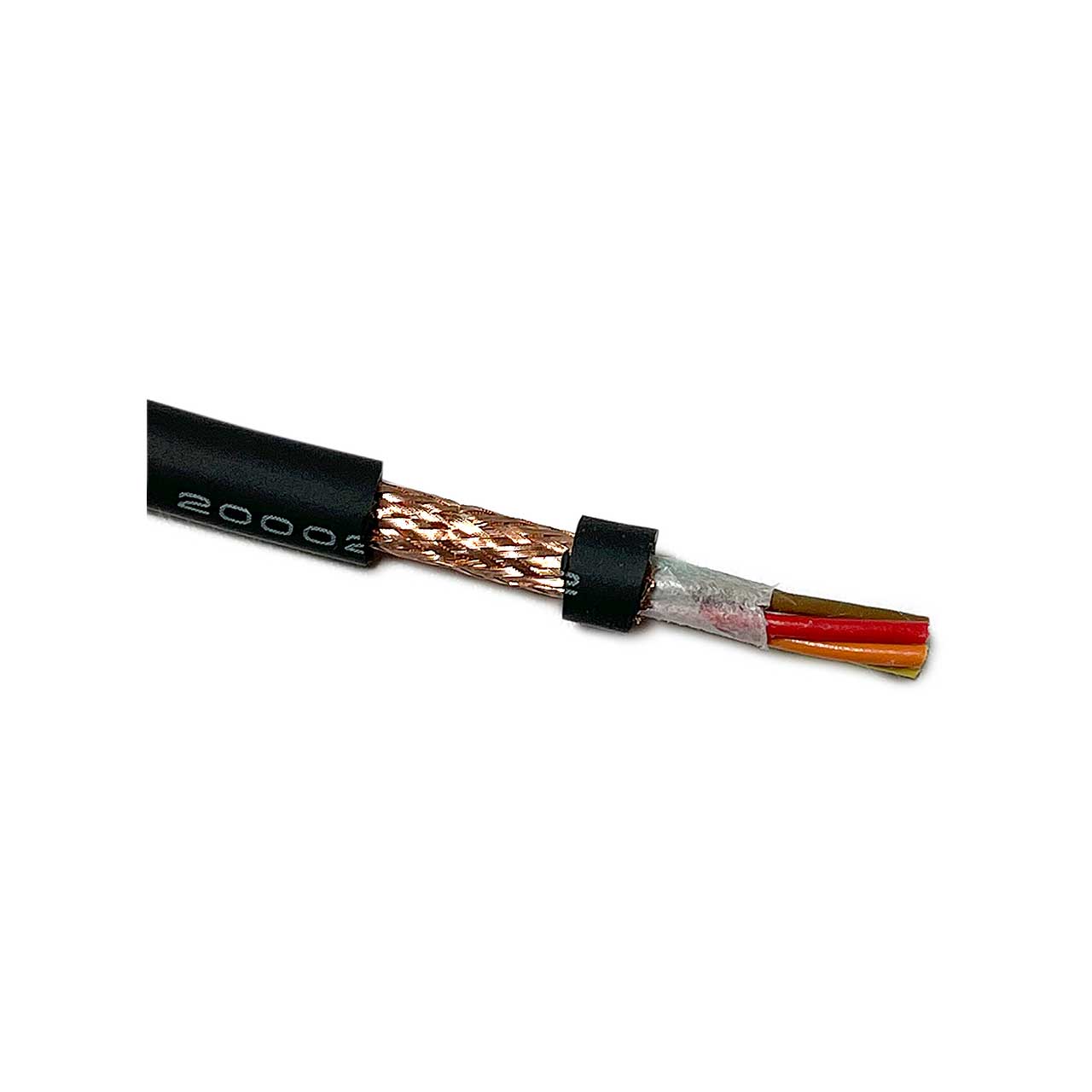

Mogami W2757 5 Conductor 26AWG Superflex Miniature Control Cable - Black - 500 Foot

ITEM #: MG-W2757-500 MFG #: W2757-00-500

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$525.00

Our Price:

$419.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


W2757-00-500 - Overview

The Mogami Bulk W2757 is a 5 conductor overall shielded cable. It is comprised of about two times larger conductor size as mechatro overall shield cable series.This cableis suitable where larger conductor size, flexibility and a compact size are required. Miniature unshielded multiconductor control cable series were originally designed for a remote control use when a wireless remote control equipment was not developed. Therefore, it is designed to be mechanically very strong with reignforce polyester fiber inside of each conductor which is MOGAMI original development,

  • Specifications:

    • DC Resistance at 20°C 0.13O/m(0.040O/Ft)
    • Electromagnetic Noise 0.1mV Max.
    • Voltage Breakdown Must withstand at DC 500V/15sec.
    • Insulation Resistance 10000 MO x m Min. at DC 500V , 20°C
    • Emigration Non-emigrant to ABS resin
    • Applicable Temperature -20°C? +70°C(-4°F? +158°F)
    • Standard UL 758 AWM 20002 VW-1SC 30V 80°C
    • Ov. Dia. (mm): 5.0O (0.197).
    • Type of Shield: Braid.
    • Color: Black

  • GTIN:

    0801813004502
