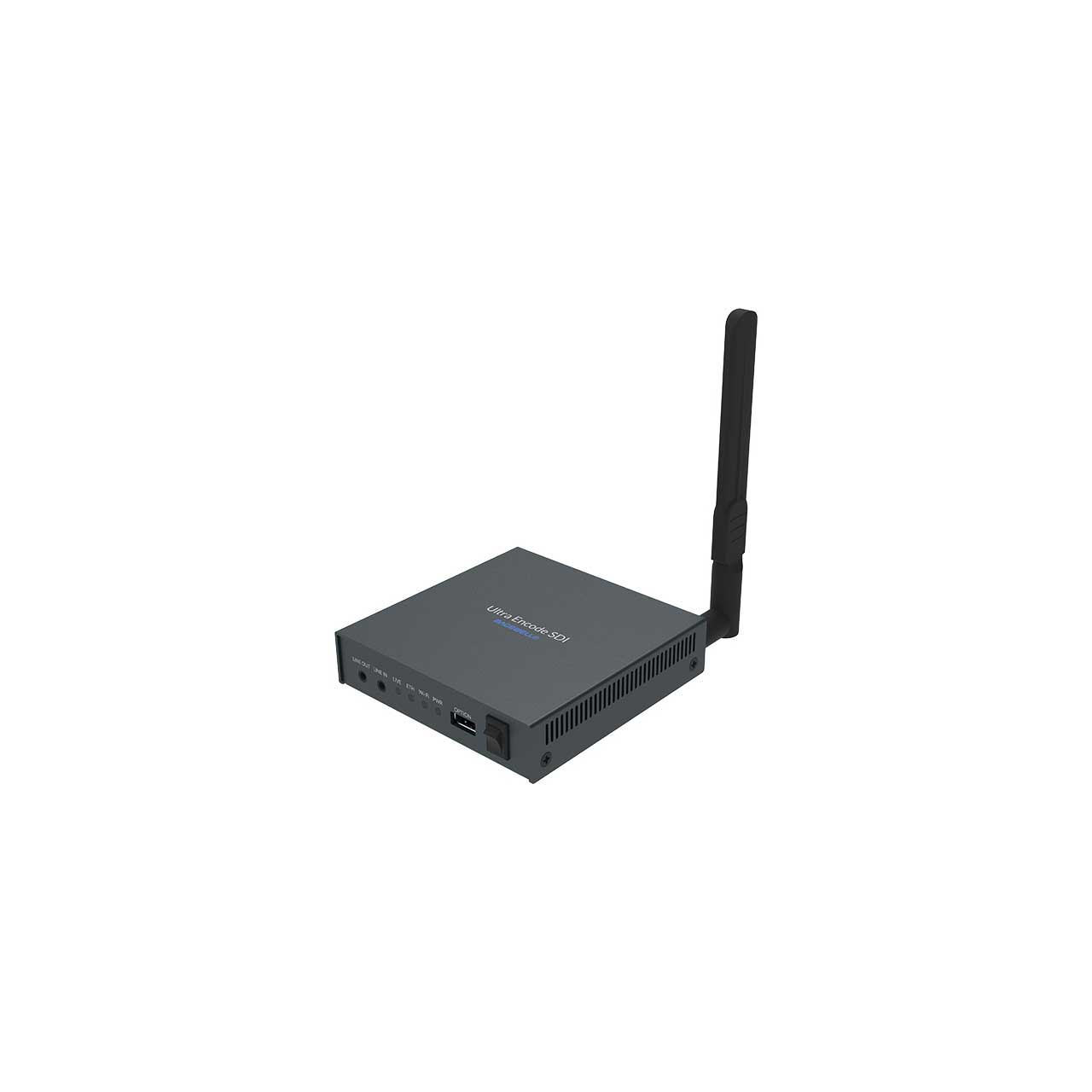

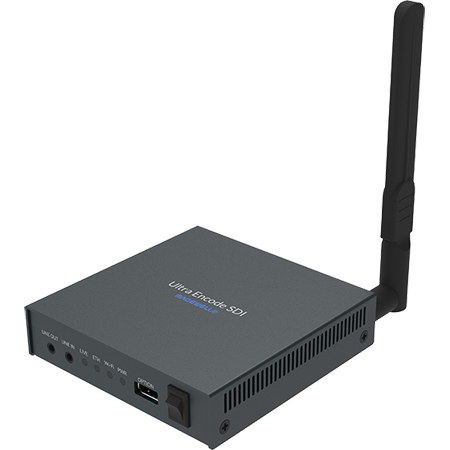

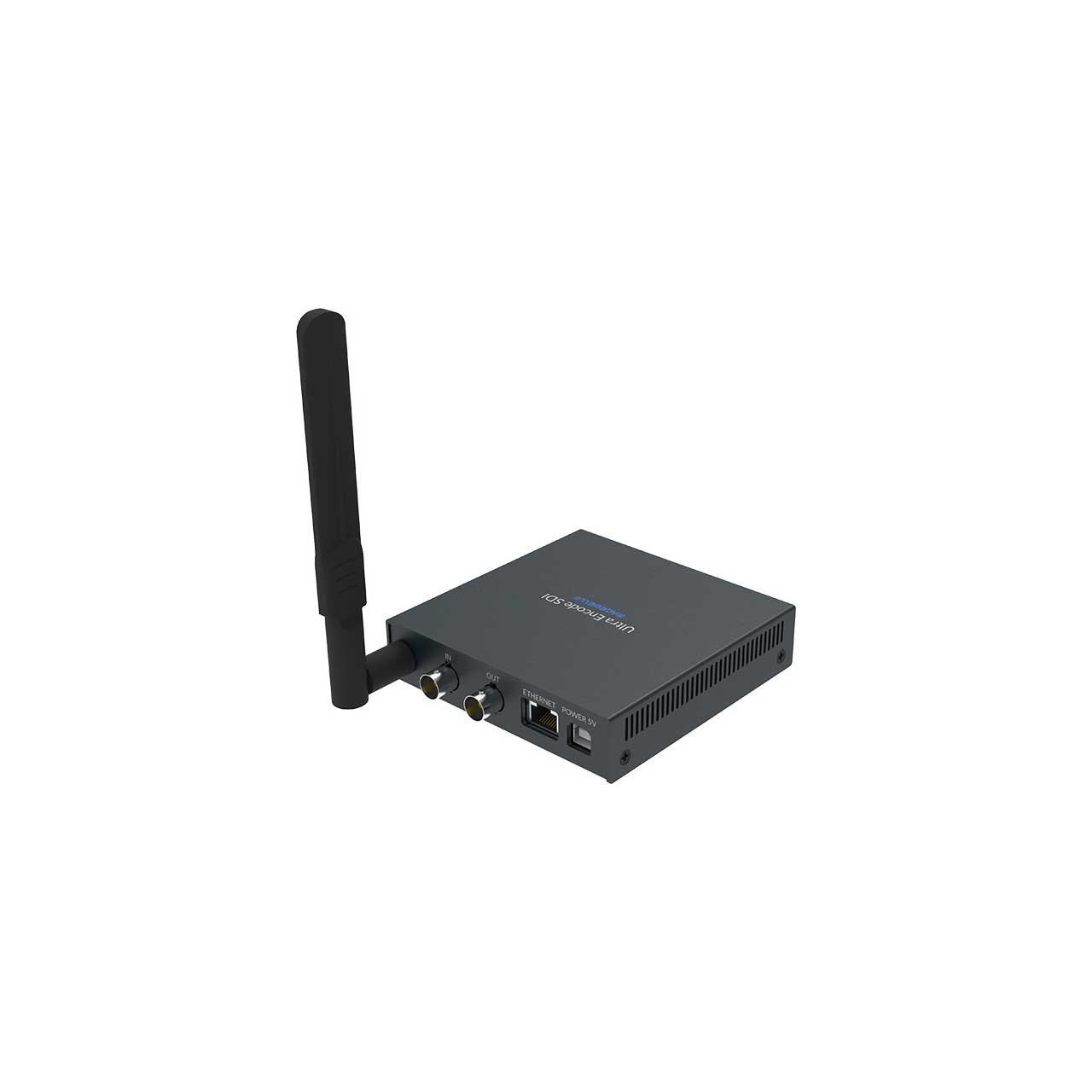

Magewell 53120 Ultra Encode SDI Capture Card - Universal Encoder - H.264/H.265

Name: Magewell 53120 Ultra Encode SDI Capture Card - Universal Encoder - H.264/H.265
Brand: Magewell
SKU: MGW-53120
Price: 469.00 USD
Availability: PreSale

ITEM #: MGW-53120 MFG #: 53120

Magewell

Our Price:

$469.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

53120 - Overview

The Magewell Ultra Encode SDI universal live media encoders offers systems integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

The Ultra Encode SDI supports multiple video encoding formats - including H.264, H.265 (HEVC), and NDI®|HX2 - and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, TS over UDP, TS over RTP, and TVU's ISSP technology.

The Ultra Encode SDI is ideal for broadcast video and audio, natively support live broadcast for Facebook, YouTube, and Twitch, as well as your own site, with multiplatform distribution. To customize encoder perfectly for your session, we have Web UI, where device work status, a thumbnail preview window and tabs for streaming settings, analytics, and stream health monitoring are provided.

Features:
- Support RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/HLS/TS over UDP/TS over RTP/TVU ISSP streaming protocols
- Dual stream encoding - main-stream and sub-stream
- 8 overlays for main and sub streams each
- Specify main stream or sub stream for each streaming session
- H.264 and H.265 (HEVC) Video encoders
- AAC Audio encoder
- Web UI - a remote network management system - provides webpage configuration with kinds of customization for device functions
Specifications:
- Input & Loop-through
- Video
- Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
- Typical resolution/frame rate:
- 2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 25/29.97/30/50/59.94/60
- 720x576 25p/50i (PAL SD)
- 720x480 29.97p/59.94i (NTSC SD)
- Color sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4
- Audio
- SDI embedded audio: 16-Channel, 24-bit, 192kHz sample rate
- Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate

  Encode:
- Video
- Bitrate: 16Mbps
- Dual-stream encoding: main stream and sub stream
- Main stream Resolution/frame rate:
- 2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/15/10/5
- 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
- 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
- 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
- 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
- 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
- 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
- 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
- 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
- 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
- Native CEA-608/608 over 708 captions
- Sub stream: Supports enabling/disabling sub stream
- Resolution/frame rate:
- 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
- 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
- 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
- 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
- 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
- 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
- 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
- 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
- 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
- H.264/H.265 (HEVC) Codec:
- System timecode or RP-188 standard timecode for SEI Message setting
- H.265 (HEVC) SEI message supports carrying interlacing signal mark
- Video aspect ratio conversion
- Encode videos after de-interlacing
- Audio:
- Encode up to 4 audio streams
- 2-channel AAC audio
- Bitrate: 256/192/128/96/64/48/32/16 kbps
- Output source embedded audio and line in through LINE OUT

  Live Stream
- Natively supports streaming to:
- Twitch
- YouTube, publishing to timeline or a new event and setting "made for kids".
- Facebook, enabling backup stream and publishing to timeline or a new event.
- Supports streaming protocols:
- RTSP
- RTMP/RTMPS
- SRT Caller/SRT Listener
- NDI®|HX2
- HLS
- TS over UDP/TS over RTP
- TVU ISSP
- Supports sessions over the same streaming protocol, such as: up to 6 sessions of TS over RTP and TS over UDP simultaneously; up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously); up to 6 sessions of RTMP and RTMPS simultaneously
- Supports streaming only 1 session of HLS, RTSP, or NDI|HX2
- Supports specifying a video stream and an audio stream for each streaming session

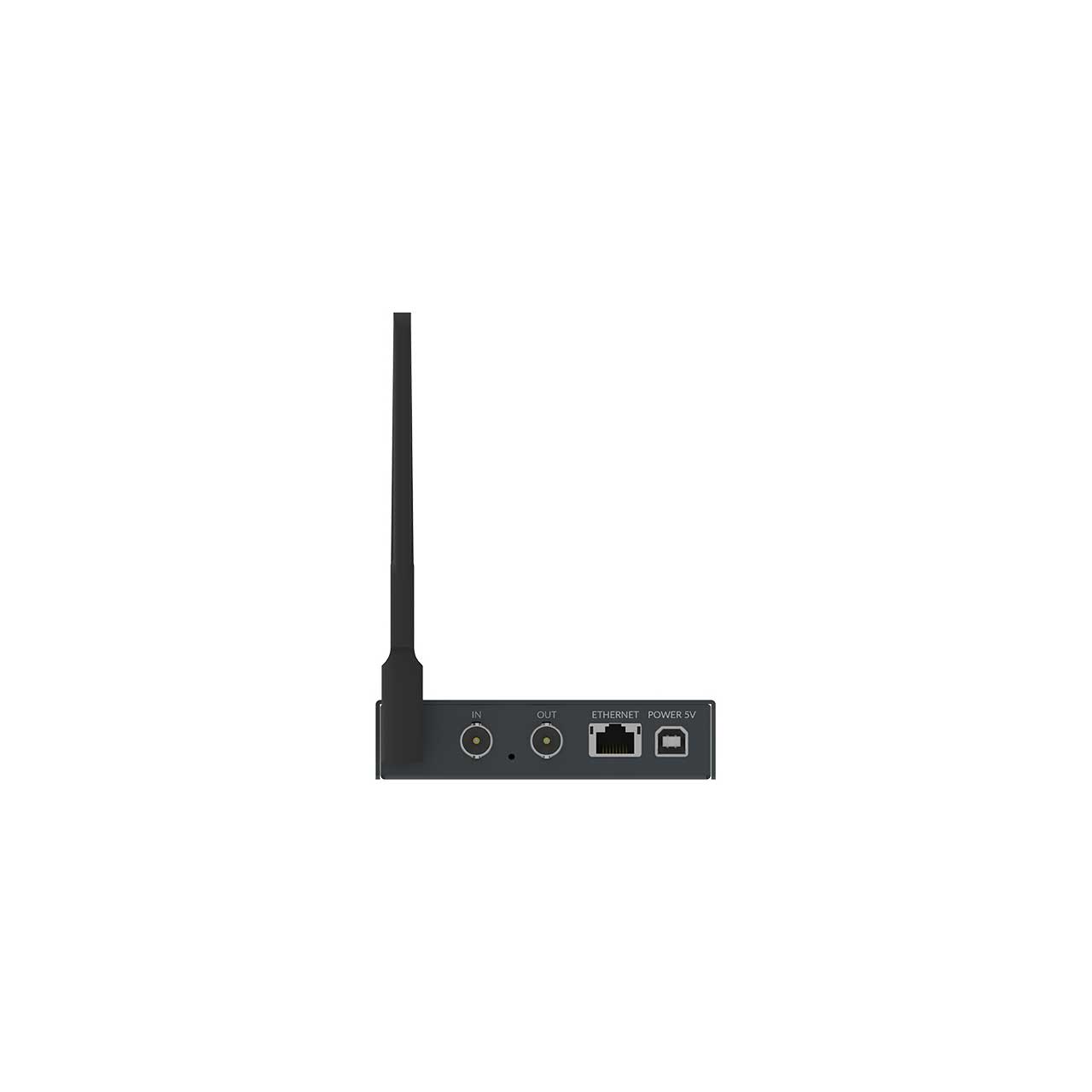

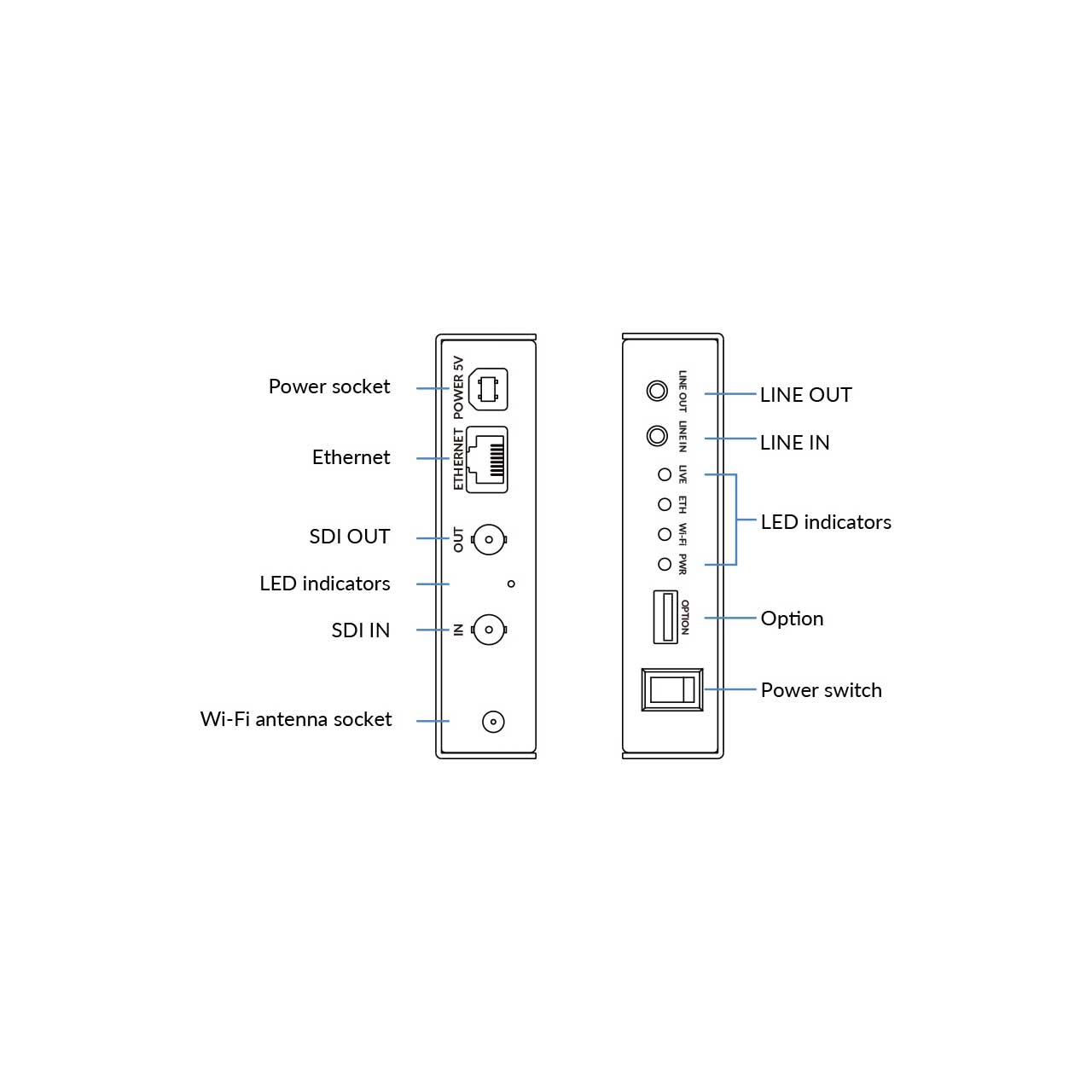

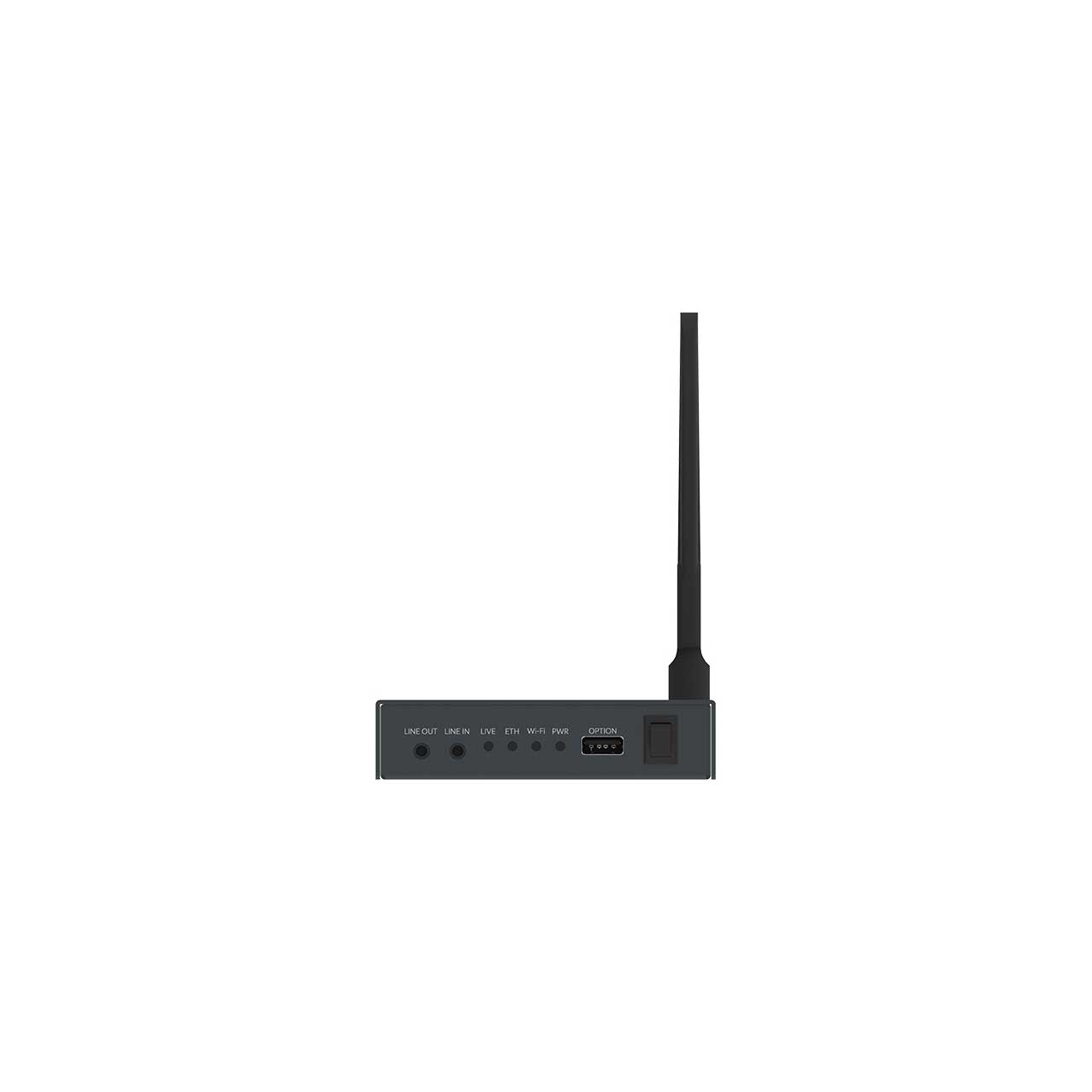

- Inputs/Output Ports
- 2x SD/HD/3G BNC ports (1x Input 1x Loop-through)
- 1x 3.5mm LINE IN
- 1x 3.5mm LINE OUT
- 2x USB Type-A
Item Includes:
- 1x 5V Power Adapter
- 1x USB Type A to Type B cable
- 1x Wi-Fi Antenna
- 1x T-bracket
Warranty:
- 2-Year Limited Warranty
