Magewell B40210000 Pro Convert HDMI Plus Module for Modator Chassis - HD HDMI to NDI with Loop-through

B40210000 - Overview

• Features:

  • Supports up to 4096x2160 60fps (4:2:0) or 30fps (4:4:4), down-converting them to HD NDI
  • Centrally manageable via the Modator chassis and Magewell Control Hub


• Specifications:

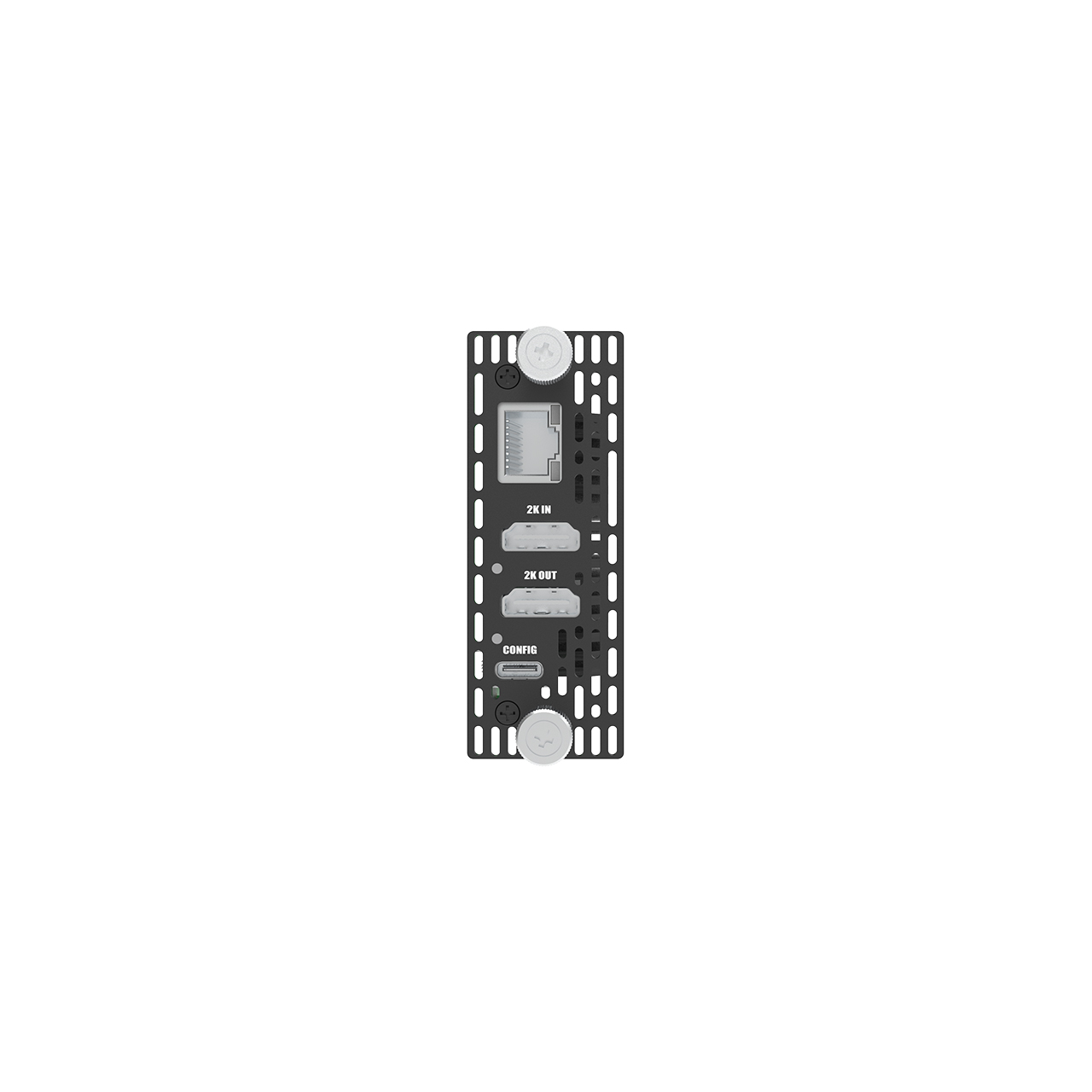

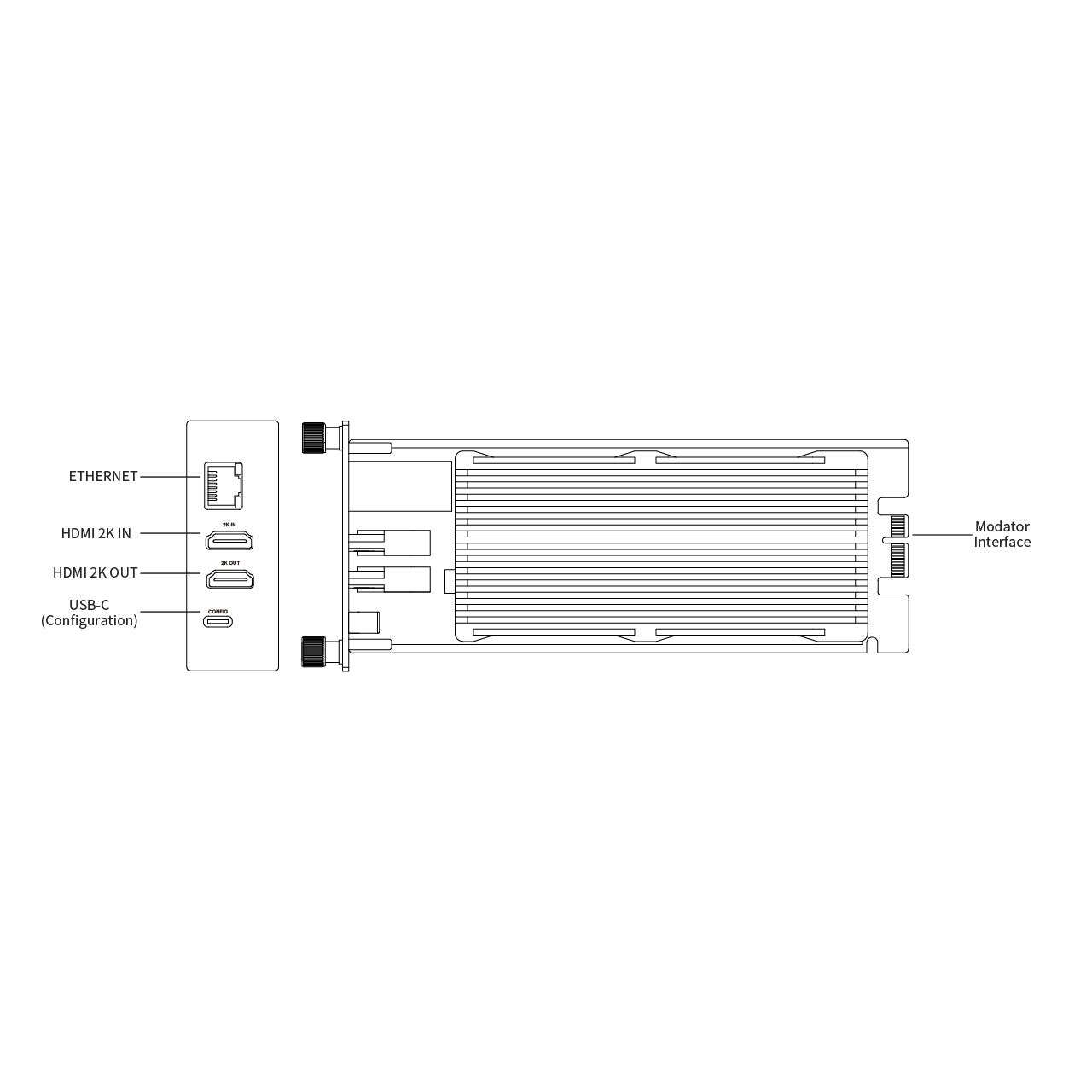

  • Interfaces
    - 1x RJ45 1000Mbps Ethernet port
    - 1x USB Type-C port for configuration
    - 1x HDMI 1.4 input port
    - 1x HDMI 1.4 output port
    - 1x Modator interface for connecting to Modator 2U (hot-swappable)

    Input & Loop Through Features
  • Max. input & loop through signal:
    - 4096x2160 30fps 4:4:4/4:2:2
    - 4096x2160 60fps 4:2:0
  • Input videos at any format by customizing the EDID of input port
  • Supports RGB and YUV BT.601/709 signals
  • Supports 8-channel HDMI-embedded audio

    NDI® Encoding Features
  • Encode and output real-time streams of Full NDI® at up to 2048x2160 120fps 4:2:2 8-bit
  • Output the same resolution as input or any custom resolution. Typical outputs include:
    - 2048x1080p/1920x1080p, 23.98/24/25/29.97/30/50/59.94/60
    - 1280x720p, 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    - 1920x1080i, 25/29.97/30/50/59.94/60
    - 720x480p/720x480i, 59.94/60/119.88/120
    - 720x576p/720x576i, 50/100
  • Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
  • Encode 8-channel NDI-embedded audio
  • Supports NDI® 5.x

    LED Indicators
  • Input Signal:
    - On: Locked
    - Off: Unlocked
  • Loop Through Signal:
    - On: Device connected and signal detected
    - Off: Undetected

    Physical
  • Form Factor: 7.26" x 1.18" x 3.21" (184.4mm x 30.0mm x 81.5mm)
  • Weight: ≈10.41oz (295g)

    Power Consumption
  • Max Power Consumption: 6.2W

    Working Environment
  • Operating Temperature: 14°F - 113°F (-10°C - 45°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Relative Humidity: 5% to 90% non-condensing
