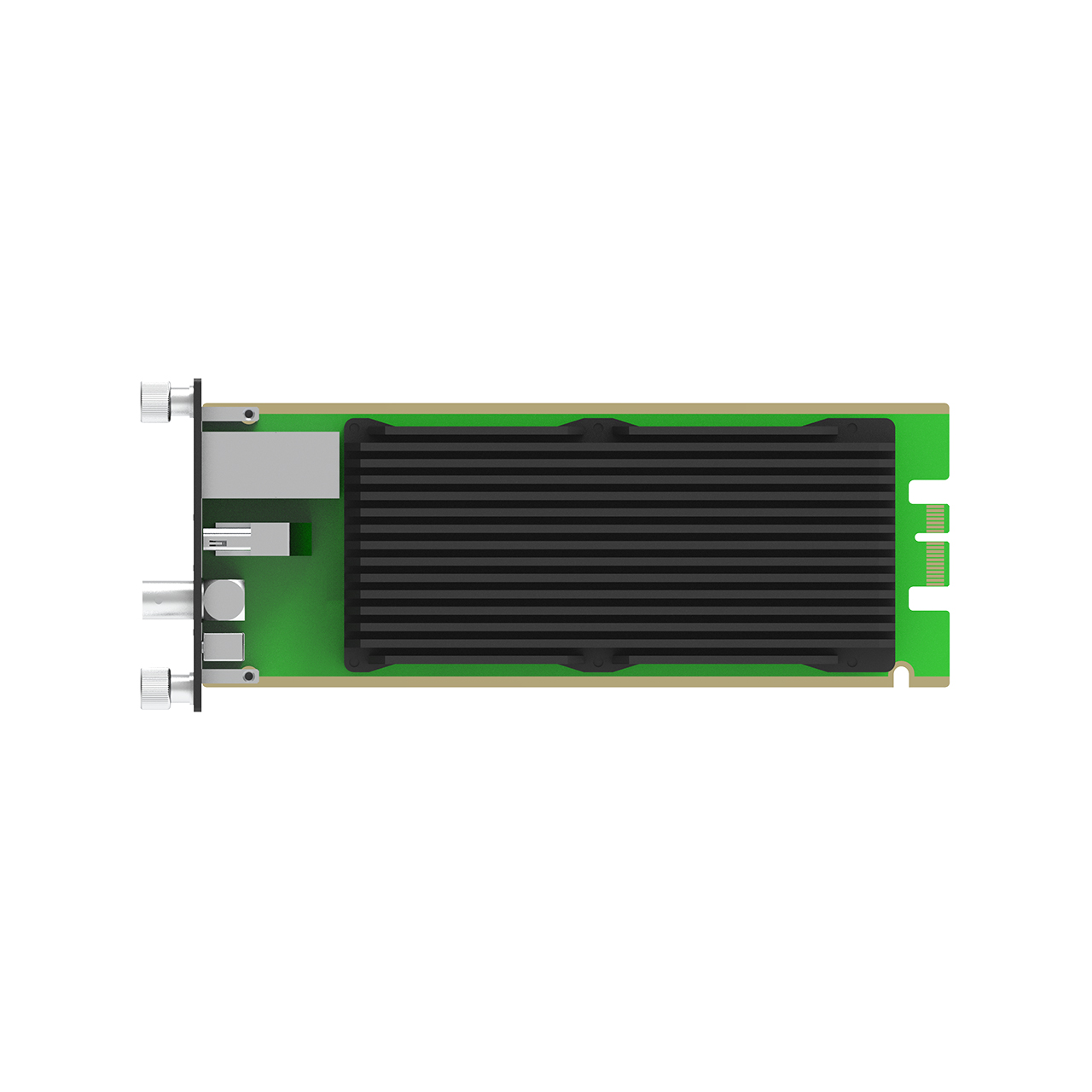

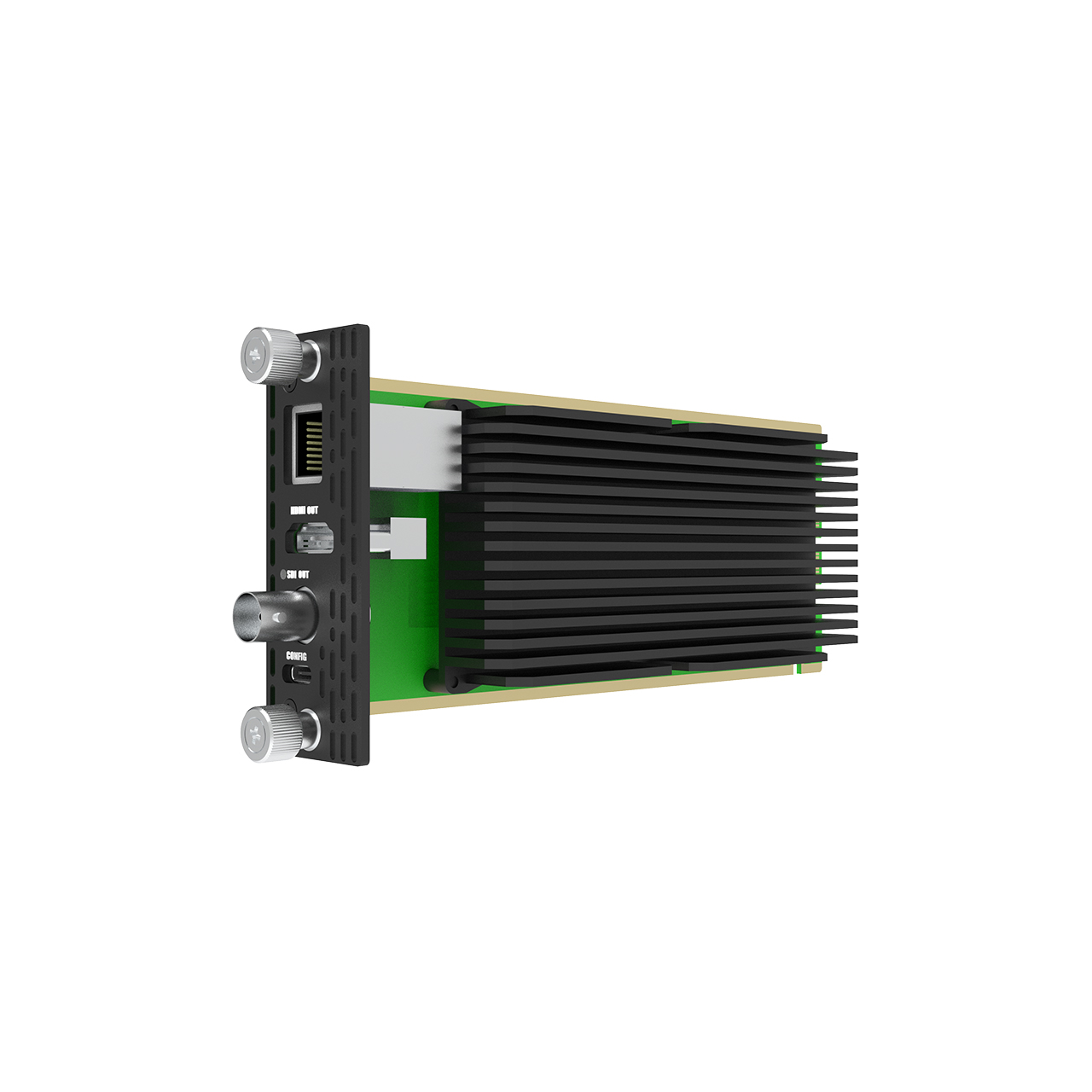

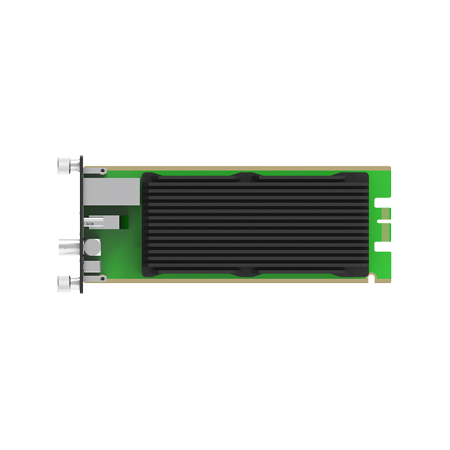

Magewell B42110000 Pro Convert for NDI to AIO Module for Modator Chassis - NDI to HDMI/SDI with Loop-through

B42110000 - Overview

• Features:

  • Decodes high-bandwidth NDI and NDI HX including earlier variants into HDMI and SDI
  • Centrally manageable via the Modator chassis and Magewell Control Hub


• Specifications:

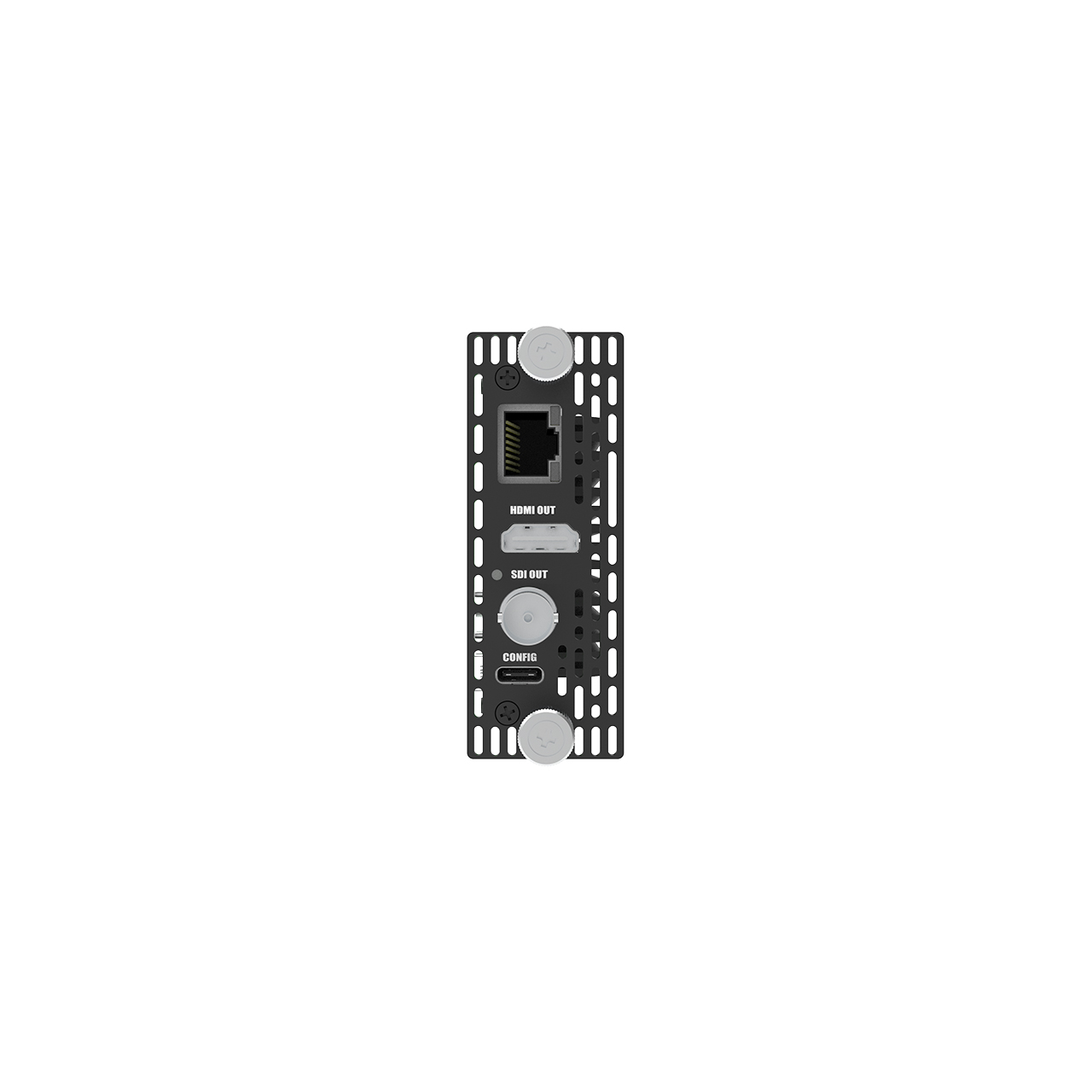

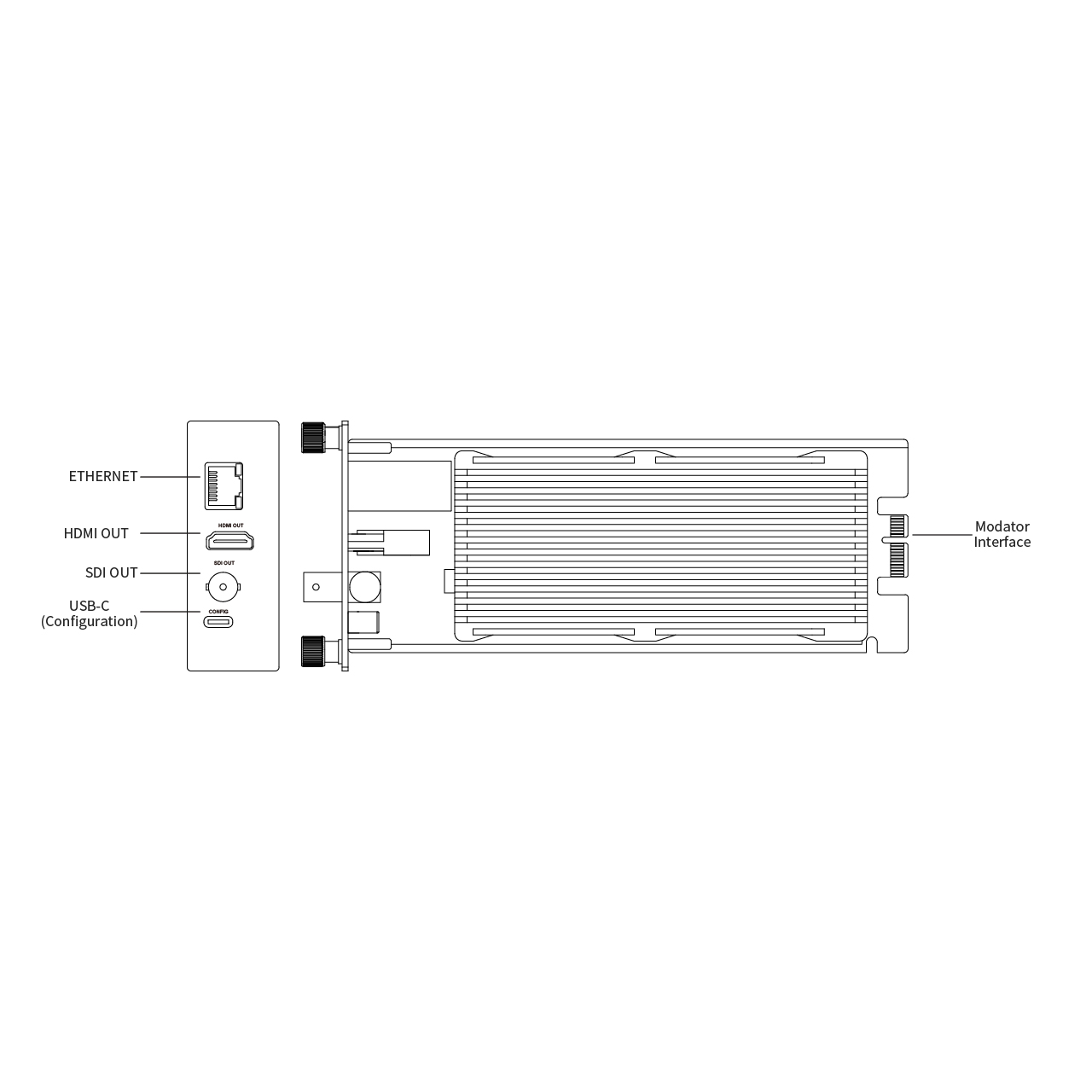

  • Interfaces
    - 1x RJ45 1000Mbps Ethernet port
    - 1x USB Type-C port for configuration
    - 1x USB Type-A 3.0 port for connecting peripherals
    - 1x HDMI 2.0 output port
    - 1x Modator interface for connecting to Modator 2U (hot-swappable)

    Decoding Features
  • Decode up to 2Kp60 streams of Full NDI®, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
  • Simultaneously decode and output HDMI and SDI signals
  • Decode H.264/H.265 video
  • Decode AAC/MP3 audio
  • Supports NDI® 5.x

    HDMI Output Features
  • Max. output: 1920x1080p60
  • Supports YUV BT.601/709 signals
  • Supports 48KHz 8-channel audio output

    SDI Output Features
  • Max. output: 1920x1080p60. Supported output formats are:
    - 1920x1080p, 23.98/24/25/29.97/30/50/59.94/60
    - 1920x1080i, 50/59.94/60
    - 1280x720p, 24/25/29.97/30/50/59.94/60
    - 720x576p, 50
    - 720x576i, 50
    - 720x480i, 59.94
  • Supports YUV BT.601/709 signals
  • Supports 48KHz 8-channel audio output
  • Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standards
  • Output 3G-SDI signal with a transmitted distance greater than 150m

    Web UI
  • Register with Magewell Control Hub for remote centralized management
  • Supports configuring and managing via Web UI
  • Provides comprehensive information regarding the device and decoded signals in real-time
  • Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
  • Supports updating firmware
  • Supports USB RNDIS/ECM
  • Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provides HTTP APIs

    LED Indicators
  • Decode Status Indicators:
    - On: Decoding
    - Blinks: Decoding error
    - Off: Source unselected

    Physical
  • Form Factor: 7.26" x 1.18" x 3.21" (184.4mm x 30.0mm x 81.5mm)
  • Weight: ≈10.58oz (300g)

    Power Consumption
  • Max Power Consumption: 5.2W

    Working Environment
  • Operating Temperature: 14°F - 113°F (-10°C - 45°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Relative Humidity: 5% to 90% non-condensing
