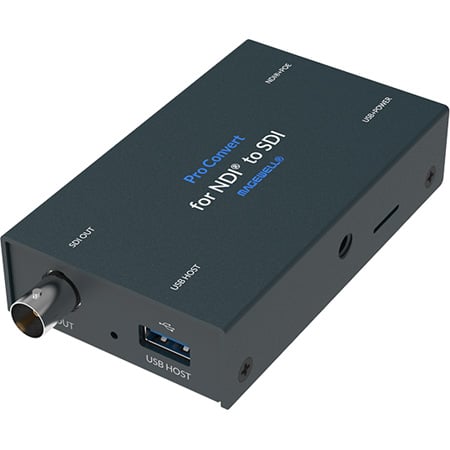

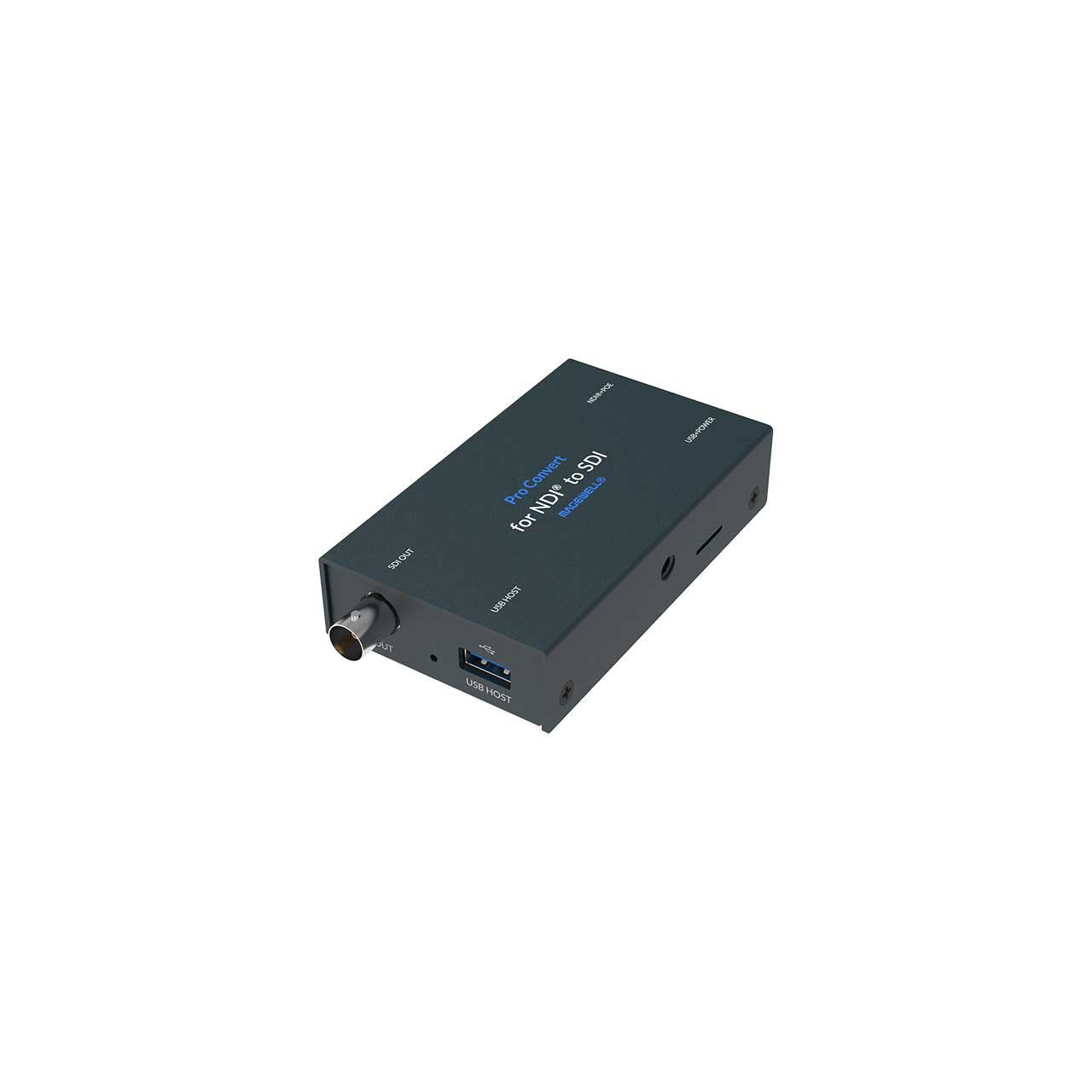

Magewell 64150 ProConvert - Converts a live NDI Stream into SDI with SD/HD/3G SDI/USB 3.0 Type A

64150 - Overview

• Features:

  • Connects baseband presentation or distribution equipment into IP-based media networks
  • Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
  • Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP


• Specifications:

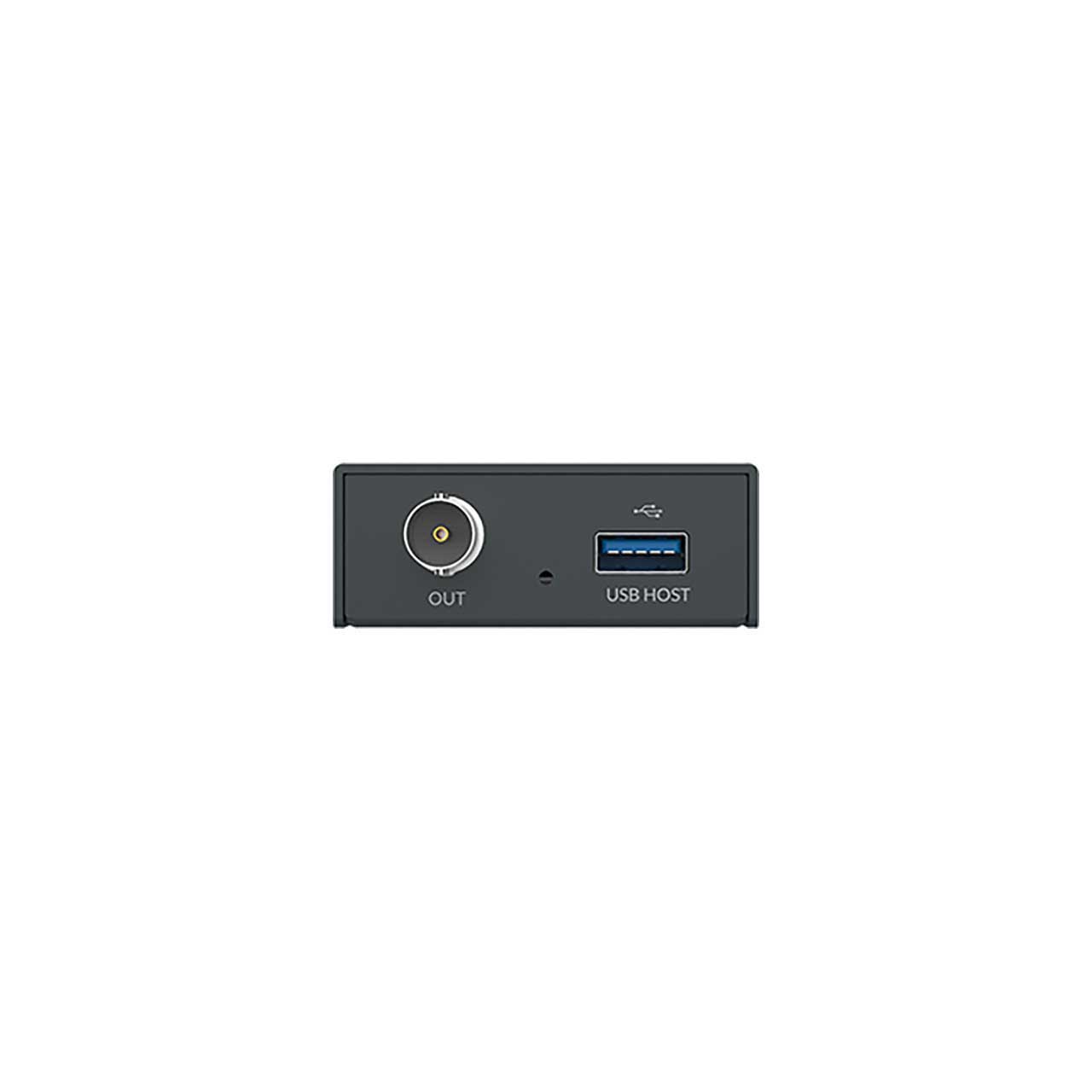

  • SDI Output
  • BNC: SD/HD/3G SDI
  • Max Output: 1920x1080p60.
  • Supported output formats are:
    1920x1080p60/59.94/50/30/29.97/25/24/23.98
    1920x1080i60/59.94/50
    1280x720p60/59.94/50/30/29.97/25/24/23.98
    720x576i50
    720x480i59.94
  • Support YUV BT.601, YUV BT.709 signals
  • Support 48KHz 16-bit 8-channel audio output

    Decoding Features
  • Decoding 1080p60 streams of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
  • Support NDI 4.5
  • Support H.264/H.265 video decoders
  • Support AAC/MP3 audio decoders

    Web GUI Management
  • Provide comprehensive information regarding the device and input signals in real-time
  • Allow to configure how an input signal is processed and decoded, including: OSD setting, deinterlacing, resolution, frame rate, AR conversion, Audio gain, sample rate and audio channel mapping, Network connection, Update firmware, USB RNDIS/ECM, IE/Edge/Firefox/Chrome/Safari/Opera web browsers, and Provide HTTP APIs.

    Supported Web Browsers
  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

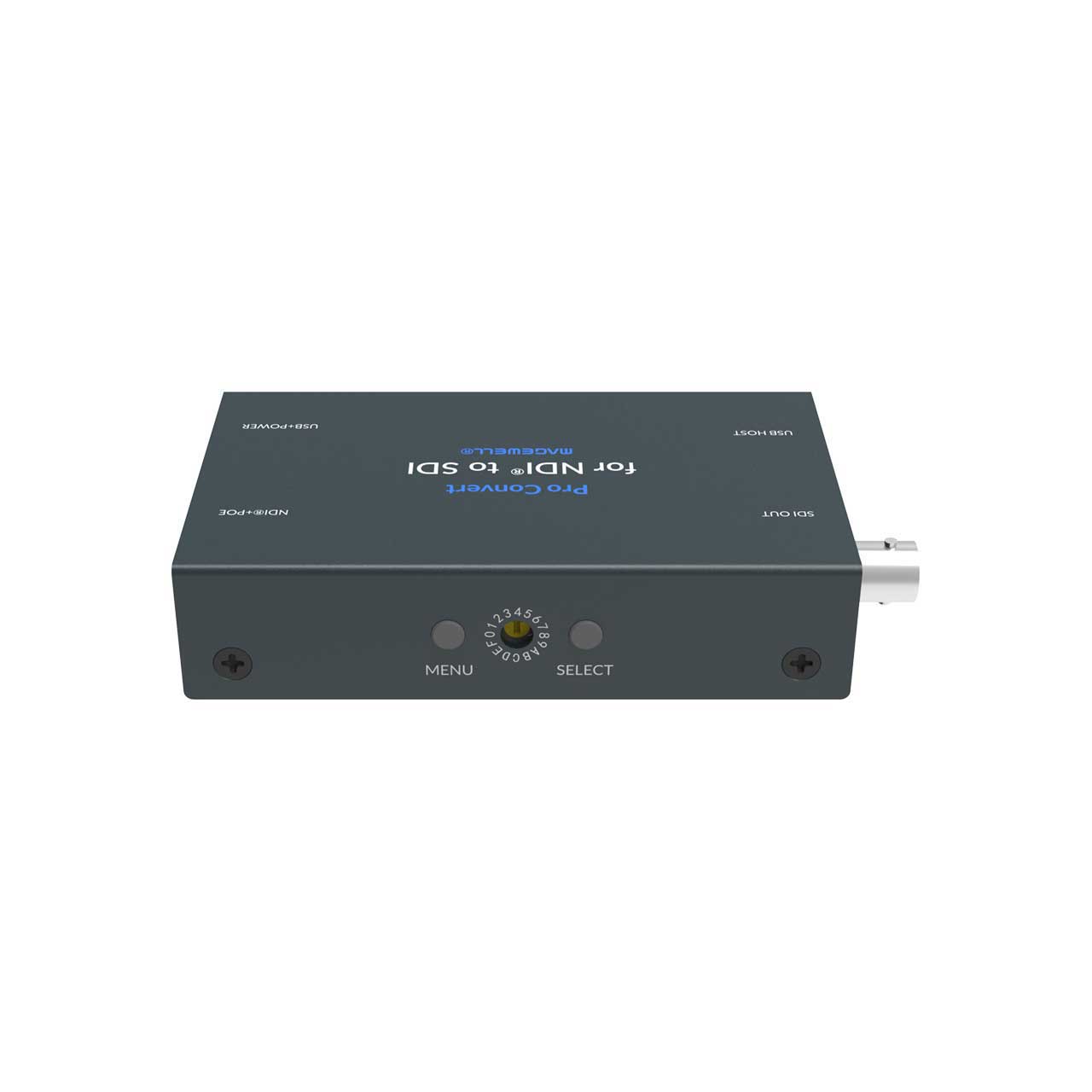

    On-board Control Buttons
  • MENU: press to display the menu, or cycle through the options
  • SELECT: press to display the menu, enter current option, or confirm the selection
  • 16 Position Rotary DIP Switch: set board-index from 0 to F

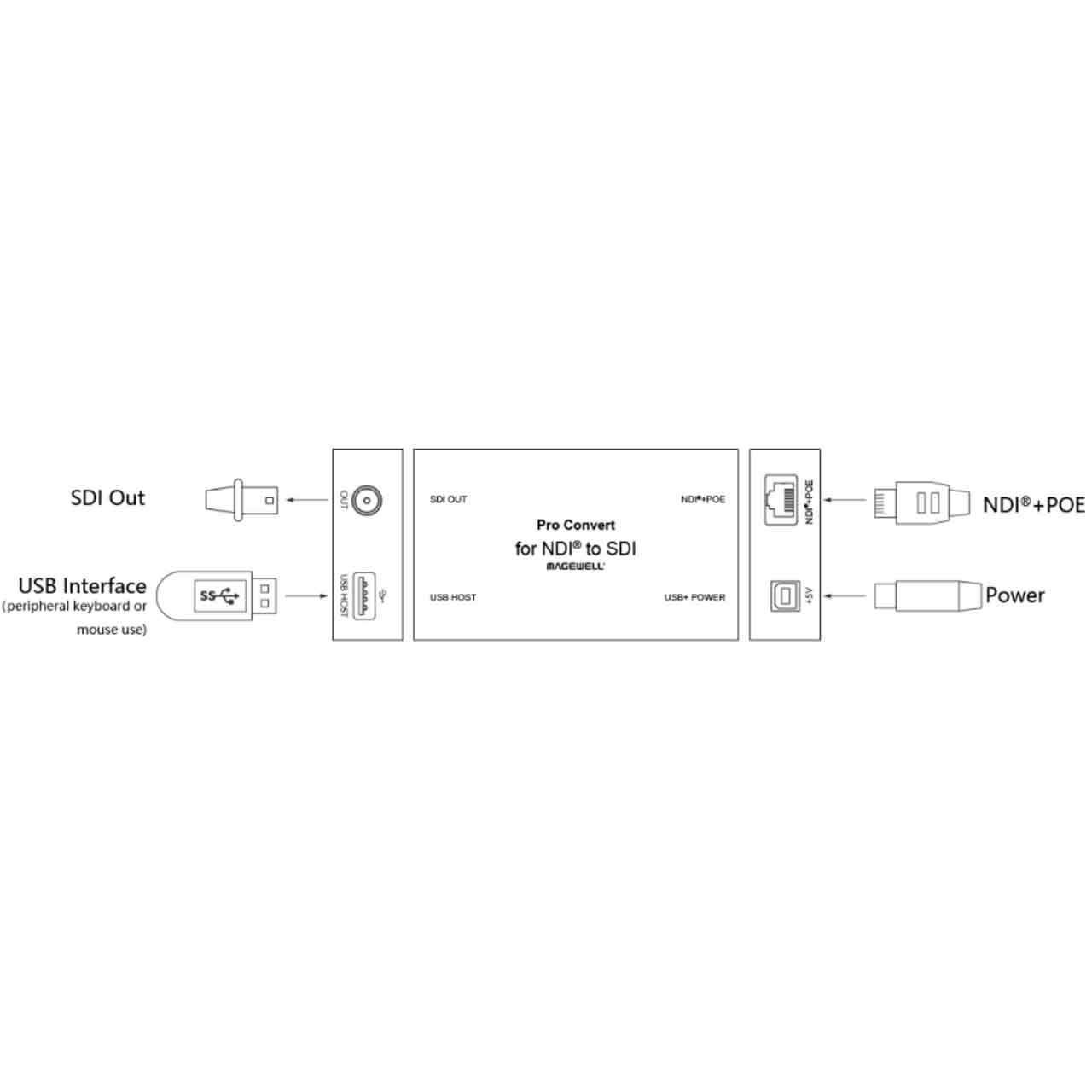

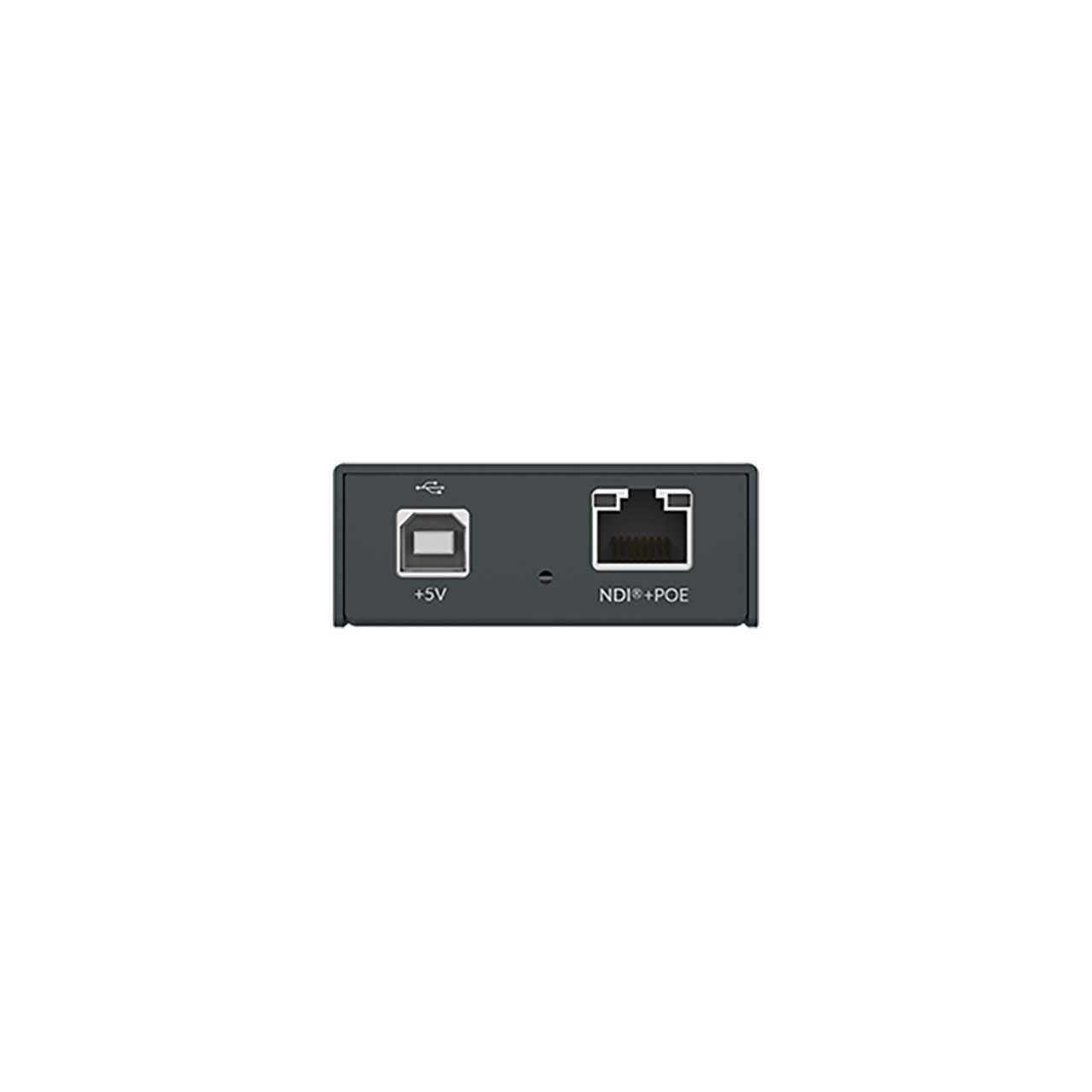

    Network Interfaces
  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

    USB Interface
  • USB2.0 Type B - 5V/2.1A power supply / USB RNDIS/ECM
  • USB3.0 Type A - connecting peripherals (keyboard and/or mouse) to set up device

    LED Indicator
    Power LED status indicators:
  • On: power connected
  • Off: power unconnected
    Decode LED status indicators:
  • On: decoding in progress
  • Blinks: decoding error
  • Off: source unselected

    Form Factor
  • 100.9mm (L) x 60.2mm (W) x 23.3mm (H)

    Power Consumption
  • 5V max current: ~1.05A
  • Max power consumption: ~5.5W

    Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: -20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing


• Item Includes:

  • 1x Pro Convert for NDI to SDI
  • 1x USB 2.0 A to B cable
  • 1x 5V/2.1A power adaptor
  • 1x L-bracket
  • 1x Screw Mounting Hole
  • 1x 1/4-20" mounting hole


• Warranty:

  • 2-year Warranty


• GTIN:

  8143950201348
