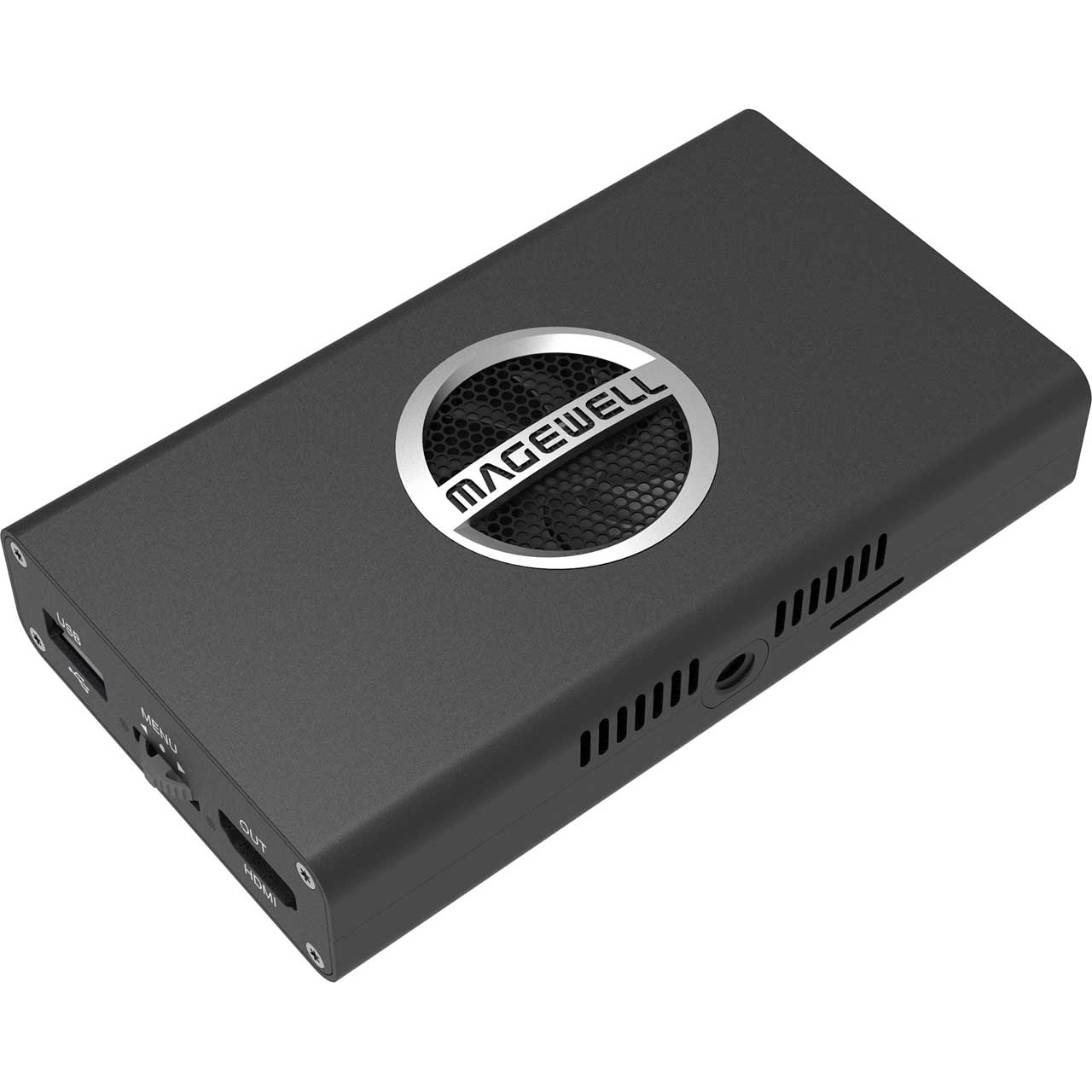

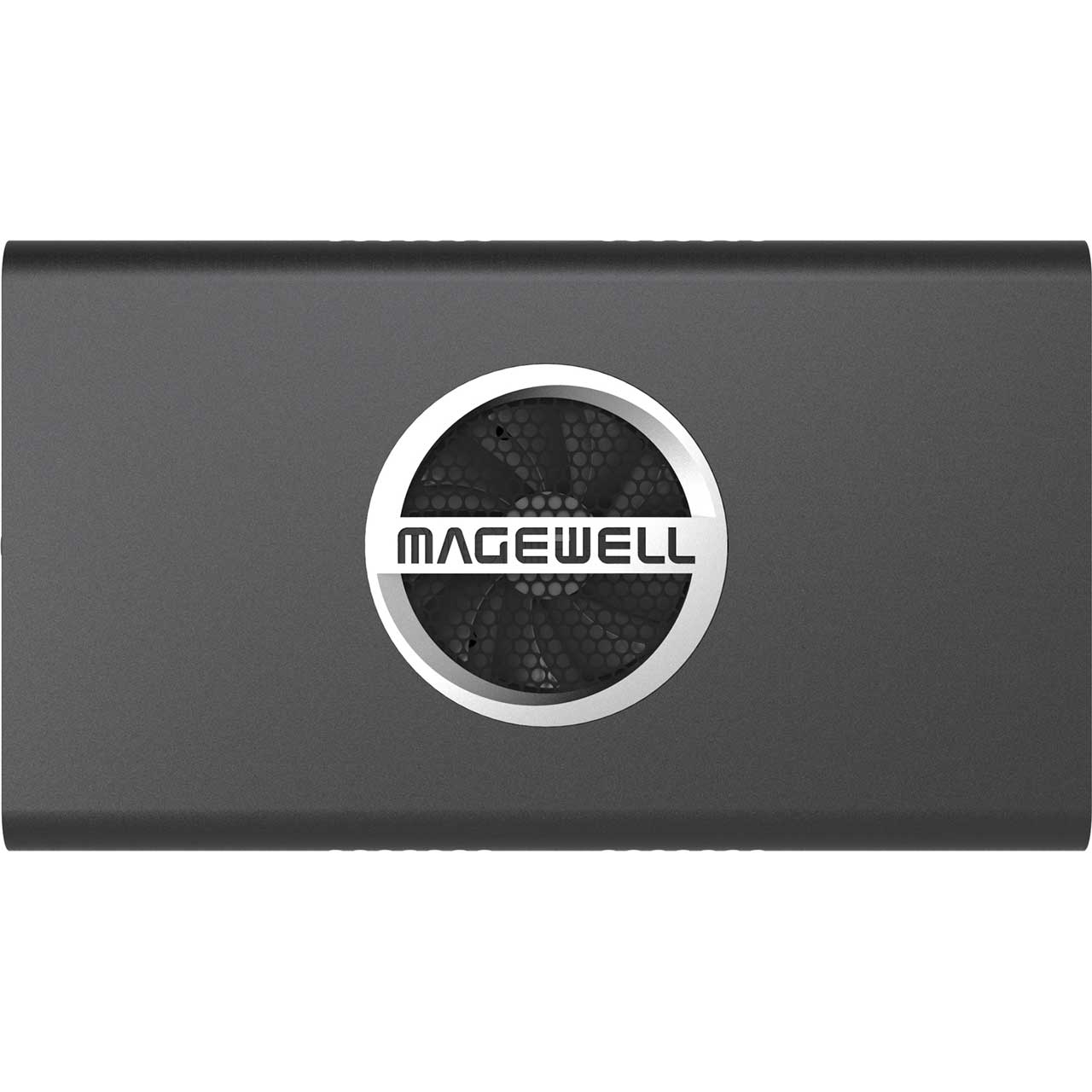

Magewell 64110 Pro Convert NDI HX to HDMI 4K Converter Stand Alone 4K60 IP Stream Decoder

64110 - Overview

• Features:

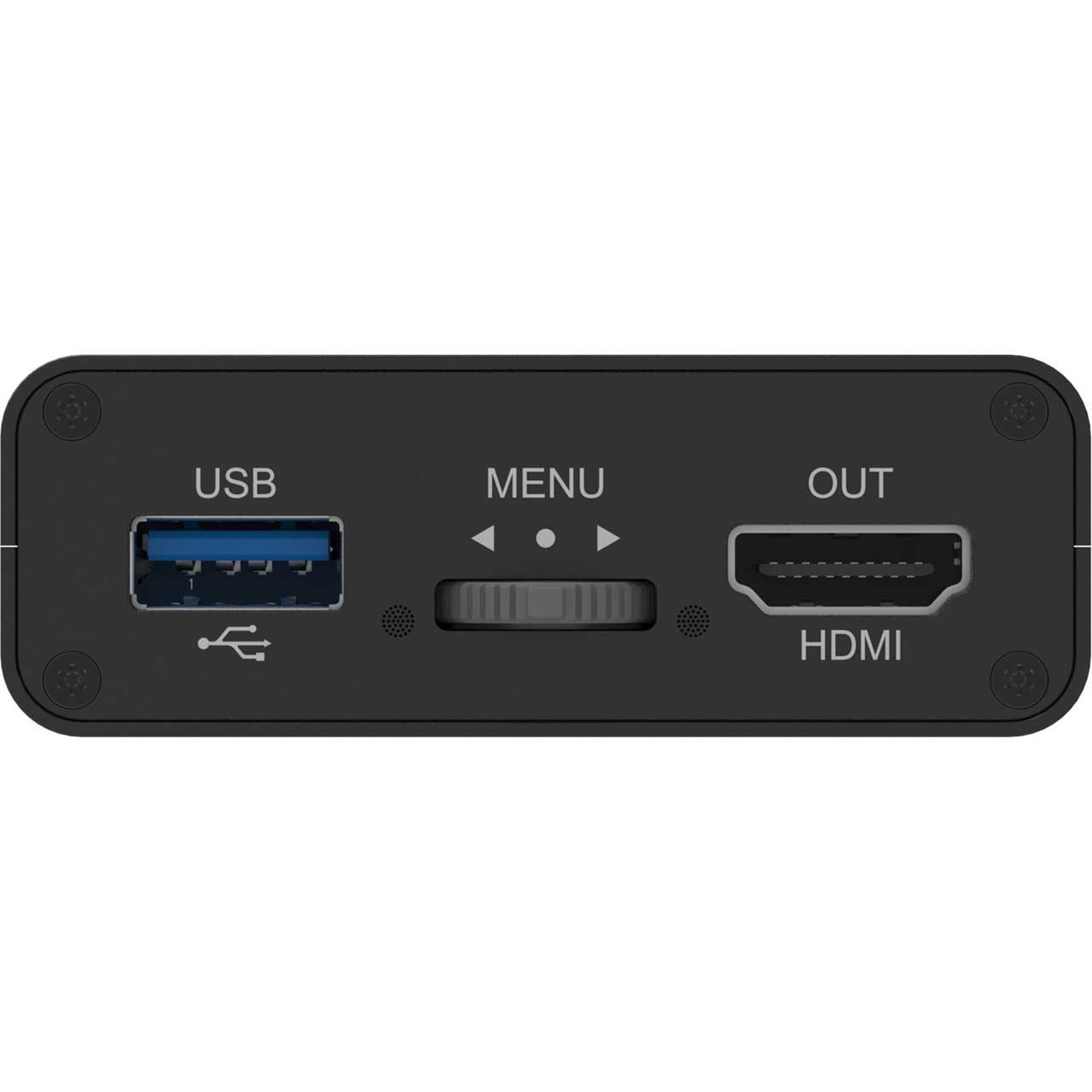

  • Output interfaces
  • HDMI
  • DVI-D 1.0
  • HDMI 1.4
  • HDMI 2.0

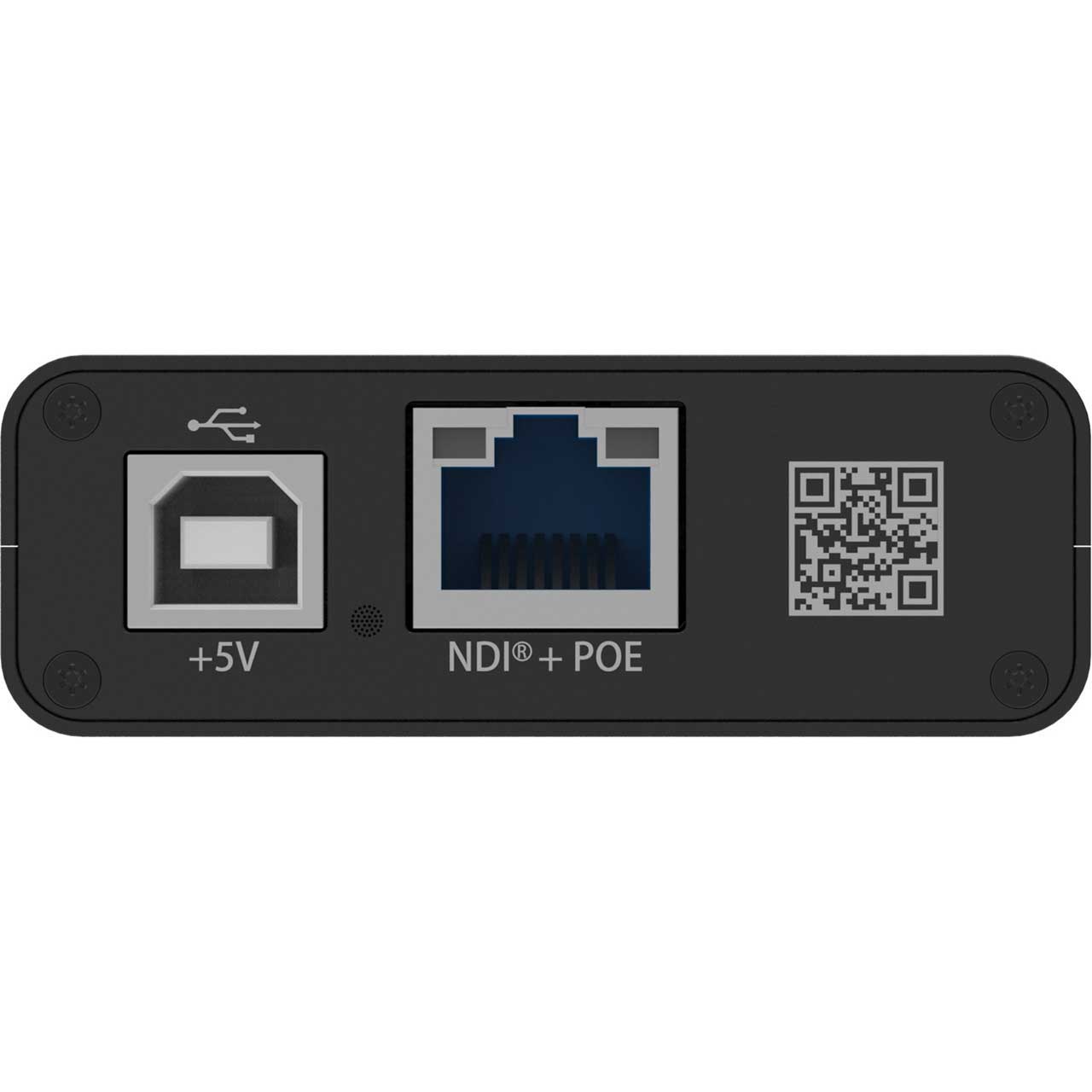

    USB interface
  • USB2.0 Type B
  • 5V/2.1A
  • USB RNDIS/ECM
  • USB3.0 Type A for keyboard/mouse
    Network interface
  • 10/100/1000 Mbps Ethernet
  • Support IEEE 802.3af PoE
  • Control Buttons
  • MENU - press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options
    HDMI Output Features
  • Support up to 4:4:4 8-bit 4096x2160 60fps HDMI output
    Stream Decoding Features
  • Support decoding streams of NDI, RTSP, HTTP, RTMP Pull/Push and TS over UDP/SRT/RTP
  • Support decoding videos in H.264 or H.265 format
  • Support decoding up to 4K 60fps signal
    Firmware
  • Support manual update using Web UI
    Others
  • LED Indicators
  • 2-year Warranty
  • 1/4-20 Mounting Hole


• Specifications:

  • Pro Convert for NDI to HDMI Specifications
    Supported Web Browser (tested):
  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

    Output Interfaces
  • HDMI
  • DVI-D 1.0
  • HDMI 1.4
  • HDMI 2.0

    Storage Interface
  • SD Card (functions to be developed)

    Screw Mounting Hole
  • 1/4-20 mounting hole

    Network Interfaces
  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

    USB Interface
  • USB2.0 Type B
  • 5V/2.1A power supply
  • USB RNDIS/ECM
  • USB3.0 Type A
  • Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

    Control Buttons
  • MENU: press to display the menu, or cycle through the options
  • SELECT: press to display the menu, enter current option, or confirm the selection

    HDMI Output Features
  • Support for up to 4096x2160 60fps HDMI output
  • Support for 96KHz 16bits 8-channel audio streams
  • Support for delivering videos at the preferred video format according to the EDID of the connected monitor

    Stream Decoding Features
  • Support for decoding full NDIr and NDI HX in NDI 4.x
  • Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
  • Support for decoding videos in H.264 and H.265 format
  • Support for decoding AAC/MP3 audios
  • Support for up to 150M pixels/s decoding
  • When receiving 2K NDIr stream, the device could decode and convert it to 2K 60fps
  • When receiving 4K NDIr stream, the device could decode and convert it to 4K 15fps
  • Support for modifying configurations using the Web UI or the Options menu
  • Setting Video OSD composition, including
  • Source name & resolution
  • Tally indicators
  • Audio meter
  • Audio meter scale
  • Center cross
  • Safe area
  • Video scaling, frame rate and aspect ratio conversion
  • Video color format conversion
  • Auto or manual selection of input color format
  • Support YUV BT.601, YUV BT.709 color formats
  • Video vertical and mirror flip
  • Remote controlling the PTZ device connected to the video source
  • Setting audio gain, sample rate and channels

    Device Name
  • Support for setting the device name shown in the system using Web UI. By default, the device name is 'Pro Convert'.
  • Support for setting board-index, from 0 to F, through the on-board rotary switch

    Firmware Upgrade
  • Support for manual update using Web UI

    LED Indicator
    Power LED Status Indicator:
  • On: power connected
  • Off: power unconnected
    Decode LED Status Indicator:
  • On: decoding in progress
  • Blinks: decoding error
  • Off: source unselected

    Form Factor
  • 100.9mm (L) x 60.2mm (W) x 23.3mm (H)

    Accessories
  • USB 2.0 A to B Cable
  • 5V/2.1A power adaptor
  • L-bracket

    Power Consumption
  • 5V max current: ~1.1A
  • Max power consumption: ~5W

    Working Environment
  • Operating temperature: 0 to 45 deg C
  • Storage temperature: -20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing


• Warranty:

  • 2-year Warranty


• GTIN:

  8143950201294
