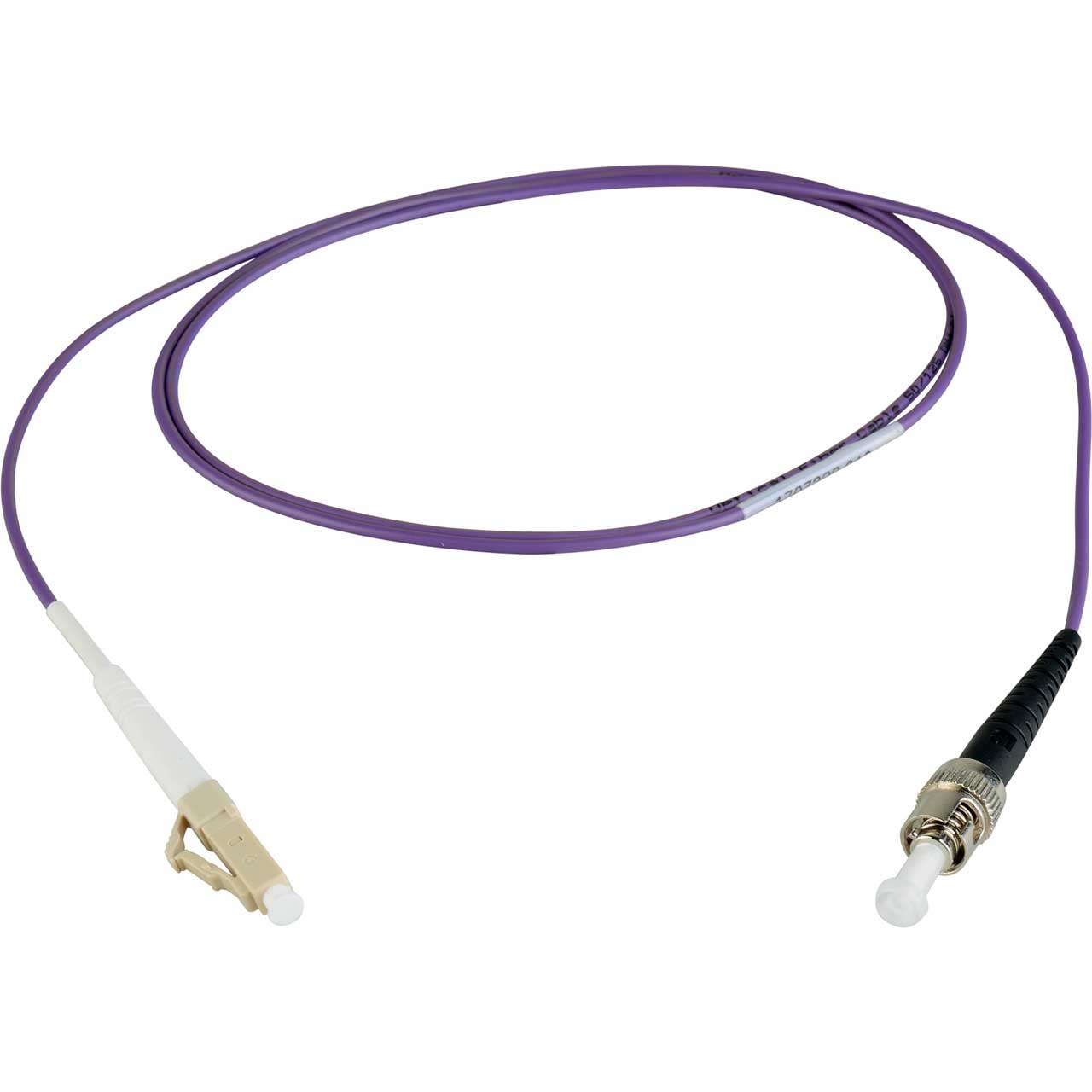

Camplex OM4 Premium Bend Tolerant Multimode Simplex LC to ST Fiber Patch Cable - Purple - 2 Meter

ITEM #: MMSM4-LC-ST-002 MFG #: MMSM4-LC-ST-002

Primary Image
Camplex
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$12.95

Our Price:

$12.49

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MMSM4-LC-ST-002 - Overview

Simplex LC to ST OM4 multimode fiber optic patch cables connect patch panels or network devices requiring 50/125 multimode cables for higher bandwidths and longer distances. Designed for 10, 40, and 100 Gigabit applications, cost-effective OM4 cables are backwards compatible with existing OM3 systems. Purple cable is terminated with durable ceramic ferrule connectors.

  • Features:

    • Use With Both LED and VCSEL Laser Light Sources
    • Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment
    • Connect a Fiber Optic Patch Panel and a Network Device
    • Laser-Optimized Multimode Fiber
    • 10, 40, And 100 Gigabit Application Support
    • Better Performance at Longer Distances
    • Transmission Distance up to 1840 Feet/550 Meters For 10G and 492 Feet/150 Meters for 40 & 100G
    • Lower Attenuation and Lower Insertion Loss


  • Specifications:

    • 50Μ m Core and 125Μ m Cladding
    • Minimum Distance @1Gb/s: 3281 ft/1000m (850nm)
    • Minimum Distance @10Gb/s: 1840 ft/550m (850nm)
    • Minimum Distance @40 & 100 Gb/s: 492 ft/150m (850nm)
    • Insertion Loss: ≤0.20dB max (PC)
    • Tensile Strength: Long Term: 160N / Short Term: 300N
    • Pressive Strength: Long Term: 300N / Short Term: 1000N
    • Bend Radius (mm): Dynamic: 80mm / Static: 40mm
    • Attenuation: @850nm: ≤3.5dB/km / @1300nm: ≤3.5dB/km
    • Temperature: -20°C ~ 80°C
    • BW: @850nm: ≥3500MHz Km / @1300nm: ≥500MHz km


  • Warranty:

    • 1 Year
