MON-FOCUS7-BOLT-500-RX - Overview

Wireless Monitoring Made Easy So You Can Create With Confidence

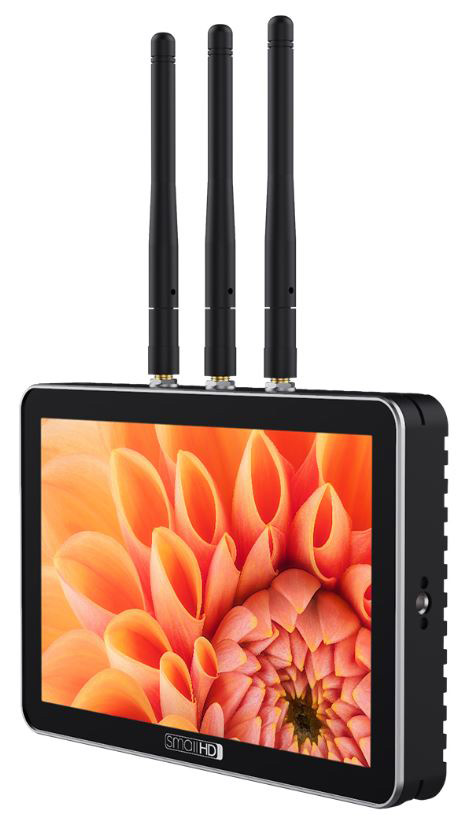

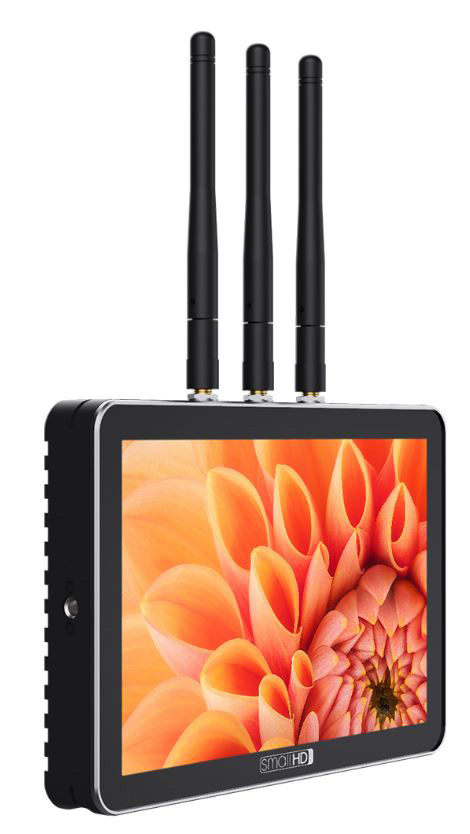

The SmallHD MON-FOCUS7-BOLT-500-RX FOCUS 7 monitor is a highly visible display with a built-in Teradek Bolt 500 receiver that adds real-time confidence for directors, while eliminating unnecessary cables and clutter.

The FOCUS 7 Bolt's display doesn't disappoint. It's 1000 nits bright, Full HD resolution of 1920x1200 with 323 PPI and has a full size HDMI input so you can easlity use it as a wireless director's monitor or attach it to a camera and use it as an on-board monitor. The touchscreen controls takes the hassle out of wireless pairing. Easily pair the 7-inch monitor/receiver to a FOCUS Bolt 500 TX or Teradek Bolt 500 transmitter and enjoy exceptional HD wireless video up to 500ft away with no perceptible delay.

SmallHD OS3 software gives directors and camera operators industry leading imaging tools and a simplified user experience. Customize Scopes, Waveforms, and False Color how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.

  • Features:

    • 7-Inich diagonal screen
    • 1920x1200 screen resolution
    • 1000 nits brightness
    • 323 PPI
    • Only weighs 17oz

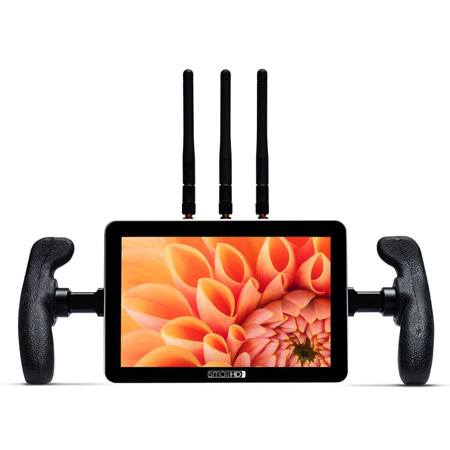

    • Removable monitor handles

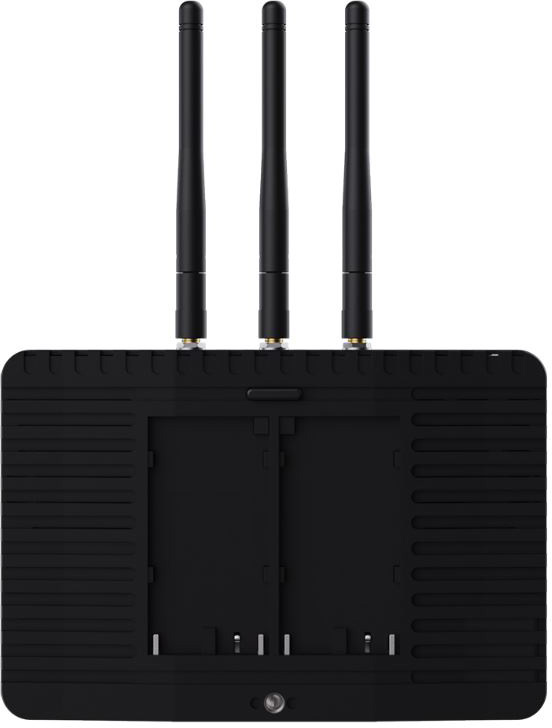

    • 2x Integrated Sony L Series Battery Slots
    • Wireless monitoring up to 500ft away

  • Specifications:

    • Display
    • Panel Type: IPS Touchscreen
    • Resolution: 1920x1080
    • Pixel Density (PPI): 323
    • Aspect Ratio: 16:9
    • Active Area: 7.0"
    • Brightness: 1000 nits
    • Color Gamut: 75% DCI-P3
    • Color Depth: 10-bit processing
    • Viewing Angle: 160 Degrees
    • Backlight Type: White LED
    • Temperature Adaptive Color: No

      Input Signal Types/Formats
    • 3G-SDI: Not Supported
    • HD-SDI: Not Supported
    • SD-SDI: Not Supported
    • HDMI: Supports UHD-1 4K at 30/29.97 @ RGB 444 8bit, YCC 444 8bit, YCC 422 12 bit & 24/23.98 @ RGB 444 10/8 bit, YCC 444 10/8bit, YCC 422 12 bit, YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
    • Component: Not Supported
    • Composite: Not Supported
    • Audio: HDMI

      Output Signal Types/Formats
    • 3G-SDI: Not Supported
    • HD-SDI: Not Supported
    • SD-SDI: Not Supported
    • HDMI: Not Supported
    • Component: Not Supported
    • Composite: Not Supported
    • Audio: Stereo Out (headphones)

      Wireless
    • Video Inputs: N/A
    • Video Outputs: 1x HDMI
    • SDI Ancillary Data: NO
    • Delay Tx To Rx: < 1mSec (0.001 sec)
    • Supported Resolutions: 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50
    • Video Compression: Visually lossless
    • Audio Compression: 48 kHz 24-bit PCM
    • Switches: N/A
    • USB Interface: NO
    • Wireless Network: 5GHz
    • RF Channel Selection: AFS (Automatic frequency selection)
    • Encryption: AES-128
    • RF Power: 20dBm EIRP
    • Range: Up to 500' line of sight (or 500' LoS)
    • Noise Rejection: Can coexist with WiFi and 5 Ghz cordless phones

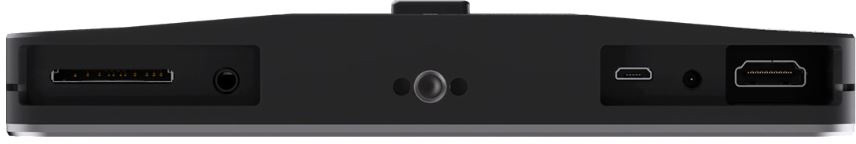

      Connector Type
    • HDMI: 1x Micro-HDMI Input
    • Audio: 1/8" Stereo mini-jack
    • Power In: 1x Sony L-Style Battery slot, barrel output for powering cameras via adaptor (NP-FW50 Sony & LP-E6 Canon).
    • Power Out: Barrel (3.5mm outer, 1.1mm inner)
    • USB: 1x Micro-USB for camera control

      Data I/O
    • Storage: SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades
    • Wireless: Compatible with SmallHD BTR1 Wireless Remote

      Power
    • Connector Type: 1x Sony L-Style Battery slot, 1x barrel connector for powering camera
    • Voltage: 6.0 - 8.4V
    • Recommended Power Supply: Battery Only Device
    • Overload Protection: Yes
    • Battery Chemistry: Li-ion
    • Output Voltage (VDC): Mirrors Input Voltage from battery
    • Battery Capacity (mAh): 2000mAh - 6300mAh
    • Battery Charging Time (hours): Monitor does not support the charging of batteries

      Environmental
    • Compliance: CE
    • Operating Temperature: 32F to 158F
    • Height: 4.69" (11.91cm)
    • Width: 1.1" (2.79cm)
    • Depth/Length: 6.92" (17.58cm)
    • Weight (Item Only without battery): 17.2oz (487.61g)
    • Weight (Packaged): 69oz (1956.11g)
    • Mount Points: (4) 1/4-20 thread points (bottom, left & right side, back)

  • Item Includes:

    • 1x FOCUS 7 Bolt 500 RX Monitor
    • 1x Monitor Handles & Neck Strap
    • 1x Sony L-Series Battery Bracket for 702 Touch and Cine 7 Series
    • 1x FOCUS 7 UltraClear Screen Protector

  • GTIN:

    0811786030392
