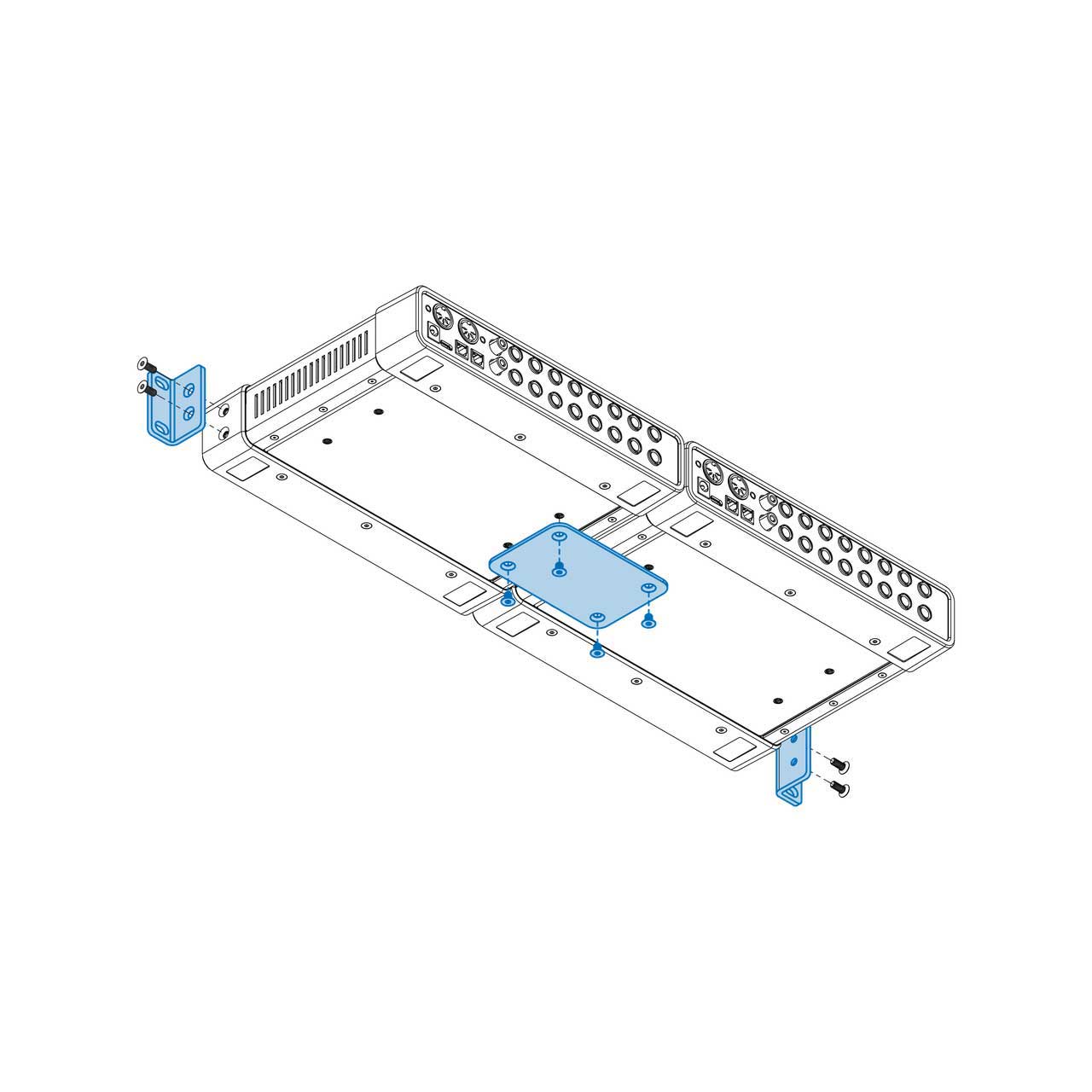

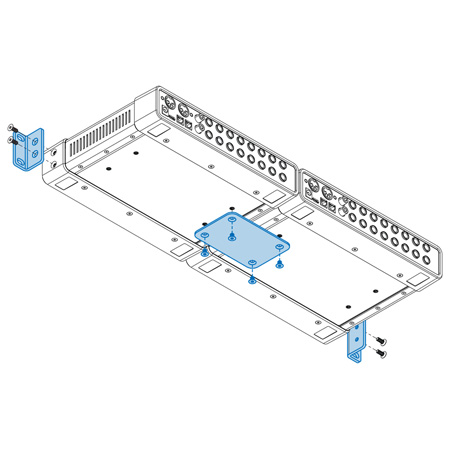

MOTU 3001 Half-Rack Coupler Kit for Ultralite-MK5 Audio Interface

3001 - Overview

• Features:

  • 18 x 22 USB audio interface with DSP, mixing and effects
  • Superb analog audio performance driven by ESS Sabre32 UltraT DAC Technology
  • Ultra-low latency for host software processing
  • Precision front-panel metering for all analog I/O with high-resolution OLED display
  • 2x mic/line/hi-Z guitar inputs on combo XLR/TRS
  • Individual preamp gain and 48V phantom power for each mic input
  • Measured -129 dB EIN on mic inputs
  • 10x balanced, DC-coupled 1/4-inch TRS analog outputs with 125 dB dynamic range
  • Hardware (direct) monitor mixing for each analog output pair (6 mix busses)
  • 6x balanced 1/4-inch TRS analog inputs with measured 120 dB dynamic range
  • 1x optical digital I/O (8-channel optical or 2-channel TOSLink)
  • 2x RCA S/PDIF digital I/O
  • 1x headphone out (driven by ESS converters) with independent volume control
  • MIDI in/out
  • Support for 44.1 to 192 kHz sample rates
  • USB audio class compliant for plug-and-play operation on Mac (no driver required)
  • Windows driver with 2.4 ms Round Trip Latency (32 sample buffer at 96 kHz)
  • Mac driver (optional, for 2.4 ms RTL@32/96 kHz and loopback feature)


• Specifications:

  • Technical Specifications
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Mic/line/guitar inputs: 2 x XLR/TRS "combo" jacks, 1 MΩ impedance on the line/instr inputs
  • Analog inputs: 6 x 1/4" TRS line in (balanced)
  • Analog outputs: 10 x 1/4" TRS line out (balanced, DC coupled)
  • Digital I/O:
    1 bank (8 ch) of ADAT optical at 1x sample rates
    1 bank (4 ch) of SMUX optical at 2x sample rates
    Switchable to stereo TOSLink (optical S/PDIF)
    1 x stereo S/PDIF on RCA (up to 96 kHz)
  • Computer I/O: 1 x USB-C 2.0 audio class compliant Compatible with USB Type A (with adapter or C-to-A cable)
  • Total audio I/O: 18 in / 22 out (40 total) at 1x sample rates, 14 in / 18 out (32 total) at 2x sample rates, 8 in / 12 out (20
    total) at 4x sample rates
  • MIDI I/O: 1 x MIDI IN, 1 x MIDI OUT, 16 MIDI channels to/from computer host
  • Headphone: 1 x 1/4" TRS stereo phone
  • Phantom power: 2 x individual +48V
  • Front panel:
    2 x XLR/TRS combo inputs
    1 x 1/4" TRS headphone output
    1 x potentiometer - phone/monitor vol
    2 x potentiometer - mic/instr input gain
    4 x switches (2) 48V and (2) pad
    1x high-resolution white OLED display for metering/status
  • Power: External 12-18V DC power supply, 1.0A max tip pos or neg
  • Dimensions and weight: 8.6 x 6.9 x 1.75 inches, 22 x 17.5 x 4.5 cm, 2.875 lbs / 1.31 kg

    System Requirements
  • Mac System Requirements
  • Intel Core i3 Mac or faster (including the new M1 Macs)
  • 4 GB RAM; 8 GB or more recommended macOS version 10.11 or later
  • (Optional driver requires 10.13 or later) Available USB port
  • A large hard drive (at least 500 GB for recording)

    Windows System Requirements
  • Intel Core i3 PC (or AMD equivalent)
  • 4 GB RAM; 8 GB or more recommended Windows 10
  • Available USB port
  • A large hard drive (at least 500 GB for recording)


• GTIN:

  0839128006249
