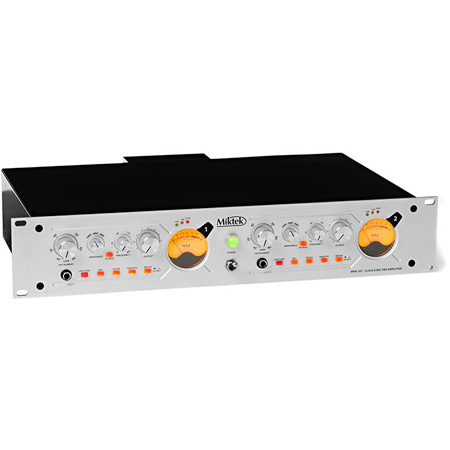

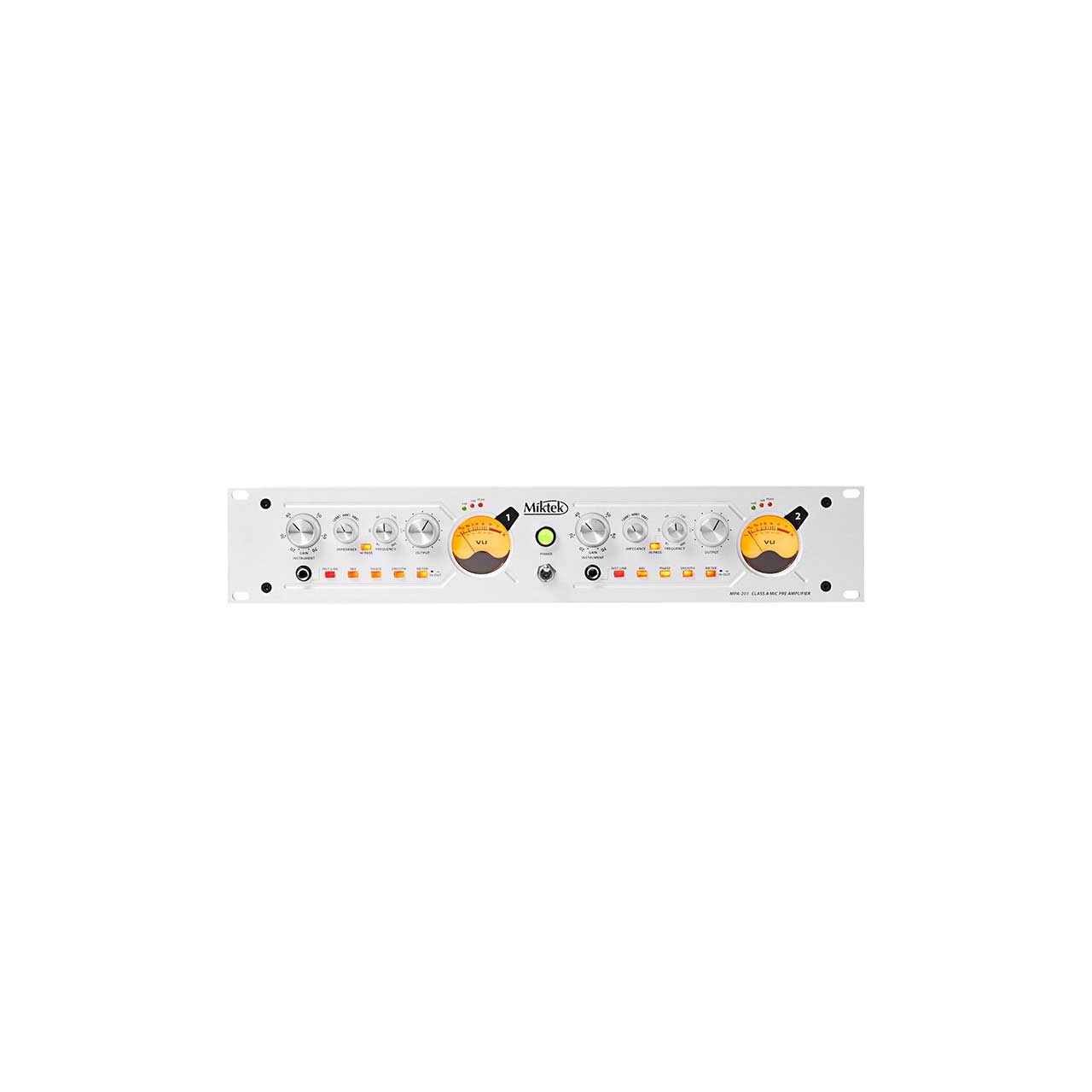

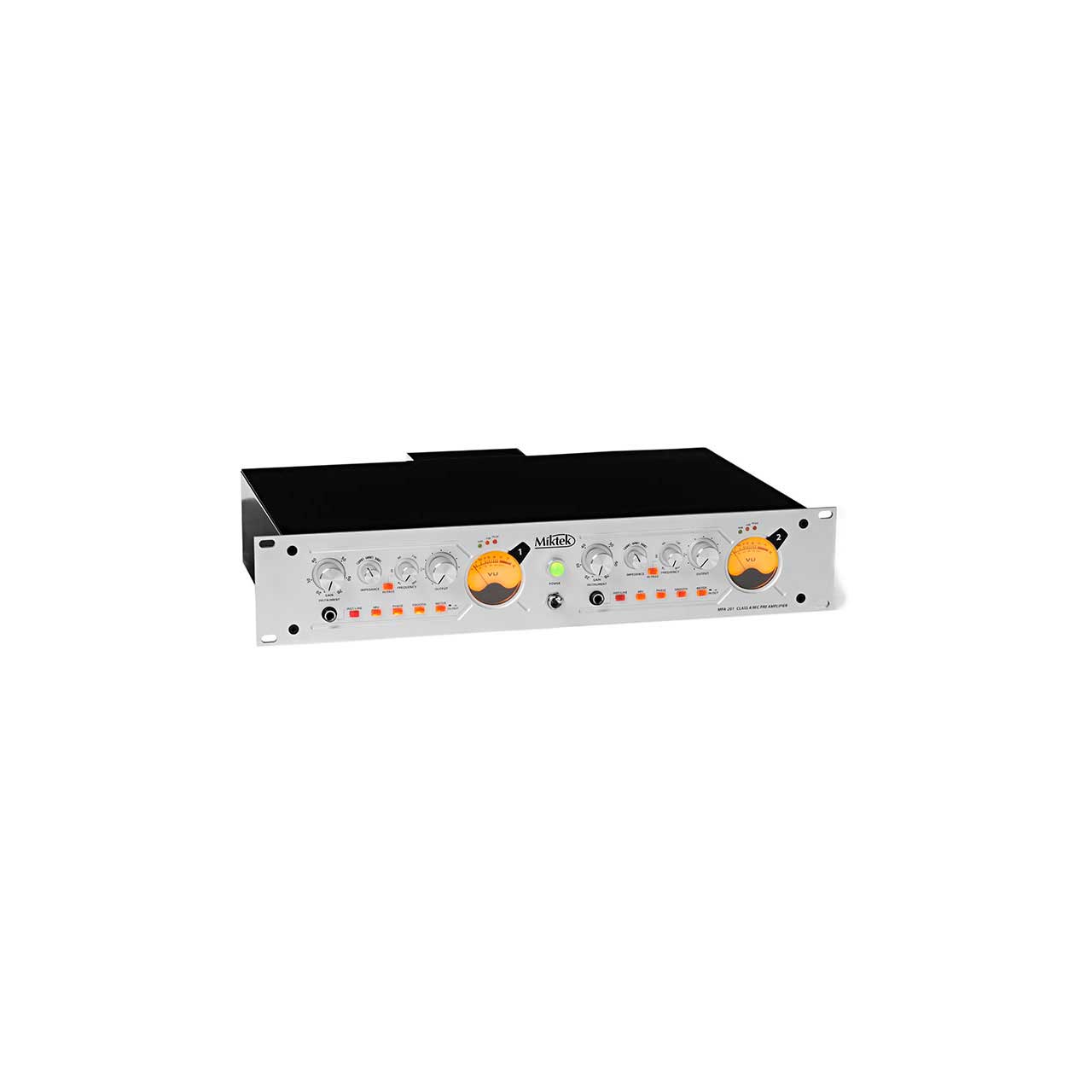

Miktek MPA-201 2-Channel Class A Microphone Preamp

ITEM #: MPA-201 MFG #: MPA-201

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MPA-201

MPA-201 - Overview

The Miktek MPA-201 dual channel, Class A microphone preamplifier provides a pristine signal path with a sweet and linear response that will please the most sophisticated listeners. With 70 dB of gain, 48-volt phantom power and variable impedance selector, the Miktek MPA-201 will highlight and enhance the sound of most any microphone.

Each channel boasts a large analog VU meter that can be switched from input to output, plus an LED Peak output meter, making it easy to set a good level. This innovative preamplifier design also features a Phase switch and variable High Pass Filter, which allows you to reduce unwanted low frequencies in your recording and help reduce stage rumble in live sound applications.

The MPA-201 preamplifier features discrete transistors and six Miktek custom transformers, which produce a quality sound you would normally expect only from a vintage piece. It features Direct Inputs on each channel, through a dedicated transformer, for recording instruments like guitar, bass and keyboards. Do you like to record your guitar or bass with an effects pod or plug-ins? Plug in to the MPA-201 first to capture that big studio sound that's far beyond what's possible with a standard audio interface.

Perfect for adding a world-class signal path in front of your digital recordings, the Miktek MPA-201 is a must for any serious recordist.

  • Features:

    • Class A, Discrete Transistor Vintage Design
    • Linear response 1 dB down at 10Hz and 1 dB down at 100kHz
    • Sweet sound from Custom Designed Transformers
    • 48 Volt Phantom Power
    • Variable High-Pass Filter
    • Relay controlled Phase switch
    • Smooth switch selects different output loading for "racked" and "in-console" sound
    • Impedance selector allows for 300, 600, or 1200 O load
    • Large backlit VU Meters switchable to display Input and Output Levels
    • +4 XLR Balanced Outputs
    • Heavy duty metal construction featuring steel chassis and milled aluminum front panel in an attractive silver finish.

  • Specifications:

    • Type: Class A
    • Frequency Response: 10Hz - 100 kHz
    • GAIN: 20 - 70 dB
    • Impedance: Variable 300, 600 and 1200 Ohms
    • High Pass: Variable 18Hz - 300Hz
    • Phase: Relay Switching
    • Phantom: 48 Volts
    • Dimensions: 19" x 14 x 3.75
    • Weight: 16 lbs
