Matrix Switch MSC-CARDRX-BNC8 Modular SDI Input Card With 8 BNC Ports

ITEM #: MSC-CARDRX-BNC8 MFG #: MSC-CARDRX-BNC8

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MSC-CARDRX-BNC8

MSC-CARDRX-BNC8 - Overview

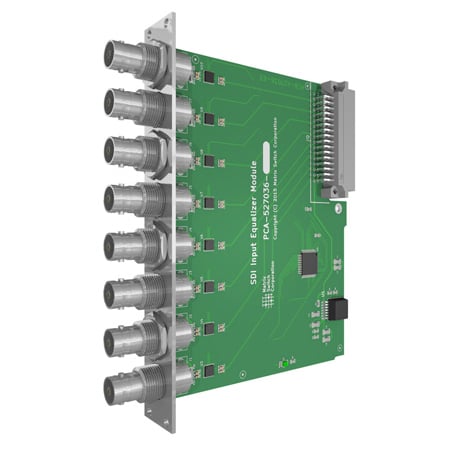

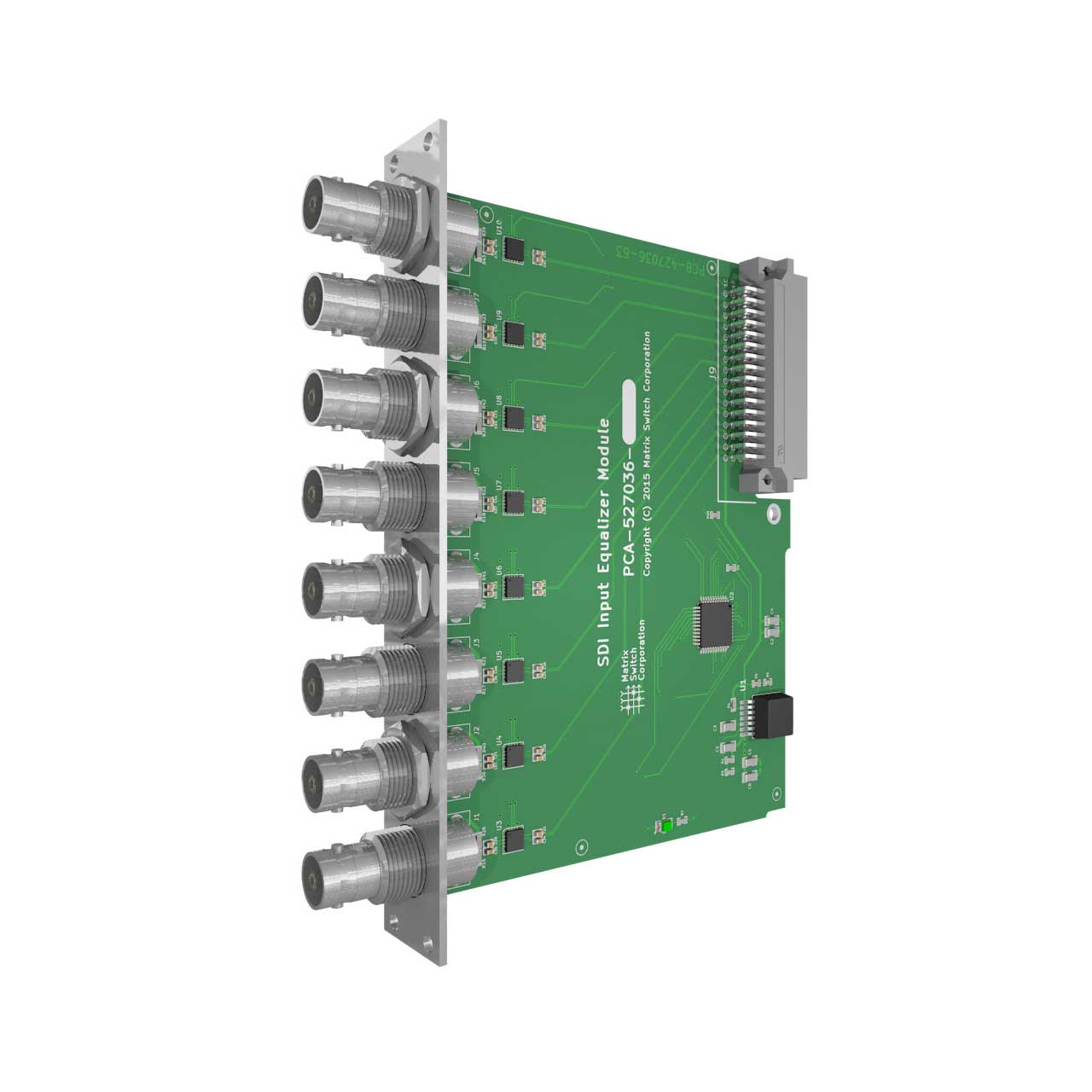

The MSC-CARDRX-BNC8 modular input card can be used with Matrix Switch Corporation's XDM family of Modular SDI Routers to expand the number of BNC SDI inputs by 8, independent of the number of router outputs.

The 8 SDI inputs provide cable equalization, loss of signal detection, and pass all SDI embedded audio/ancillary data. SDI format and rates can differ between inputs without restriction.

  • Features:

    • Passes SDI embedded audio and ancillary data
    • Different SDI rates can be used on different inputs without restriction


  • Specifications:

    • General
    • Inputs: 8
    • Size: 5.20" x 0.50" x 5"
    • USA List Price: $350

    • SDI Inputs
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Input Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Input Impedance: 75 Ohms +/- 1%
    • Input Level: 800 mV P-P +/- 20%
    • Cable Equalization: 400m @ SD, 140m @ HD, 120m @ 3G (1694A coax)

    • SDI Standards
    • SD Formats: 625/25 PAL and 525/29.97 NTSC
    • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 3G Formats: 1080p50, 1080p59.94, 1080p60
    • 2K Formats: 2048 x 1556/23.98/24/25
    • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
    • Video Sampling: 4:2:2 and 4:4:4
    • Audio Sampling: 24 bit @ 48 KHz
    • Color Precision: 4:2:2 and 4:4:4 10 bit
    • Color Space: YUV or RGB
    • Metadata Support: Ancillary data as defined by SMPTE 352M
