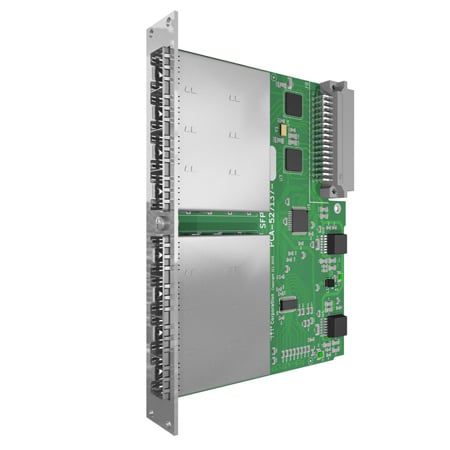

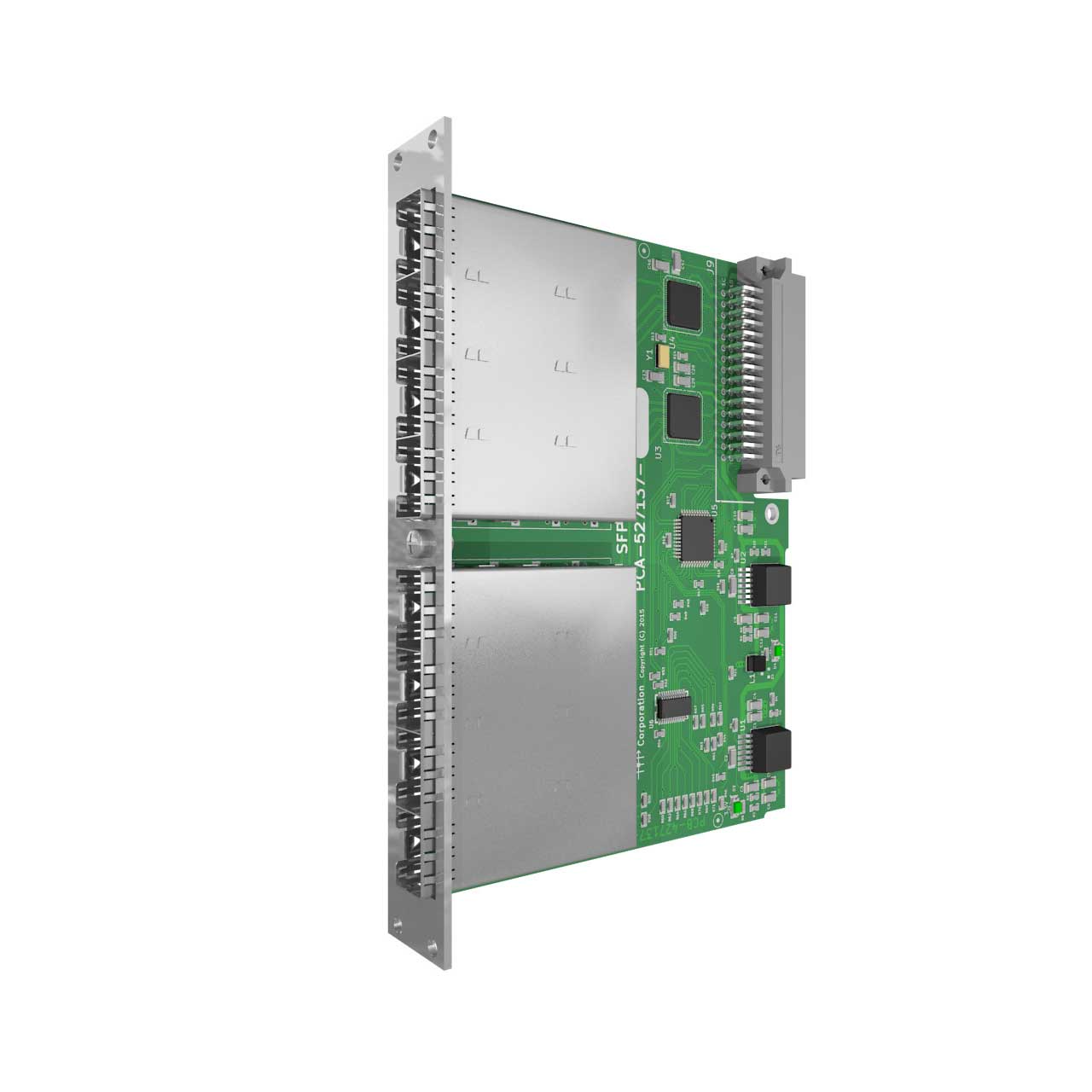

Matrix Switch MSC-CARDTX-SFP8 Modular SDI Output Card With 8 SFP Ports

ITEM #: MSC-CARDTX-SFP8 MFG #: MSC-CARDTX-SFP8

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MSC-CARDTX-SFP8

MSC-CARDTX-SFP8 - Overview

The MSC-CARDTX-SFP8 modular output card can be used with Matrix Switch Corporation's XDM family of Modular SDI Routers to expand the number of SFP (Small Form-factor Pluggable) output ports by 8, independent of the number of router inputs.

The 8 SFP output ports provide reclocking for standard 3G/HD/SD rates with automatic bypass for non-standard rates between 20 Mbit/s and 3 Gbit/s and pass all SDI embedded audio/ancillary data.

SFP modules offer additional I/O flexibility. Systems can be configured down to the individual input or output, which can be populated as desired. Choose from Matrix Switch Corporation's selection of fiber optic and HDMI SFP Modules. In addition, since these modular systems are SFP MSA compatible, many other MSA standard modules from other manufacturers may also be used.

  • Features:

    • Re-clocks standard SDI rates 3G (2.97 Gbit/s), HD (1.484 Gbit/s), and SD (270 Mbit/s)
    • Auto bypass of non-standard SDI rates from 20MBPS to 3GBPS
    • Passes SDI embedded audio and ancillary data
    • Complies with all relevant FCC, U/L, CE, and RoHS requirements


  • Specifications:

    • General
    • Outputs: 8
    • Size: 5.20" x 0.50" x 5"
    • USA List Price: $450

    • Fiber Optic SFP Output Modules
    • Product: MSC-SFPTX-F1310-10KM (sold separately)
    • Connector Type: LC
    • Fiber Type: Single Mode Fiber (SMF)
    • Wavelength: 1310nm (DFB laser)
    • Max Distance: 10km
    • Data Rates: 50 Mbit/s to 3 Gbit/s
    • Standard: SFP MSA Compliant
    • Pathological Signals: Supports Pathological Signals for 3G/HD/SD-SDI
    • SMPTE Standard: SMPTE 297-2006 Compatible
    • Digital Diagnostics: MSA DDM Compatible Interface

      HDMI SFP Output Modules
    • Product: MSC-SFPTX-HDMI (sold separately)
    • HDMI Version: v1.4
    • DVI Version: v1.0
    • Video Format: Up to 1080p
    • Color Space: RGB or YCbCr
    • Data Rates: 3G-SDI, HD-SDI, and SD-SDI
    • Audio Channels: 8

    • SFP Outputs
    • Connector Type: SFP (MSA Standard Compatible)
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s

    • SDI Standards
    • SD Formats: 625/25 PAL and 525/29.97 NTSC
    • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 3G Formats: 1080p50, 1080p59.94, 1080p60
    • 2K Formats: 2048 x 1556/23.98/24/25
    • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
    • Video Sampling: 4:2:2 and 4:4:4
    • Audio Sampling: 24 bit @ 48 KHz
    • Color Precision: 4:2:2 and 4:4:4 10 bit
    • Color Space: YUV or RGB
    • Metadata Support: Ancillary data as defined by SMPTE 352M
