Matrix Switch MSC-SDI/ASI4 1x4 Distribution Amplifier

ITEM #: MSC-SDI-ASI4 MFG #: MSC-SDI-ASI4

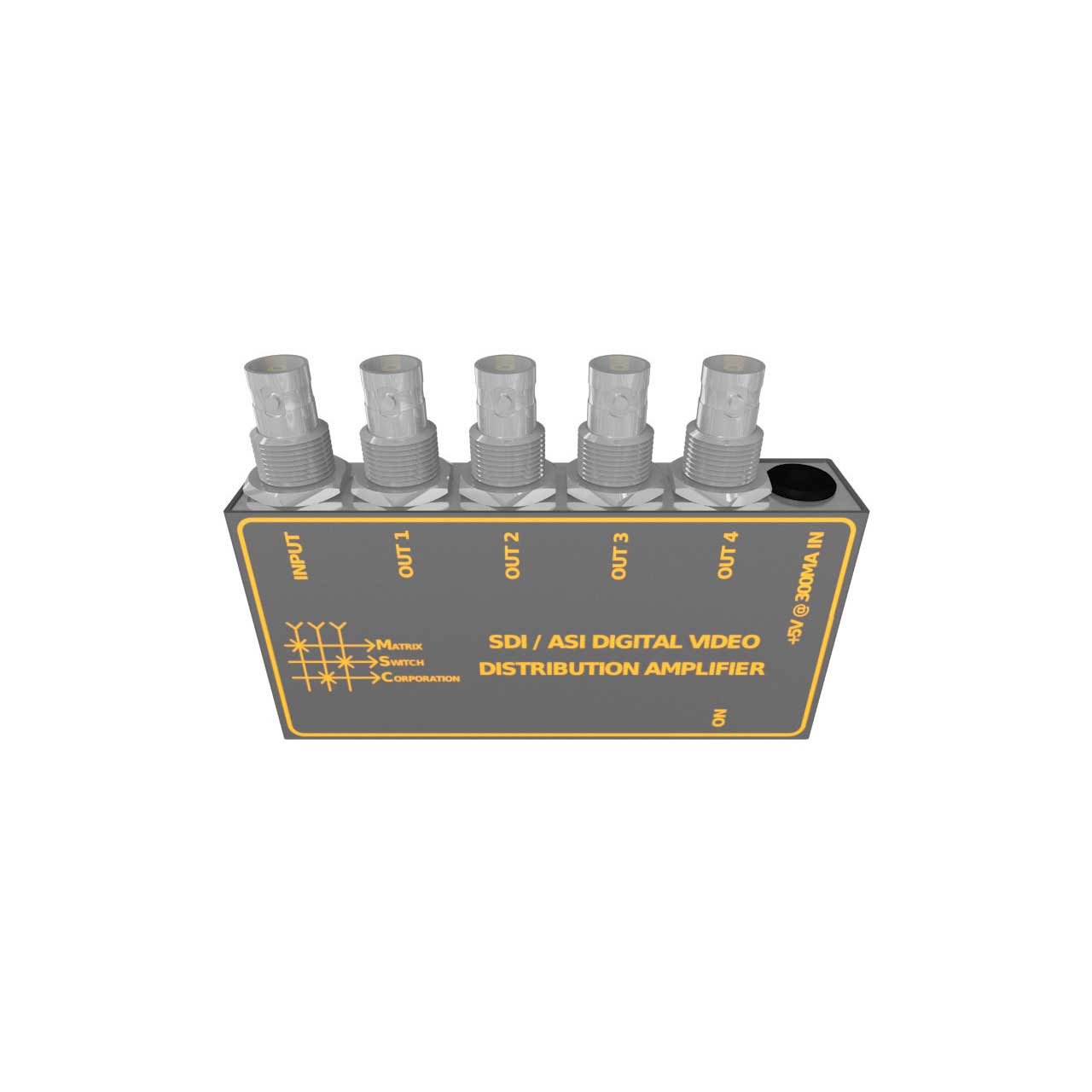

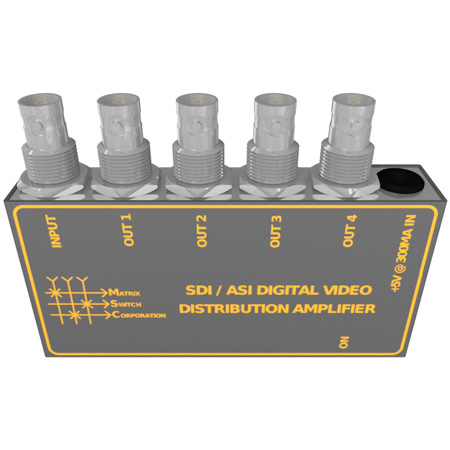

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MSC-SDI-ASI4

MSC-SDI-ASI4 - Overview

Matrix Switch Corporation SDI/ASI-4 distribution amplifier is specifically designed for 270MBPS operation as either an SDI or ASI distribution amplifier. All four outputs are in the same phase as the input. Includes a 1,000 foot automatic cable equalizer and the input. Also includes a 90-130VAC Power Supply.

  • Specifications:

    • Input impedance: 75 ohms +/- 1%
      Input return loss: > -15 dB at 270MBPS
      Input level: 800mV P-P 20%
      Output impedance: 75 ohms +/-1%
      Output return loss: > -15 dB at 270MBPS
      Output level: 800mV P-P +/-5%
      143 - 270MBPS: cable equalization 350m for Belden type 1694A cable
      Jitter: < 0.2UI P-P
