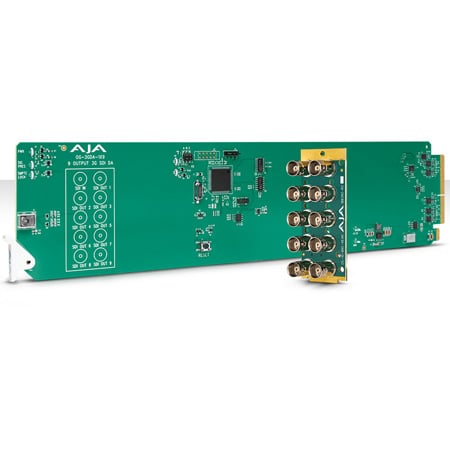

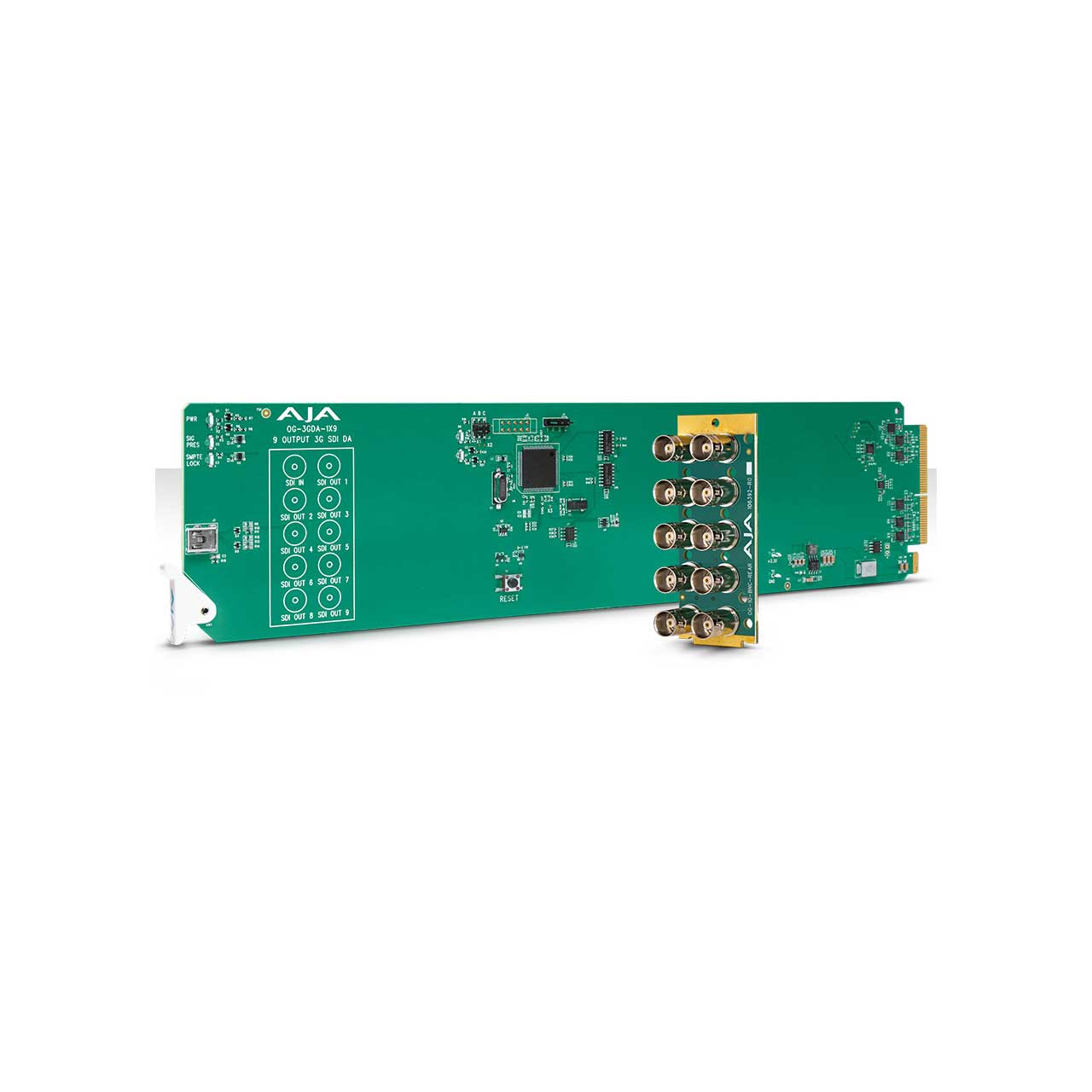

AJA OG-3GDA-1X9 openGear 1x9 3G-SDI Re-clocking Distribution Amp with 10 BNC Rear Module

OG-3GDA-1X9 - Overview

• Features:

  • Video Formats: 150 Mbps - 3 Gbps, format agnostic
  • Input: 1x 3G-SDI BNC
  • Outputs: 9x 3G-SDI BNC
  • Support for HDR - High Dynamic Range video
  • Monitor via openGear DashBoard
  • Passes embedded audio, all ancillary data including closed caption and time code
  • Input Present and Input SMPTE Lock LEDs
  • Automatic input equalization and output reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • Power: 2.5 watts max per card
  • Hot swappable
  • Compatible with OGX, OG3 and DFR-8321 openGear frames


• Specifications:

  • Video Formats
  • 150 Mbps - 3 Gbps, format agnostic

    Video Input Digital
  • 1x 3G-SDI BNC, SMPTE-259/292/424

    Video Output Digital
  • 9x 3G-SDI BNC, SMPTE-259/292/424
  • 5x outputs noninverting

    Cable Equalization
  • (Belden 1694A coax)
  • 270 Mbps, 350m
  • 1.5 Gbps, 200m
  • 3 Gbps, 120m

    Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked

    User Controls
  • openGear DashBoard network control software via Windows, macOS or Linux

    Size (w x d x h)
  • openGear standard form factor, front slot and rear card
  • Two slots required for each card

    Weight
  • 0.5Lbs (0.3kg)

    Power
  • openGear frame compatible, 2.5 watts max per card

    Environment
  • Safe Operating Temperature Range: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature Range (power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000m (<10,000ft)


• GTIN:

  0812321031775
