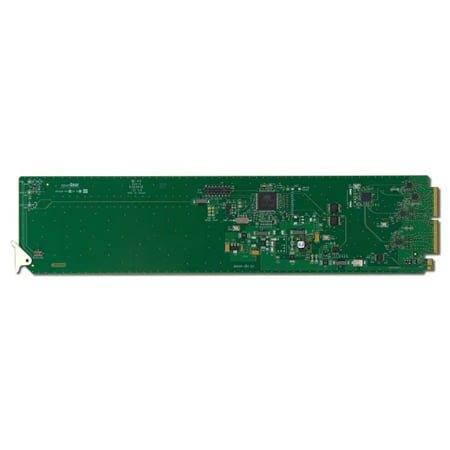

Ross SRA-8802-R2 is a high density 3G/HD/SD SDI reclocking distribution amplifier with A/B input failover protection and Rear Module for 1x8 with A/B Input
Failover Protection.
The SRA-8802 is a single channel, 3G distribution amplifier redesigned using the latest technology and optimized to achieve the industry's best EQ performance offering cablelengths up to 120m at 3G. Equalization and reclocking is performed on all common serial digital signals, including 3G / HD / SD SDI. Non-inverting output drivers make this ideal for distributing DVB-ASI signals as well.

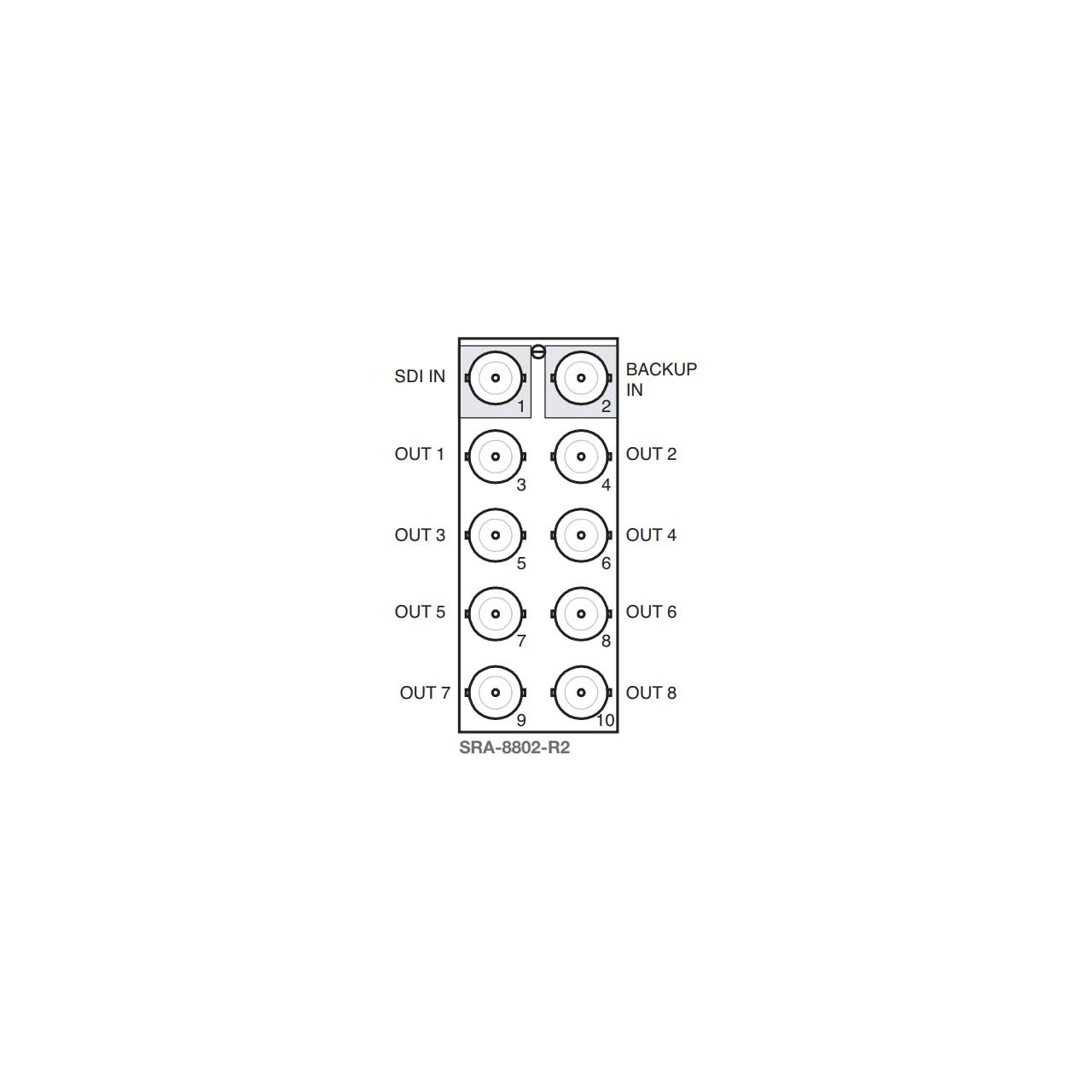

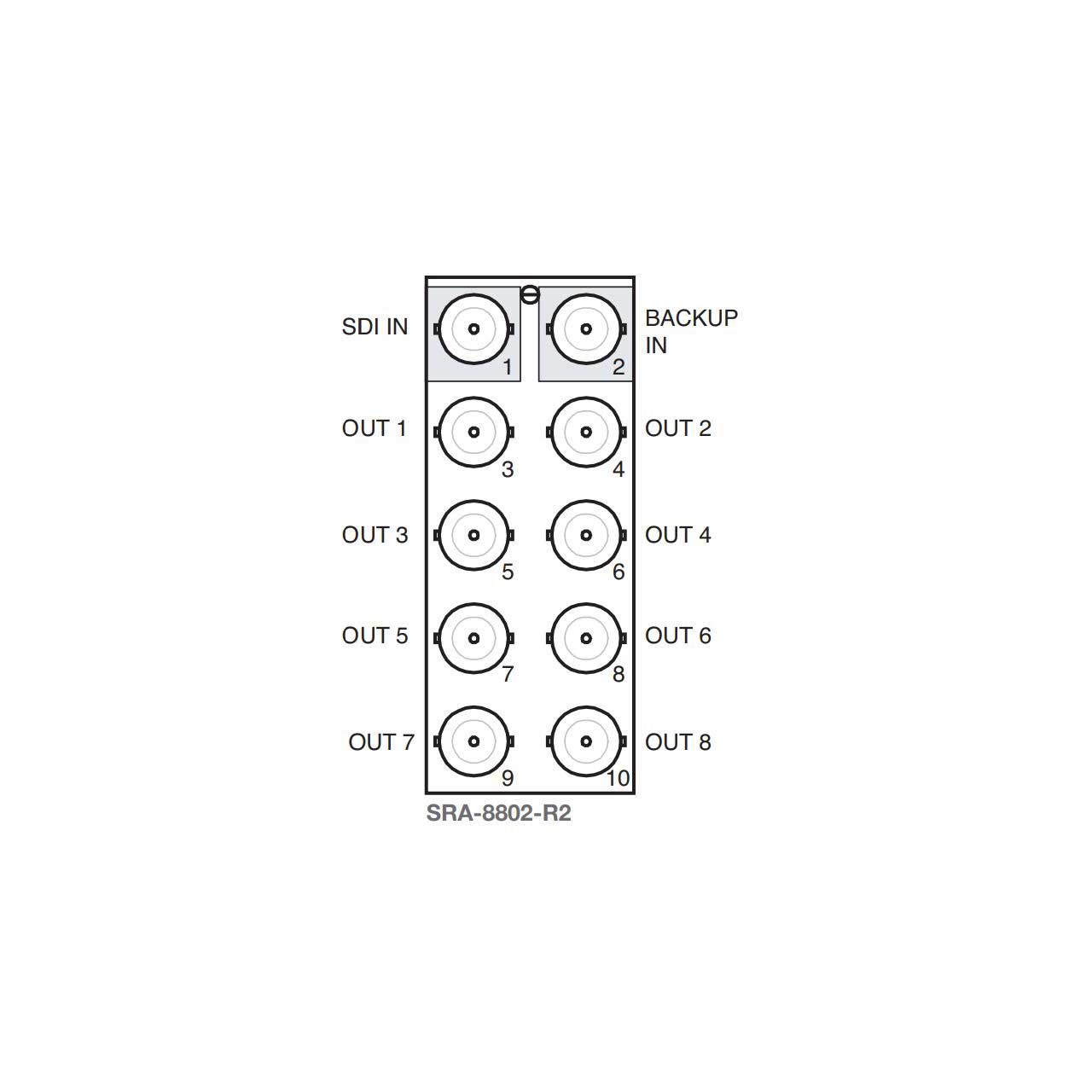

SRA-8802 can be used as a 1x8 DA, using the standard -R2, 10 BNC rear module, or as an 1x4 DA when paired with the -R2S split rear module. This configuration allows for up to 20 1x4 DAs in a single openGearr frame, using 20 cards.

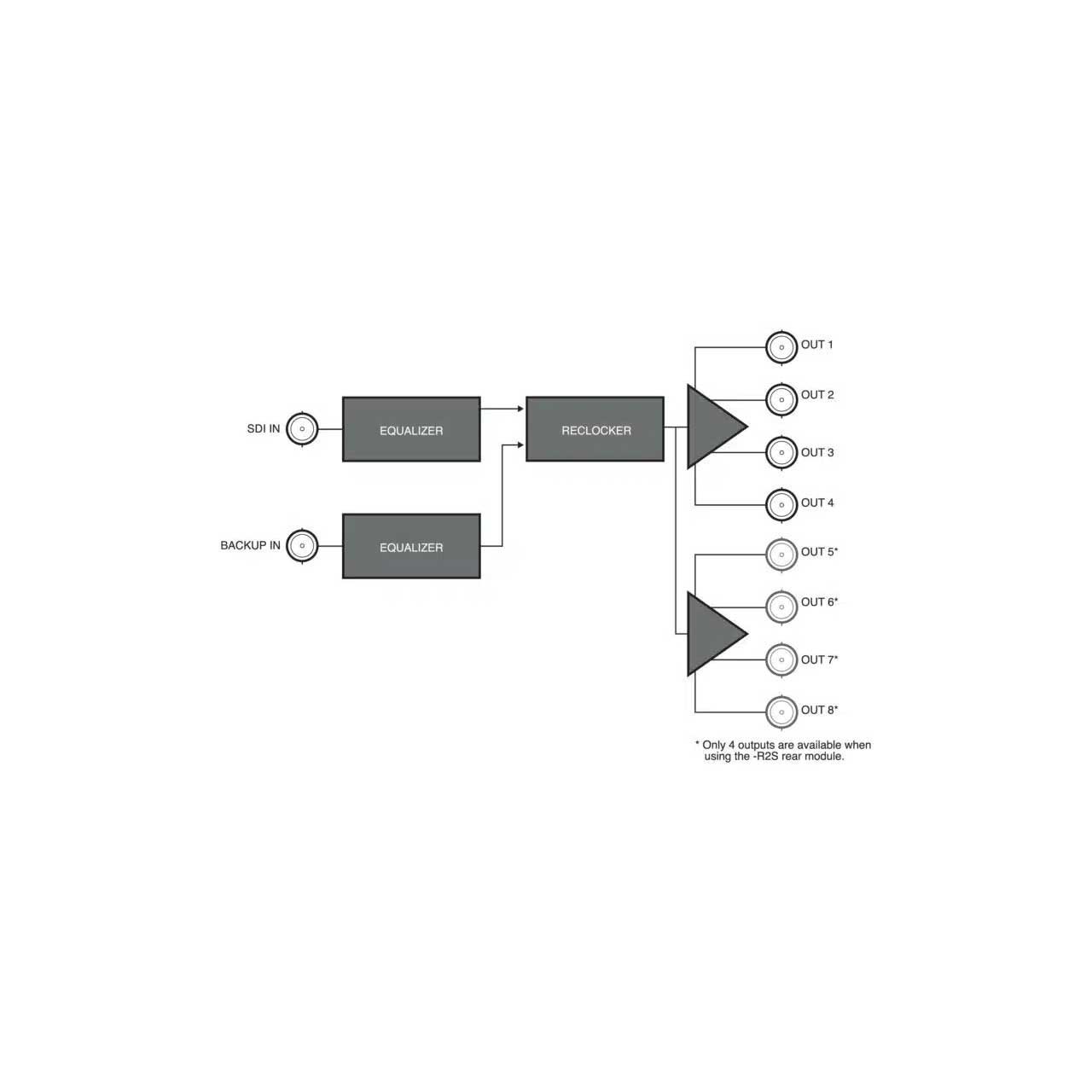

With the A/B input failover protection enabled, the SRA-8802 can use a backup input source when the primary input source is lost. The -R2 standard rear module is required for A/B input failover protection. LED indicators at the front of the module identify the presence of incoming video, and the data rate for each independent channel.
The SRA-8802 is the first DA from Ross Video that can be ordered with the new -R2R back module. This back module adds a relay bypass protection circuit from the input to first output which engages upon catastrophic failure or from front card removal to protect the critical signal path.
