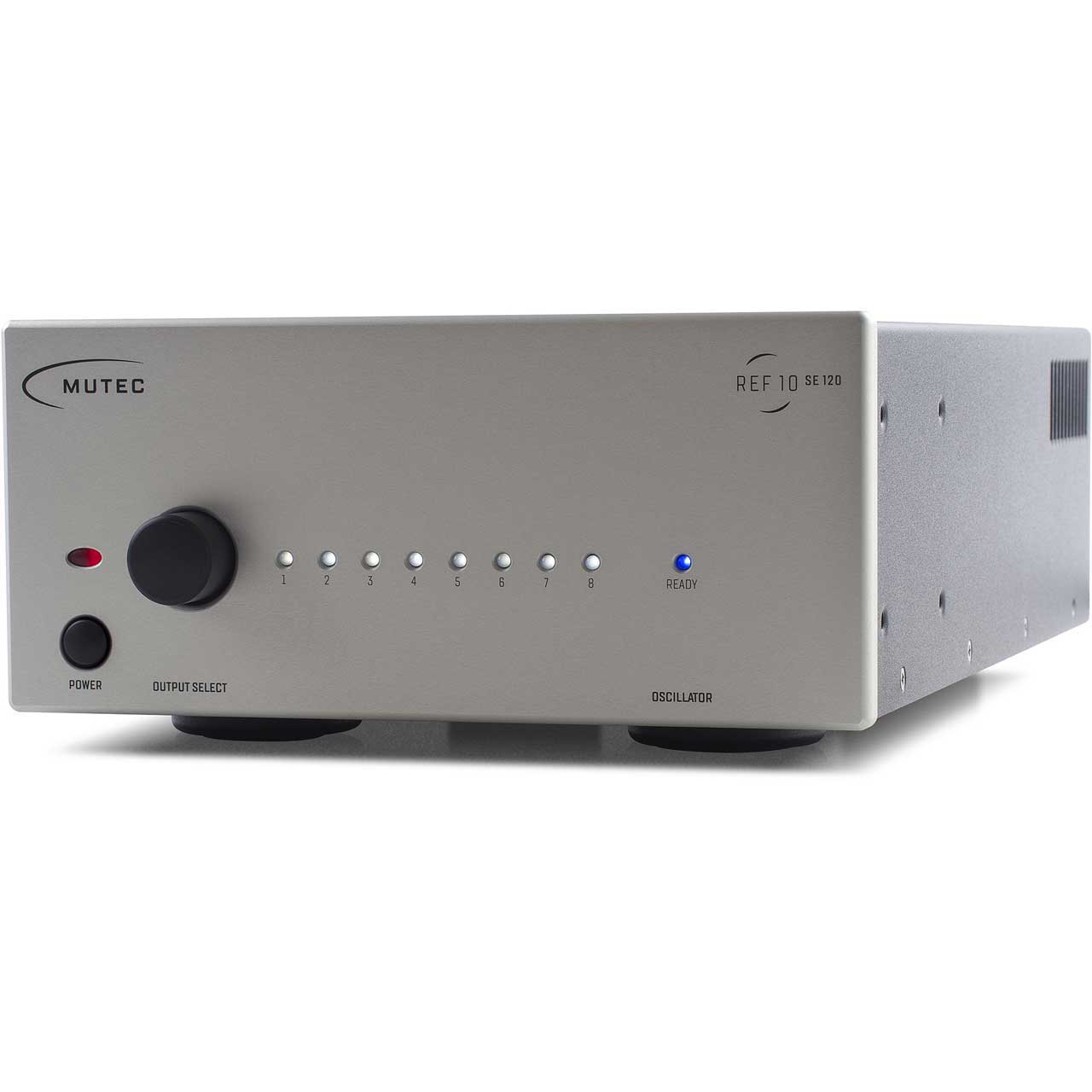

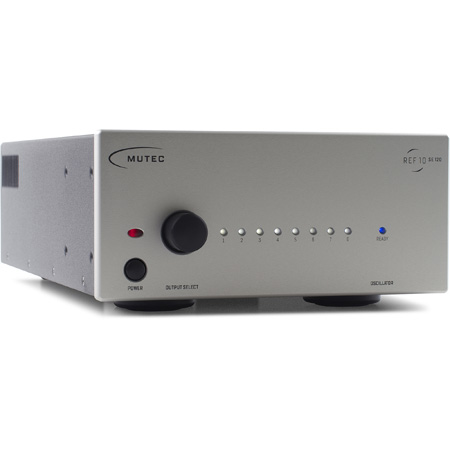

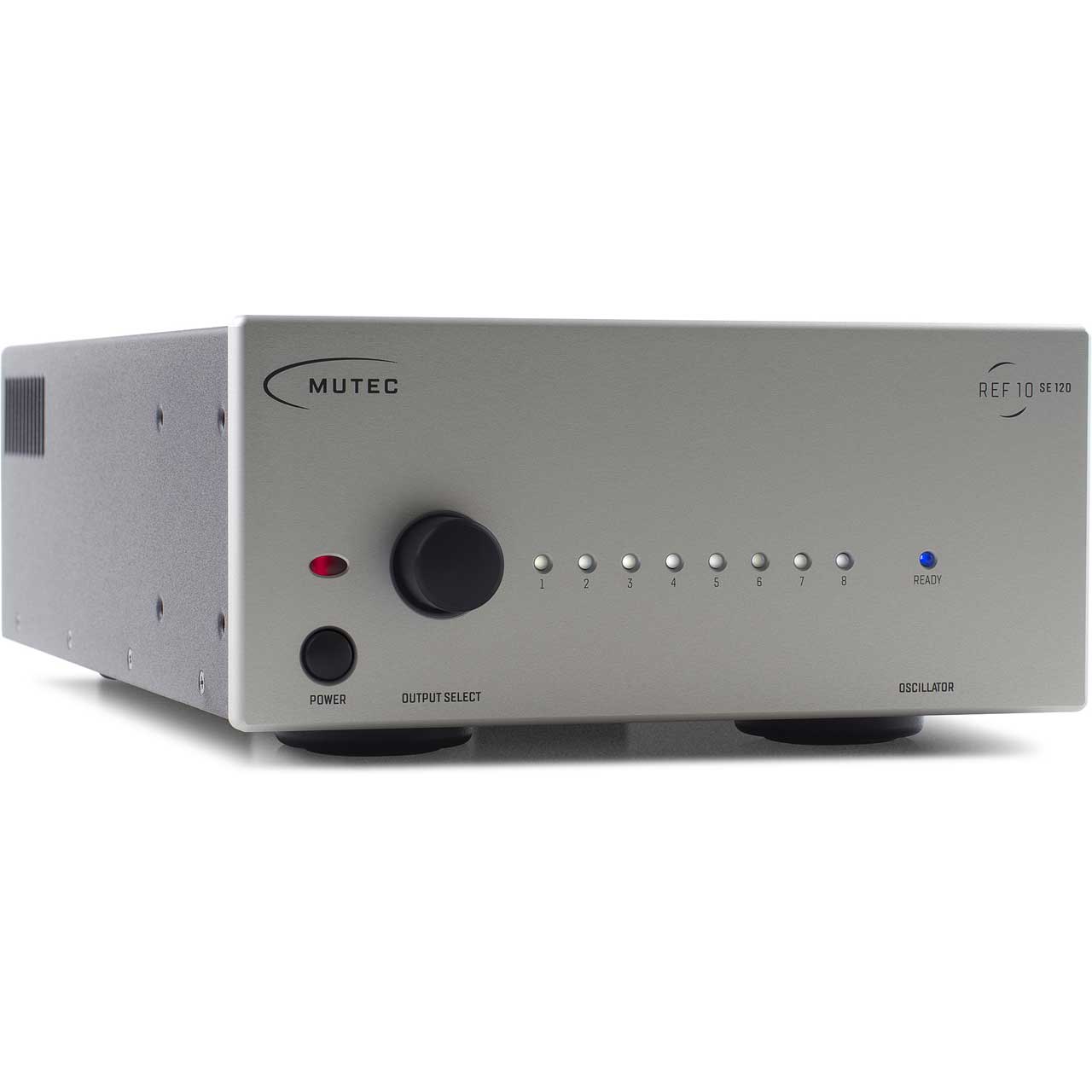

Mutec REF 10 Audiophile 10MHz Ref Master Clock - Enhanced Version with Upgraded Oscillator - Aluminum Front Panel

ITEM #: MUT-REF10-SE120 MFG #: REF10-SE120

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$5,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


REF10-SE120 - Overview

The Mutec REF10 SE120 is a special version of the successful audiophile reference clock generator REF10 that we have further enhanced in terms of signal performance. The exceptional quality of the original REF10 has been confirmed many times since its launch in 2017 - in numerous reviews from specialized magazines and through enthusiastic user feedback. A clock generator from MUTEC significantly increases the quality of digital music playback, even and especially with demanding high-end systems and studio installations. Because it provides the foundation for perfect signal processing in a digital audio chain: the extremely low-noise reference clock.

The "tuning" variant REF10 SE120 outperforms the original model REF10 in this regard considerably. A clearly measurable advantage is the result of a special feature of the REF10 SE120: its much more elaborately manufactured and selected oven-controlled quartz oscillator (OCXO). This oscillator is selected according to the strictest standards in test procedures lasting many hours with the help of exceptionally precise and expensive measuring technology. The use of such an outstanding oscillator is responsible for the fact that the REF10 SE120 from MUTEC currently delivers - to our knowledge - the lowest phase noise, respectively jitter values in the industry. This outstanding technical performance has a noticeable impact on the sonic result. Precision, transparency, spatiality and dynamics of the musical presentation reach an unprecedented level and will inspire you!

Like the proven REF10, the optimized REF10 SE120 is extremely flexible. Because of its versatile connectivity this MUTEC clock generator can be successfully integrated in a wide variety of configurations while maintaining an easy way of operation. If you want to maximize the sound potential of your compatible DA converter, music server or audio re-clocker in every respect, you need the REF10 SE120 from MUTEC!

  • Features:

    • 10 MHz reference master clock generator with ultimately low phase noise of -120 dBc at 1 Hz
    • Improves and enhances compatible DACs, audio re-clockers, music servers and master clocks

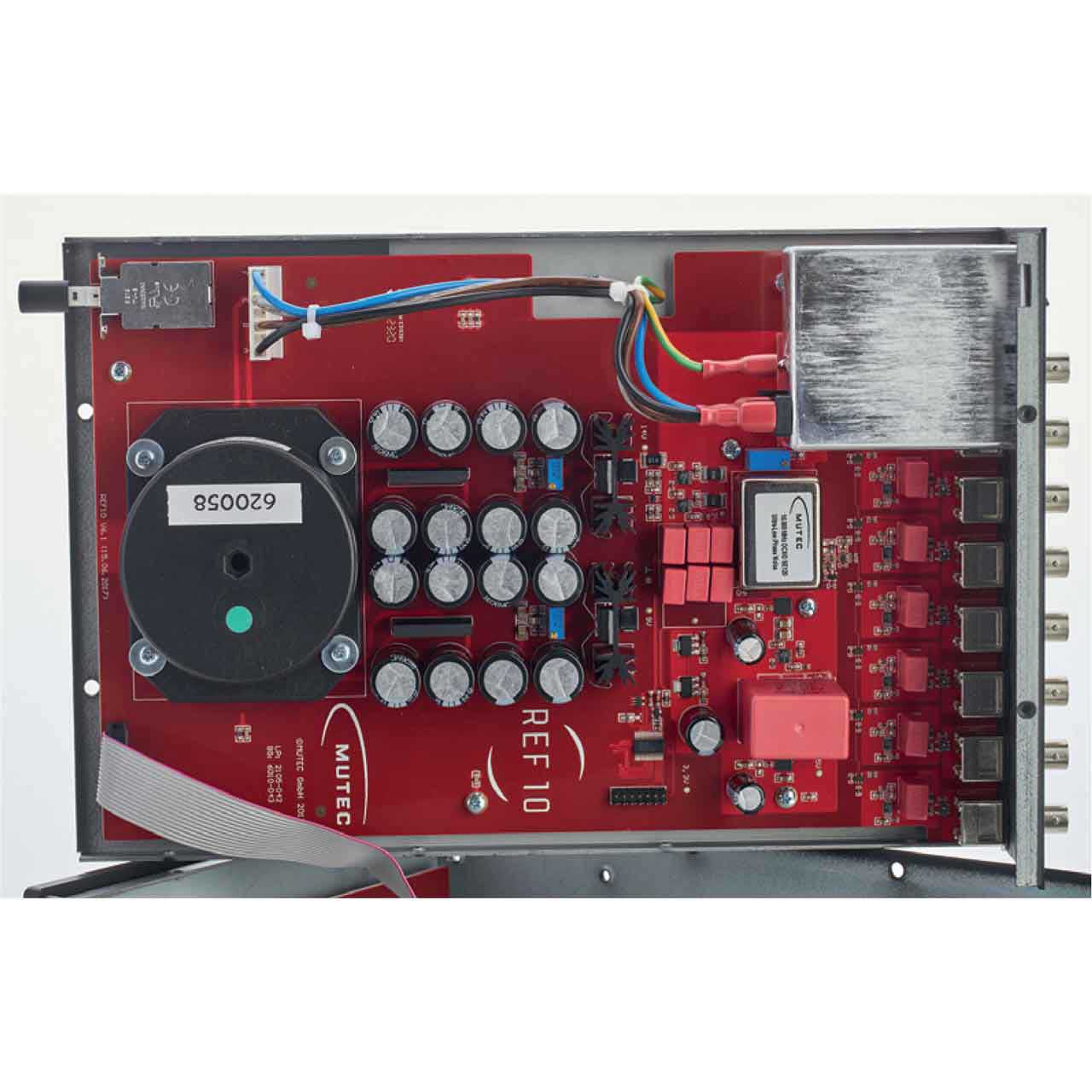

    • Engineered around an elaborately manufactured and selected OCXO made in Germany with outstanding low noise
    • Generates a very high slew-rate square wave signal for superior lock precision
    • Provides simultaneous reference outputs with 50Ω and 75Ω impedance for maximum compatibility with audio components by other manufacturers
    • Eight galvanically isolated, individually switchable BNC clock outputs
    • Sub-Hz optimized, lowest noise power supply for every circuit section
    • Integrated highest quality international linear power supply
    • Highly efficient power line filtering
    • Intuitive user interface with noble appearance
    • Rack-mountable for studio use with optional mounting brackets (2 RU)

  • Specifications:

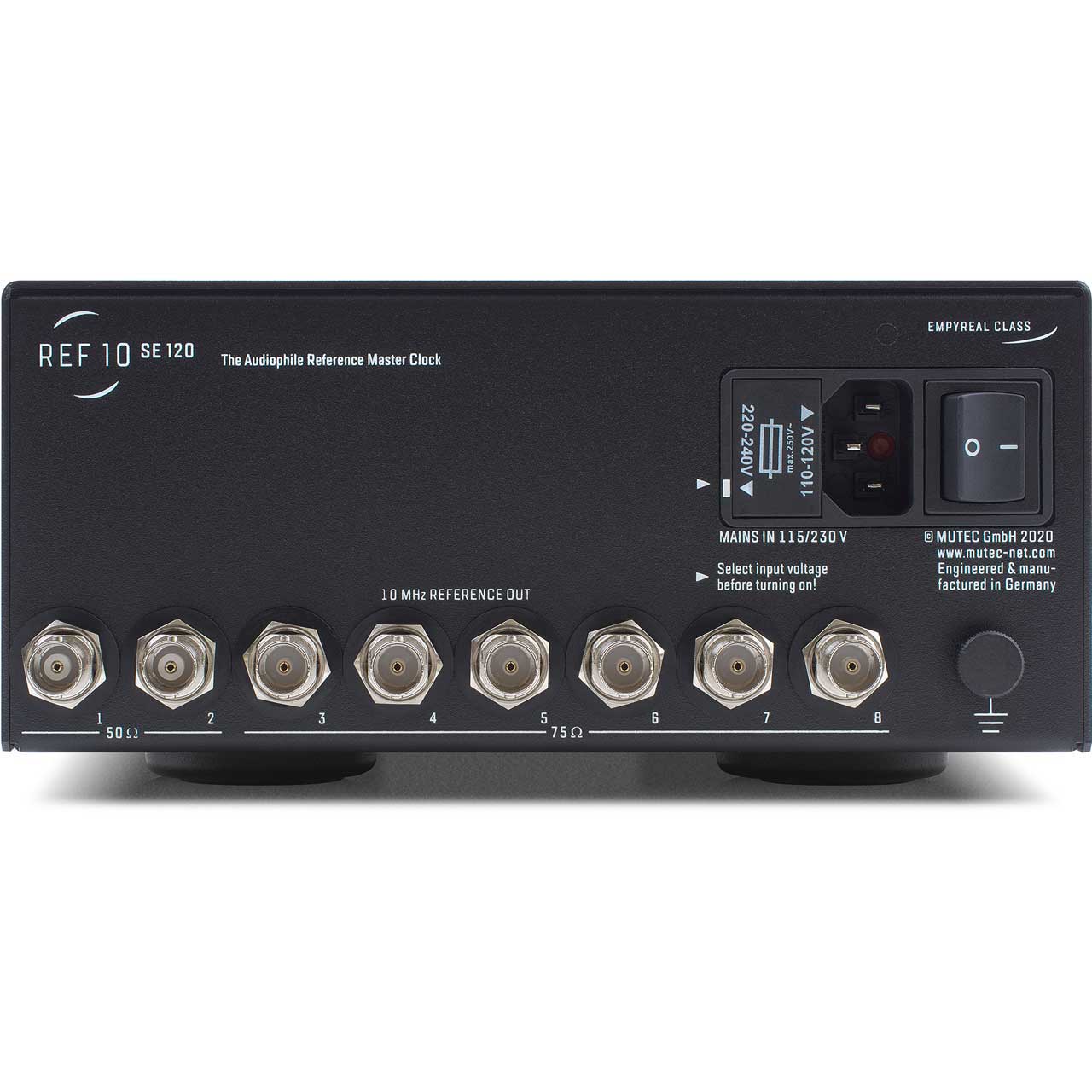

    • Interfaces
    • 2x 10MHz ref. clock BNC output, 50Ω terminated, unbalanced
    • 6x 10MHz ref. clock BNC output, 75Ω terminated, unbalanced

      Signal Format of all Clock Outputs
    • Square wave, 10.000MHz, 2Vpp, 50:50 duty cycle

      Clock Generation
    • Type: 10.000 MHz ultra-low noise oven-controlled crystal oscillator
    • FQ Stability When Shipped: < ±0.01 ppm
    • FQ stability vs. Temperature Range: < ±0.01 ppm within -4°F to 158°F (-20°C to 70°C)
    • Short Term Stability (Allan deviation) at Tau = 1 s: 2.5 x 10-13 (typically)
    • Aging after 30 days operation: < ±0.0002 ppm (per day), < ±0.03 ppm (1st year), < ±0.2 ppm (10 years)
    • Warm-up time at +77°F (+25°C): <5 min

      Phase Noise, Measured at REF10 SE120's Outputs
    • Phase noise dBc/Hz
    • 1 Hz: ≤ -120
    • 10 Hz: ≤ -148
    • 100 Hz: ≤ -162
    • 1000 Hz: ≤ -167
    • Noise floor: ≤ -170

      Jitter Performance, Measured at REF10 SE120's Outputs
    • 1-100 Hz: ≈ 15 fs

      Power Supply
    • Type: Internal dual linear power supply
    • Input Voltage: 90-125V/200-240V, 50-60Hz
    • Power consumption: 12W during oscillator warm-up, 8W nominal operation

      Mechanical Details
    • Cover:
      Dimensions (WxDxH): (196 x 84 x 300mm) (w/o connectors & case feet
      Material: Steel - (1.5mm)
      Color: Black powder-coated

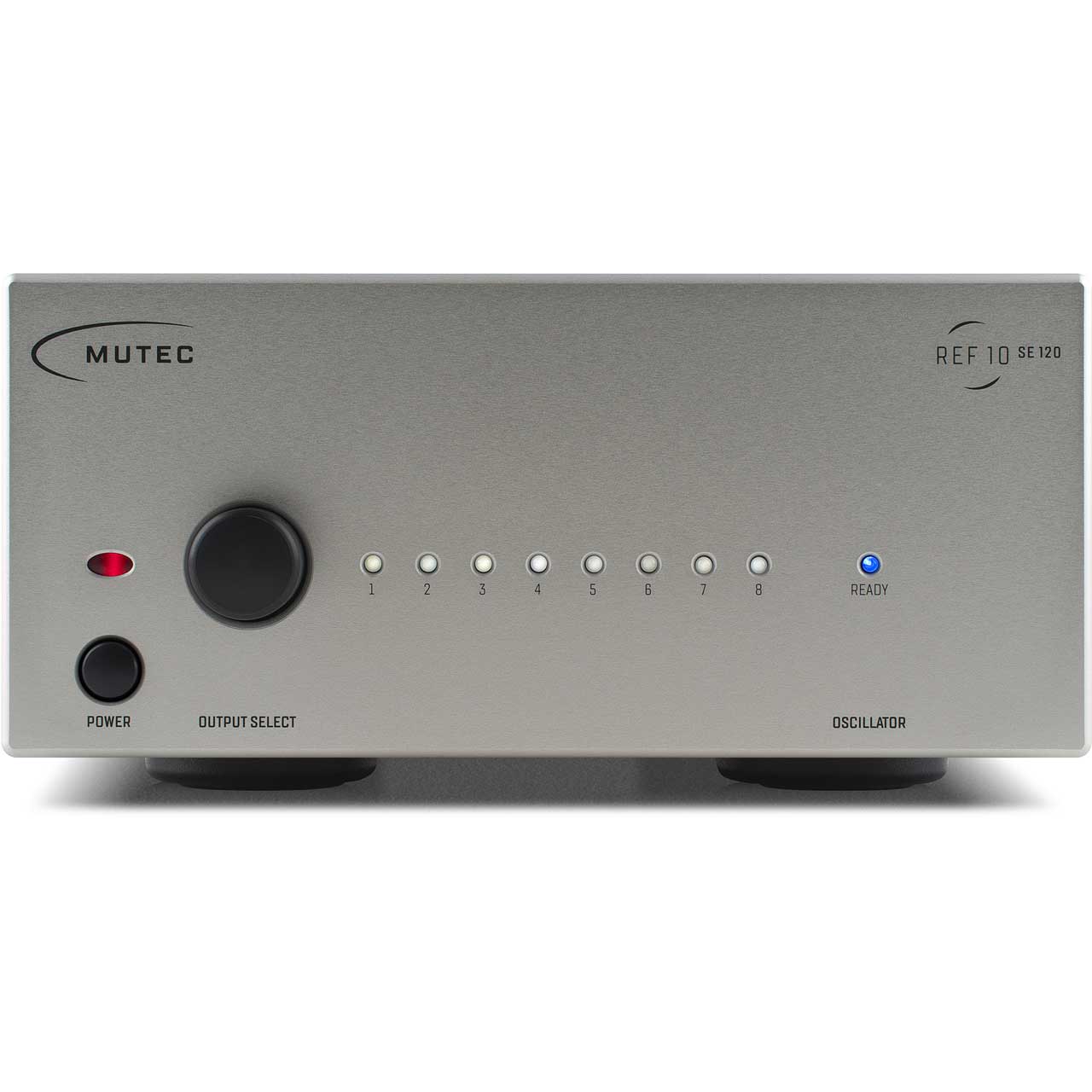

    • Front panel:
      Dimensions (WxHxD): (198 x 88 x 8 mm)
      Material: Aluminum
      Surface: Anodized including anodic printing or silk screening
      Color: Aluminum or Black
    • Weight: approx. 9Lbs (4350g)
