500217 - Overview

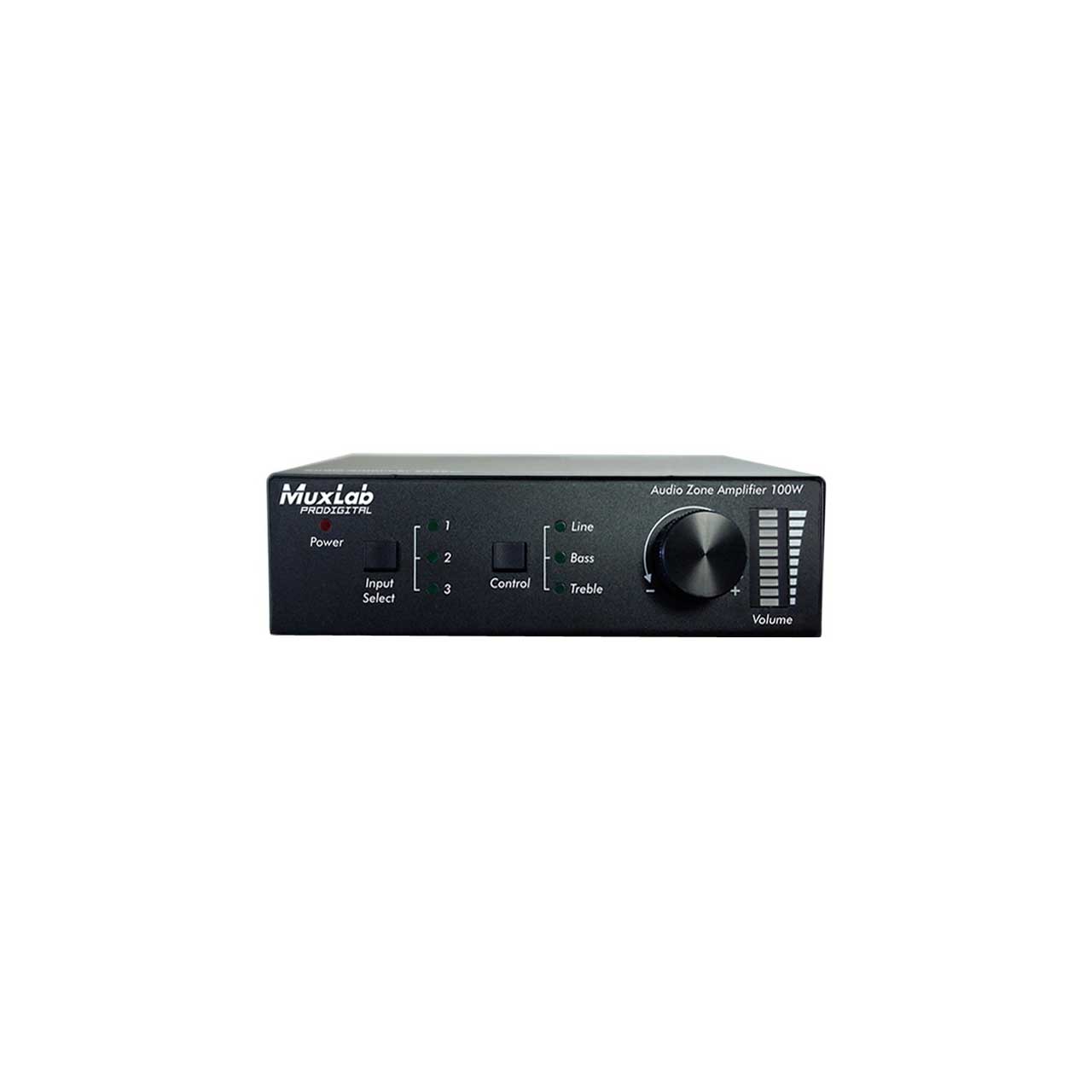

The MuxLab Audio Zone Amplifier 100W is a Class D amplifier which allows analog or digital sources to feed a pair of 50W per channel speakers. When set in Bridge mode and paired with the MuxLab 70V Transformer unit (500755-70V), the system is compatible with distributed 70V speaker systems over longer distances and supporting daisy chain configurations. The device may be controlled locally via pushbuttons and a knob, and remotely via RS232, IR and an IP webserver interface.

The Audio Zone Amplifier features two analog 2CH audio inputs (RCA & 3.5mm) & one (1) PCM digital optical input (TosLink), along with two 50W 8Ω speaker outputs or one 100W 4Ω speaker output (terminal block).

  • Features:

    • Two analog 2CH audio Inputs and one digital optical input
    • Supports 2x50 Watts into 8?, and 1x100 Watts (Bridge mode) into 4?

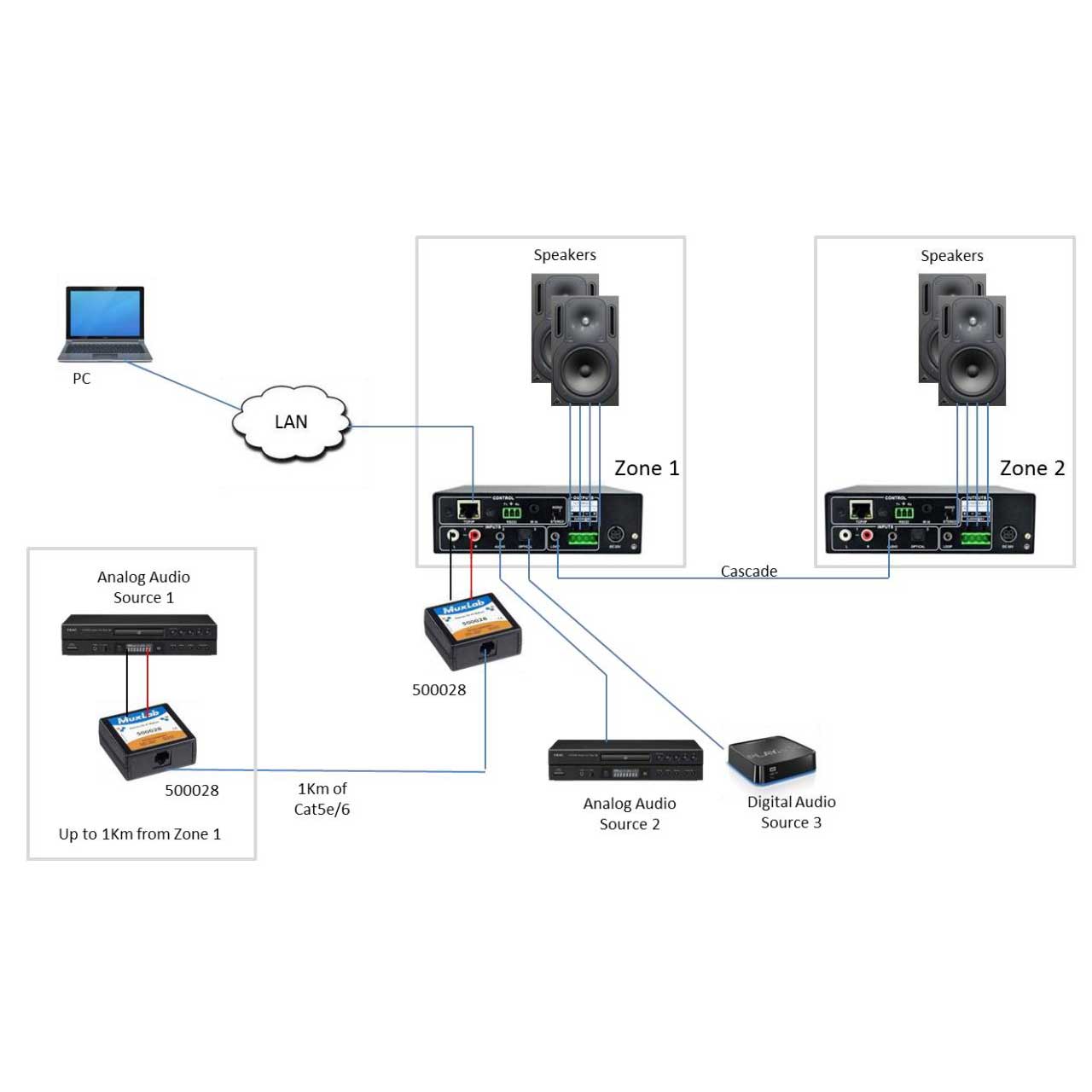

    • Cascadable allowing for chaining amplifiers
    • Compatible with MuxLab Hi-Fi Audio Baluns and Audio Matrix Switch (500210)
    • Compatible with MuxLab 70V transformer (500755-70V) to allow for longer distance connections and chaining of 70V speaker systems

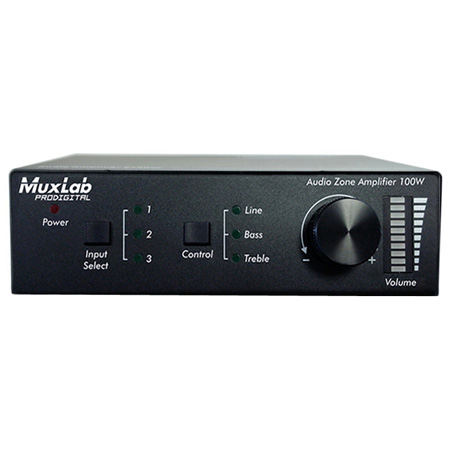

    • Volume, Bass and Treble control, with mute
    • Controllable via pushbuttons, RS232, IR and IP webserver interface


  • Specifications:

    • Environment: Analog Audio
    • Devices: Audio System, Line Output, Microphone, Speaker
    • Compatibility: Compatible with MuxLab Analog Audio products
    • Transmission: Transparent to the user
    • Frequency Response: 20Hz to 20kHz
    • CMMR: >75dB @ 20Hz-20kHz
    • SNR: 80dB at maximum output
    • Input Impedance: >10kΩ
    • Damping Coefficient: >100
    • Stereo Channel Separation: >75dB @ 20Hz to 20kHz
    • THD + Noise: 1% @ 1kHz, 50W
    • Voltage Gain: 32dB
    • Power Output: 1x100 Watts (@ 4Ω) or 2x50 Watts (@ 8Ω)

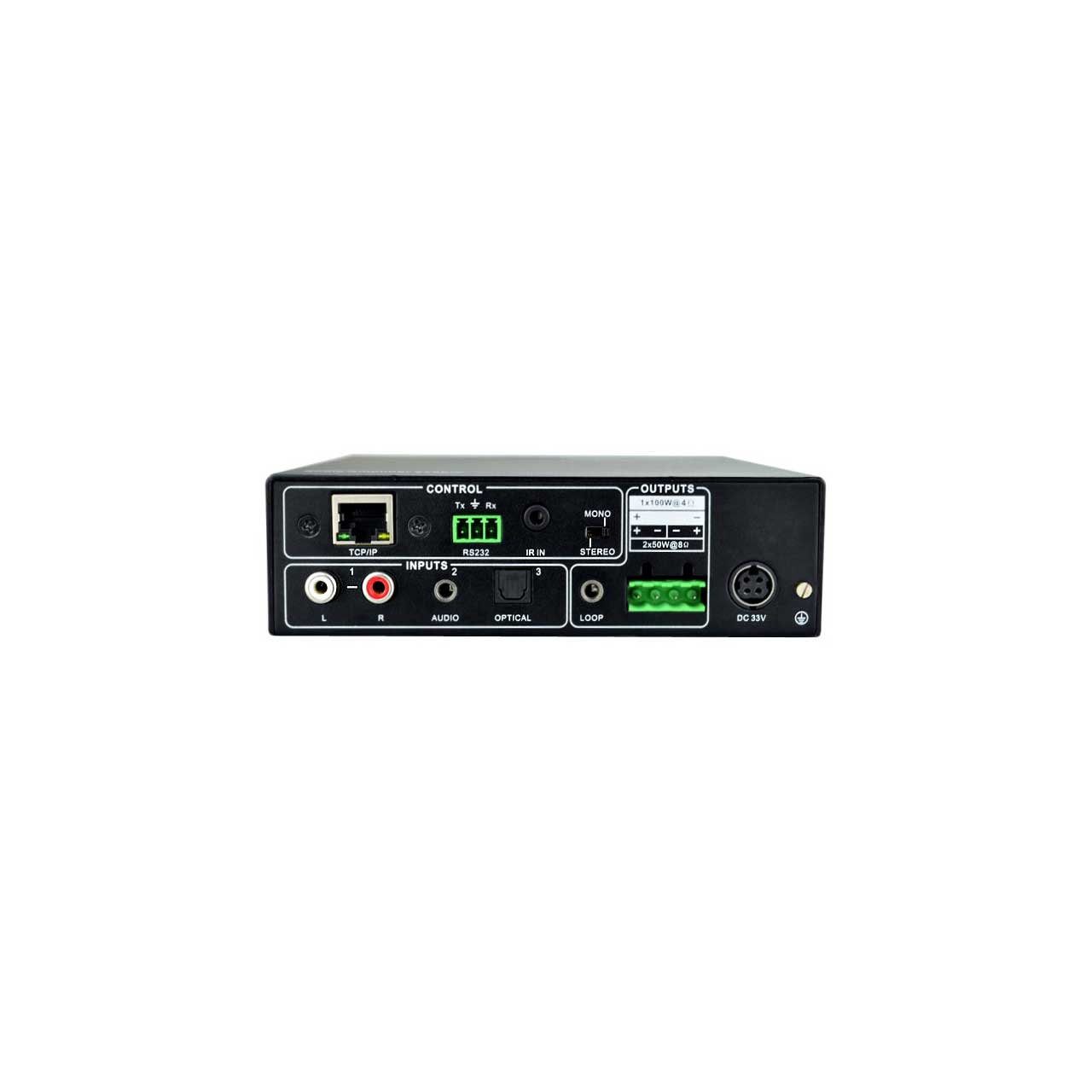

    • Connectors:
      - 2x RCA Input Jacks for L+R audio input
      - 2x 3.5mm Jacks; one input & one cascade output
      - 1x 4-pin terminal block (5.08mm) for the speakers
      - 1x Optical TosLink for the Digital Audio
      - 1x IR Sensor 3.5mm stereo Jack
      - 1x RJ45 Shielded for the Ethernet LAN connection
      - 1x 3-pin terminal block (3.81 mm) for RS232
      - 1x 4-pin DIN Jack for Power
    • Power Supply: 110-240VAC to 33VDC power supply
    • Temperature:
      - Operating: 32°F - 131°F (0°C - 55°C)
      - Storage: -4°F - 185°F (-20°C - 85°C)
      - Humidity: Up to 95% non-condensing
    • Enclosure: Metal
    • Dimensions: 5.83" x 1.73" x 6.50" (148 x 44 x 165 mm)
    • Weight: 1.59 lbs (0.72 kg)


  • Item Includes:

    • 1x Audio Zone Amplifier 100W
    • 1x Pluggable 4 Position Terminal Blocks
    • 1x RS232 Cable
    • 1x 33VDC, 4A Power Adapter
    • 1x Remote control
    • 1x IR Sensor
    • 1x Power Cord
    • 2x Detachable Mounting Ears
    • 4x Screws
    • 4x Plastic Feet
    • 1x User Manual


  • Warranty:

    • 2 Years


  • Applications

    :

    • Audio Distribution Systems
    • Meeting & Classroom applications
    • Hospitality industry
    • Digital signage
    • Ceiling and shelf speakers


  • GTIN:

    0627699002179
