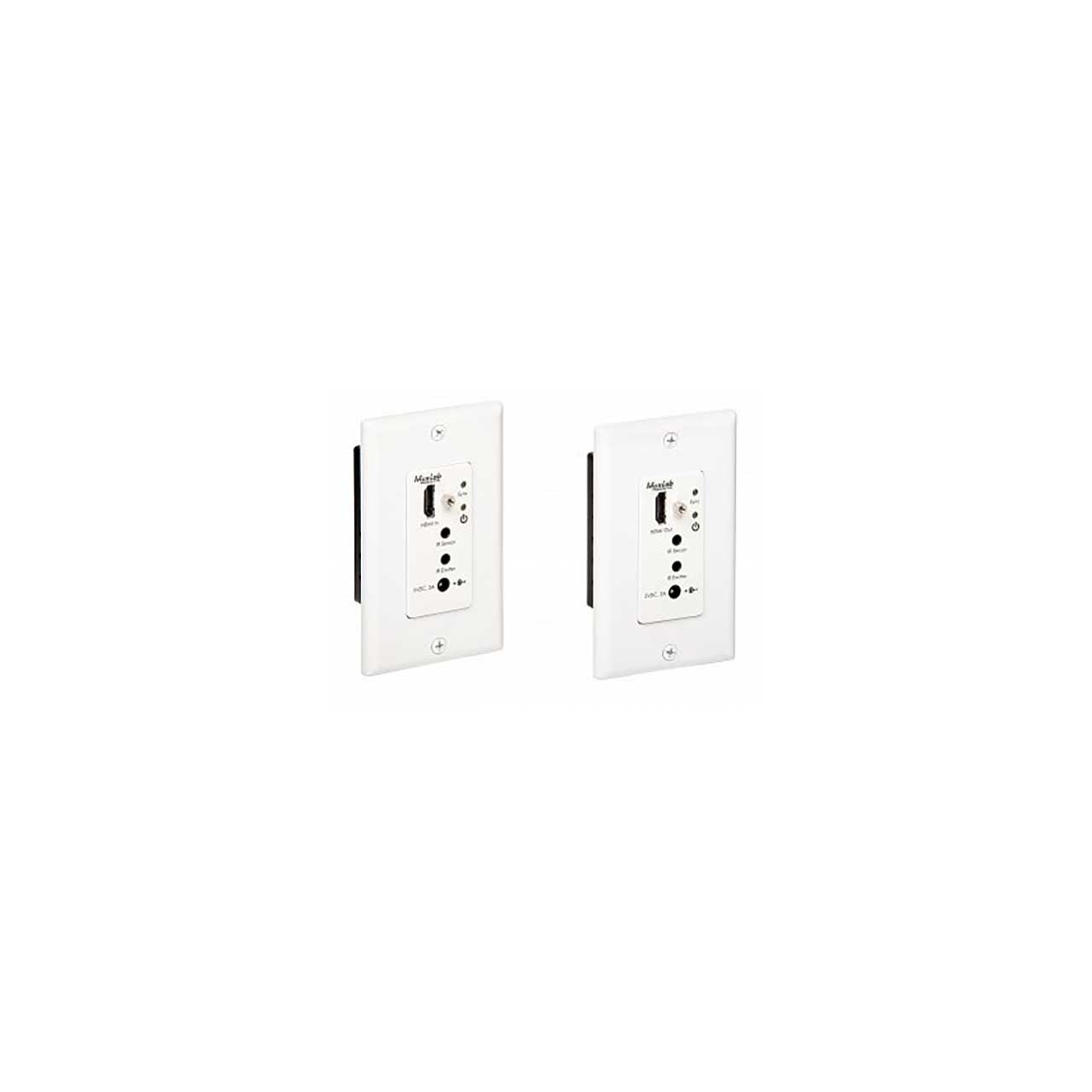

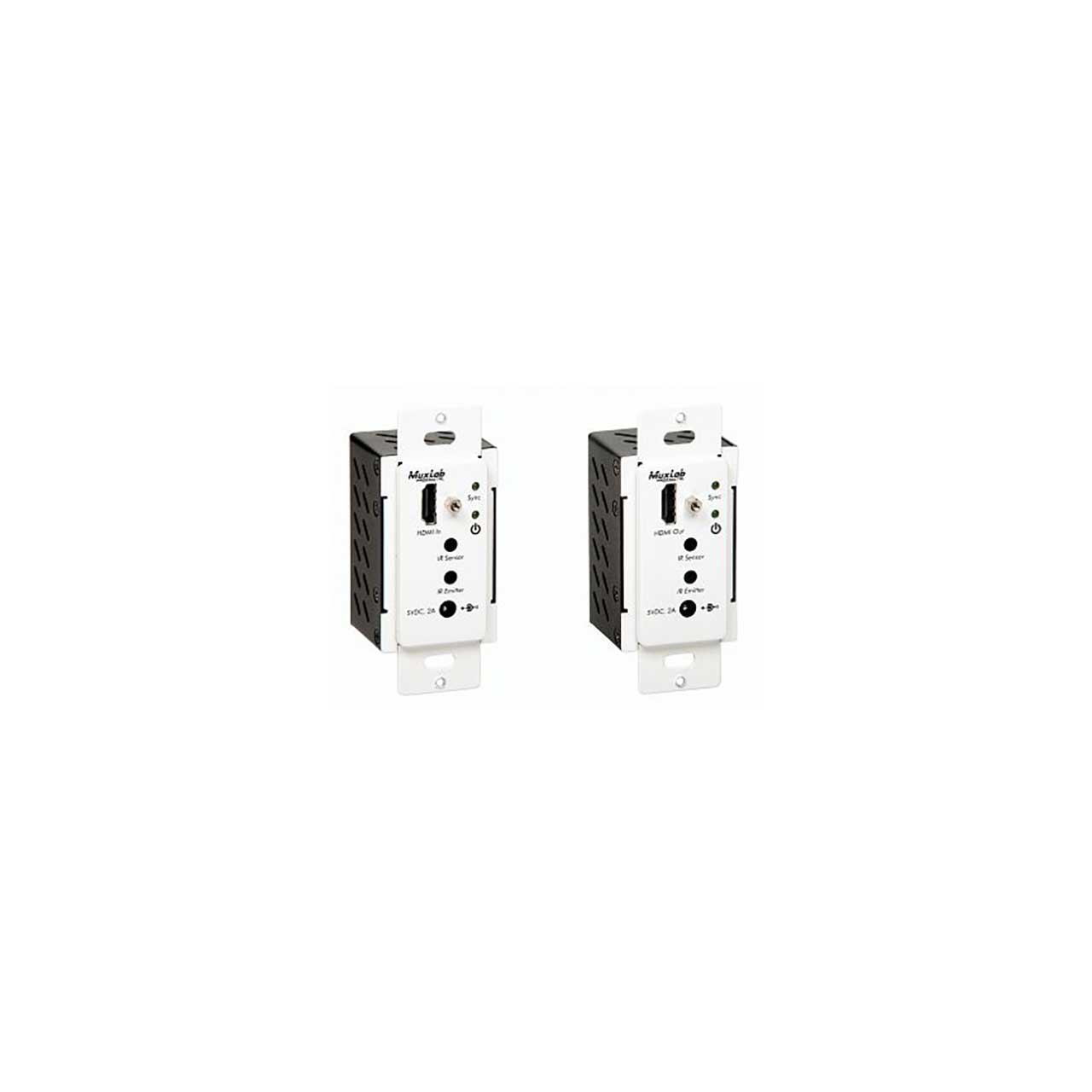

MuxLab 500451-WP-DEC HDMI Transmitter/Receiver Wall-Plate Extender Kit - HDBT - UHD-4K (Decora)

500451-WPDEC - Overview

• Features:

  • Supports 1080p deep color and full 3D to distances of up to 230 ft (70m) over single Cat5e/6
  • Supports 4K @ 24/25/30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131 ft (40m) over single Cat5e/6
  • Supports Bi-directional IR pass through
  • Supports all digital audio modes
  • Includes IR emitter and IR sensor (carrier-wave)
  • Compatible with 500451 (non PoE version)


• Specifications:

  • Environment: HDMI 1.4a (3D)

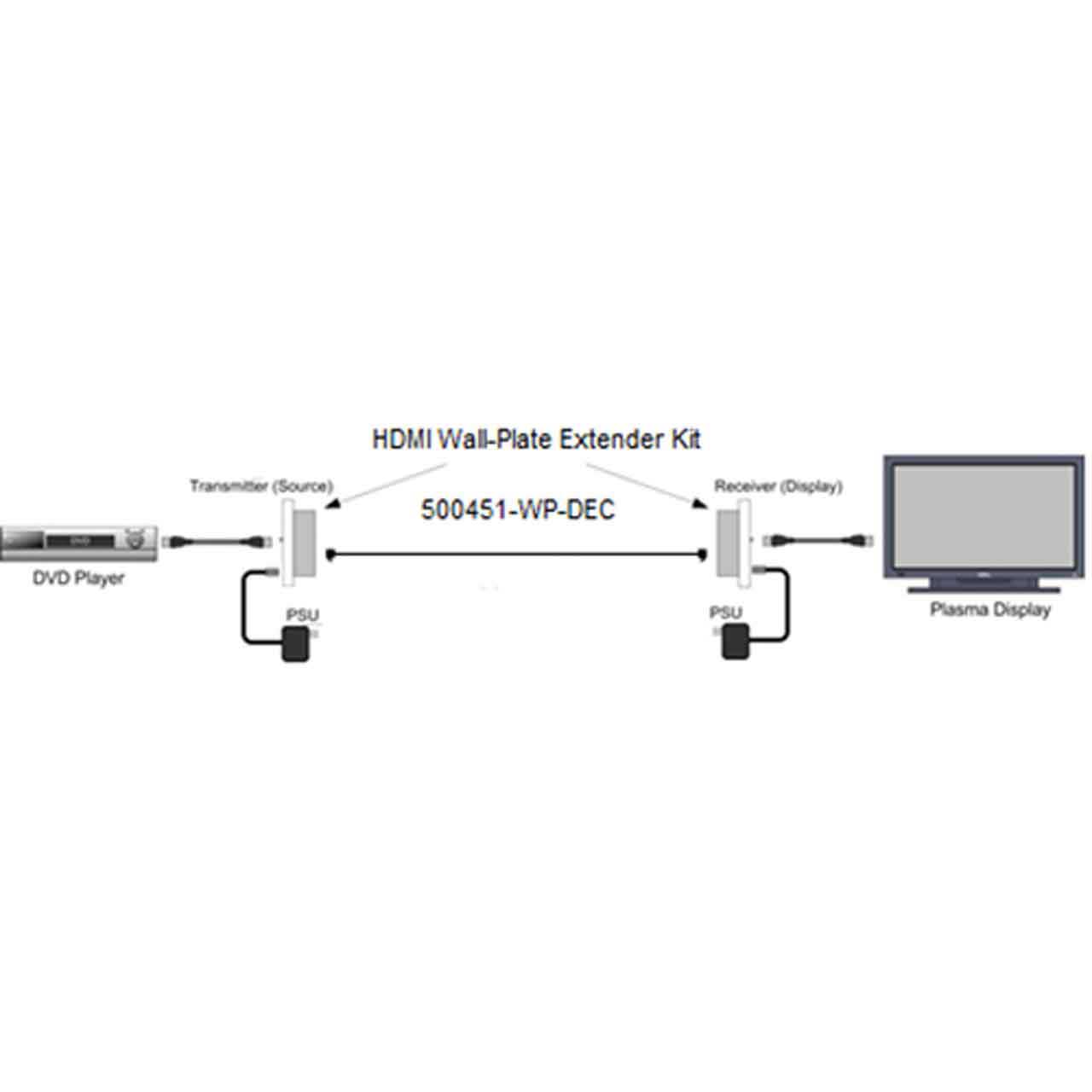

  • Devices: DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
  • Transmission: Transparent to the user
  • Bandwidth: 340MHz
  • Signals: HDMI 1.4a protocol

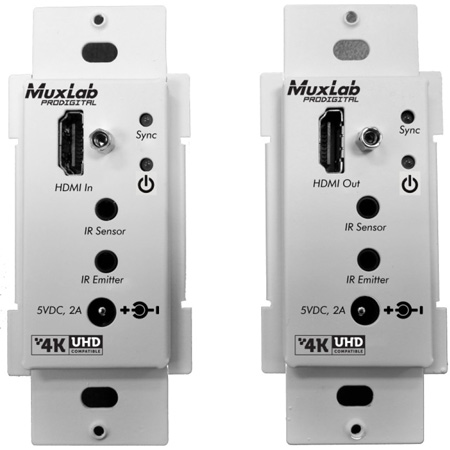

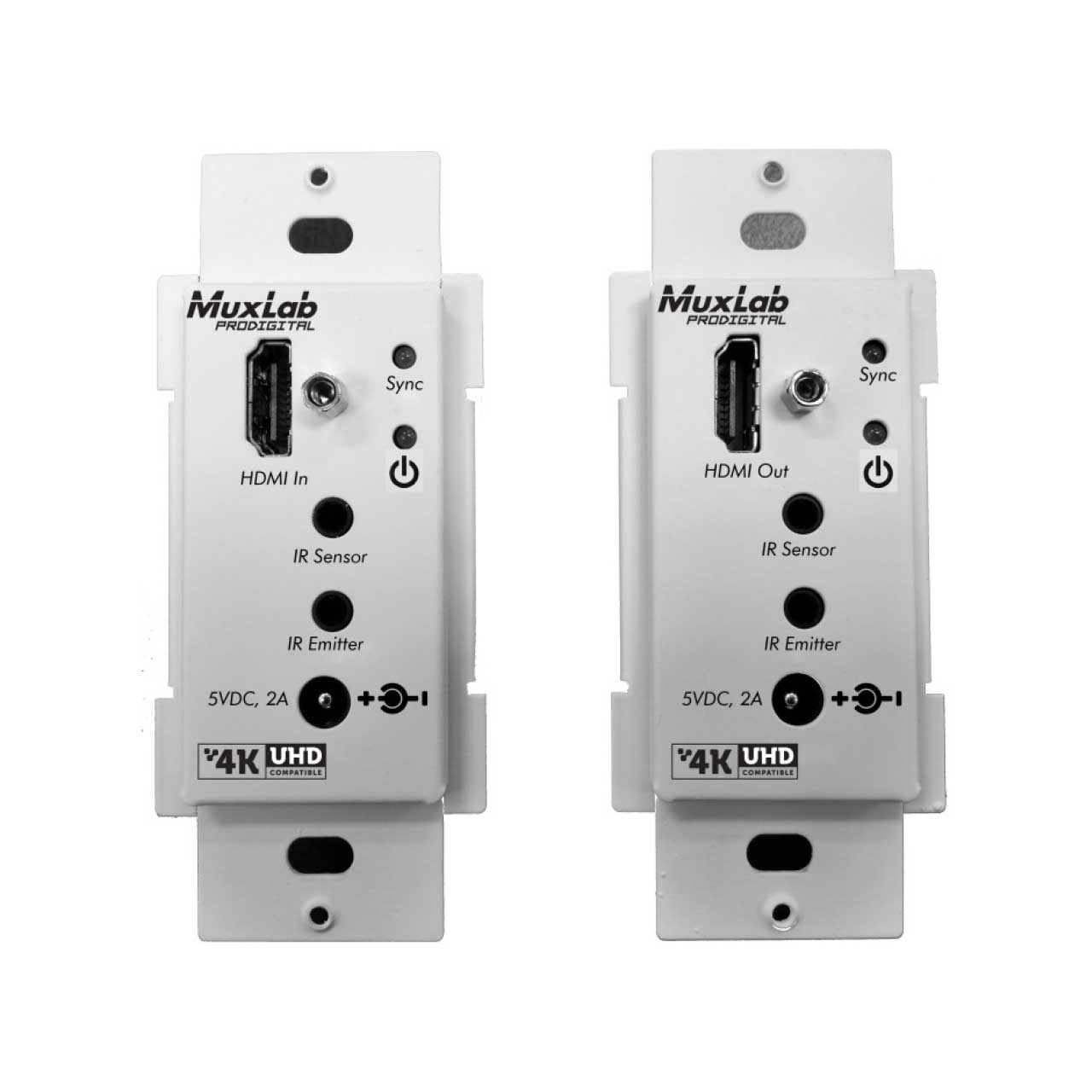

  • Connectors (Cables not included)
    One (1) HDMI receptacle

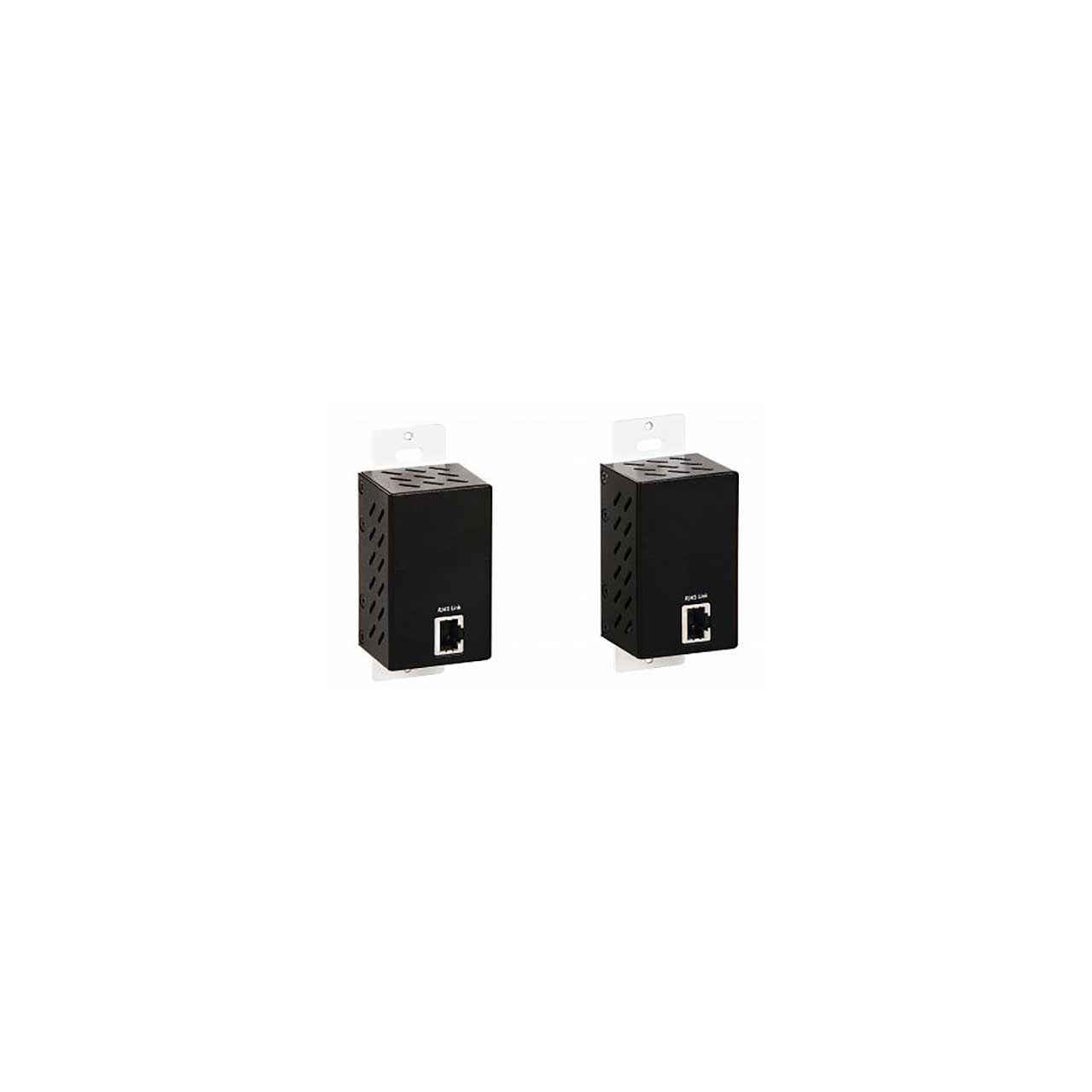

    One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair
    Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave)
  • Max. Distance (Based on a maximum length of 6.6ft (2m) of HDMI cable per end
    4K/30 (4:4:4): Cat 5e/6: 131ft (40m)
    4K/60 (4:2:0): Cat 5e/6: 131ft (40m)
    1080p: Cat 5e/6: 230ft (70m)
    1080p Deep Color: Cat 5e/6: 230ft (70m)
    When installed in an electrically noisy environment, STP cable must be used. Also, crossconnection reduces the effective distance depending on the grade of twisted cable used.
  • RJ45 Pin Configuration Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straightthrough wiring.
  • RJ45
  • Pin 1 (R) Pin 2 (T)
  • Pin 3 (R) Pin 6 (T)
  • Pin 4 (R) Pin 5 (T)
  • Pin 7 (R) Pin 8 (T)
  • Cable: One (1) Category 5e or better twisted pair cables required.
  • Power Supply: One (1) 110-240V/48VDC power supply with interchangeable blades
  • Power Consumption
    Transmitter: 1.6 Watt
    Receiver: 3.2 Watt
  • Temperature
    Operating: 32° to 104°F (0° to 40°C)
    Storage: -4° to 185°F (-20° to 85°C)
  • Humidity: up to 95% non-condensing
  • Enclosure: Metal
  • Dimensions: 4.40 x 3 x 1" (11.2 x 7.6 x 2.5cm)
  • Weight: 1.4Lbs (.6kg)
  • Compliance: Regulatory: FCC, CE, RoHS


• Item Includes:

  • 1x Transmitter
  • 1x Receiver
  • 1x IR Emitter
  • 1x IR sensor


• Warranty:

  • 2-Year Warranty


• GTIN:

  0627699034514
