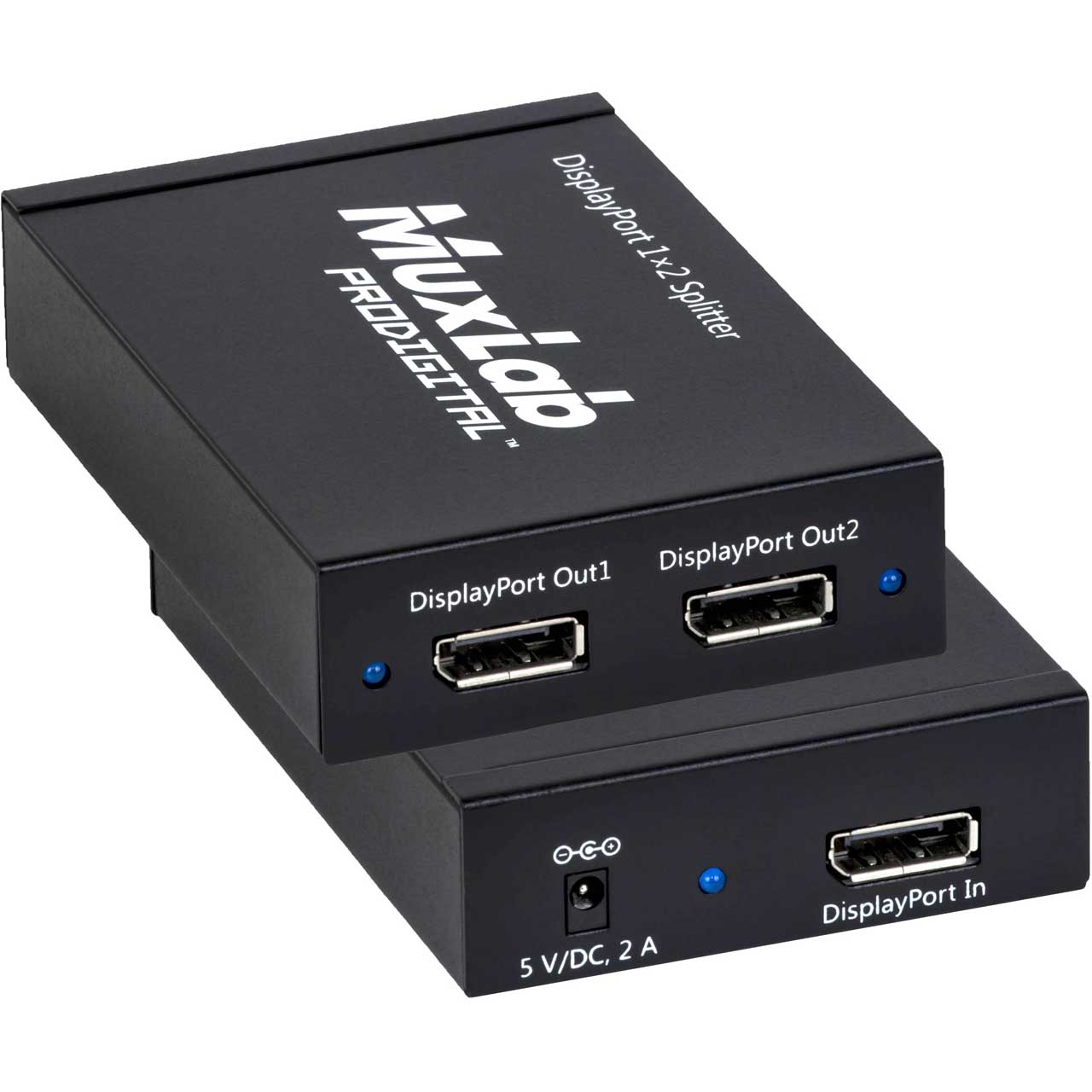

MuxLab 500506 DisplayPort 1.2a 1x2 Hub - MST

500506 - Overview

• Features:

  • Extend different DisplayPort 1.2a content from one DisplayPort connector to two monitors
  • Supports data rate of 5.4 Gbps per lane with a total of 21.6 Gbps link rate
  • HDMI link rate: 3.2 Gbps/data pair
  • Supports dual mode DisplayPort
  • 4K at 60Hz, 24 bits/pixel in DP 1.2a configuration
  • 1080p at 240Hz, 24 bits/pixel
  • Supports Multi-Stream Transport (MST) of up to eight streams


• Specifications:

  • Environment: DisplayPort 1.2a
  • Device Targeted: Installation of DisplayPort or Mini DisplayPort output source equipment with DisplayPort input monitors
  • Transmission: Transparent to the user.
  • Video Bandwidth: 21.6 Gbps (5.4Gbps per lane)
  • Signals: DisplayPort 1.2a & Dual mode DisplayPort protocol
  • Transport: Supports Multi-Stream Transport (MST) of up to eight streams
  • Resolution: Up to 3840 X 2160 @ 60 FPS
  • HDCP: Revision 1.4 compliant.
  • Audio: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • Connectors: Three DisplayPort connectors, One PSU connector
  • Cabling Requirement: Input port : 1x Standard DisplayPort Cable; Output port : 2x Standard DisplayPort Cables (Select appropriate cable length for video resolution selected)
  • LEDs: Input & Output Link: Blue
  • Power Supply: 5VDC, 2A
  • Temperature Operating: 32° to 104°F; Storage: -4° to 185°F
  • Humidity: Maximum 90% (non-condensing)
  • Enclosure: Black metal enclosure
  • Dimensions: 4.33” x 2.95” x 1.00”
  • Weight: 0.55lbs
  • Compliance: Regulatory: FCC, CE, RoHS
  • Warranty: 2 years


• Warranty:

  • 2 Years


• GTIN:

  0627699005064
