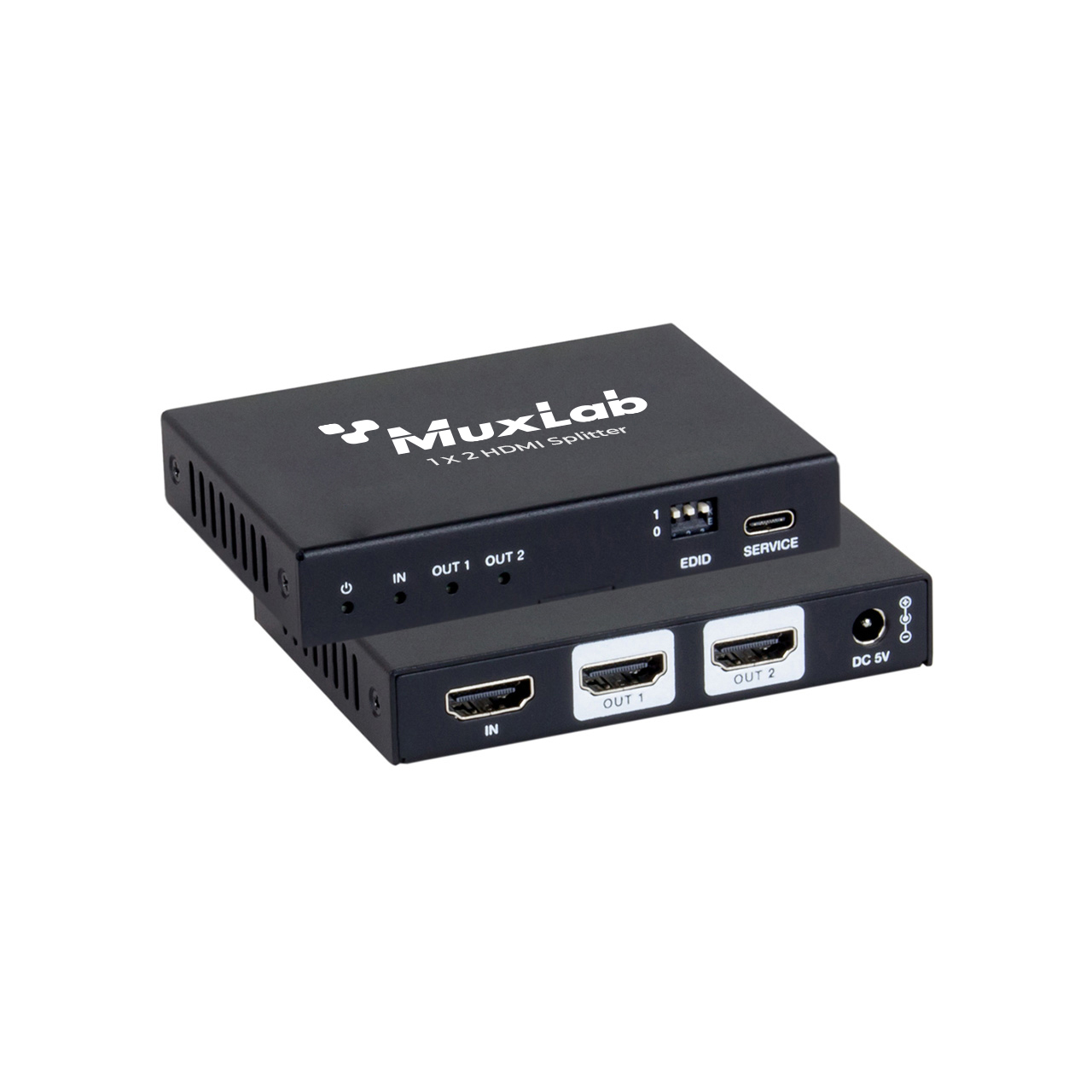

MuxLab 500510 HDMI 2.1/HDCP 2.3 48Gbps 1x2 Splitter

Name: MuxLab 500510 HDMI 2.1/HDCP 2.3 48Gbps 1x2 Splitter
Brand: MuxLab Inc
SKU: MUX-500510
Price: 130.00 USD
Availability: PreSale

ITEM #: MUX-500510 MFG #: 500510

MuxLab Inc

List Price:

$162.00

Our Price:

$130.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500510 - Overview

HDMI 2.1 and HDCP 2.3 Compliant

The MuxLab 500510 HDMI 2.1 48Gbps 1x2 Splitter is a versatile device with various applications, offering advanced features for splitting HDMI signals.

The HDMI 2.1 48Gbps 1x2 Splitter's ability to handle high data rates, support 8K resolution, and provide features like EDID management and cable equalization makes it suitable for a wide range of applications in both residential and commercial settings.

Features:
- HDMI 2.1 and HDCP 2.3 compliant
- Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
- Supports video resolution up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM
- Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
- HDR to SDR auto converting on all outputs
- Advanced EDID management
- Compact design for easy and flexible installation
Specifications:
- HDMI Version: Support HDMI 2.1 and HDCP 2.3
- Video Bandwidth: 48Gbps
- Video Resolution: Up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
- Color Depth: 8/10/12 bit
- Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
- Audio Formats:
  - HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
- Input: 1x HDMI IN (Type A, 19-pin female)
- Output: 2x HDMI OUT (Type A, 19-pin female)
- Control: 1x SERVICE (USB Type C, Update port)
- Housing: Black Metal Housing
- Dimensions: 3.74" x 2.68" x 0.71" (95mm x 68mm x 18mm)
- Weight: 6.24oz (177g)
- Power Supply:
  - Input: 100-240VAC 50/60Hz
  - Output: 5VDC/2A
- Power Consumption: 4.3W Max
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -13°F - 158°F (-25°C - 70°C)
Item Includes:
- 1x HDMI 2.1 48Gbps 1x2 Splitter
- 1x Power Supply
- 1x User manual (available via download)
Warranty:
- 2 Year Warranty

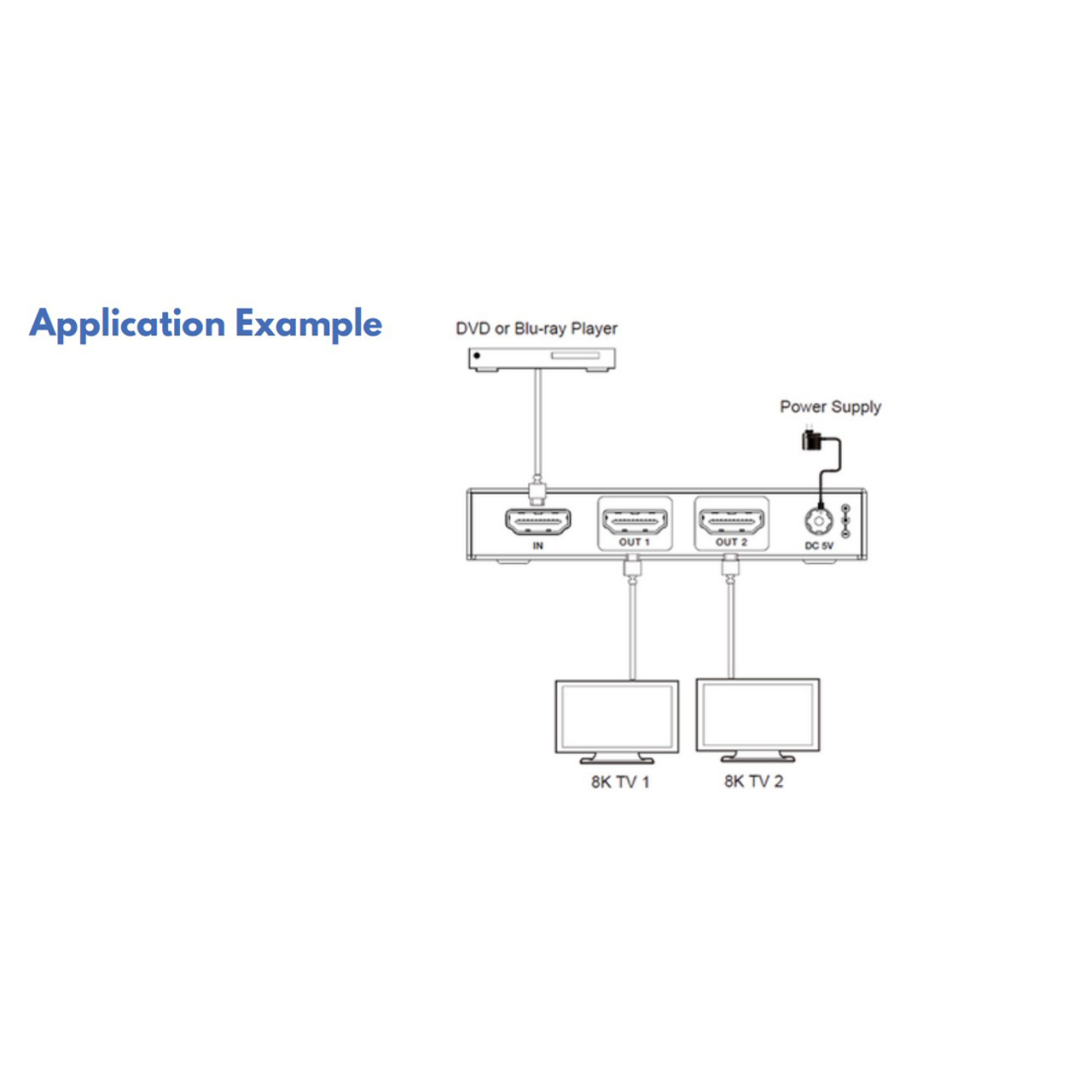

Applications:
- Home Entertainment Systems
- Gaming Setups
- Professional AV Installations
- Digital Signage
- Educational Institutions
- Medical Imaging
- Broadcasting and Production
- Compatibility Testing
- Event Venues
GTIN:
0627699005101
