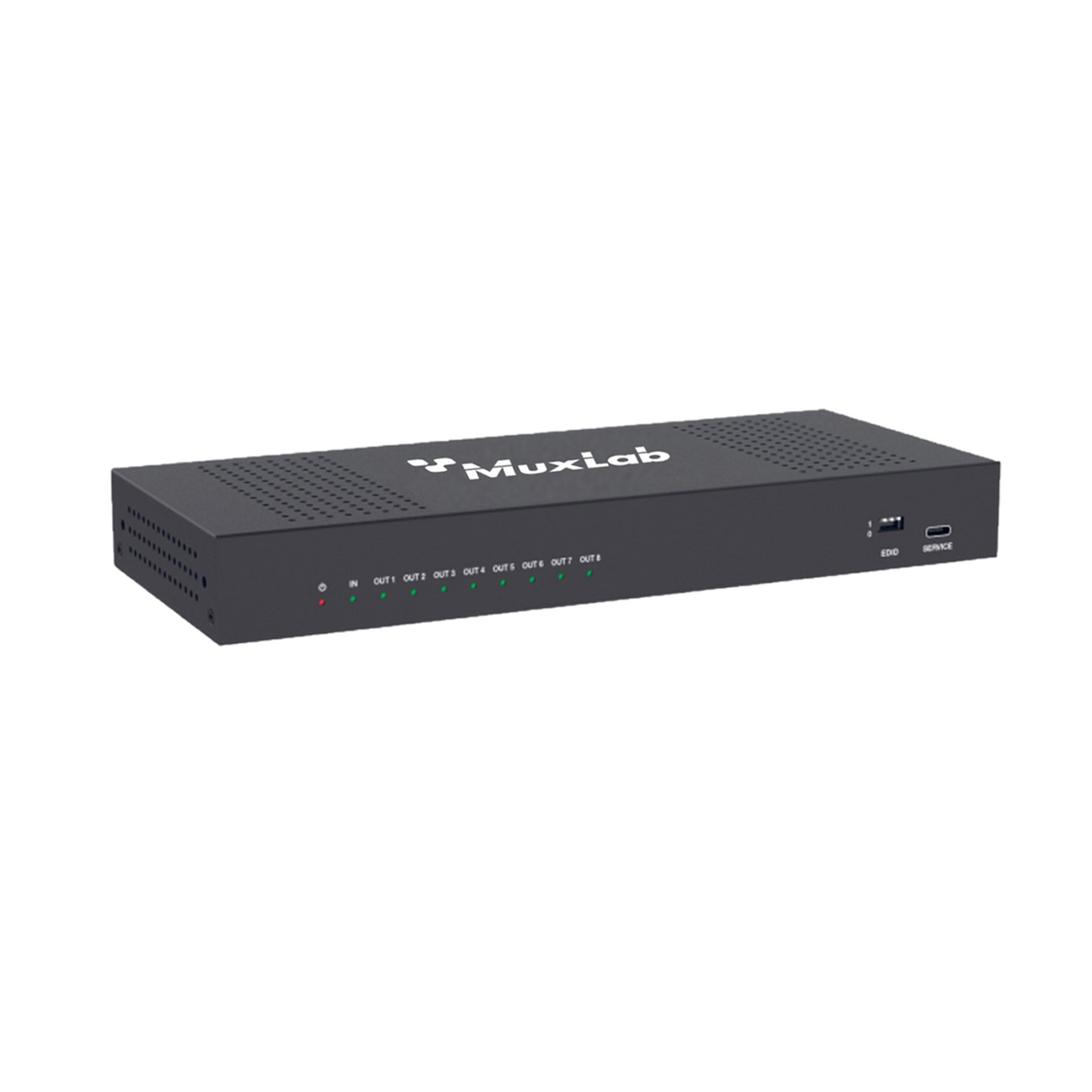

MuxLab 500512 HDMI 2.1 48Gbps 1x8 8K Ultra-HD Splitter

MUX-500512 - Overview

• Features:

  • HDCP 2.3 Compliant
  • Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
  • Supports video resolution up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
  • HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
  • LPCM 7.1CH, Dolby True HD, Atmos and DTS-HD Master Audio
  • 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
  • Support resolution auto downscaling on each output
  • Support auto converting of HDR to SDR on each output
  • Advanced EDID management


• Specifications:

  • Technical
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3, HDCP 1.4
  • Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
  • Video Resolution: Up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
  • Color Depth: 8/10/12 bit
  • Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
  • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Audio Formats: HDMI INPUT/OUTPUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) ±4kV (Contact discharge)

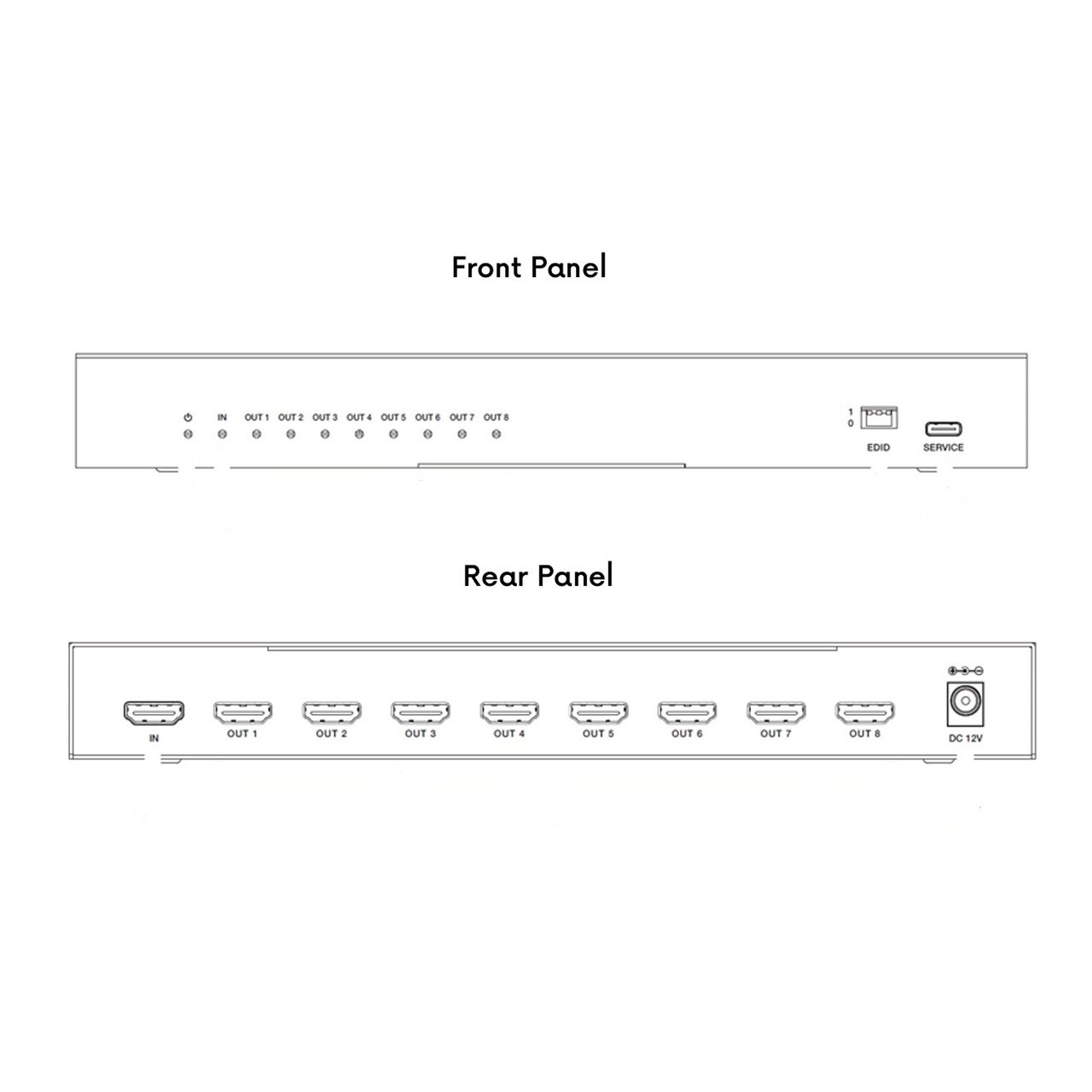

    Connection

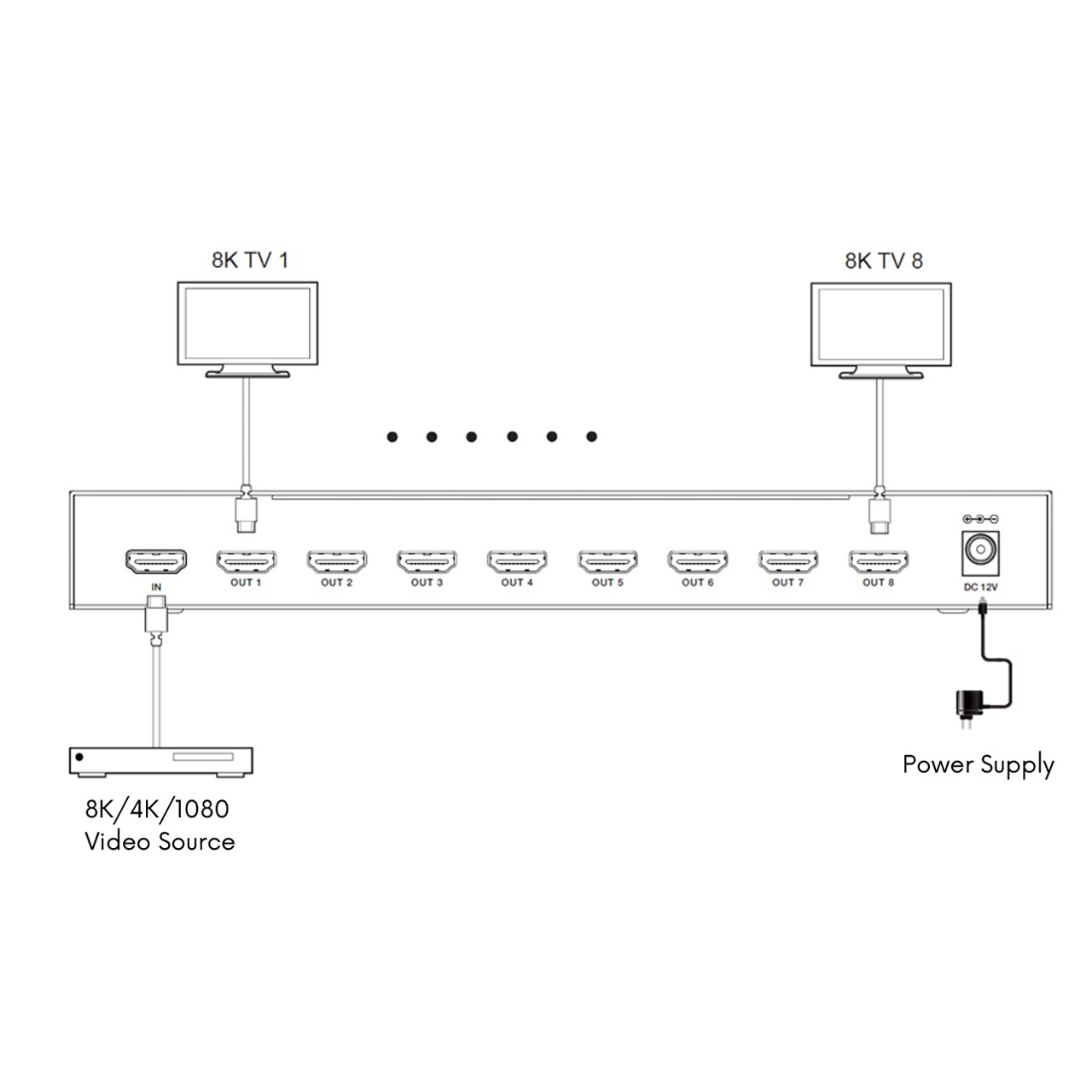

  • Input: 1x HDMI IN (Type A, 19-pin female)
  • Output: 8x OUT HDMI OUT (Type A, 19-pin female)
  • Control: 1x SERVICE (USB Type C, Update port)

    Mechanical
  • Housing: Metal Emclosure
  • Color: Black
  • Dimensions (WxDxH): 9.84" x 4.09" x 1.18"(250mm x 104mm x 30mm)
  • Weight: 1.63lbs (743g)
  • Power Supply: 12VDC/2.5A
  • Power Consumption: 12.2W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C ~ 60°C)
  • Relative Humidity: 20~90% RH (Non-condensing)


• Item Includes:

  • 1x Muxlab 500512 HDMI 2.1 48Gbps 1x8 Splitter
  • 1x Power Supply
  • 1x User Manual


• Warranty:

  • 2-Year Limited Warranty
