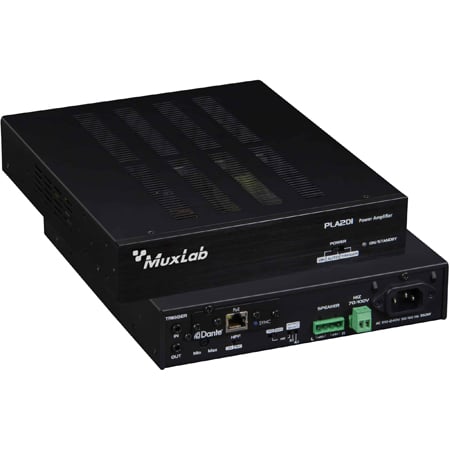

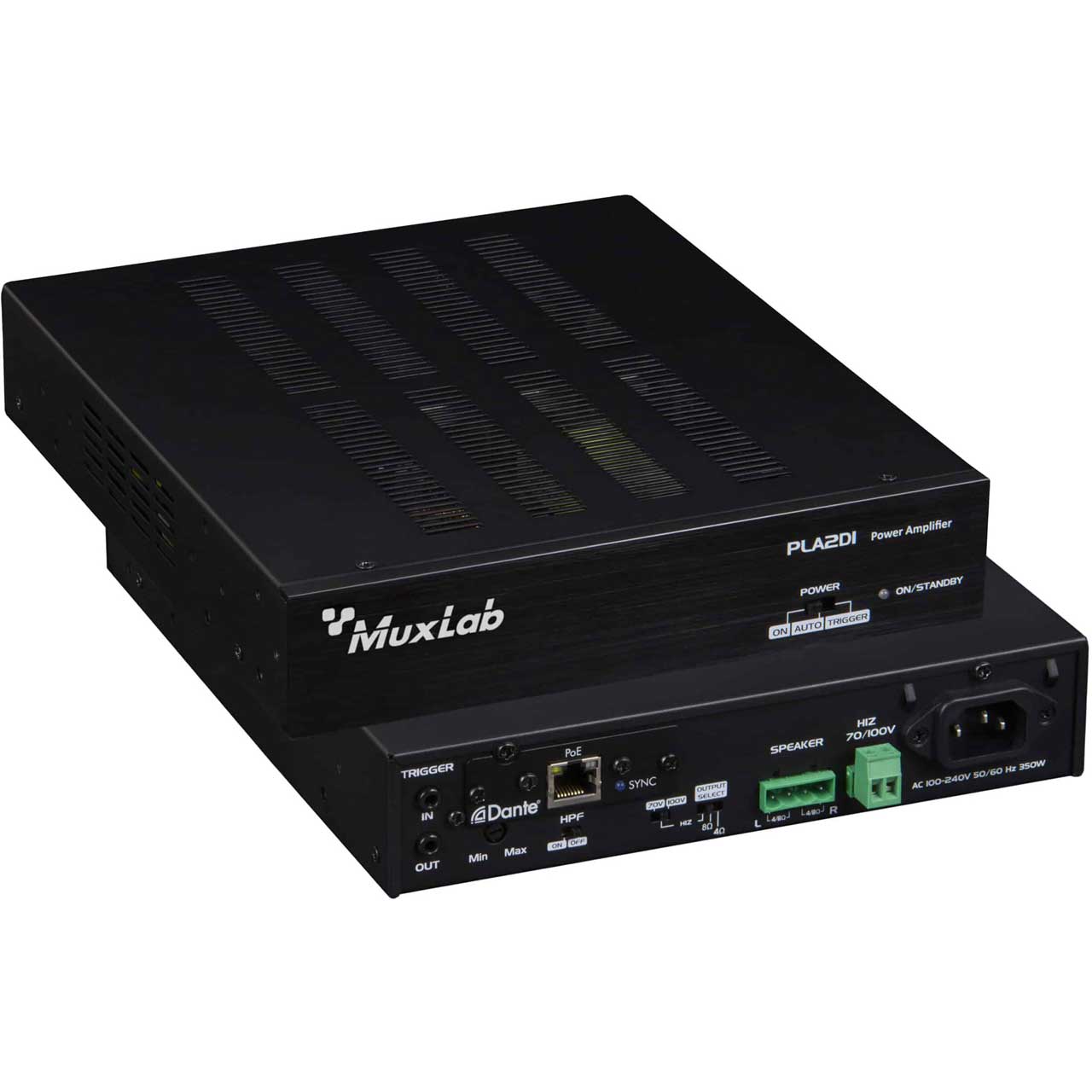

MuxLab 500553 Dante 2-Channel 240 Watt Power Amplifier

Name: MuxLab 500553 Dante 2-Channel 240 Watt Power Amplifier
Brand: MuxLab Inc
SKU: MUX-500553
Price: 898.00 USD
Availability: InStock

ITEM #: MUX-500553 MFG #: 500553

MuxLab Inc

List Price:

$1,122.00

Our Price:

$898.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500553 - Overview

The Dante 2-Channel Power Amplifier 240W (Model 500553) features a Dante slot card that accepts the digital signal from the Dante network and converts it to an analog audio signal using it as the input source of the amplifier. Simply use "Dante Controller" to route a signal from source devices that are on the same Dante network. Its space-saving 1/2 rack design allows for quick installation and provides flexibility to mix and match with other 1/2 rack products to save valuable equipment rack space.

This powerful class D amplifier is combined with features such as 12V trigger control, audio-sensing, volume gain adjustment, short circuit protection and overheating protection.

Applications:
Commercial and residential AV systems
Classroom training systems
Digital signage
Boardroom systems
Collaborative PC systems
Medical information systems

Features:
- Two-channels audio amplifier with Dante integration
- Supports 2 x 120W @ 4 / 8 ohm, 1 x 240W @4 / 8 ohm, or 70/100V constant output for multiple speakers
- Switch for High Pass Filter
- Selection for Power-Up mode.
- Natural cooling without Fan
- Short circuit protection
- Overheating protection
- Red Led (Front Panel) to indicate Standby mode is active
- Power down after 15 minutes of no signal and meets with Energy Star power consumption limits of < 0.5W in standby
Specifications:
- Power (Stereo Mode): 120W x 2, 8 Ω (31 V) RMS output (steady state), per channel @ < 1 % THD+N, 120W x 2, 4 Ω (22 V) RMS output(steady state), per channel @ < 1 % THD+N
- Power (Bridged Outputs): 240W, 70V @ < 1 % THD+N, 240W, 100V @ < 1 % THD+N
- Frequency Response: 20 Hz - 20 kHz, +/- 2 dB @ 4Ω Load
- High Pass Filter: 80 Hz(±2dB)
- Signal to Noise: >90dB @ 1W(20 Hz - 20 kHz)
- Input Sensitivity: 1.0V (+2.2dBu) @ Max Output 4Ω
- Trigger Connectors: 3.5 mm Jacks
- Gain Value: 25 dB @ 4Ω
- Output Connectors: 4 pin Euro terminal (4Ω/8Ω) 2 pin Euro terminal (70V/100V)
- Maximum Input Level: 12.3 V (+24 dBu)
- Trigger In/Out: DC 12V
- Dimensions: 12.6 x 11.22 x 4.72"
- Net Weight: 4.4lb
- Power Requirements: 100 - 240 VAC, 50 - 60 Hz, 350W
Item Includes:
- 1x MuxLab 500553 Dante 2-Channel 240 Watt Power Amplifier
Warranty:
- 2 years
