MuxLab 500732-SM40 6G-SDI Extender Over Fiber Kit (single-mode) 132000ft / 40km

Name: MuxLab 500732-SM40 6G-SDI Extender Over Fiber Kit (single-mode) 132000ft / 40km
Brand: MuxLab Inc
SKU: MUX-500732-SM40
Price: 4394.00 USD
Availability: PreSale

ITEM #: MUX-500732-SM40 MFG #: 500732-SM40

MuxLab Inc

List Price:

$5,492.00

Our Price:

$4,394.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500732-SM40 - Overview

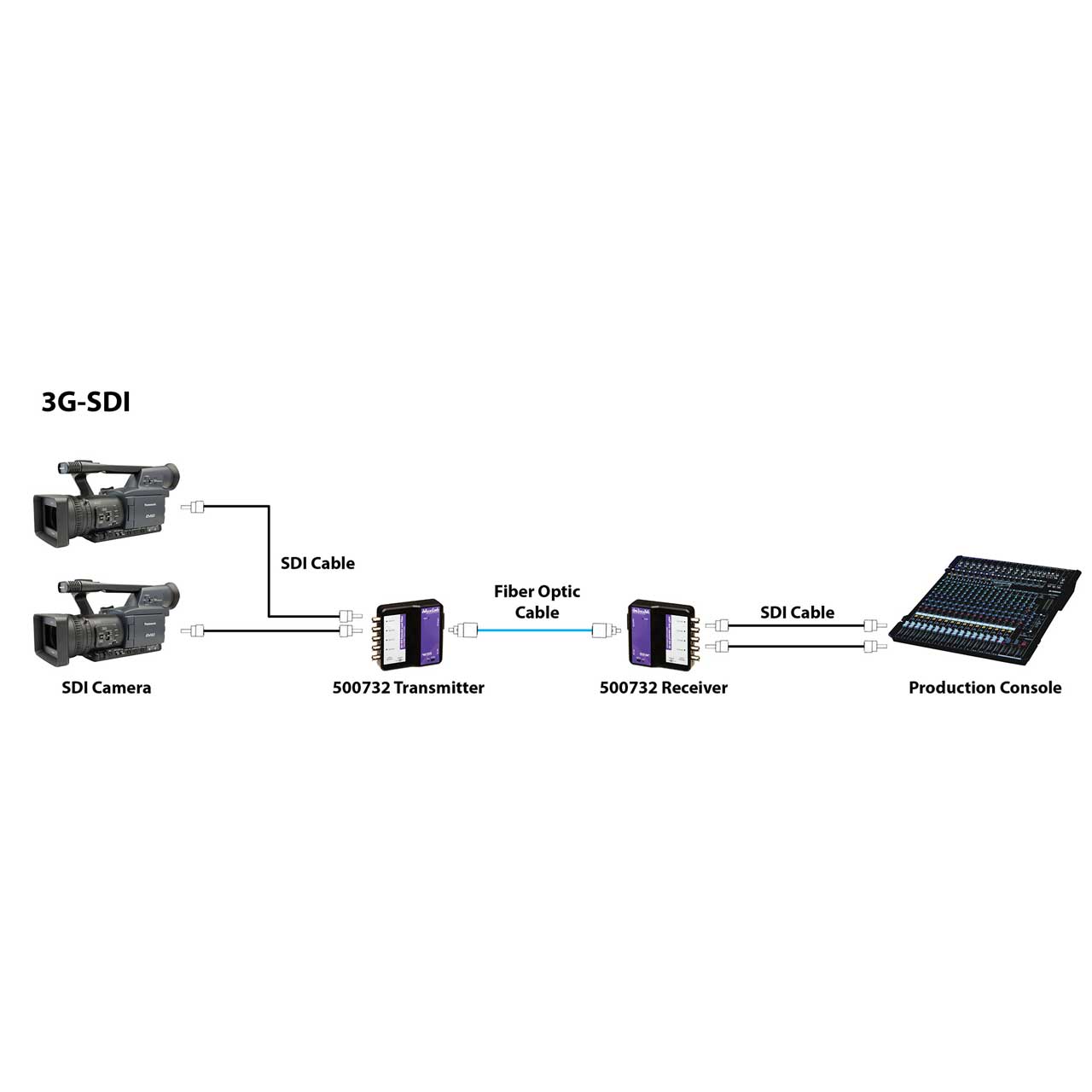

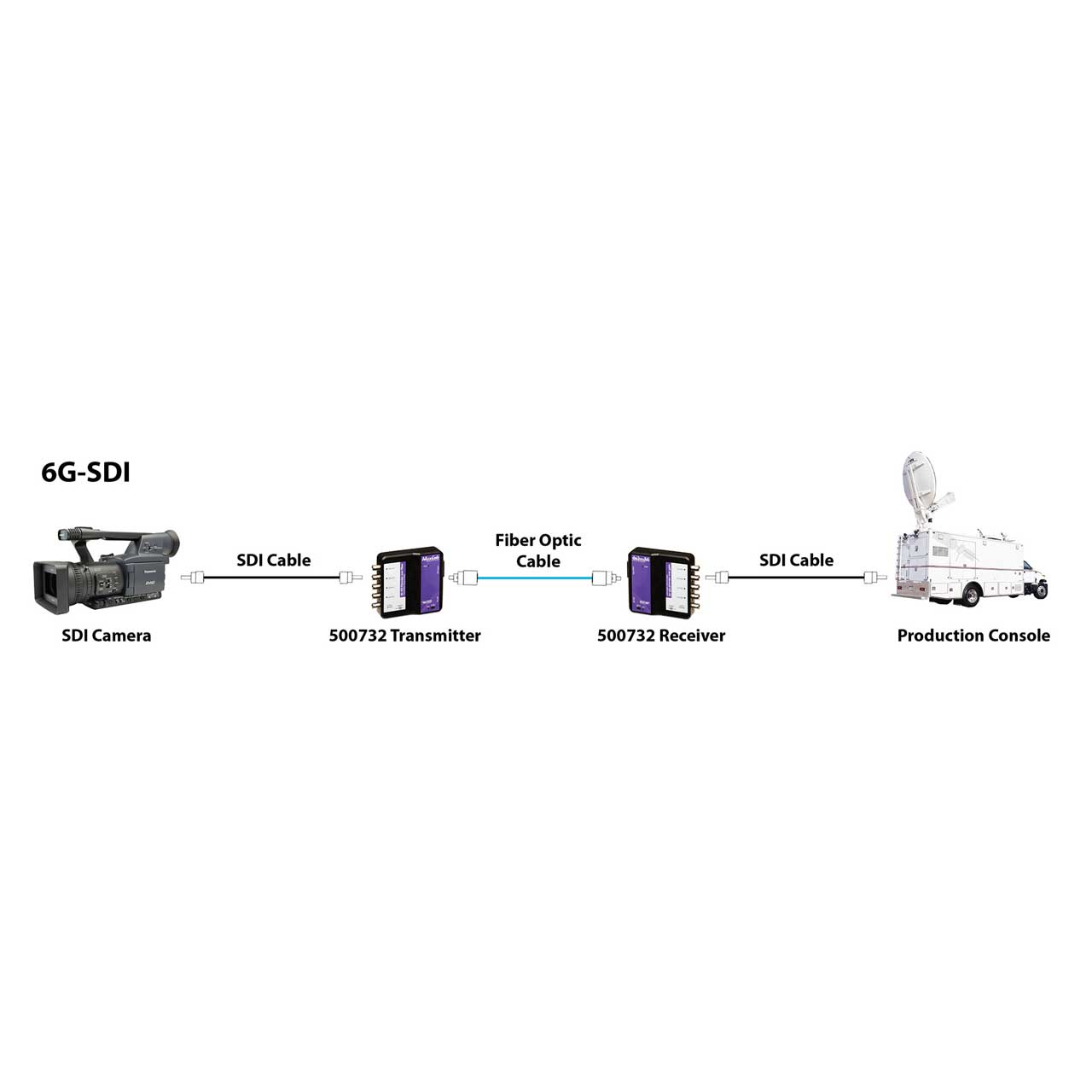

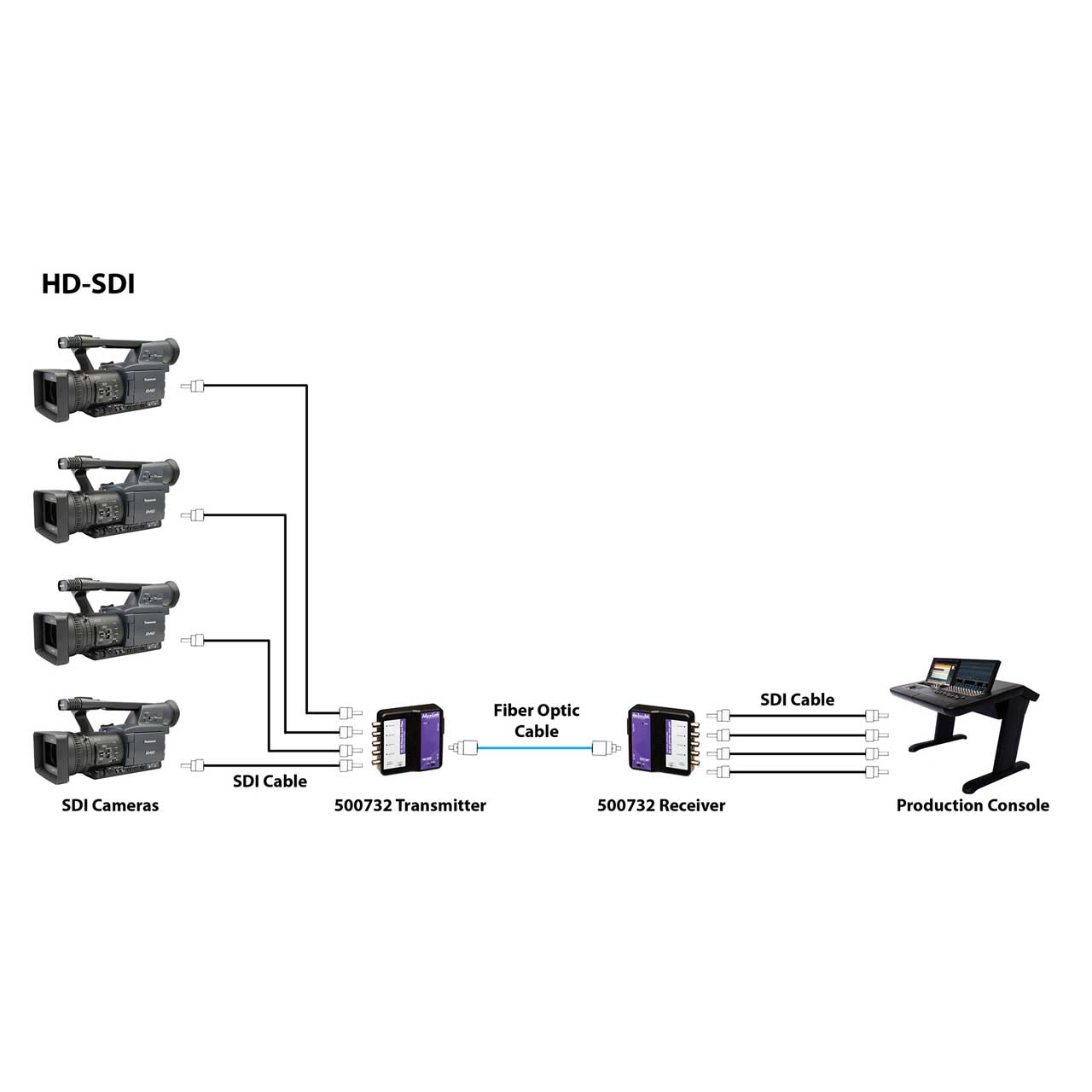

The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 985ft (300m) using OM3 fiber, 1300ft (400m) using OM4 fiber, 33,000ft (10km) using single mode fiber - model 500732-SM10 and 132,000ft (40km) using single mode fiber - model 500732-SM40. This product allows versatile combinations of sources such as one 6G SDI source, two 3G-SDI sources or four HD-SDI sources.

Applications:
Video production, Broadcasting, Outside Broadcasting vehicle, HD camcorder, Studio-to-studio, Post production, Live events, Medical imaging display, Mobile video

Features:
- Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
- Supports all 6G channel configurations (1, 2, or 4 BNC)
- Automatic SDI Link recognition and configuration
- USB interface for field upgradable firmware and diagnostics
- Standard SFP+ module for optical fibre interface, or other media
- Aluminum ruggedized enclosures
- Supports RS232 pass through
Specifications:
- Environment: 6G-SDI, 3G-SDI, HD-SDI digital signal transmission
- Serial Interface: RS232 Serial transmission

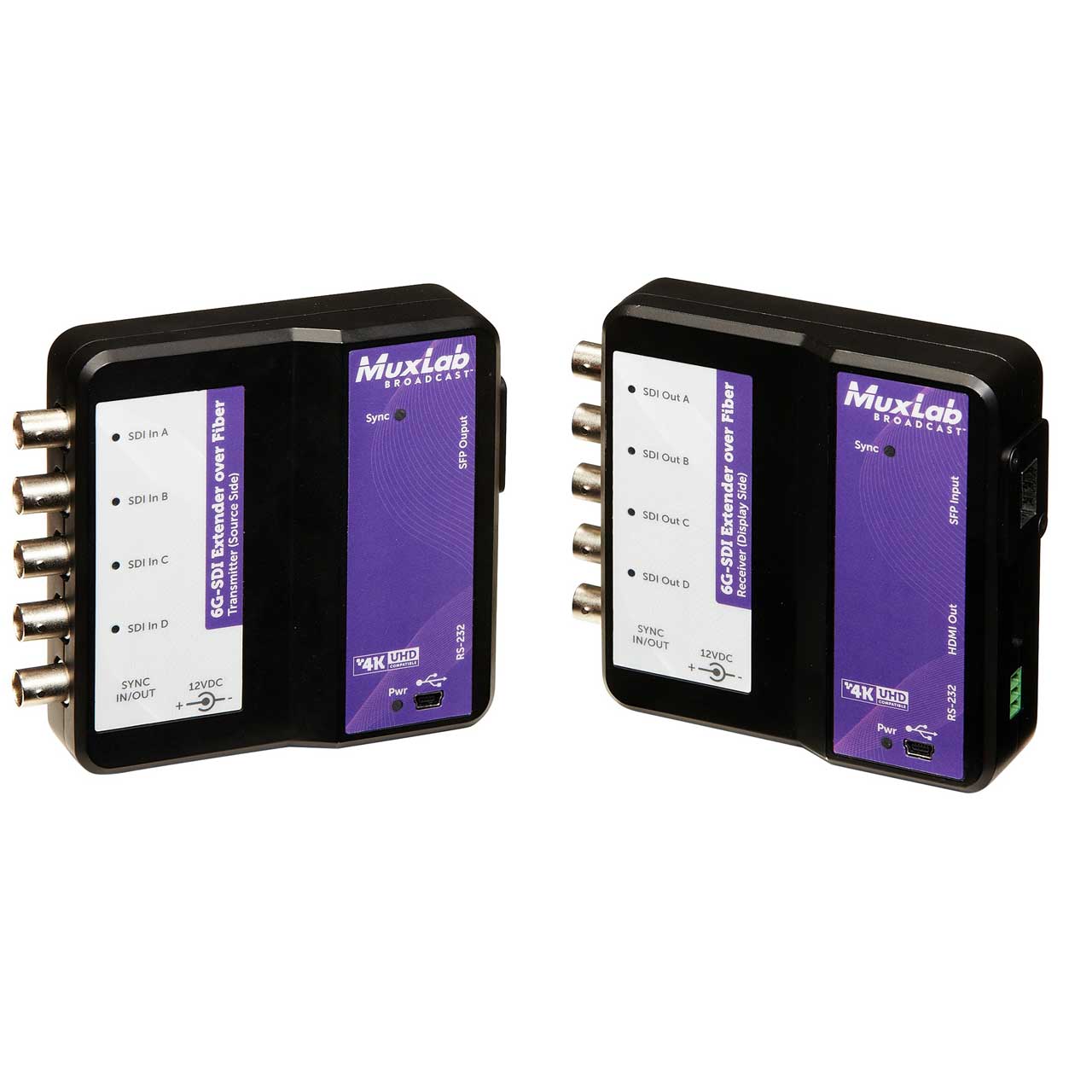

- Enclosure: Aluminum casing, approx. 4.3" x 4.3" x 1" (TX and RX)
- Color: Black
- Control: Serial console emulation with USB interface
- Front panel (RX): BNC for SYNC input signal (if required)
- 4x BNC, SDI output connectors
- Rear panel (RX): SFP+ connector for optical fiber cable interface
- Terminal Block for RS232
- Top panel (RX): Mini USB for firmware updates and status LEDs
- Side panel (RX): +12 VDC Locking power jack
- Front panel (TX): BNC for SYNC output signal (if required)
- 4x BNC SDI input connectors
- Rear panel (TX): SFP+ connector for optical fiber cable interface
- Terminal Block for RS232
- Top panel (TX): Mini USB for firmware updates and status LEDs
- Side panel (TX): +12 VDC Locking power jack
- Connectors (SDI in): 4 BNC connectors for SDI input (0.8V pp, 75 ohm)
- Connectors (SDI out): 4 BNC connectors for SDI output (0.8V pp, 75 ohm)
- Connectors (HDMI out): 1 HDMI output for local monitoring (receiver only)
- Connectors (Sync): 1 BNC connector (if required)
- Connectors (Control): Mini USB, for configuration and firmware updates
- Connectors (Fiber): SFP+ Connector for dual optical fiber cable interface
- Connectors (Power): One standard 2.1mm locking Power Jack
- Compliance: FCC, CE, RoHS
- Power: 2x 12V DC external power supplies with US, UK and Euro blades
- Signal Distance: OM3 fiber length - 300m (985ft), OM4 fiber length - 400m (1300ft)
- Single-mode fiber length - 10km (33,000ft) or 40km (132,000ft)
- Order information:
- 500732 6G-SDI over Fiber Extender Kit (Multi mode)
- 500732-SM10 6G-SDI Extender over Fiber - 10km (single-mode)
- 500732-SM40 6G-SDI Extender over Fiber - 40km (single-mode)
Item Includes:
- 1x Transmitter Unit (Tx)
- 1x Receiver Unit (Rx)
- 2x 12VDC Wall-mount Power Supply
- Blades for the Wall-mount Power Supply
- 10G SFP+ modules with LC connectors
GTIN:
0627699807323
