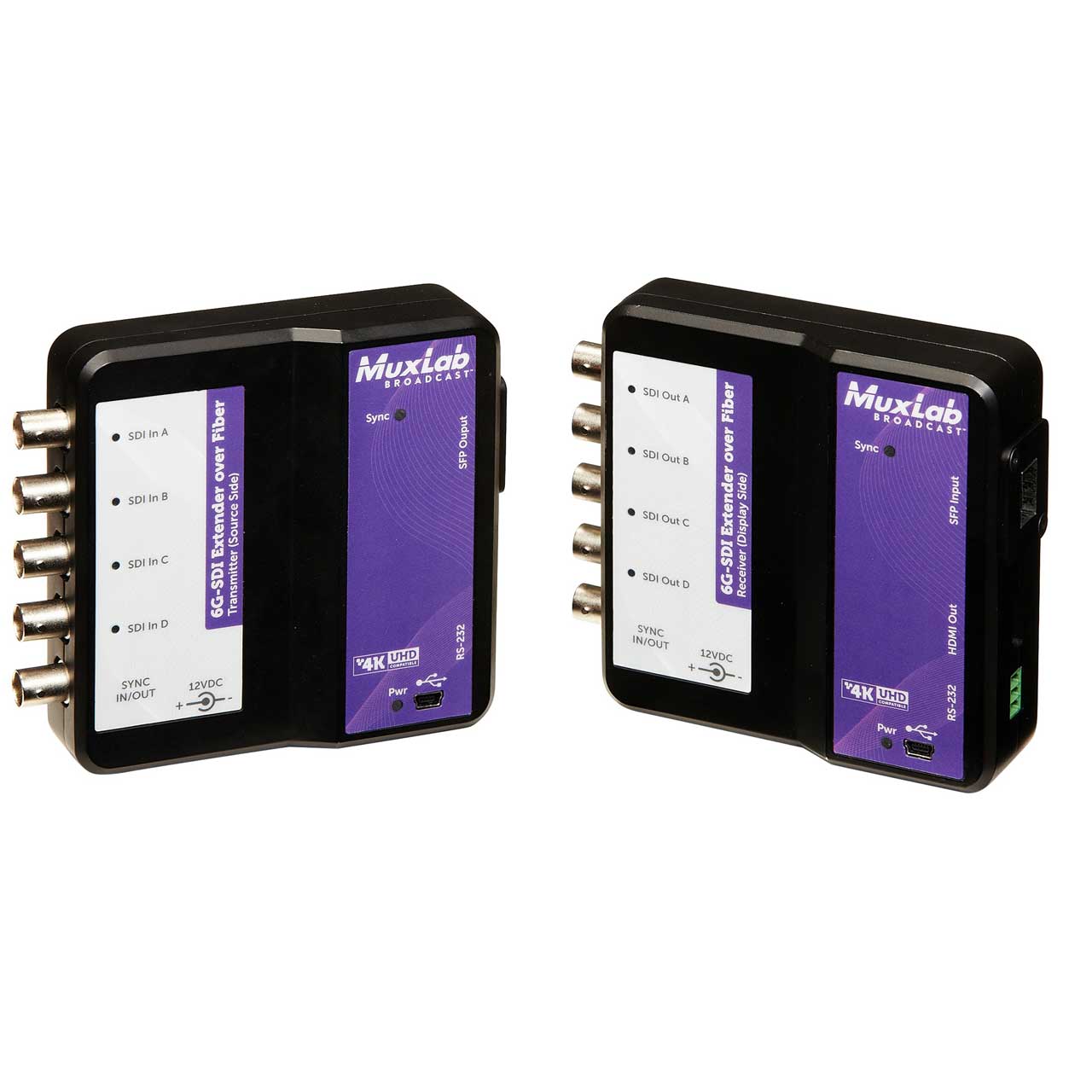

MuxLab 500732 Single 6G-SDI / Dual 3G-SDI Fiber Extender Kit 1300 Foot / 400 Meter

500732 - Overview

• Features:

  • Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M

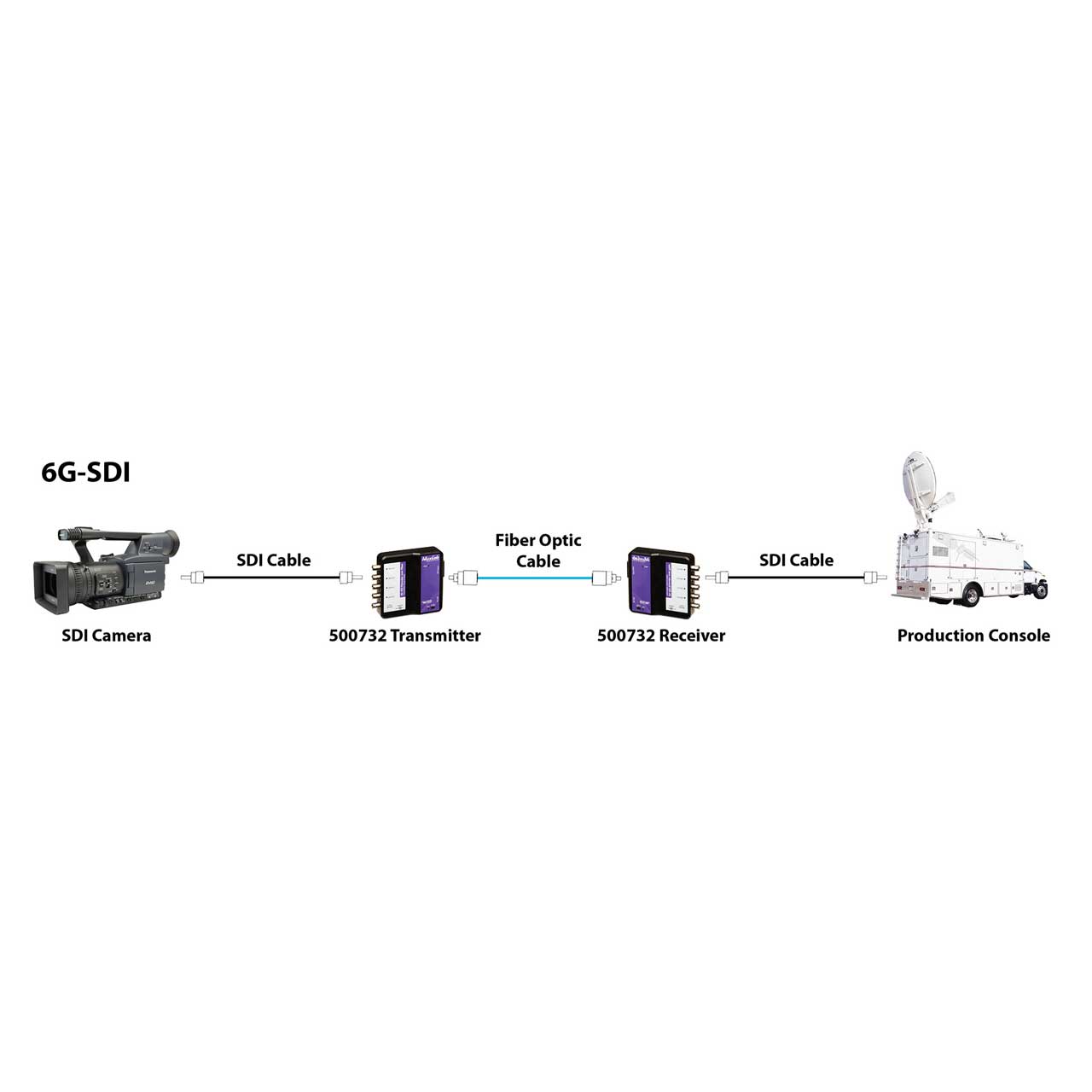

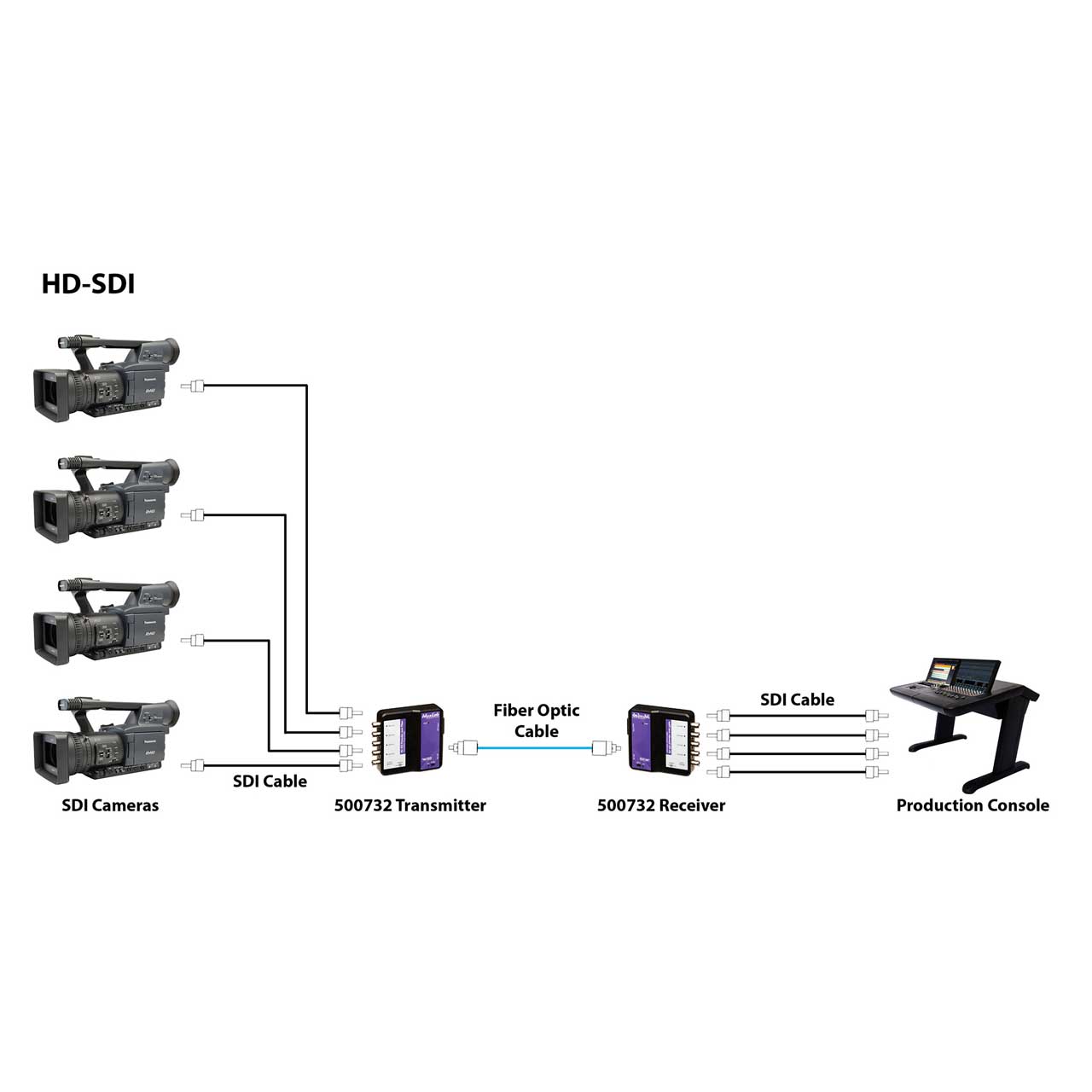

  • Supports all 6G channel configurations (1, 2, or 4 BNC)
  • Automatic SDI Link recognition and configuration
  • USB interface for field upgradable firmware and diagnostics
  • Standard SFP+ module for optical fibre interface, or other media
  • Aluminum ruggedized enclosures
  • Supports RS232 pass through


• Specifications:

  • Environment: 6G-SDI, 3G-SDI, HD-SDI digital signal transmission
  • Serial Interface: RS232 Serial transmission
  • Enclosure: Aluminum casing, approx. 4.3" x 4.3" x 1" (TX and RX)
  • Color: Black
  • Control: Serial console emulation with USB interface
  • Front panel (RX): BNC for SYNC input signal (if required)
  • 4x BNC, SDI output connectors
  • Rear panel (RX): SFP+ connector for optical fiber cable interface
  • Terminal Block for RS232
  • Top panel (RX): Mini USB for firmware updates and status LEDs
  • Side panel (RX): +12 VDC Locking power jack
  • Front panel (TX): BNC for SYNC output signal (if required)
  • 4x BNC SDI input connectors
  • Rear panel (TX): SFP+ connector for optical fiber cable interface
  • Terminal Block for RS232
  • Top panel (TX): Mini USB for firmware updates and status LEDs
  • Side panel (TX): +12 VDC Locking power jack
  • Connectors (SDI in): 4 BNC connectors for SDI input (0.8V pp, 75 ohm)
  • Connectors (SDI out): 4 BNC connectors for SDI output (0.8V pp, 75 ohm)
  • Connectors (HDMI out): 1 HDMI output for local monitoring (receiver only)
  • Connectors (Sync): 1 BNC connector (if required)
  • Connectors (Control): Mini USB, for configuration and firmware updates
  • Connectors (Fiber): SFP+ Connector for dual optical fiber cable interface
  • Connectors (Power): One standard 2.1mm locking Power Jack
  • Compliance: FCC, CE, RoHS
  • Power: 2x 12V DC external power supplies with US, UK and Euro blades
  • Signal Distance: OM3 fiber length - 300m (985ft), OM4 fiber length - 400m (1300ft)
  • Single-mode fiber length - 10km (33,000ft) or 40km (132,000ft)
  • Order information:
  • 500732 6G-SDI over Fiber Extender Kit (Multi mode)
  • 500732-SM10 6G-SDI Extender over Fiber - 10km (single-mode)
  • 500732-SM40 6G-SDI Extender over Fiber - 40km (single-mode)


• Item Includes:

  • 1x Transmitter Unit (Tx)
  • 1x Receiver Unit (Rx)
  • 2x 12VDC Wall-mount Power Supply
  • Blades for the Wall-mount Power Supply
  • 10G SFP+ modules with LC connectors


• GTIN:

  0627699007327
