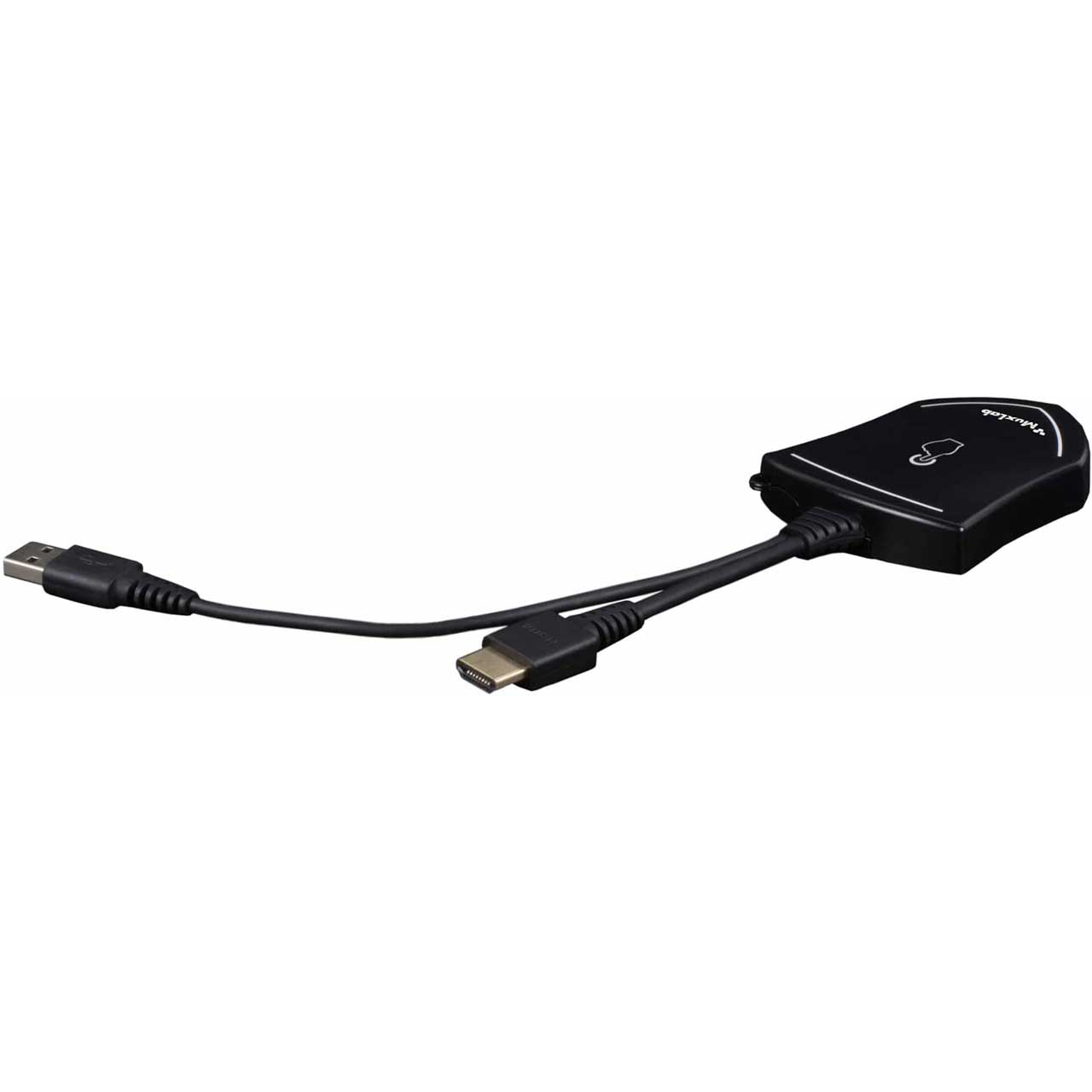

MuxLab 500827 MuxMeet Share H1 HDMI Dongle Wireless Video Transmitter

500827 - Overview

• Features:

  • Can be connected to a Windows or Mac based laptop

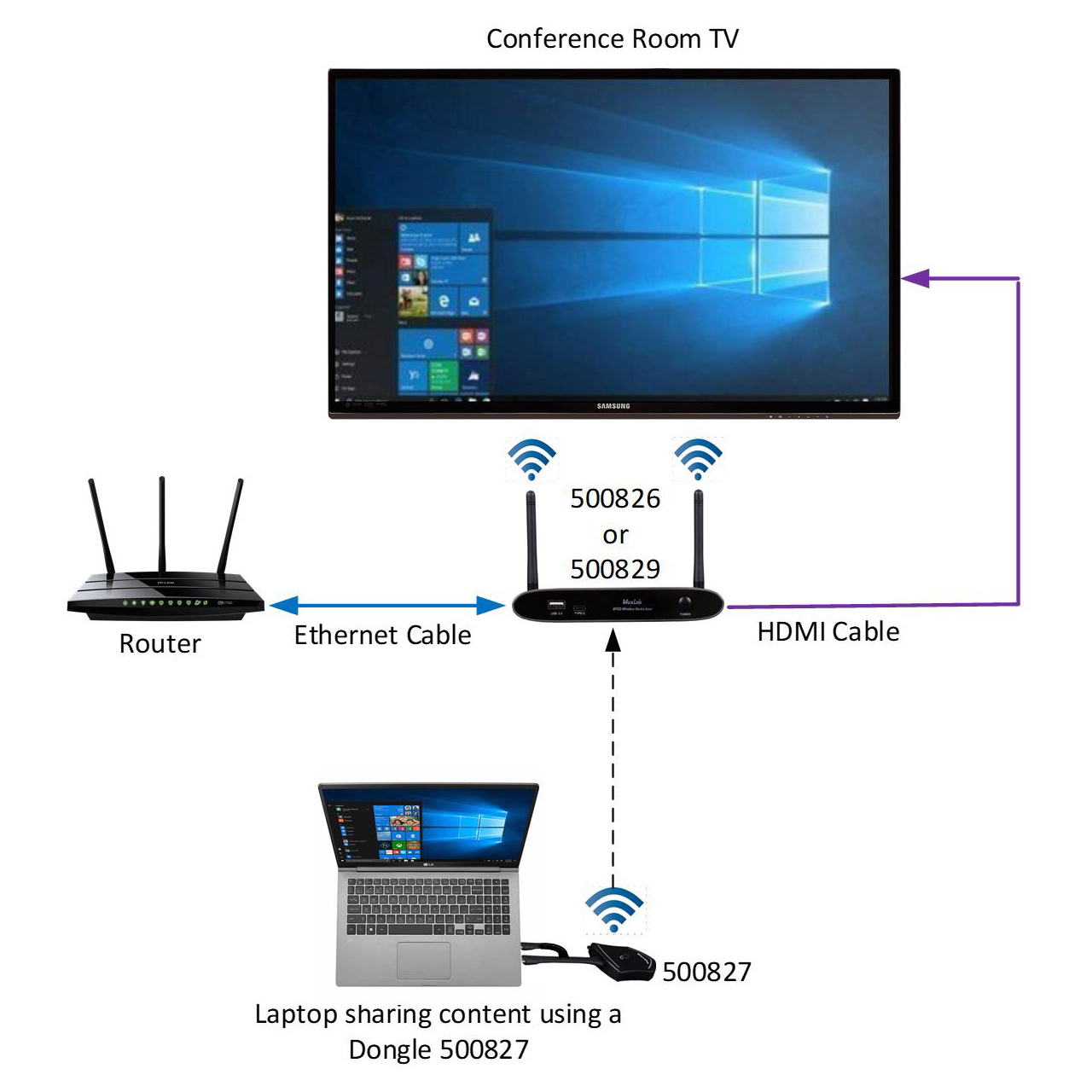

  • Can wireless transmit your computer desktop to MuxMeet Share Base-1 or MuxMeet Share Base-2
  • Supports transmit the computer desktop in mirror or extend mode
  • Supports VESA PC resolution, auto-detecting
  • No driver installation required
  • With the push of a button, it is possible to start or stop a transmission


• Specifications:

  • Video Input Connectors: 1xHDMI Type A 19P Male Connector
  • Video Input Resolution: 2540x1440@60Hz, 1920x1080@60Hz, 1280x720@60Hz
  • Format Compliance: HDMI 1.4
  • HDCP: HDCP 1.4
  • USB Interface: USB 2.0 x 1
  • Audio Input: HDMI PCM 2CH
  • Control Connector: USB HID (Touch back)
  • Video Playback Frame Rate: 20-60 FPS
  • Latency: < 100ms
  • Wireless Transmission Protocol: WIFI IEEE 802.11 a/g/n/ac
  • Frequency Band: 2.4 GHz & 5 GHz
  • WIFI Antenna: MIMO 2x2
  • Data Rate in Wireless: Up to 1200Mbps
  • Operating Temperature: -20° to 60°C (-4° to 140°F)
  • Humidity (Storage/Operating): 20 to 85% (non-condensing)
  • DC Power: USB Internal 5V
  • Power Consumption: 2.5W (MAX)
  • Weight: 0.77Lbs (0.350kg)
  • Dimensions: 3.50 x 1.49 x 0.46" (8.90 x 3.78 x 1.18cm)


• Warranty:

  • 2 Year


• GTIN:

  0627699008270
