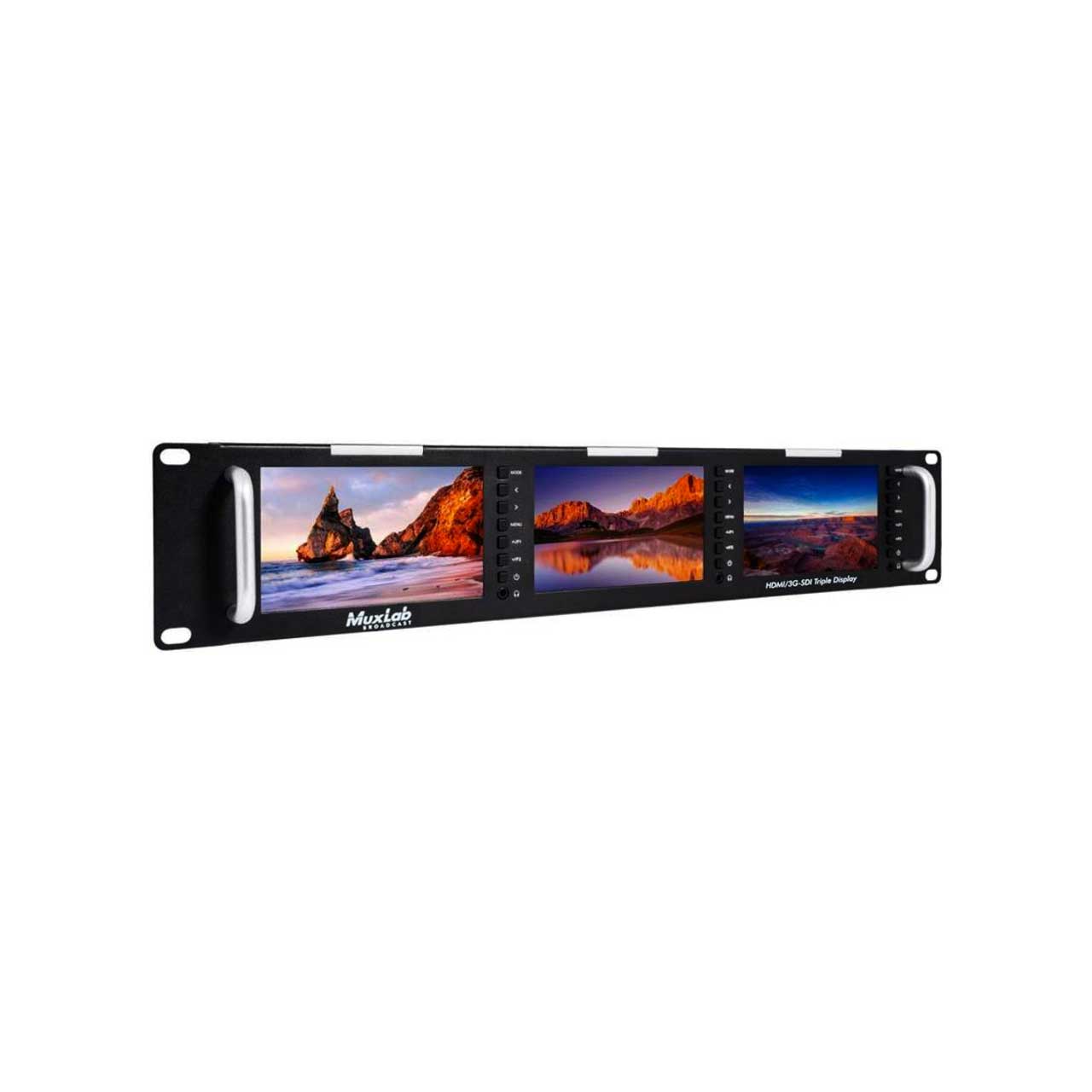

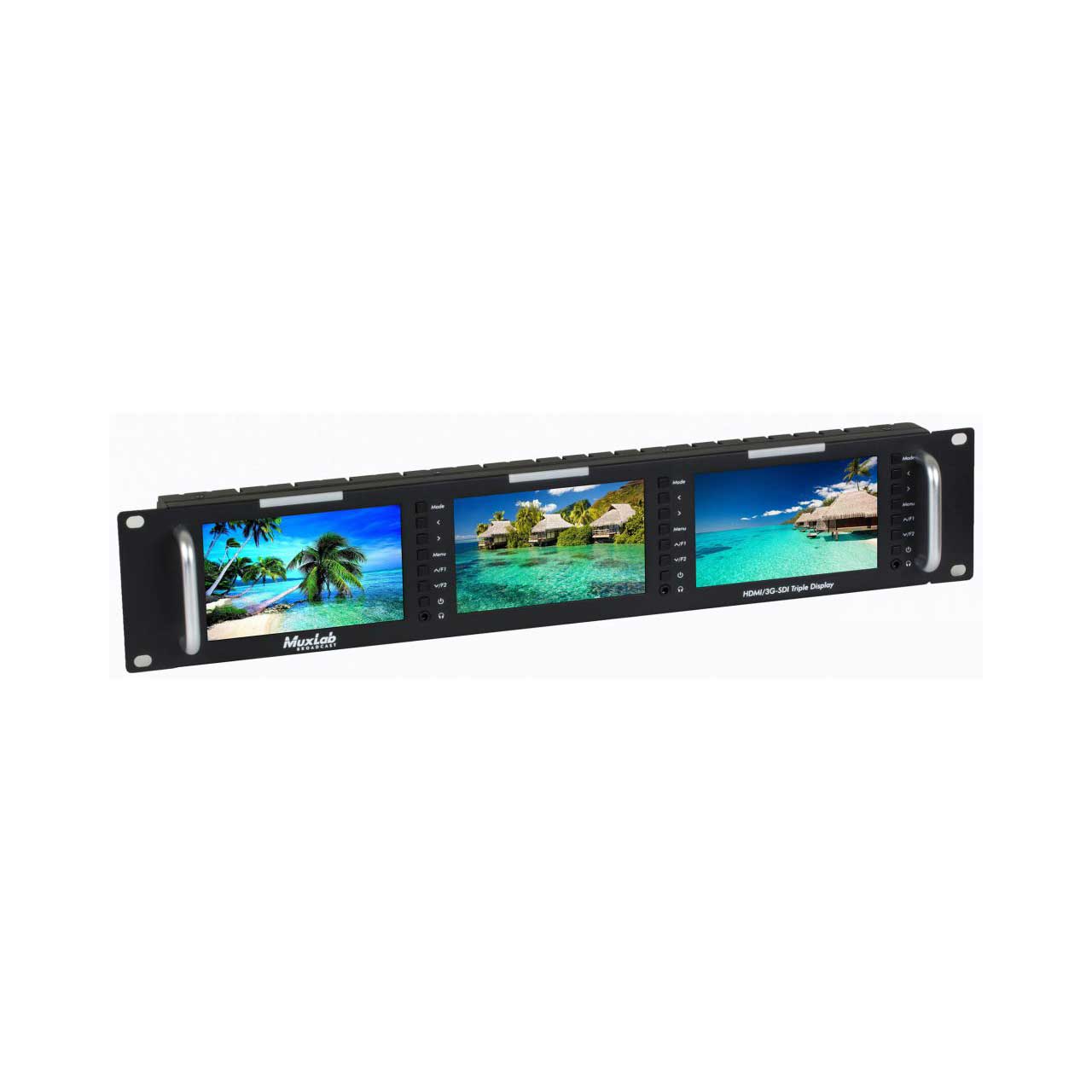

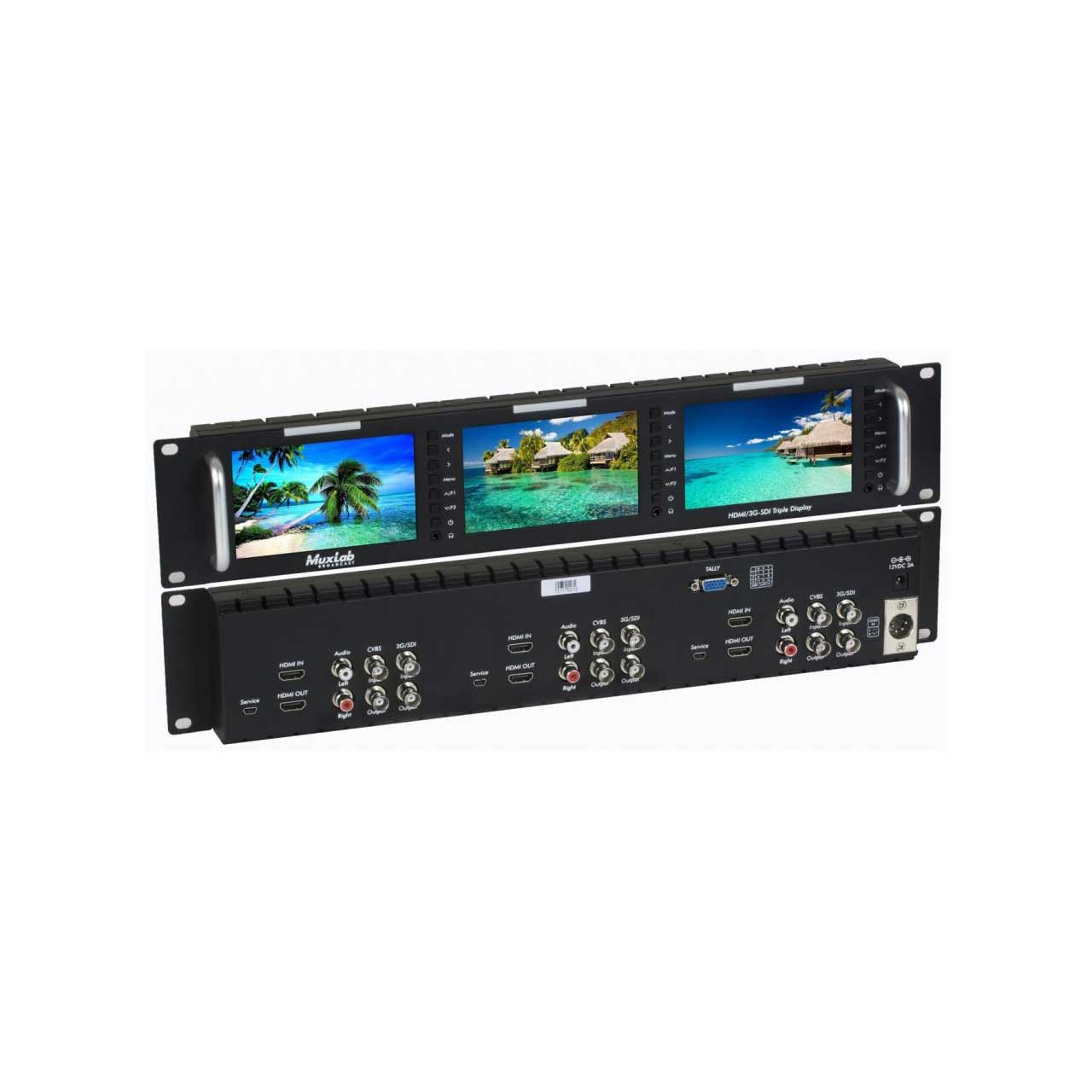

MuxLab 500840 HDMI/3G-SDI Triple LCD Display

500840 - Overview

• Features:

  • Three 5" TFT LCD displays
  • Supports HDMI (1080p), 3G-SDI and CVBS with Audio
  • Fits 19-inch rackmount @ 2 RU
  • Tri-color Tally light indicator per display
  • Supports Center Marker, Safe Frames, Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P & Image Freeze
  • Customizable buttons tailored to customer needs
  • Supports firmware update via mini USB


• Specifications:

  • Environment: HDMI, SDI and Audio
  • Input Signal: Up to 1080p HDMI and 3G-SDI Video, and Audio(L/R)
  • Output Signal: Up to 1080p HDMI and 3G-SDI Video
  • HDMI Signal Support: 480i, 480p, 576i, 576p, 720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
  • SDI Signal Support: SD-SDI, HD-SDI and 3G-SDI including: 480i, 576i, 720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
  • Color Video Format: PAL-4.43/NTSC-3.58
  • Display Type and Size: 5" TFT LCD displays, with LED backlight
  • Individual Screen Resolution: 800x480 (RGB) per screen
  • Aspect Ratio: 16:9
  • Dot Pitch: 0.045mm (W) x 0.135mm (H)
  • Brightness: 500cd/m2
  • Contrast: 500:1
  • Response Time: Turn On = 10ms, Turn Off = 15ms
  • Viewing Angle: 70°/70°(L/R) 50°/70°(U/D)
  • Headphone Output: 2CH headphone output via 3.5mm jack
  • Input Voltage Range: 9.0 to 24 VDC
  • Power Source One: 100/240VAC to 12VDC @ 3A power supply
  • Power Consumption: 25W
  • Temperature:
    - Operating: -4°F - 131°F (-20°C - 55°C)
    - Storage: -22°F - 149°F (-30°C - 65°C)
  • Humidity: Up to 95% non-condensing
  • Enclosure: Metal
  • Dimensions: 19.00" x 3.46" x 1.34"
  • Weight: 3.45lbs
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0


• GTIN:

  0627699018408
