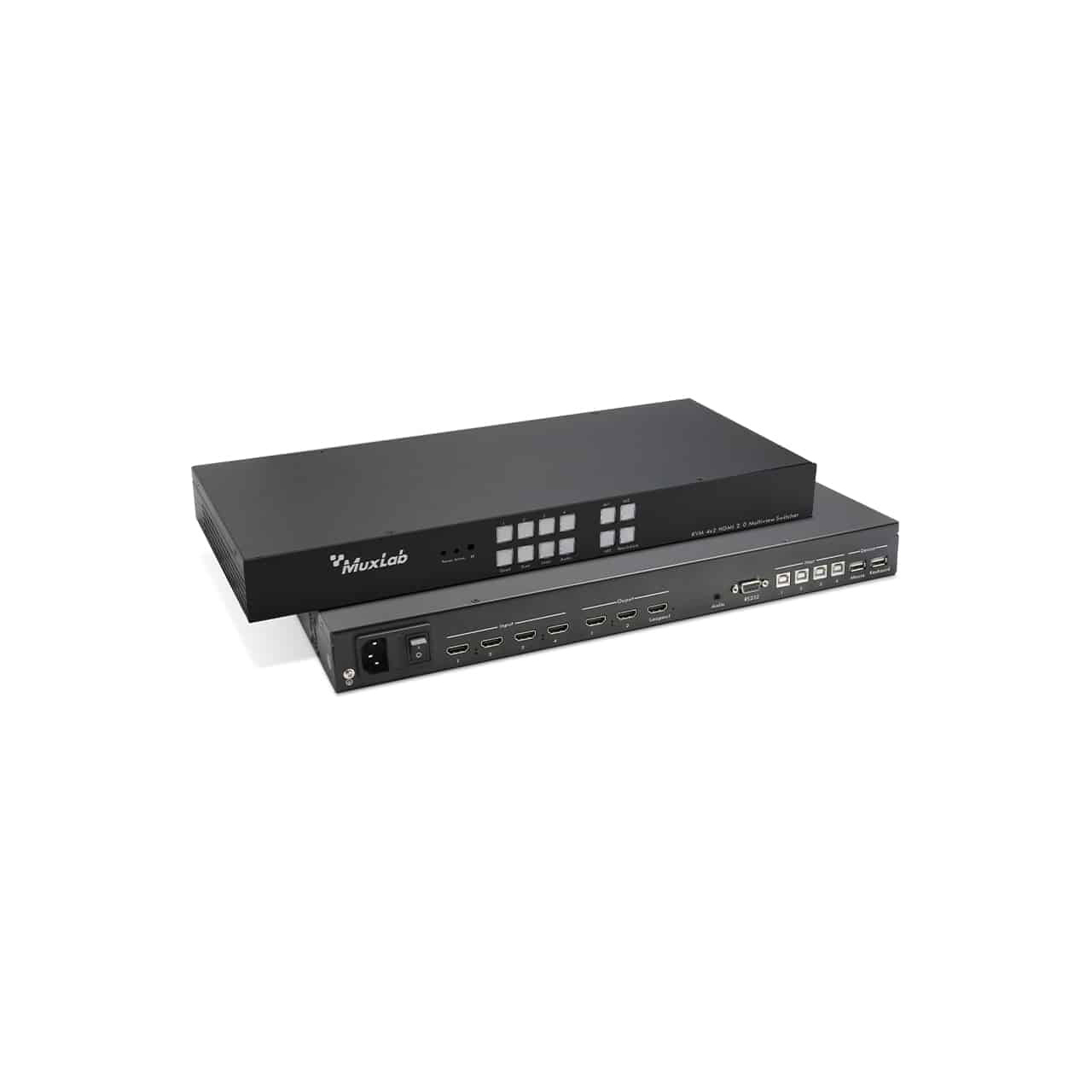

MuxLab 500870 KVM 4x2 HDMI 2.0 Multiview Switcher

500870 - Overview

Capable of displaying up to four HDMI 4K/60 sources!

• Features:

  • One operator can manage multiple servers/computers
  • Supports 4 HDMI 2.0 signal inputs and 3 HDMI 2.0 signal outputs
  • Supports simultaneous dual-screen, displaying 4 windows, 3 windows, 2 windows, and single window
  • Supports independent dual-screen, displaying one or two windows on each screen
  • Supports multiple resolutions, such as 3840x2160P60, 4096x2160P60, 1920x1200P60, 1920x1080P60, etc.
  • Supports control of window size, PIP transparency, signal switching, etc., via mouse and keyboard
  • Designed with a pure hardware structure, the system runs completely in a closed manner without needing a computer or startup software, ensuring simplicity, stability, and high output graphic quality

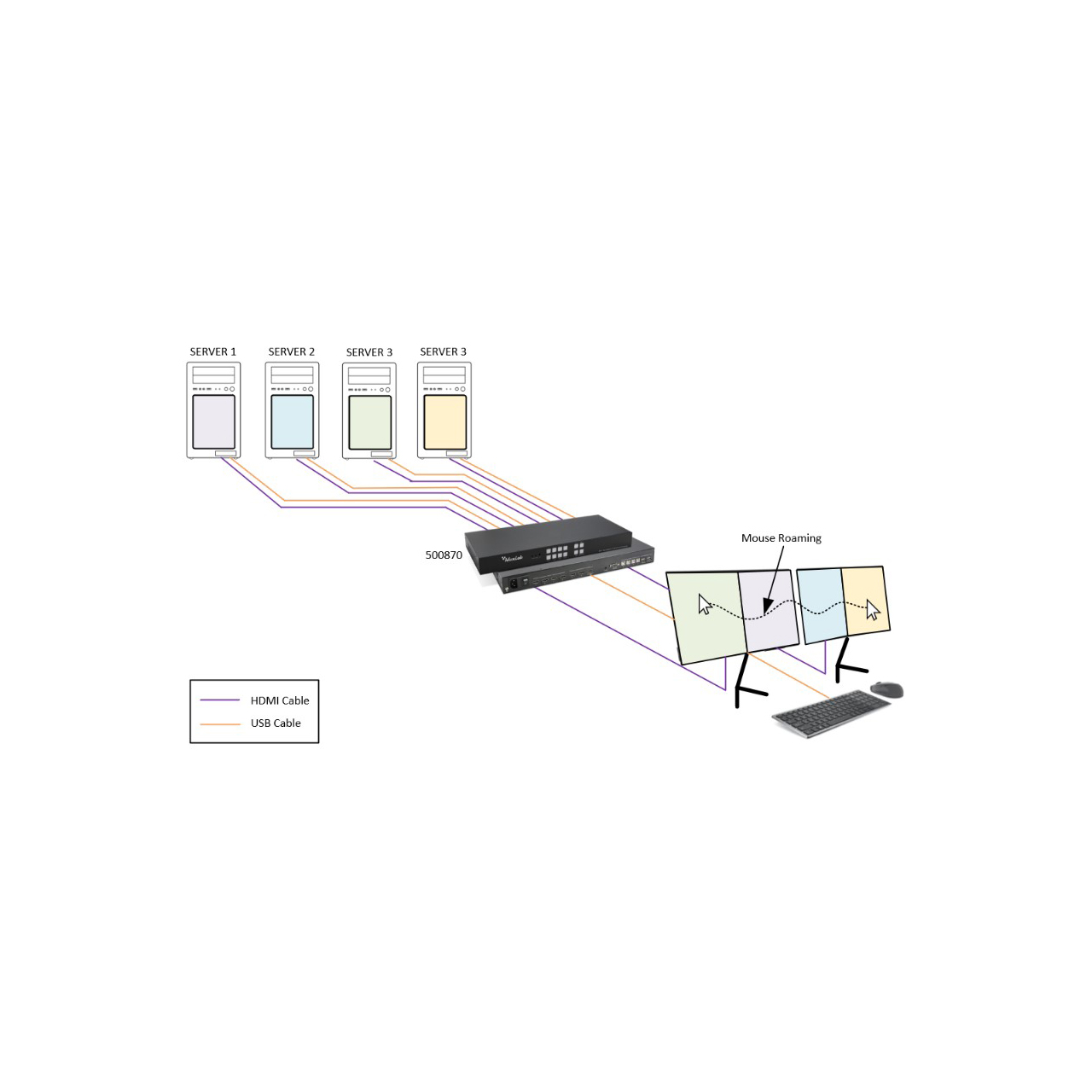

  • Supports asynchronous or synchronous operation of 4 computers with one set of mouse and keyboard


• Specifications:

  • Input Port: 4x HDMI 2.0
  • Max Input Resolution: 4096x2160P/60Hz
  • Output Port: 3x HDMI 2.0
  • Supported Output Resolutions:
    - 4096x2160P/60Hz
    - 4096x2160P/30Hz
    - 3840x2160P/60Hz
    - 3840x2160P/30Hz
    - 2560x1600P/60Hz
    - 2560x1440P/60Hz
    - 2560x1080P/60Hz
    - 2048x1152P/60Hz
    - 1920x1440P/60Hz
    - 1920x1200P/60Hz
    - 1920x1080P/60Hz
  • Control Methods: Keyboard and mouse- remote control- panel buttons- and RS232
  • Audio: HDMI audio follow- 3.5mm audio separation
  • Product Dimensions: 17.12" x 7" x 1.75" (435mm x 178mm x 44.5mm)
  • Packaging Dimensions: 20" x 11.22" x 3.93" (530mm x 285mm x 100mm)
  • Product Weight: 2.91lbs (1.32kg)
  • Packaging Weight: 6.61lbs (3kg)


• Item Includes:

  • x1 500870 KVM 4x2 HDMI 2.0 Multiview Switcher
  • x1 Power Cable
  • x1 Remote Control


• Warranty:

  • 2 years
