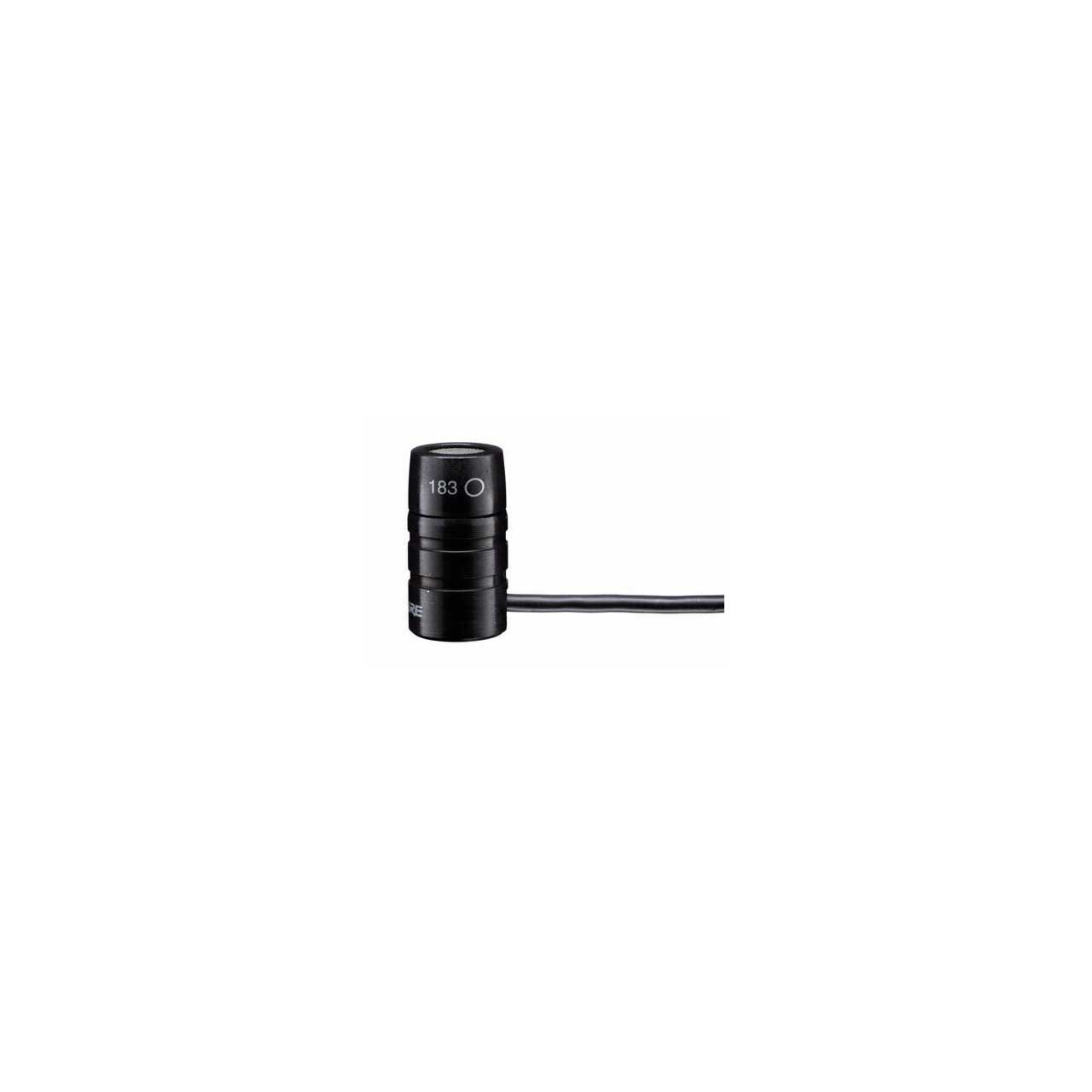

Shure MX183 Omnidirectional Microflex Lavalier Microphone

ITEM #: MX183A MFG #: MX183

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$344.00

Our Price:

$246.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MX183 - Overview

Shure MX183 Omnidirectional lavalier microphone offers an interchangeable condenser cartridge and consists of a windscreen and a dual tie clip for 2 microphones. It features wide dynamic range and frequency response for accurate and balanced sound reproduction.

The MX183 omnidirectional miniature lavalier condenser microphone was designed for use in speech applications such as broadcast presenting, speeches, lectures and for use in houses of worship.

All the Microflex series of microphones use interchangeable cartridges (sold separately) which means you can swap between cardioid, supercardioid and omnidirectional condenser cartridges simply by screwing them on to the top of the lavalier mic.

The MX183 is designed for wired use and includes an in-line preamplifier and a 1.2m cable with TA4F connector. If you wish to go wireless, choose the WL183 which is the same microphone but without the pre-amplifier and connects directly into any Shure wireless bodypack.

  • Features:

    • Professional condenser lavaliere mics ideal for broadcast use indoor or outdoor
    • Frequencyresponse dips at 730Hz reducing chest resonance
    • Compact & light belt-pack preamp works on 48V phantom power
    • 80-20,000 Hz response
    • Includes Pivoting, Single-Microphone Tie Clip, Dual Microphone Tie Clip, Black, Snap-fit Foam Windscreen, Belt-Clip Preamp, 4-foot cable with 4-pin mini connector
    • 2 year warranty

  • Specifications:

    • Type: Electret Condenser.
    • Frequency Response: 50-17000 Hz.
    • Polar Pattern: Omnidirectional.
    • Output Impedance: 180 Ohm.
    • Output Configuration: Active Balanced.
    • Sensitivity @ 1 kHz, open circuit voltage: -28 dBV/Pa(42 mV).
    • Maximum SPL 1 kHz at 1% THD, 1 kiloohm load: 117 dB.
    • Self Noise A-weighted: 21 dB SPL.
    • Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz: 74 dB.
    • Dynamic Range 1 kiloohm load, @ 1 kHz: 96 dB.
    • Common Mode Rejection 10 Hz to 100 kHz: 45 dB, minimum.
    • Clipping Level at 1% THD: -6 dBV (0.5 V).
    • Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
    • Environmental Conditions: Operating Temperature; -18-57°C (0-135°F), Storage Temperature; -29-74°C (-20-165°F), Relative Humidity; 0-95%.
    • Power Requirements: 11-52 V DC, 2.0 mA.
    • Cable: 1.2 m (4 ft).

  • Item Includes:

    • Shure MX183 - Omni-Directional Lavalier Condenser Microphone
    • Belt-Clip Preamp
    • Rotatable Tie Clip
    • Dual Tie Clip
    • Snap-Fit Windscreen
    • 1 Year Warranty

  • GTIN:

    0042406051675
