MX28 - Overview

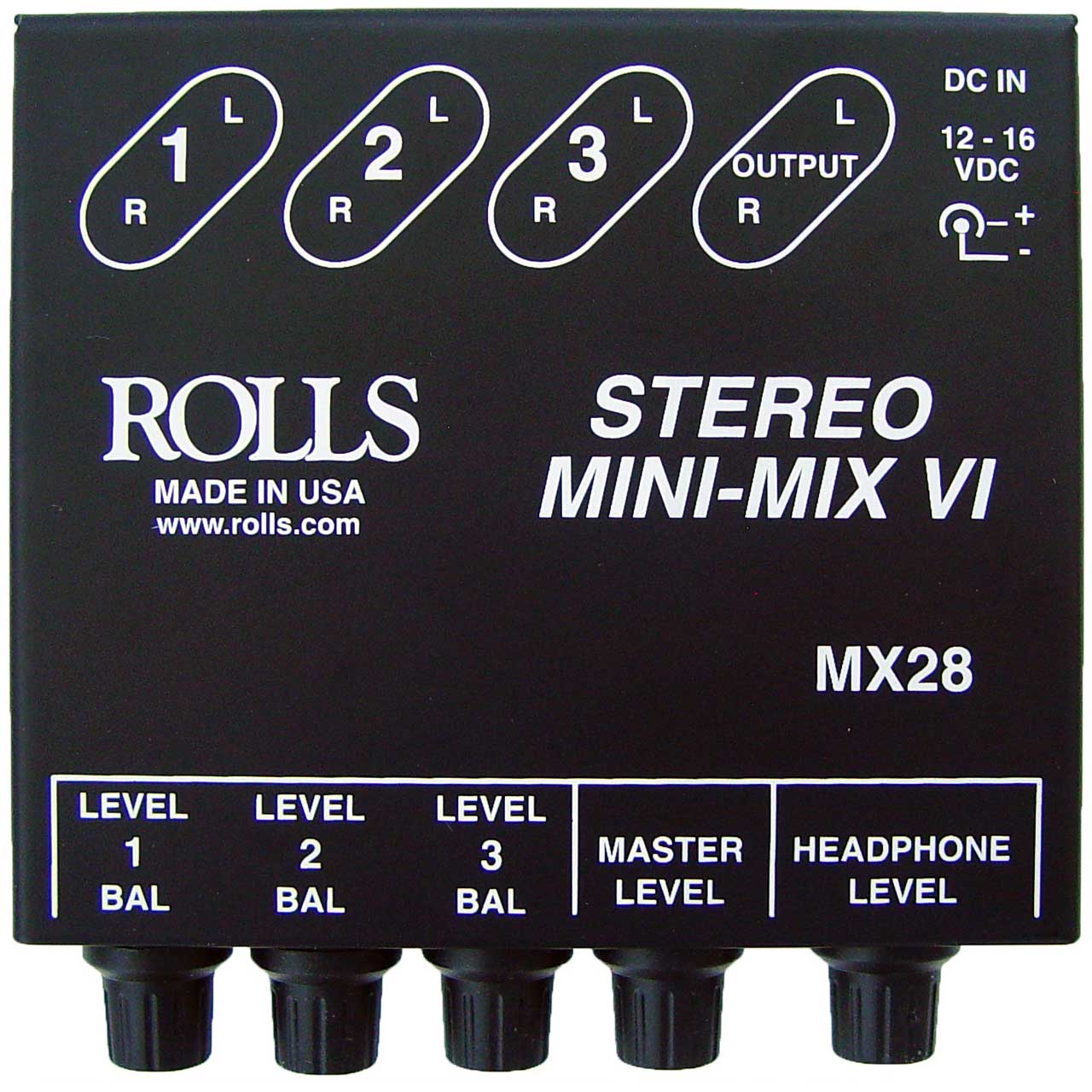

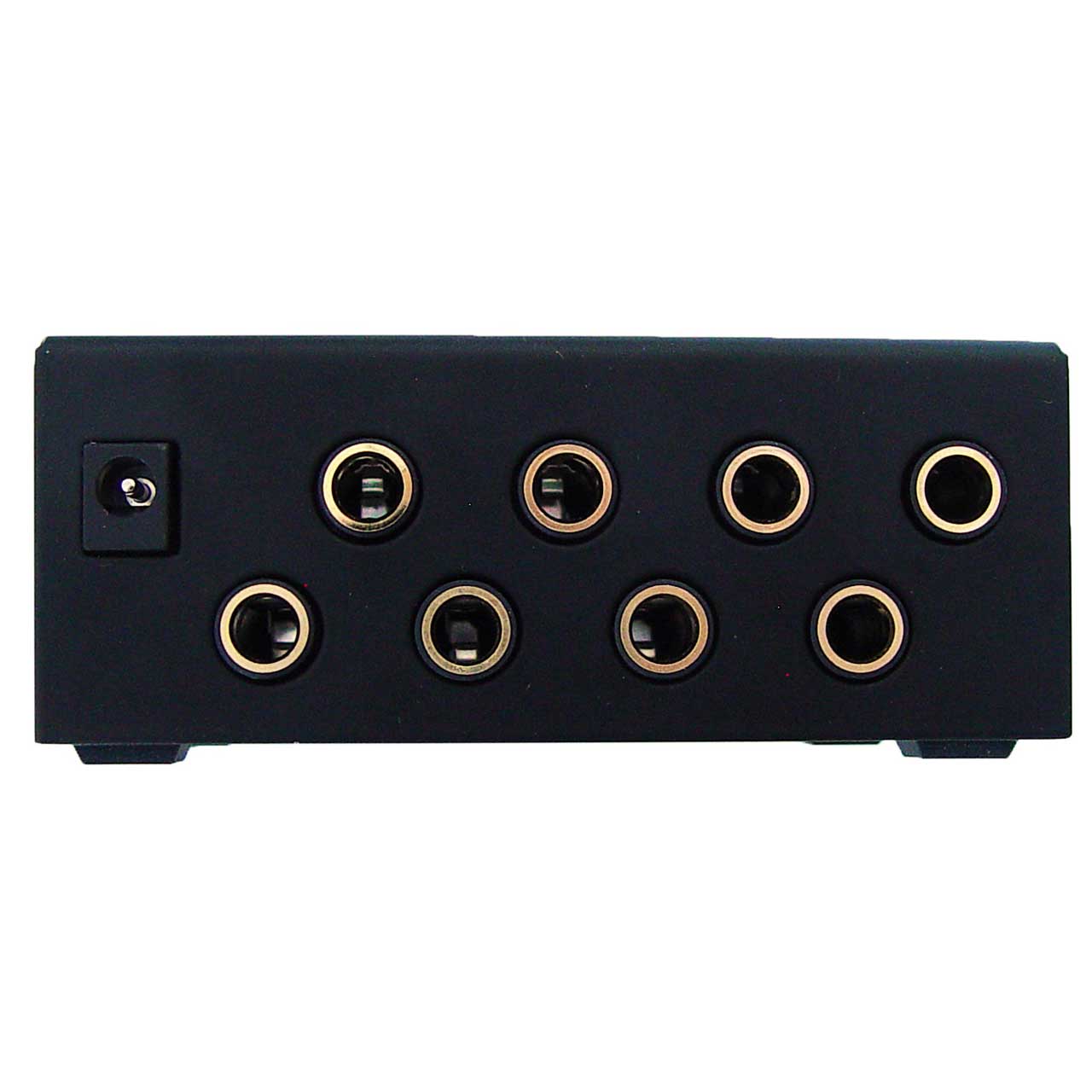

The Rolls MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4" input for the right and left sides, and the outputs are individual right and left 1/4" jacks. Each channel has a level and pan (balance) control. The Master Level controls the output volume and the Headphone Level controls the level to the two headphone outputs.

Features:
- Three stereo inputs - 2: 1/4" unbal per channel.
- Individual 1/4" Right and Left outputs
- Pan control for each channel
- Two Stereo Phone Outs; 1/4" and 1/8" (3.5mm)
Specifications:
- Input Impedance: 10K Ohms
- Output Impedance: 100 Ohms
- Max Gain: +27 dBV
- Max Input Level: +30 dBV
- Max Output Level: +13 dB
- Frequency Response: 20Hz - 20kHz +/- 1 dBV
- THD + Noise: <.005%
- Power: 12 VDC 150 mA adapter (center negative)
- Size: 4.25" x 1.75" x 4.5" (W x H x D)
- Weight: 1.2 lbs. (.49 Kg)
