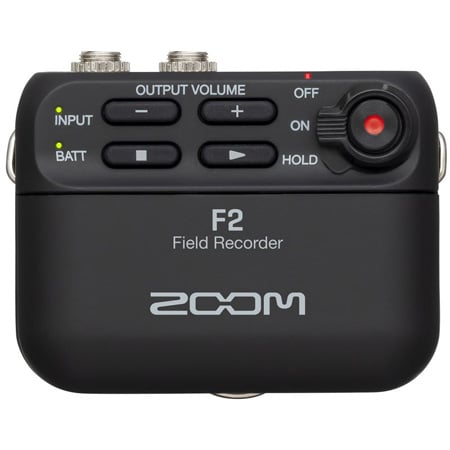

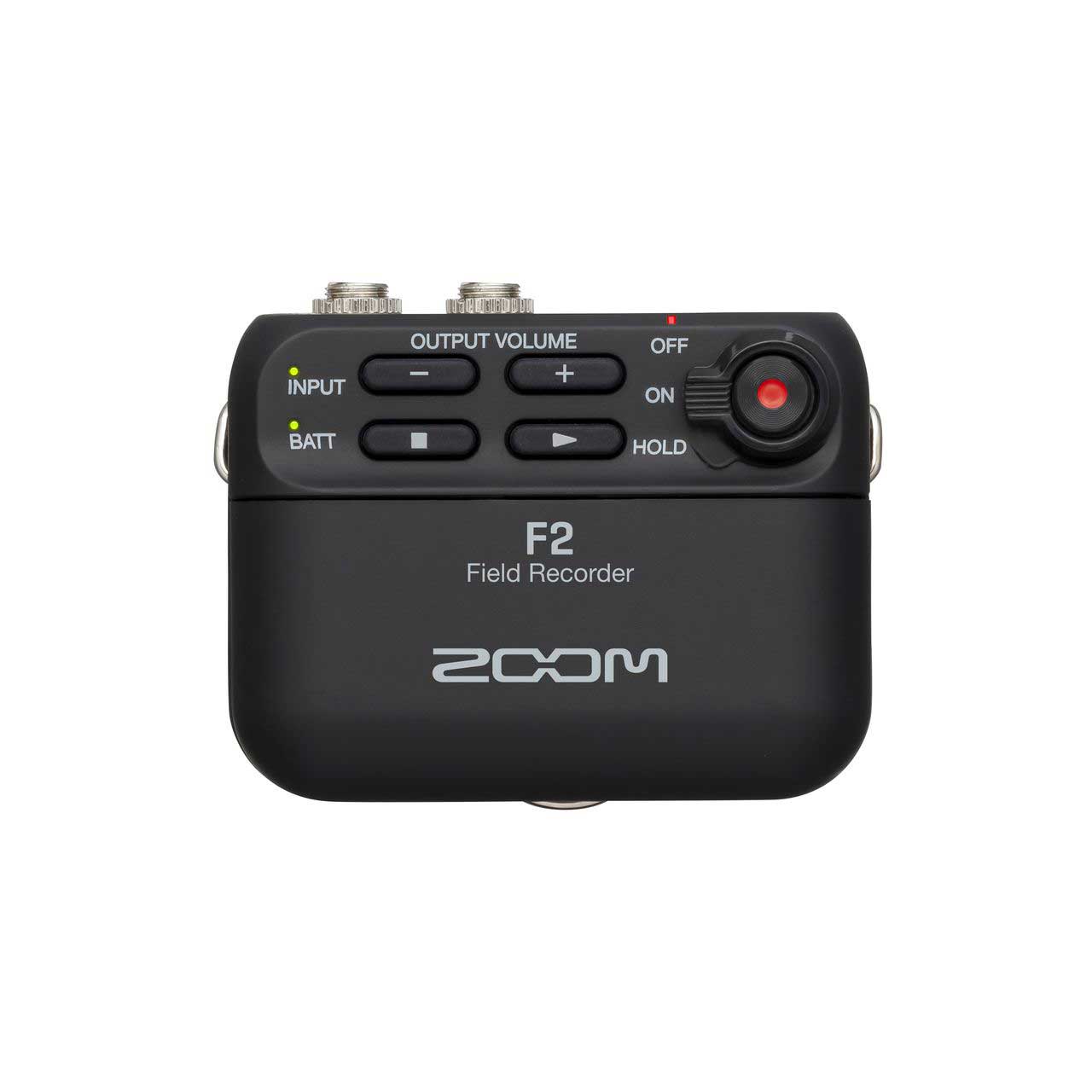

ZOOM F2 Light and Compact Field Recorder - 32-Bit Float Recording Full Dynamic Range - 44.1kHz/32-bit / 48kHz/32-bit

F2 - Overview

• Features:

  • Light and compact audio recorder
  • 32-Bit Float recording for full dynamic range and clip free recording
  • No gain adjustment necessary
  • Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
  • Rec Hold function to avoid accidental operation of buttons
  • 1/8" Mic In mini phone jack with Plug-in power (2.5V)
  • Stereo ⅛" Phone/Line Output jack with dedicated volume control
  • 80 Hz low cut filter
  • High precision internal clock (±0.5ppm) to avoid audio and video syncing issues
  • Wireless timecode synchronization (F2-BT model only)*
  • Records directly to micro SD and SDHC cards up to 512 GB
  • USB-C for connection to F2 Editor for settings
  • Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)
  • Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
  • Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries


• Specifications:

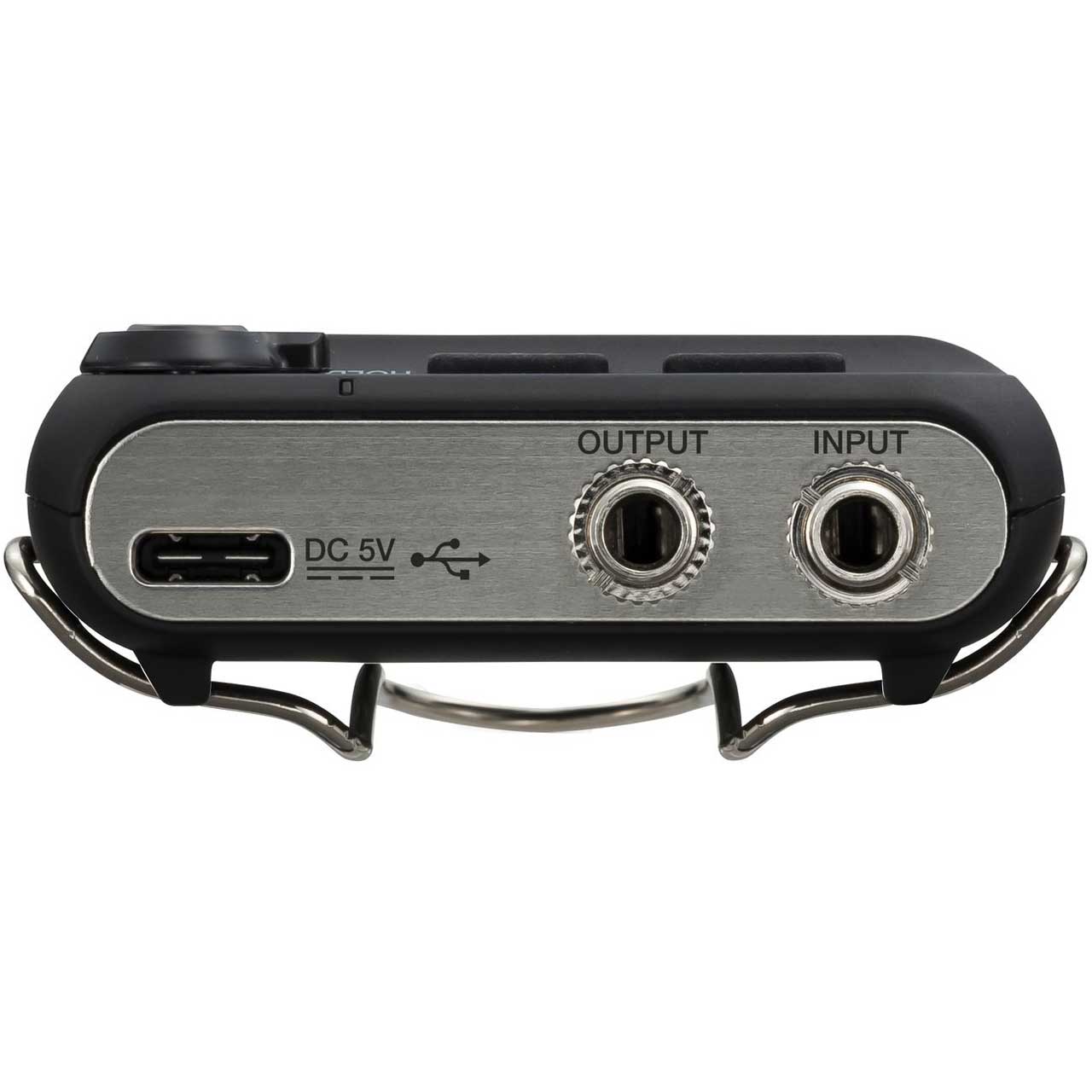

  • Input
  • Connector: 3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)
  • Input Gain: None (dual AD conversion system)
  • Input Impedance: 2 kΩ or more
  • Maximum Input Level: -5.5 dBu

    Output
  • Connector: 3.5 mm stereo mini (with screw lock)
  • Maximum Output Level: 20 mW + 20 mW (into 32Ω load)

    Recording Media
  • Cards Compatible with MICROSD/MICROSDHC/MICROSDXC Specifications (CLASS 4 OR Higher, 512 GB Maximum)

    Recording Format
  • WAV: 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported

    USB
  • USB TYPE-C
  • Mass Storage Operation USB 2.0 High Speed
  • PC APP Operation USB 2.0 High Speed

    Power
  • 2 AAA Batteries (Alkaline, Lithium OR Rechargeable NIMH Batteries) AC Adapter (ZOOM AD-17): DC 5 V/1 A

    Miscellaneous
  • Bluetooth: Bluetooth Ver4.2 (F2-BT only)
  • Continuous Recording Time When Using Lavalier Mic (48KHZ/32-BIT FLOAT): Alkaline batteries: about 14 hours
  • NiMH batteries (750 mAh): about 10 hours Lithium batteries: about 18 hours (The above values are approximate.)
  • External Dimensions (WxDxH): 2.26 x 1.82 x 0.88"(57.5 x 46.4 x 22.4mm)
  • Weight (Main Unit Only): 0.07Lbs (32g)

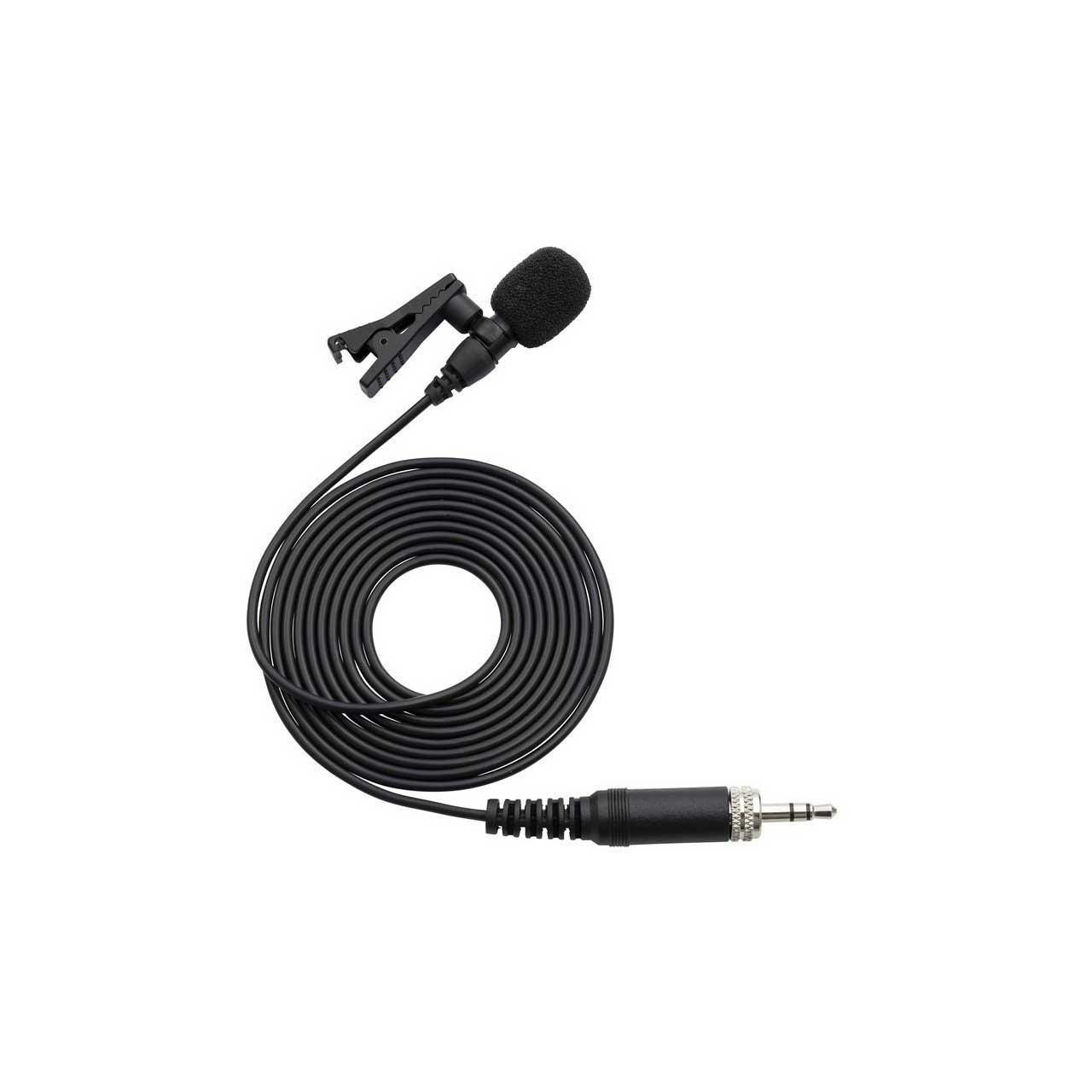

    LMF-2 Lavalier Mic
  • Connector: 3.5 mm stereo mini (with screw lock)
  • Directionality: Omnidirectional
  • Sensitivity: -32 dB/Pa at 1 kHz
  • Maximum Sound Pressure Input: 115 dB SPL
  • Cable Length: 5' (160cm)


• Item Includes:

  • 1x F2 Field Recorder
  • 1x LMF-2 Lavalier Microphone
  • 3x WSL-1 Windscreen
  • 1x MCL-1 Mic Clip
  • 1x F2 Operation Manual


• GTIN:

  0884354024116
