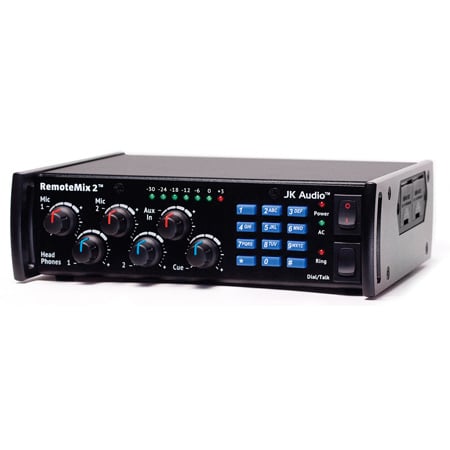

JK Audio RM2 RemoteMix 2 Broadcast Field Mixer

RM2 - Overview

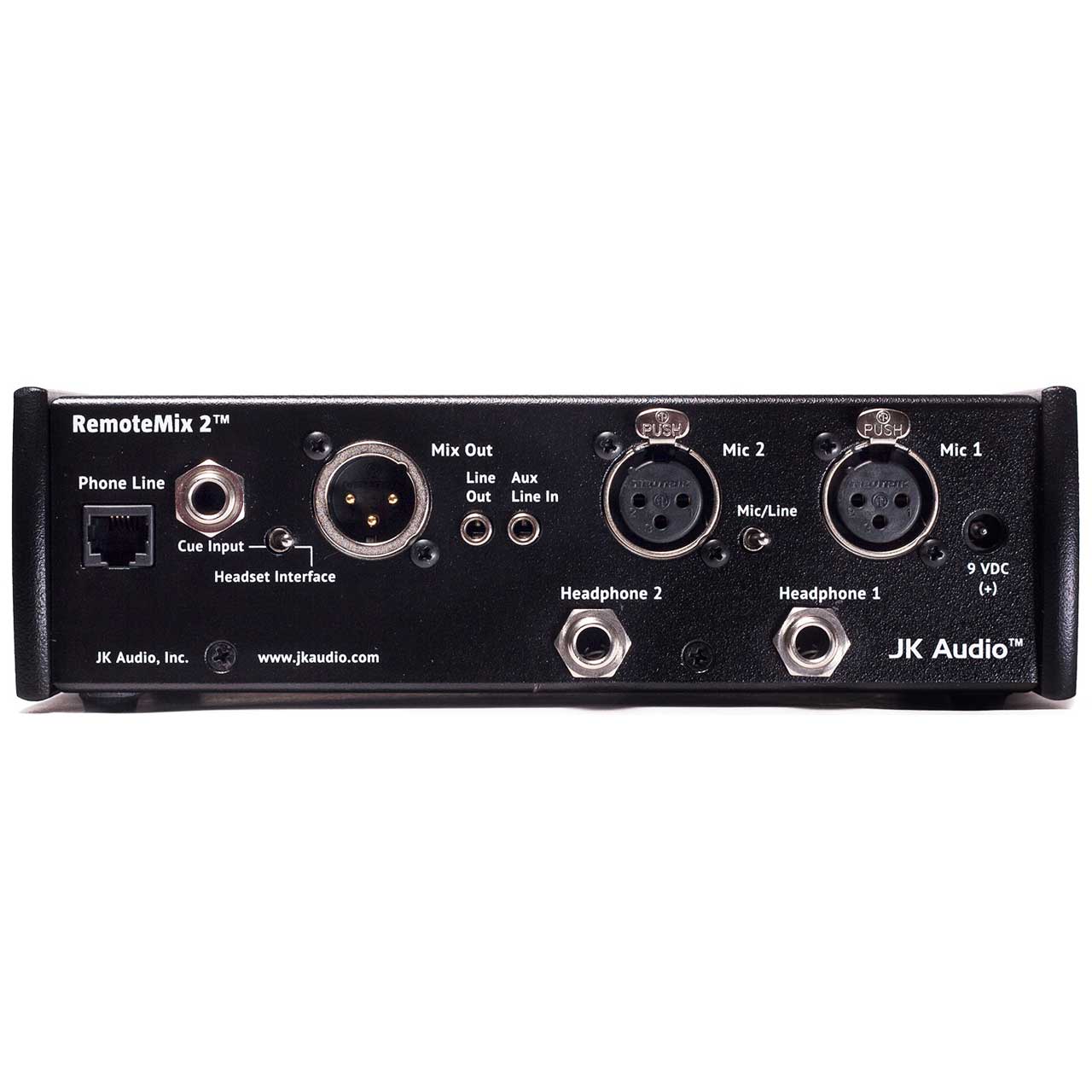

• Features:

  • Two XLR mic jacks
  • Two 1/4” headphone jacks with individual level controls.
  • XLR Line Out
  • 3.5 mm Send and Receive jacks
  • LED VU Meter
  • Phone line hybrid with DTMF keypad
  • Wired phone headset interface (2.5 & 3.5 mm interfaces)
  • Dual 9 volt batteries
  • 100-240 VAC External AC Supply
  • Made in USA


• Specifications:

  • Inputs:
  • Microphones (2):
  • Female XLR Mics: 2k ohms
  • (-25 dBu nom) Channel 2 has -40 dB Mic/Line pad switch = +16 dBu max. 50k ohms.
  • Line Input:
  • 1/8” (3.5mm) Stereo Line: 20k ohms -10 dBu nom.
  • Headphone Cue In:
  • 1/4”, 20k ohms -10 dBu nom.
  • Outputs:
  • Balanced Out:
  • Male XLR +16 dBu max,
  • 20 Hz - 20 kHz, +/- 1dB
  • Line Out:
  • 1/8” (3.5mm) Stereo: 100 ohms, -10 dBu nom
  • Headphone:
  • 1/4” Stereo: 8 ohms / 1/3 watt per channel
  • Phone Line :
  • Connector: RJ11C
  • Isolation: 3750 VAC
  • Ringer: 0.5B REN
  • Wireless phone:
  • 1 meter cable with 3 conductor 2.5 mm plug,
  • 1 meter cable with 4 conductor 3.5 mm plug
  • Power: 100-240 VAC, 50-60Hz or Two 9 VDC batteries
  • Size: 7.75” x 6.5” x 2.3”
  • Weight: 2.1 lbs (960 g)


• GTIN:

  0814170010802
