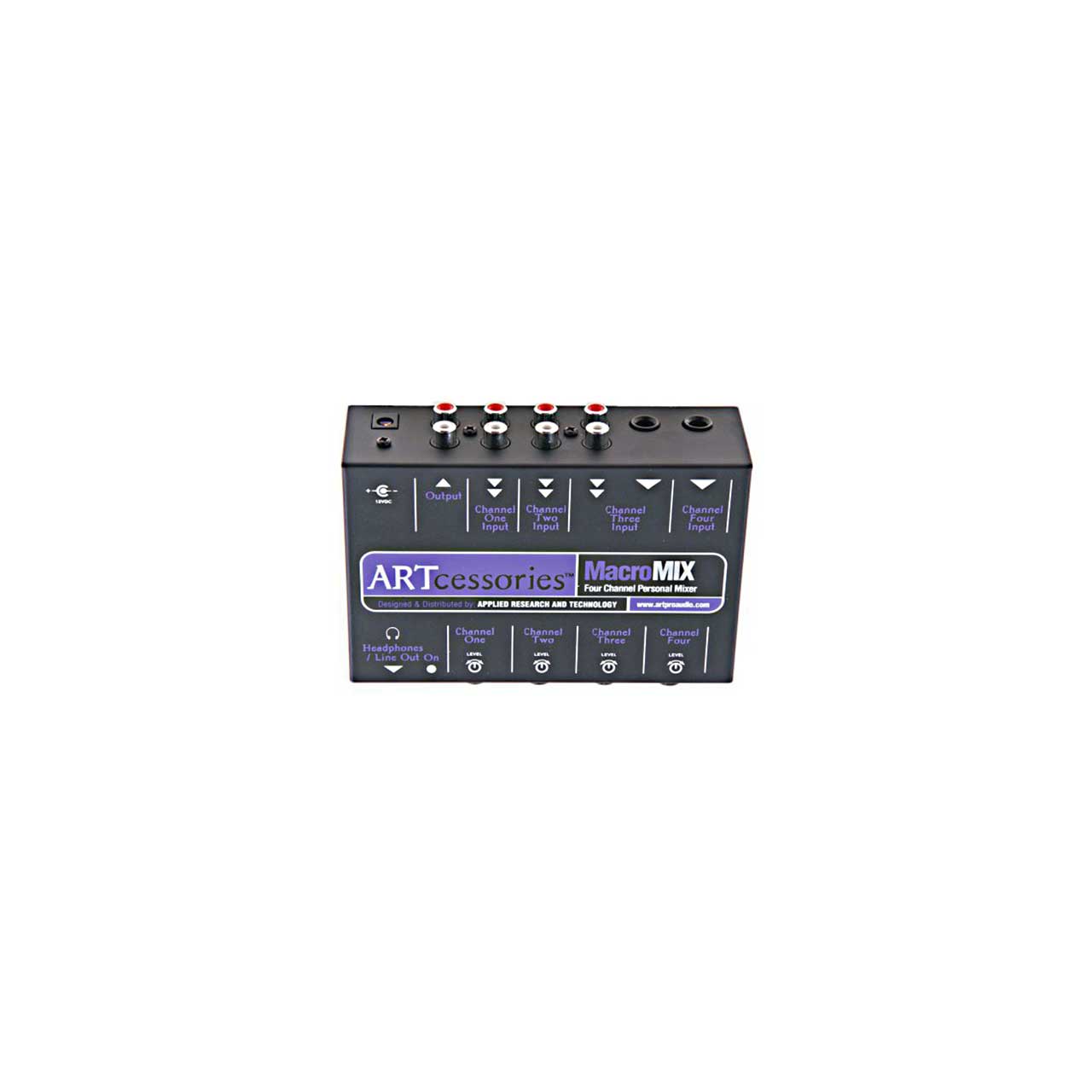

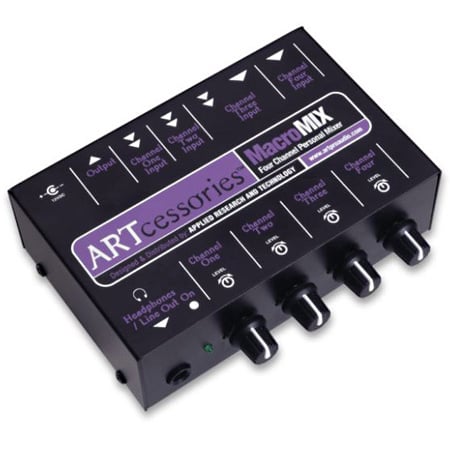

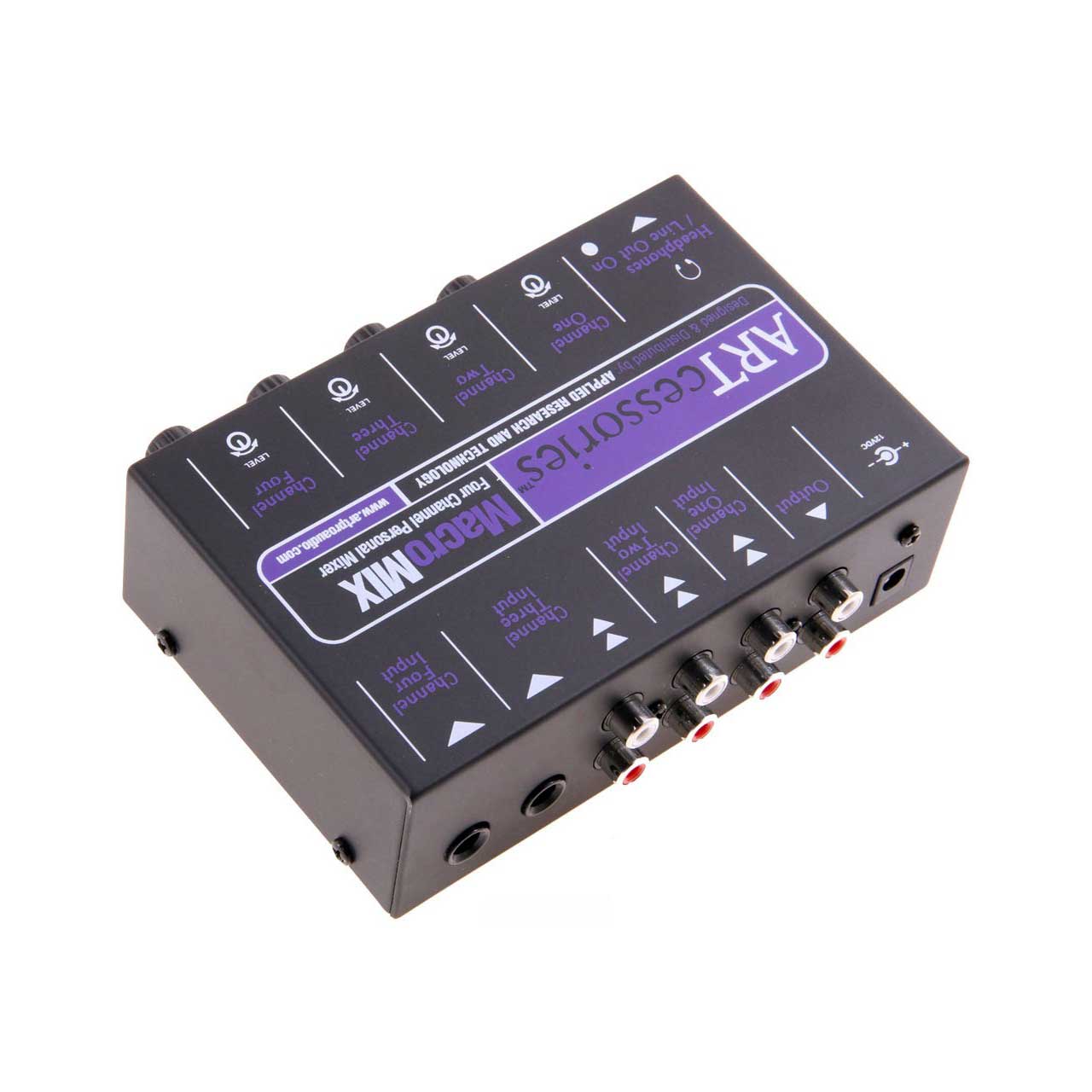

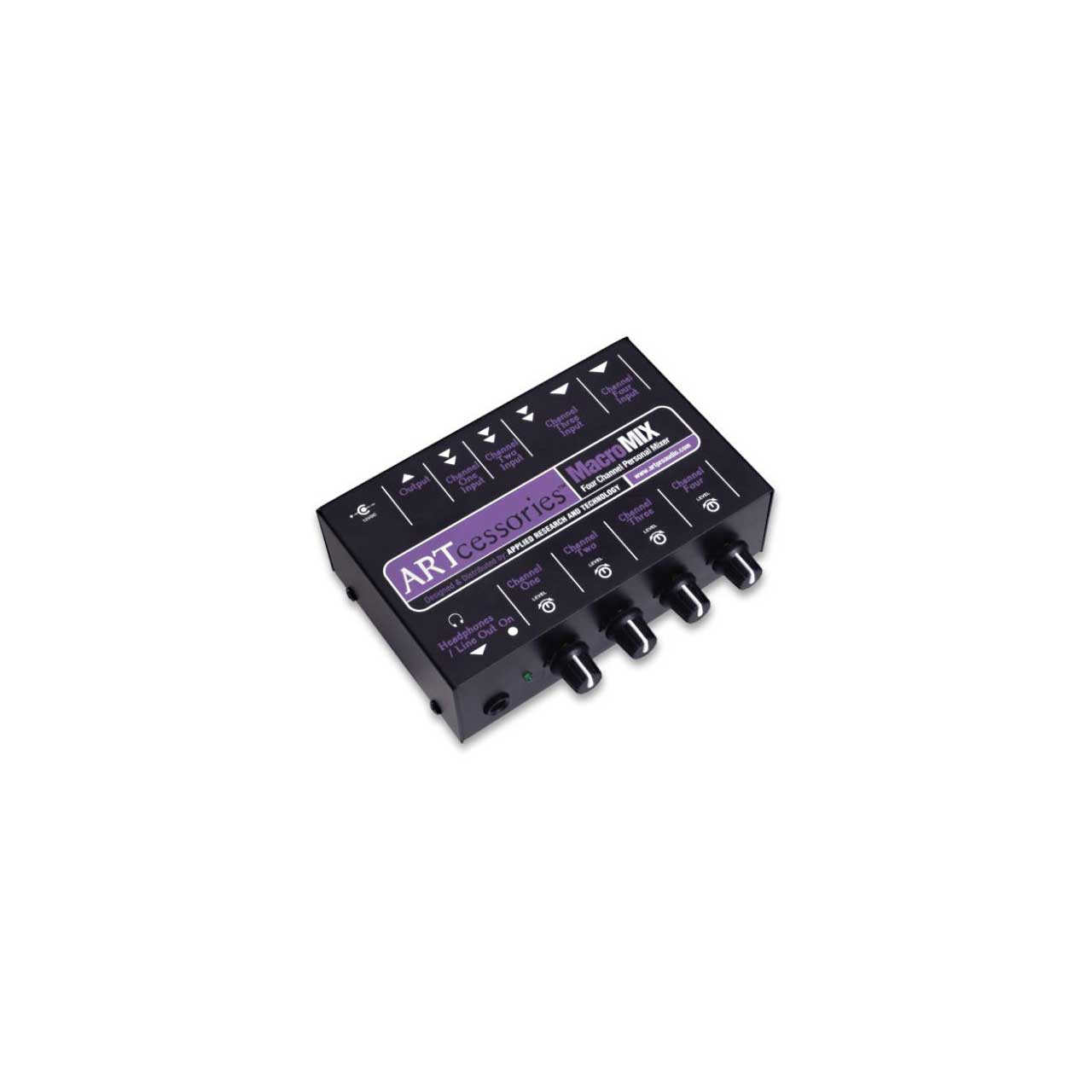

ART MacroMIX 4 Channel Line Level Unbalanced Personal Audio Mixer

ITEM #: ART-MACMIX MFG #: MACROMIX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$99.99

Our Price:

$79.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MACROMIX - Overview

For when you need to mix a CD and a VCR's audio output with a synthesizer and the line output of a bass amp and send it all to a PC or cassette deck. If you are having trouble finding a solution to this dilemma then look no further than the ART MacroMIX. Connect an MacroMIX between your audio sources and the PC or cassette deck. Levels can be mixed and a headphone jack lets you monitor the mix. It's as easy as A,B,C,D & E

  • Specifications:

    • Four input channels, Ch. 1 and 2 have dual L/R RCA inputs, with Ch. 3 you have a choice of one 1/4" or dual L/R RCA inputs and Ch 4 has a 1/4" unbalanced input.
    • Four Level controls, one for each channel
    • Dual L/R RCA Output connectors
    • 1/4" Line Out/Stereo Headphone output jack
    • Active preamplification and mixing circuitry
    • Input Impedance: 10K ohms unbalanced (all inputs)
    • Ch. 1/2/3 and 4 Input Gains: 32dB/26dB/26dB and 26dB
    • S/N Ratio: >90dB
    • THD: <0.008%
    • IMD (SMPTE): <0.008%
    • Power: 12V DC (Adapter included)
    • Dimensions: 5.625 x 3.75 x 1.75 inches (143mm x 92mm x 45mm)
    • Weight: 2 lbs (0.91kg

  • GTIN:

    0840402014164
