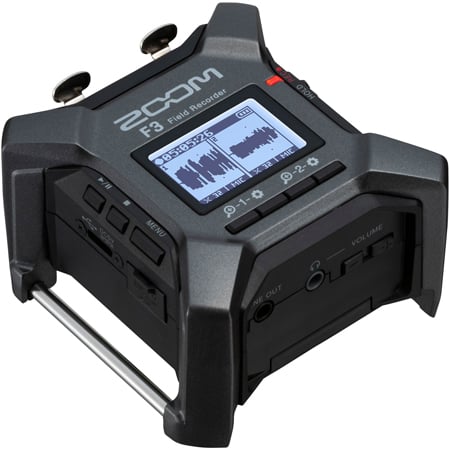

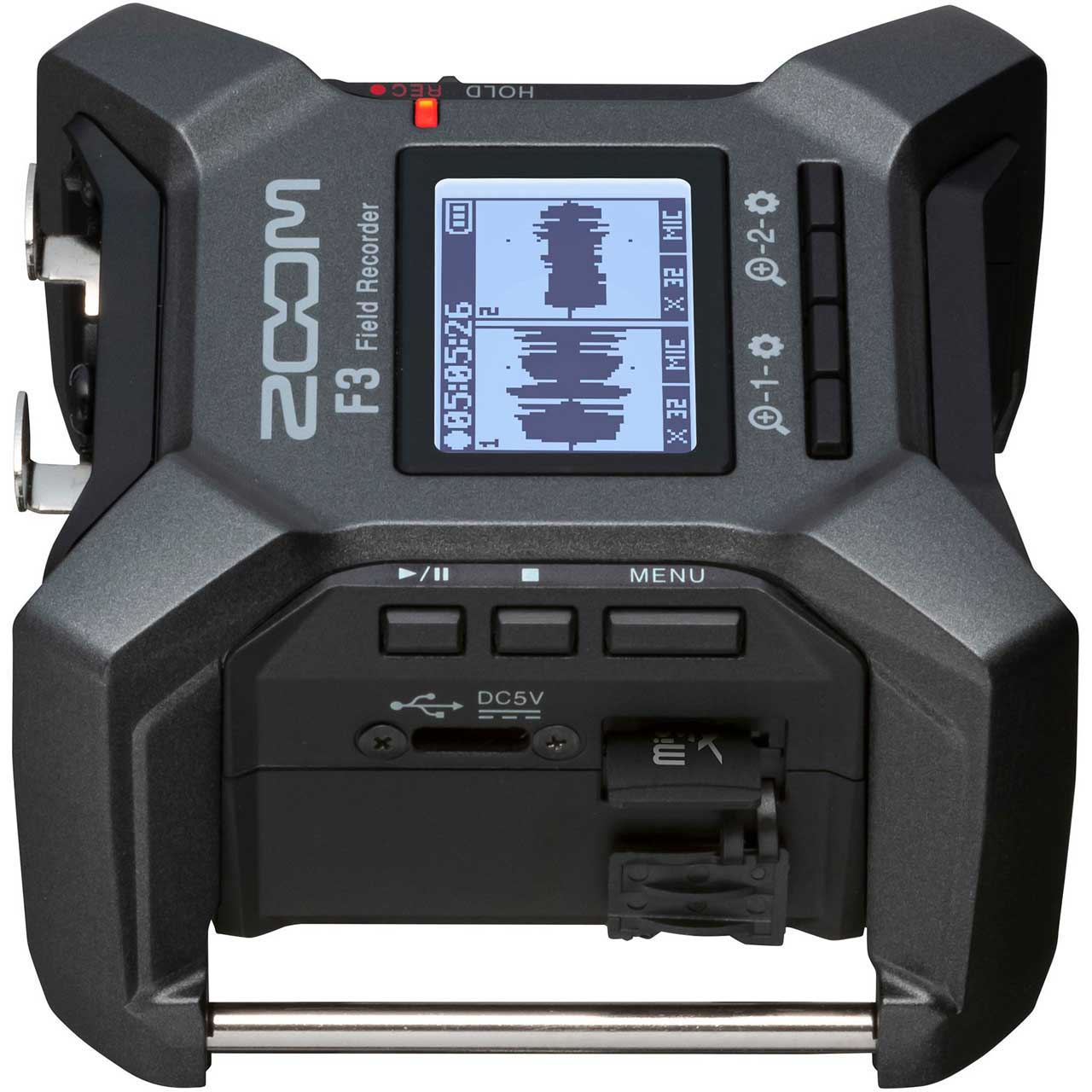

ZOOM F3 MultiTrack Field Recorder with 32-bit Float Recording & Real-Time Waveform Monitoring

ITEM #: ZOOM-F3 MFG #: ZF3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.99

Availability: In Stock
iAvailability Description Popup


ZF3 - Overview

The Small And Mighty Field Recorder That Allows Up To 1TB To Record Over 180 Hours Of Audio!

Small Design, Big Sound
With 32-bit float recording, the ZOOM F3 effortlessly captures the quietest raindrops and the loudest explosions. Its small footprint allows for this recorder to be placed anywhere, as you capture and monitor up to 192 kHz of high-quality audio.

Focus On The Scene
When you're working in the field or on set, sound levels can fluctuate often and quickly. The F3 allows you to adapt to your scene without having to set the gain or worry about clipping. In post, you'll be able to work with your capture, regardless of extremely low or high levels. Stay out of the shot and record from a distance of up to 30 feet (10m) using the F3 control app for iOS and Android.

Award Winning Audio
Featuring the dual A/D converters and low-noise preamps found in our professional F-Series recorders, the F3 guarantees high-quality recordings in any setting or situation. You can also monitor your recordings with seamless accuracy as the F3 displays your audio as real-time waveforms.

Battle Tested
The F3 is built with durable side bars, standard tripod mount and slide-resistant rubber feet ensuring that you can mount it on your gear or hide it in any scene. It's sturdy metal casing and locking XLR connectors is designed for use in a variety of environments. The headphone output allows you to keep an ear on your recordings, plus a line output enables you to go to your camera or other gear.

Audio Interface & Streaming
Connect your F3 to a computer or iOS device via USB as an audio interface and record or stream up to two channels in crystal-clear 24-bit/96 kHz resolution. The loopback function allows you to combine your computer's audio with the F3 inputs to complete the sound for your stream.

  • Features:

    • 2-channel/2-track field audio recorder
    • Featuring 32-bit float recording and dual AD converters for full dynamic range and clip-free audio capture
    • 2 discrete inputs with locking XLR connectors

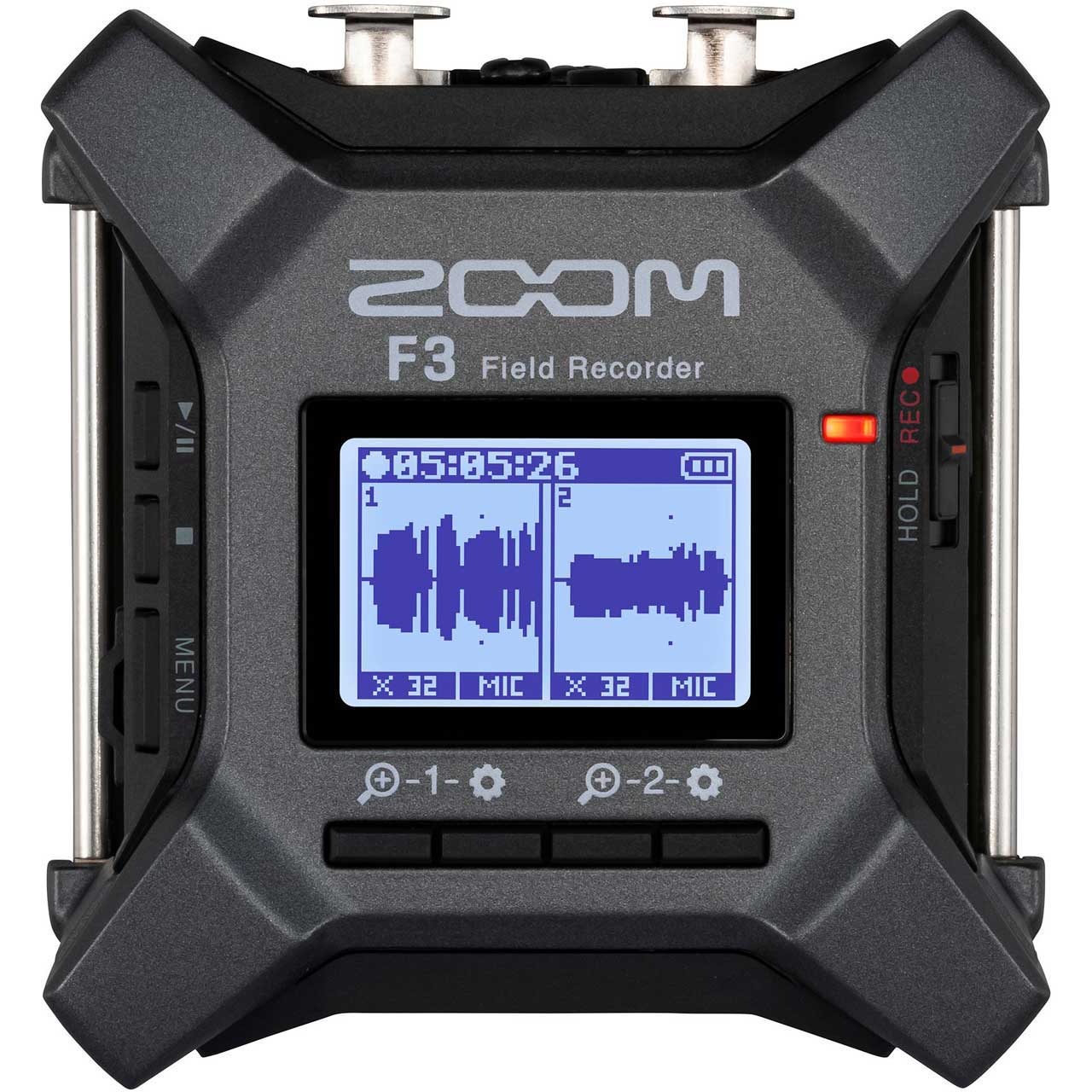

    • Input signals can be monitored with real time waveform display on LCD

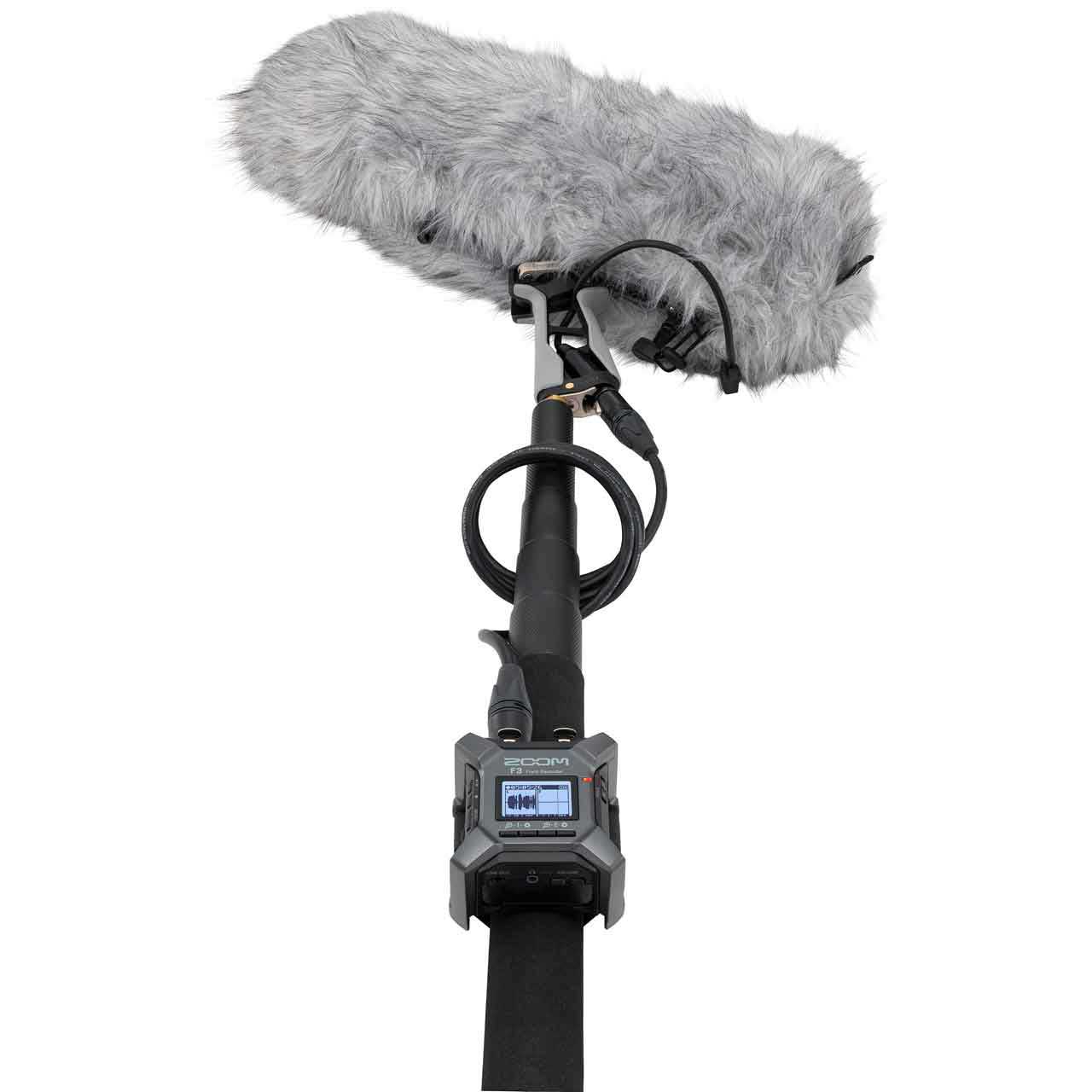

    • Compact and Durable (can be attached to boom mic with Velcro)
    • High quality mic preamps provide a super-low noise floor (-127 dBu EIN)
    • Record up to 192 kHz sampling/32-bit float WAV format, mono or stereo files
    • Stereo 3.5mm Phone/Line Output jack with dedicated Volume control
    • Records directly to microSDHC and microSDXC cards up to 1TB
    • Wireless iOS/Android remote control available through optional BTA-1 Bluetooth adapter (Android version to be released in Spring 2022)
    • Use as 2-IN/2-OUT, up to 24-bit/96 kHz USB audio interface (Available in 32-bit float/96 kHz with a firmware update in Spring 2022)
    • Over 8 hours of operation with 2 AA alkaline batteries
    • Runs on only 2 AA batteries or AC adapter (AD-17) or USB battery pack
    • Wireless timecode synchronization (Optional BTA-1 Bluetooth adapter and UltraSync Blue device by Timecode Systems are required.)

  • Specifications:

    • Input Connectors: 2 XLR
    • Input Gain: Adjustment unnecessary (dual AD converter circuits used)
    • Input Impedance:
      MIC: 3kΩ or more
      LINE: 3kΩ or more
    • Max Input Level:
      MIC: 4dBu
      LINE: 24dBu
    • Phantom Power: 24/48V, combined channel total of 10mA or less
    • Equivalent Input Noise: -127dBu or less (IHF-A) when waveform magnification is x1024 with 150Ω input
    • Output Connectors: 2 stereo mini jacks (LINE & PHONE)
    • Max Output Level:
      LINE: 1dBu
      PHONE: 50mW + 50mW (into 32Ω load)
    • Output Impedance:
      LINE: 100Ω or less
      PHONE: 15Ω or less
    • Max Simultaneous Recording Tracks: 2
    • Max Simultaneous Playback Tracks: 2
    • Recording Format: WAV; 44.1/48/88.2/96/192kHz, 32-bit float mono/stereo, BWF and iXML formats supported
    • Recording Media:
      microSDHC Cards: 4GB - 32GB
      microSDXC Cards: 64GB - 1TB
    • Display: LCD with backlight (96x64 resolution)
    • USB Connector: USB 2.0 Type-C
    • Power: 2 AA batteries (alkaline, NiMH or lithium), AC adapter (ZOOM AD-17): DC 5 V/1 A, USB bus power is supported
    • Power Consumption: 5W max
    • Dimensions (DxWxH): 3.03" x 2.95" x 1.85"
    • Weight (including batteries): 0.53lbs

  • Item Includes:

    • 1x F3 Field Recorder
    • 1x Quick Tour

  • GTIN:

    0884354026011
