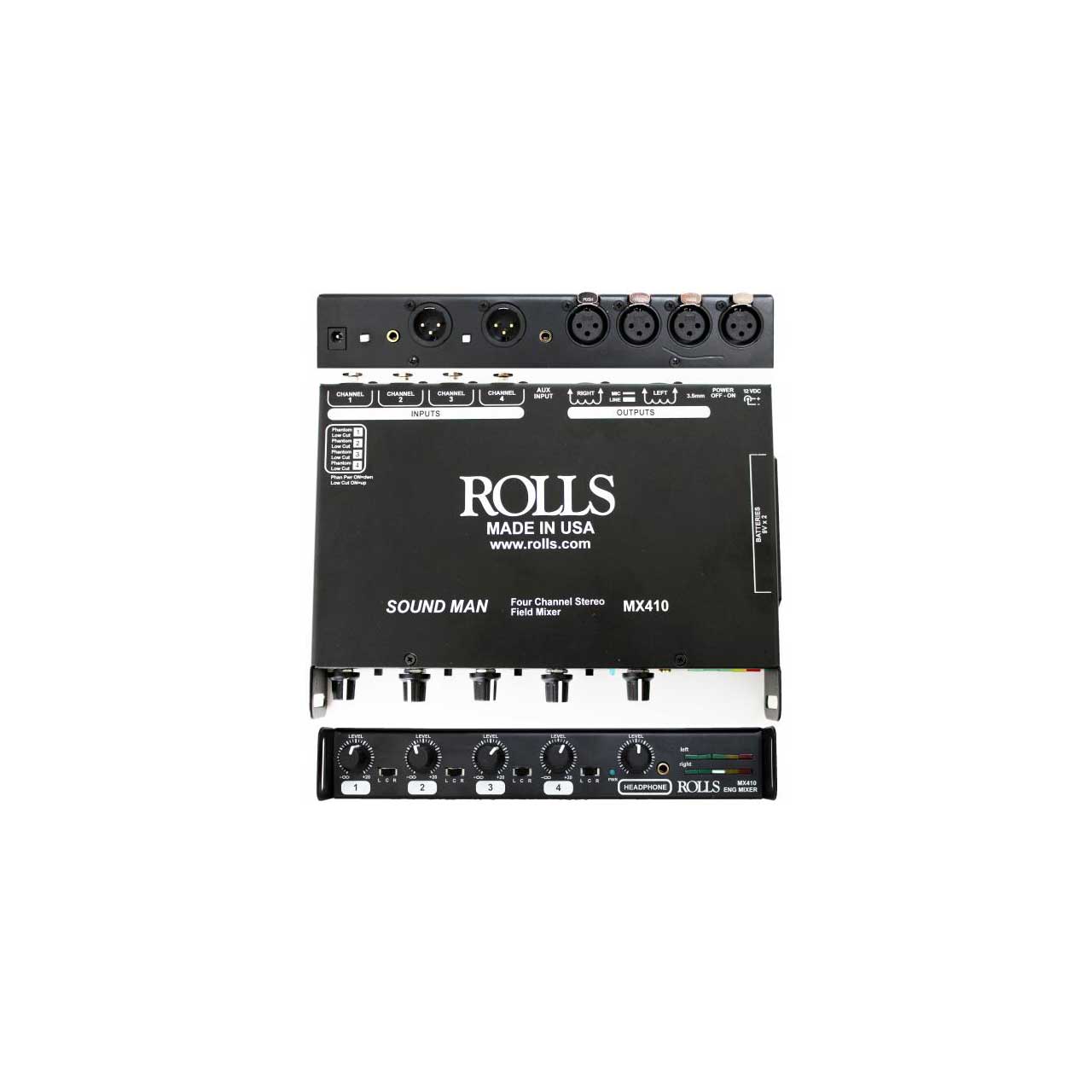

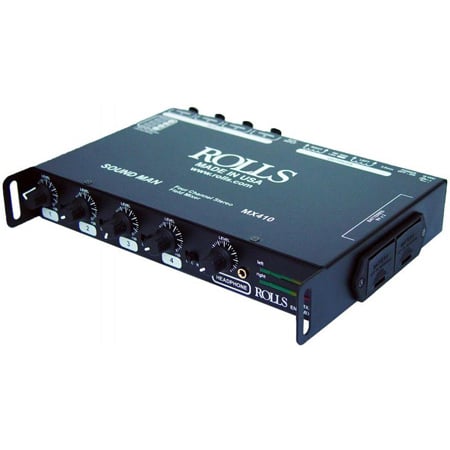

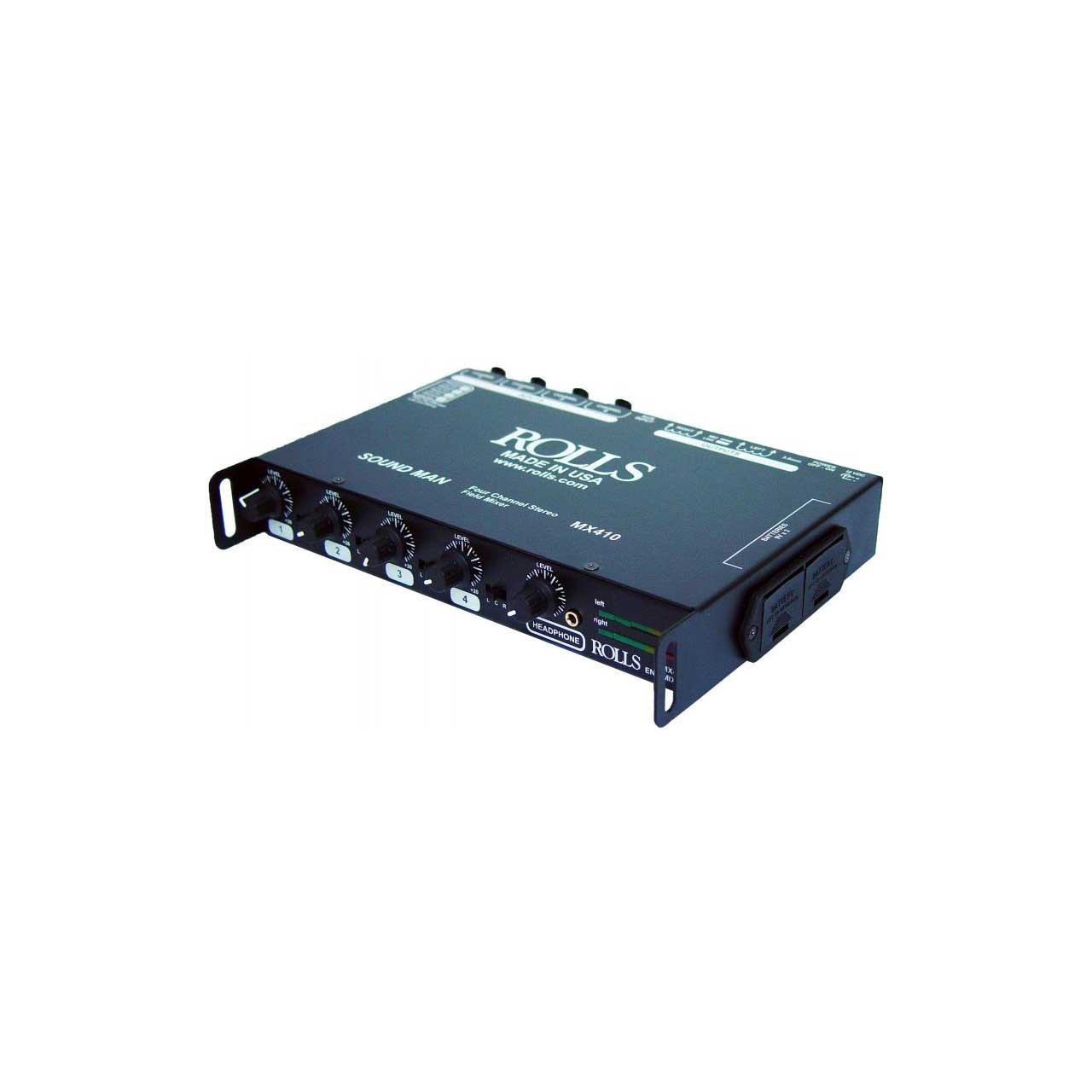

Rolls MX410 4 Channel Field Mixer with LED Meters

MX410 - Overview

• Features:

  • Four balanced XLR Inputs.
  • Two transformer-balanced XLR Outputs
  • Switchable Output Level ( Line level, or mic)
  • Switchable Phantom Power for each input.
  • Level controls for each channel.
  • 3.5mm Headphone Output and Level control.
  • Rolls PS27s external power supply included.
  • Powered by two 9 volt batteries or the included power supply


• Specifications:

  • Input Impedance: 600 Ohm bal. /10K Ohm Aux.
  • Output Attn. Switch: 0/-30 dB
  • Self Noise: -65 dB maximum, -90 dB typical
  • Max Gain: +55 db
  • S/N Ratio: 115 dB
  • Frequency Response: 20 Hz - 20 kHz | +0, -3 dB
  • Max Input: -20 dBV
  • Current Draw: 30 mA with no Phantom Power or Signal.
  • Phantom Power: +18 VDC
  • Connectors: 4: Female XLR, 2: Male XLR, 3: (3.5mm), 1 Center Negative power jack.
  • Power: 12-15VDC / < 300-500 mA
  • Size: 9" W x 6.75" D x 1.5" H
  • Weight: 2.45 lbs


• GTIN:

  0675889041002
