Rolls MX54S ProMix Plus 3-Channel Mic Mixer

ITEM #: MX54S MFG #: MX54S

Primary Image
Rolls Corporation
Free Shipping with $49 Minimum Order

List Price:

$179.00

Our Price:

$149.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MX54S - Overview

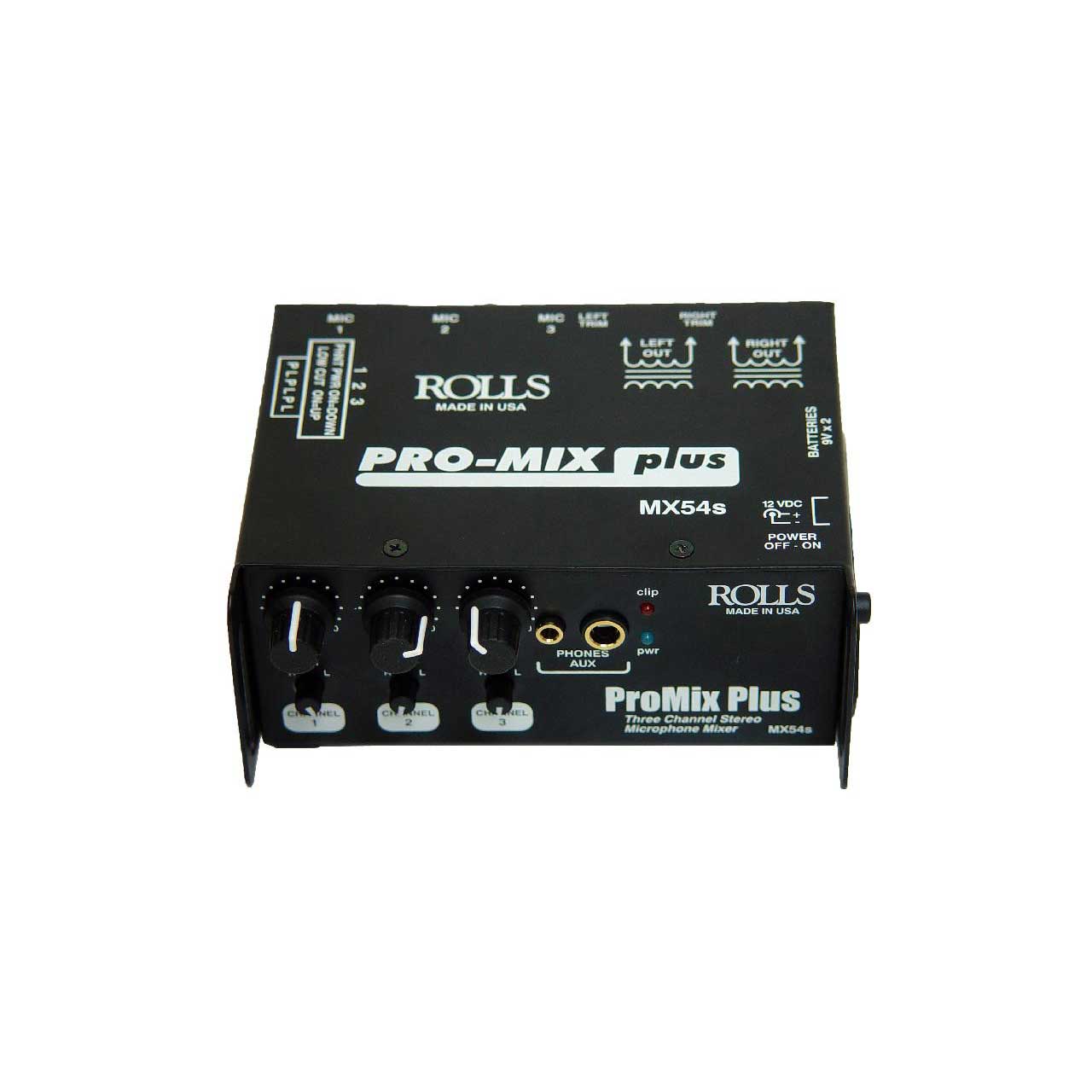

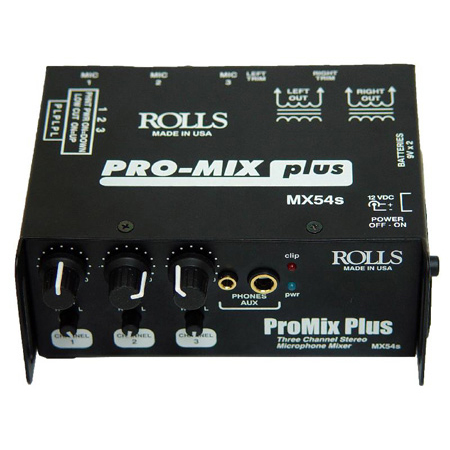

The Rolls MX54s Pro-Mix Plus mixes three microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut switches, a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries.

  • Features:

    • Mixes three microphones to stereo XLR outputs
    • Output level controls for mic or line-level output
    • Transformer isolated outputs
    • Phantom Power and Low-Cut switches for each Mic input
    • Battery and AC powered
    • Handy shoulder strap mounts


  • Specifications:

    • Input Impedance: 600 Ohms
    • Output Impedance: XLR 600 Ohms
    • THD + Noise: .02%
    • S/N Ratio: 84 dB
    • Frequency Response: 25 Hz - 16 kHz (+0 / -3 dB)
    • Max Output Level: + 14 dB
    • Max Input Level: -14 dB
    • Max Gain: +60 dB
    • Low Cut: -3 dB @ 100 Hz
    • Current Draw: 20 mA
    • Phantom Power: +18 VDC
    • Connectors: 3: Female XLR, 2: Male XLR, 1: 1/4" TRS, DC Power Jack
    • Size: 5.3" x 3.7" x 2"
    • Weight: 1 lbs.


  • GTIN:

    0675889005417
