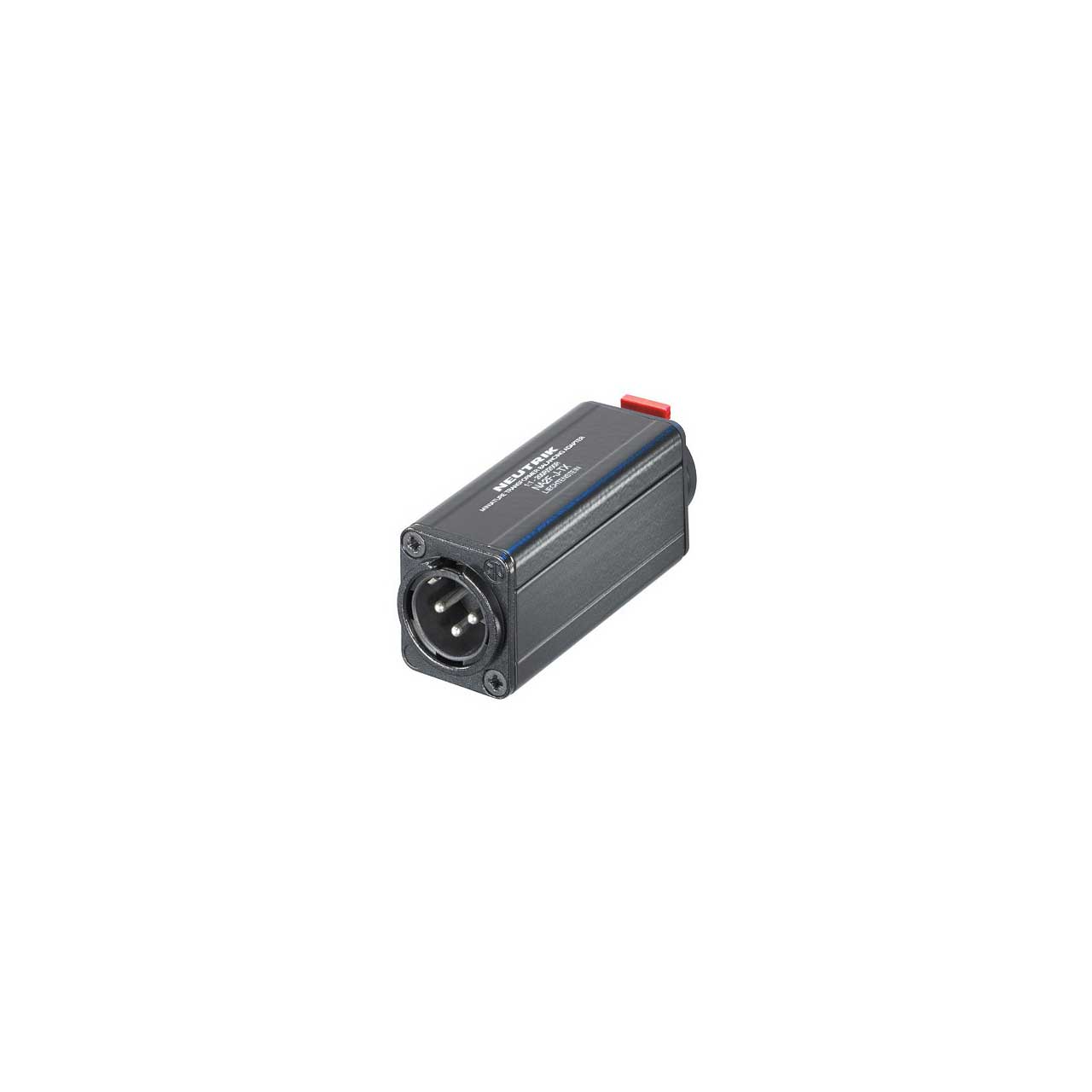

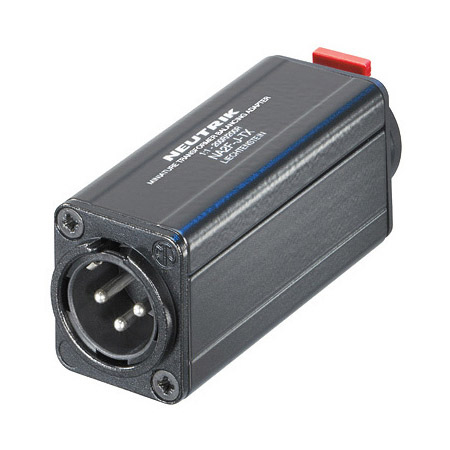

Miniature transformer balancing adapter, 3 pole XLR male - 1/4" Jack, ground lifted
Low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required
Audio transformer 1:1
Impedance ratio: 200:200
Source/load impedance in Ohm: 200/2k, (600/10k)
Max. Input level (@ 50 Hz, 1% THD): -3 dBu
