Neutrik NA3FMX 3 pole XLRF to 3 pole XLRM Contacts with pins 2 - 3 Inverted wiring

ITEM #: NA3FMX MFG #: NA3FM-X

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$21.22

Our Price:

$18.19

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NA3FM-X - Overview

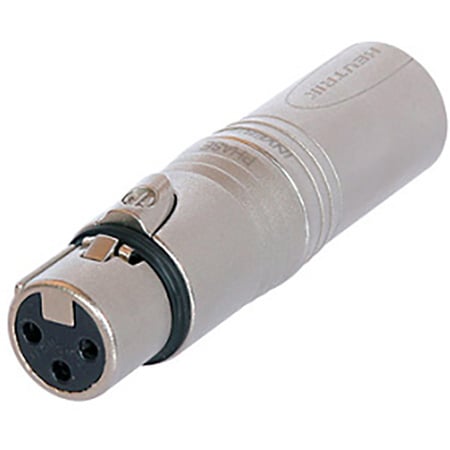

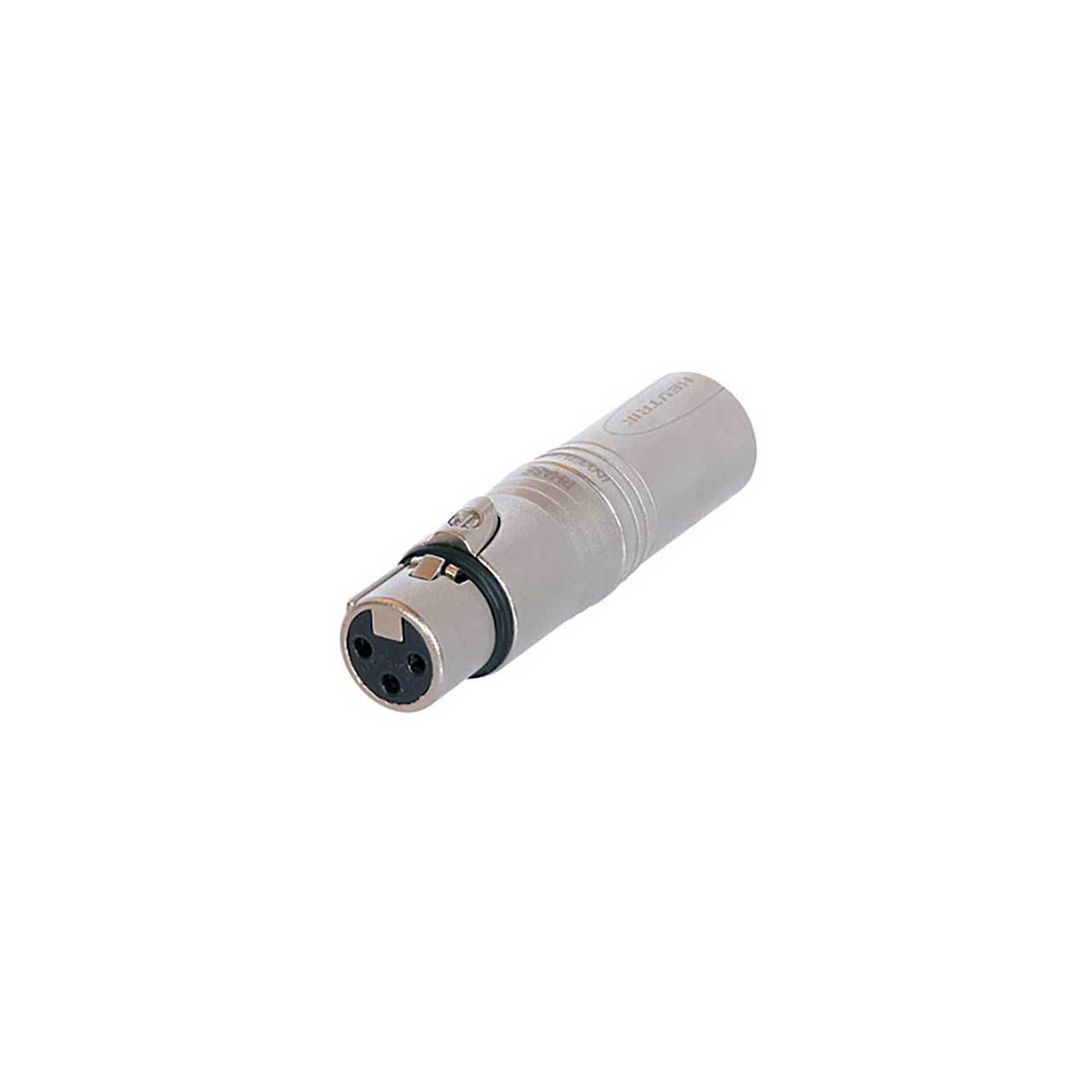

The Neutrik NA3FMX is a 3-pole XLR female to 3-pole XLR male extention adapter with contacts 2 and 3 inverted.

  • Features:

    • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
    • Rugged diecast shell for best reliability
    • Professional look and compact space saving design, based on the XX Series


  • Specifications:

    • Electrical
    • Contact Resistance: ≤3mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: >2GΩ

      Material
    • Contact Plating: 2µm Ag
    • Contacts: Bronze (CuSn6)(female)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: gal Cu/Ni

    • Locking Device: Latch lock
    • Temperature Range: -4°F - 149°F (-20°C - 65°C)


  • GTIN:

    7613187004759
