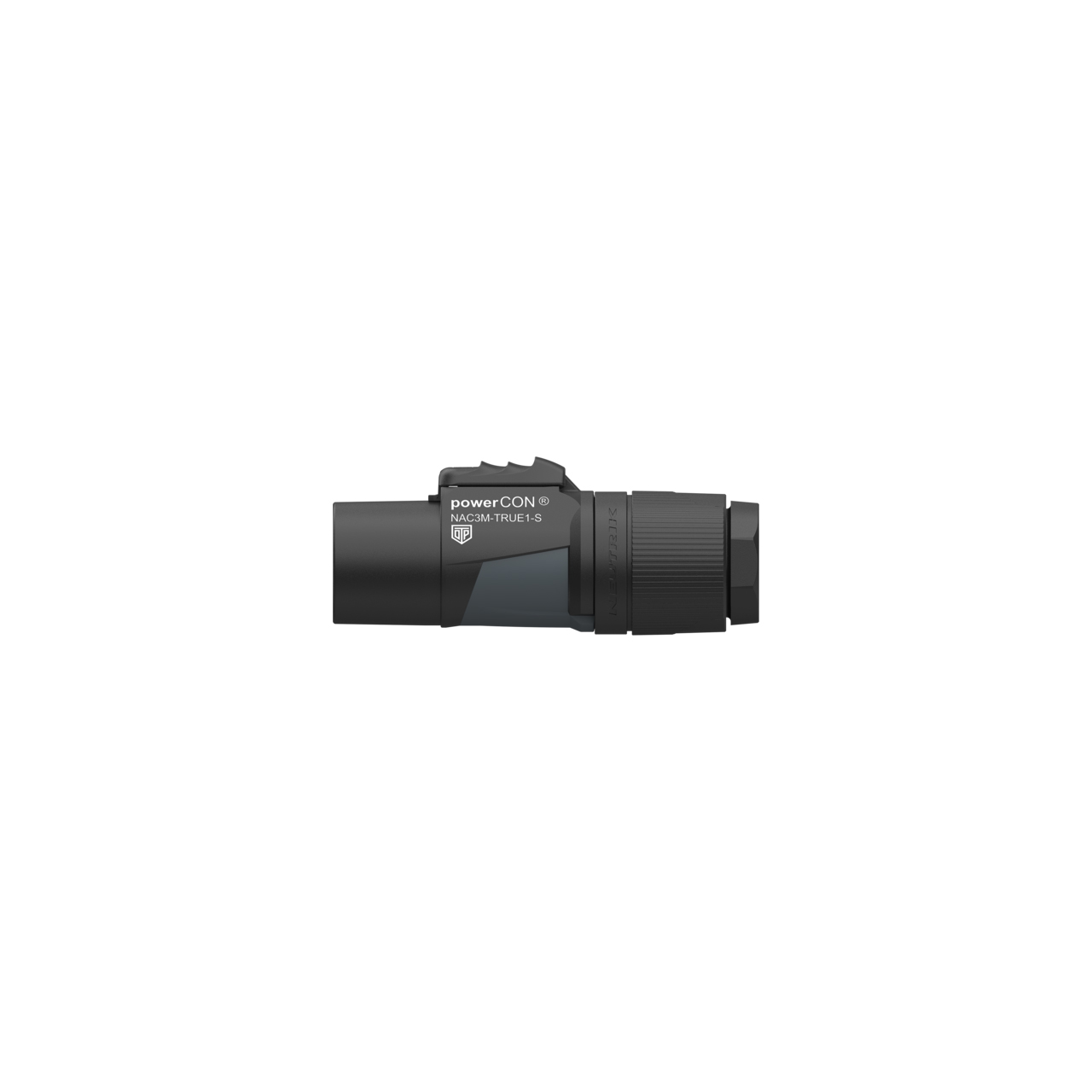

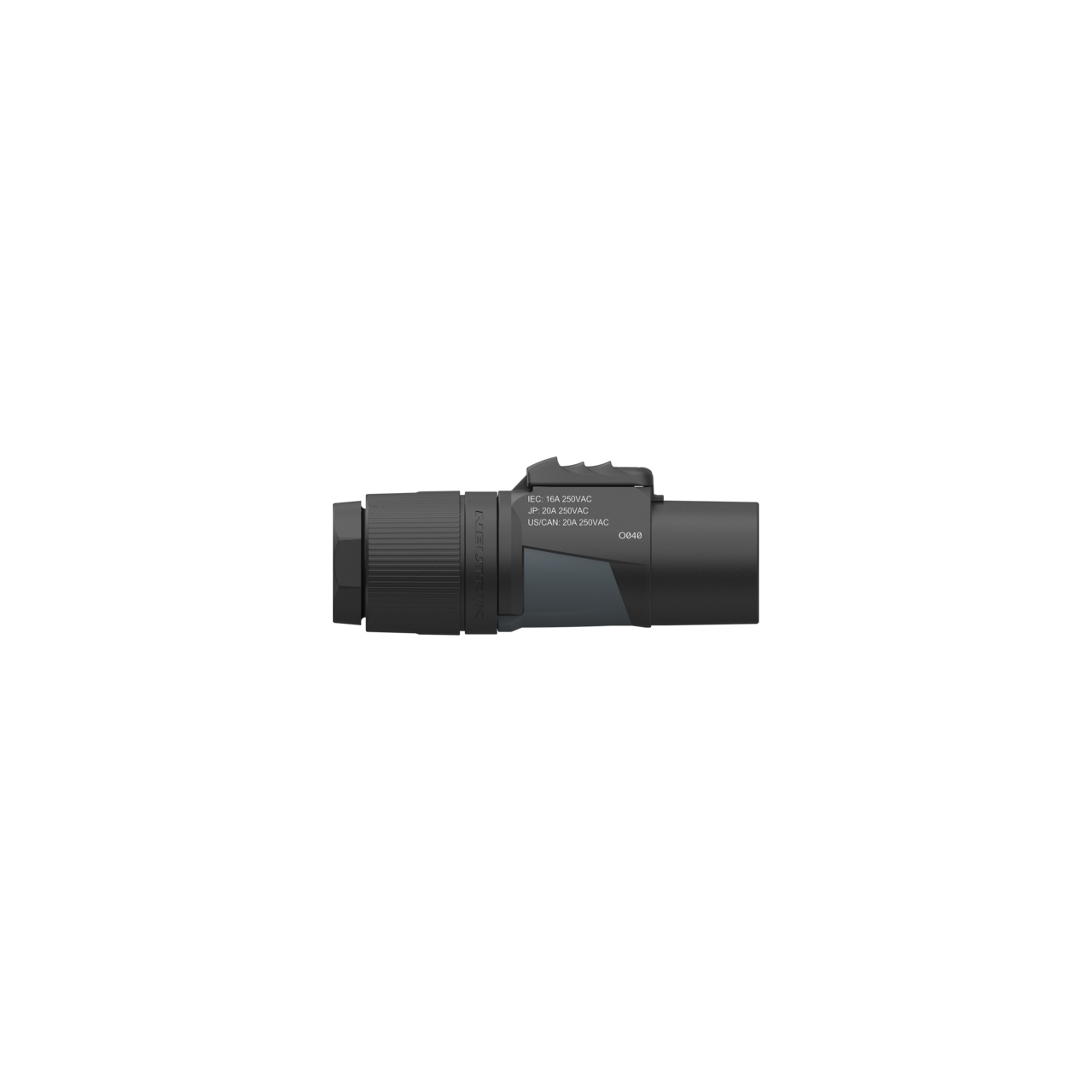

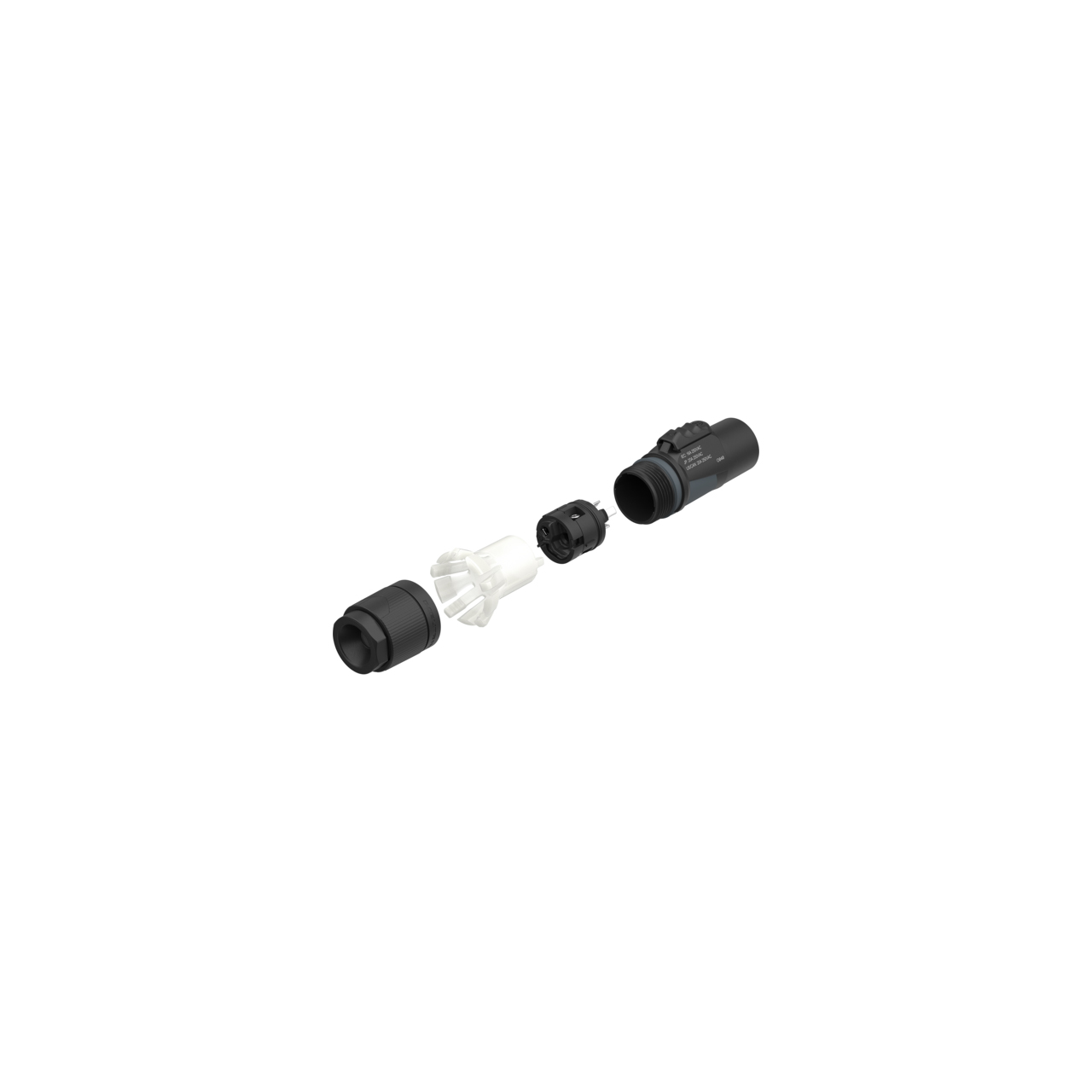

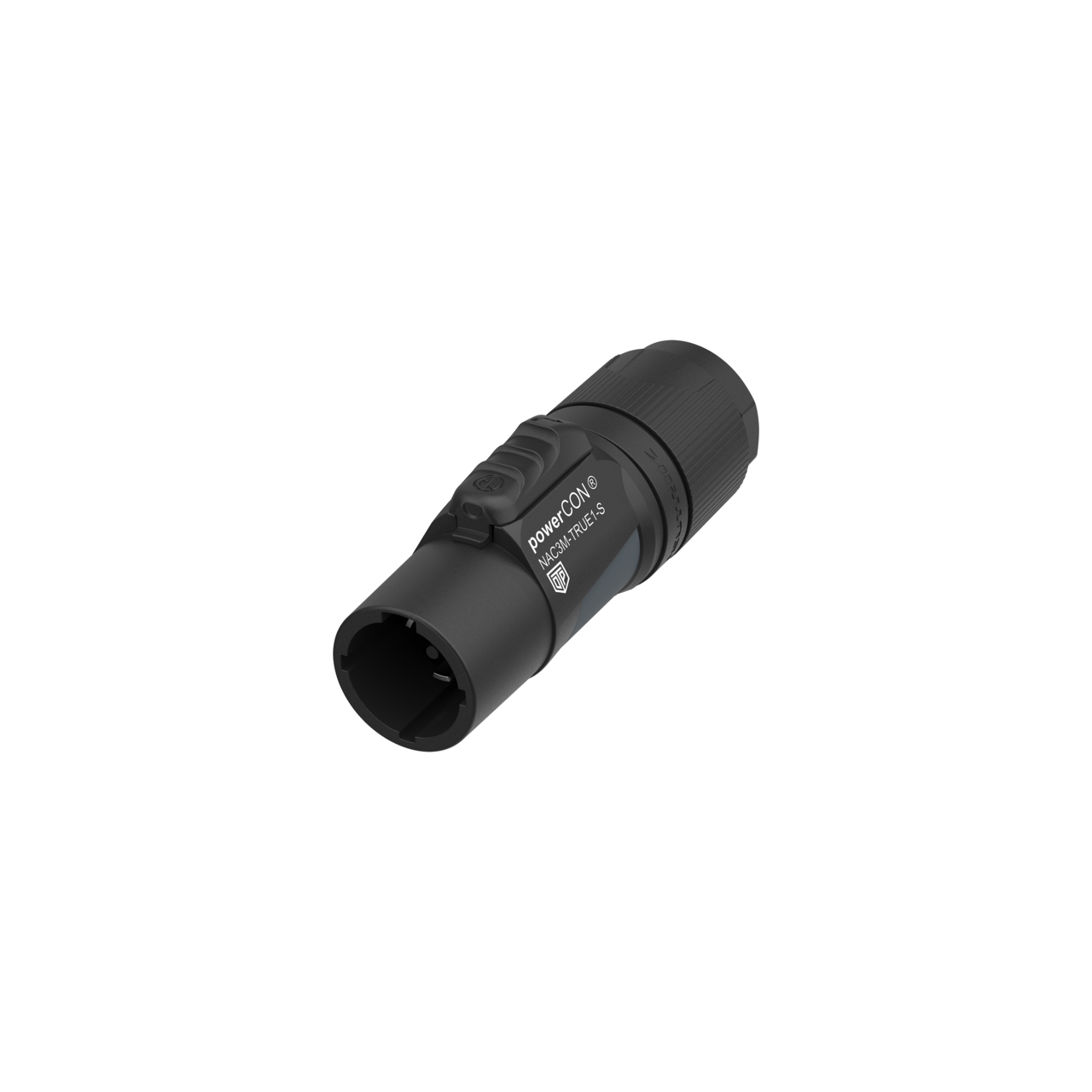

Neutrik NAC3M-TRUE1-S Male powerCON True1 Locking Cable End Connector - Small Chuck for 6-12mm Cable - 200-Pack

NAC3M-TRUE1-S-D - Overview

• Features:

  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Lockable single phase connector
  • Extremely robust and reliable
  • ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
  • UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
  • IP65 and IP67 (mated or with closed cap)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist lock system
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 - 0.47 inches)


• Specifications:

  Electrical
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: 4kV DC/2.8kV AC
  • Insulation Resistance: > 1 GΩ (after damp and heat test IEC 68-2-30)
  • Number of Electrical Contacts: 2 + PE
  • Rating (EU): 16A/250V AC according to EN IEC 60320-1
  • Rating (US):
    - 20A/250V AC according to UL 60320-1
    - 20A/250V AC according to CSA C22.2 No. 60320-1

    Mechanical
  • Cable O.D.: 0.23" - 0.47" (6mm - 12mm)
  • Lifetime: > 5000 mating cycles
  • Wiresize (mm²): 1.5 - 2.5 mm²
  • Wiresize (AWG): 14 AWG

    Material
  • Contact Plating: 2 μm Ag
  • Locking Element: Polyamide (PA 66)
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA 66)
  • Shell: Polyamide (PA 66)
  • Strain Relief: Polyketon

    Environmental
  • Flammability: UL 94 V-0
  • Protection Class: IP65/67 (mated or with closed caps)
  • UV Resistance: F1 rated material withstands UV exposure
  • Temperature Range:
    - -22°F - 176°F (-30°C - 80°C) according to IEC 61984
    - 23°F - 104°F (-5°C - 40°C) according to IEC 60320-1


• Item Includes:

  • 200x NAC3M-TRUE1-S Small Chuck Male powerCON Connectors
