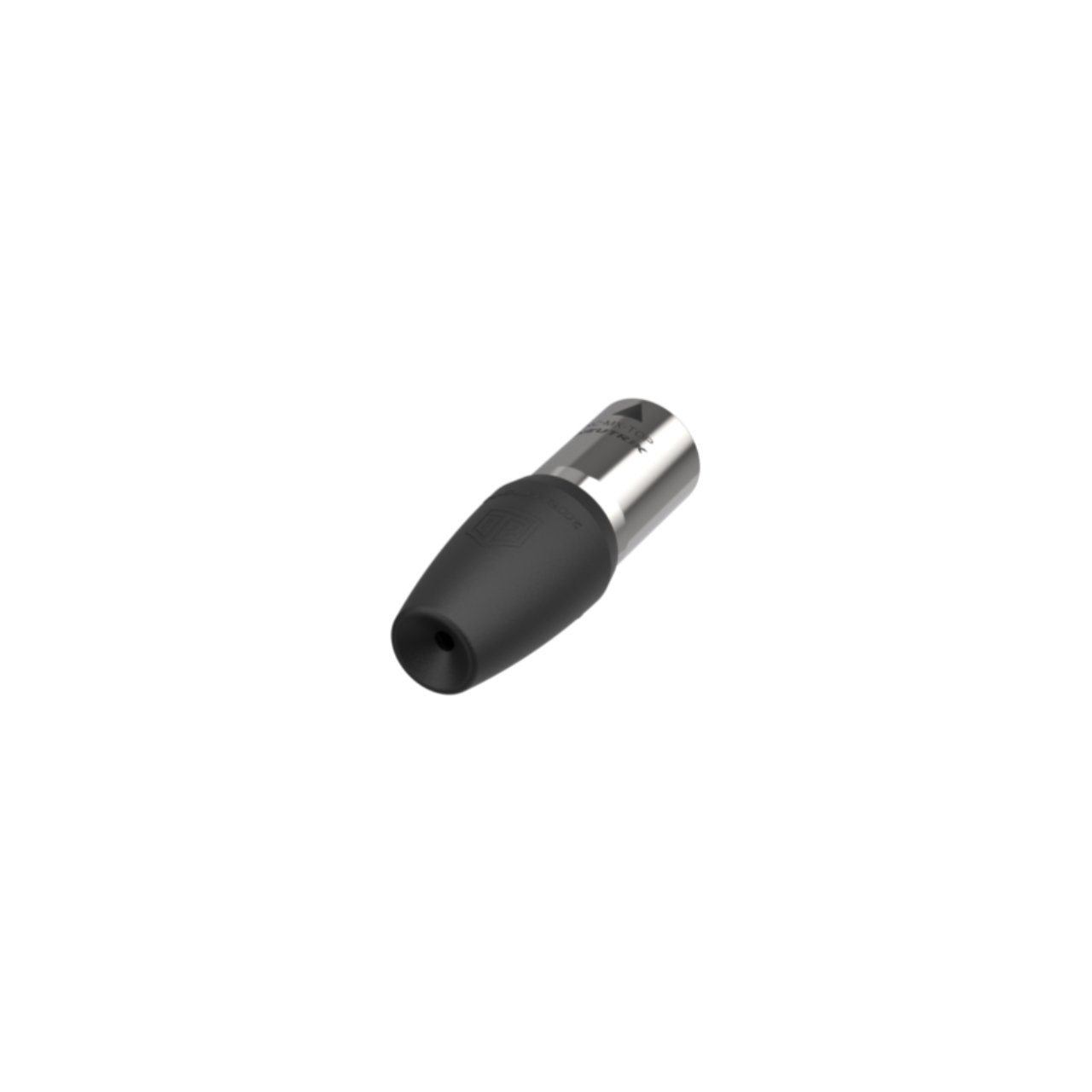

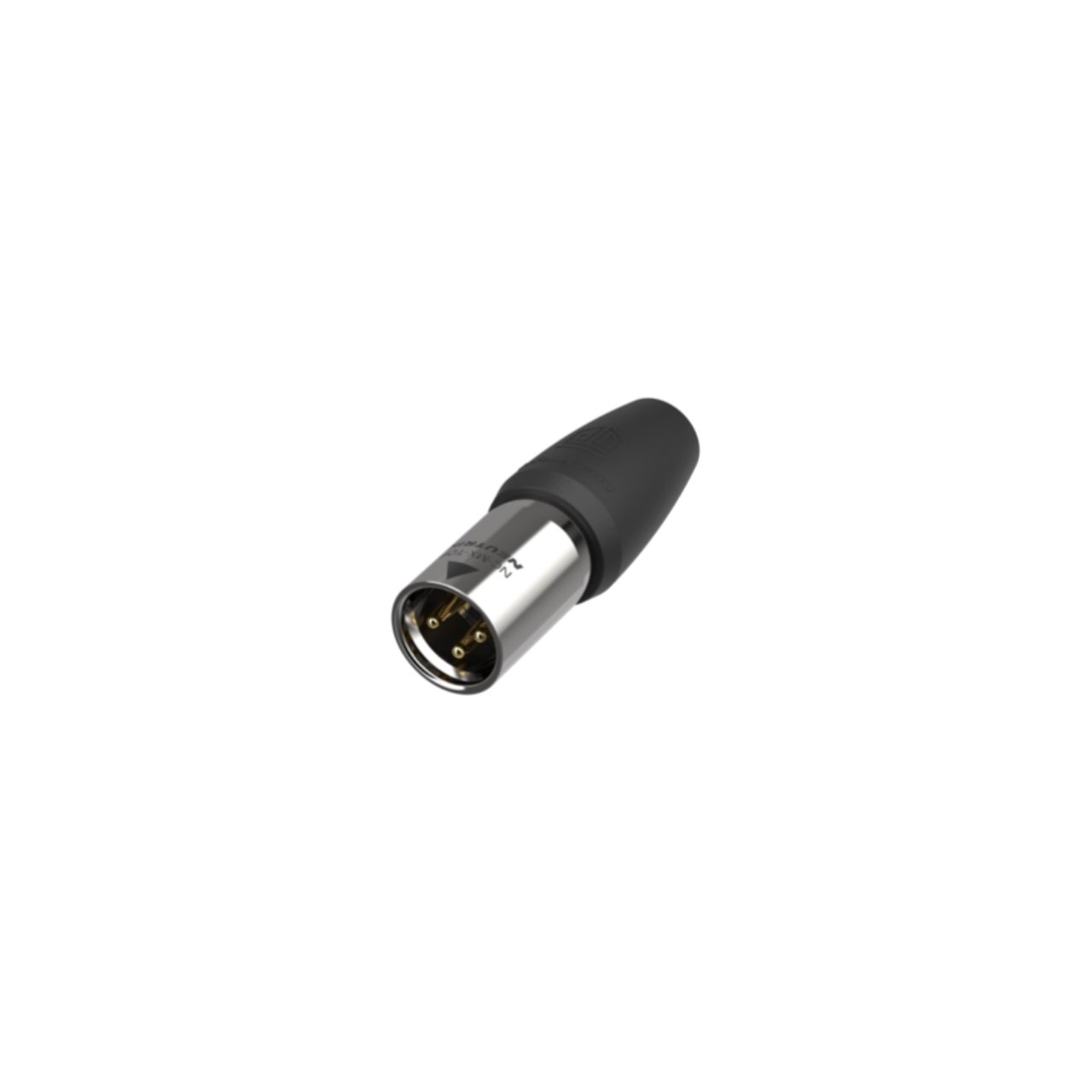

Neutrik NC3MX1-TOP XLR Cable End X1-TOP Series 3 Pin Male Connector - Nickel/Gold - IP65/UV Rated for Cables OD 5-10 mm

NC3MX1-TOP - Overview

• Features:

  • Heavy duty sealed XLR connector range for harsh and demanding environment
  • Outdoor protection according to IP65
  • Uses high impact UV resistant materials
  • TOP-Approved in consideration of UL50E


• Specifications:

  • Connection Type: XLR
  • Gender: Male

    Electrical
  • Capacitance Between Contacts: ≤ 4pF
  • Contact Resistance: ≤ 3mΩ
  • Dielectric Strength: 1,5kV DC
  • Insulation Resistance: > 10GΩ (initial)
  • Rated Current per Contact: 16A
  • Rated Voltage: < 50V

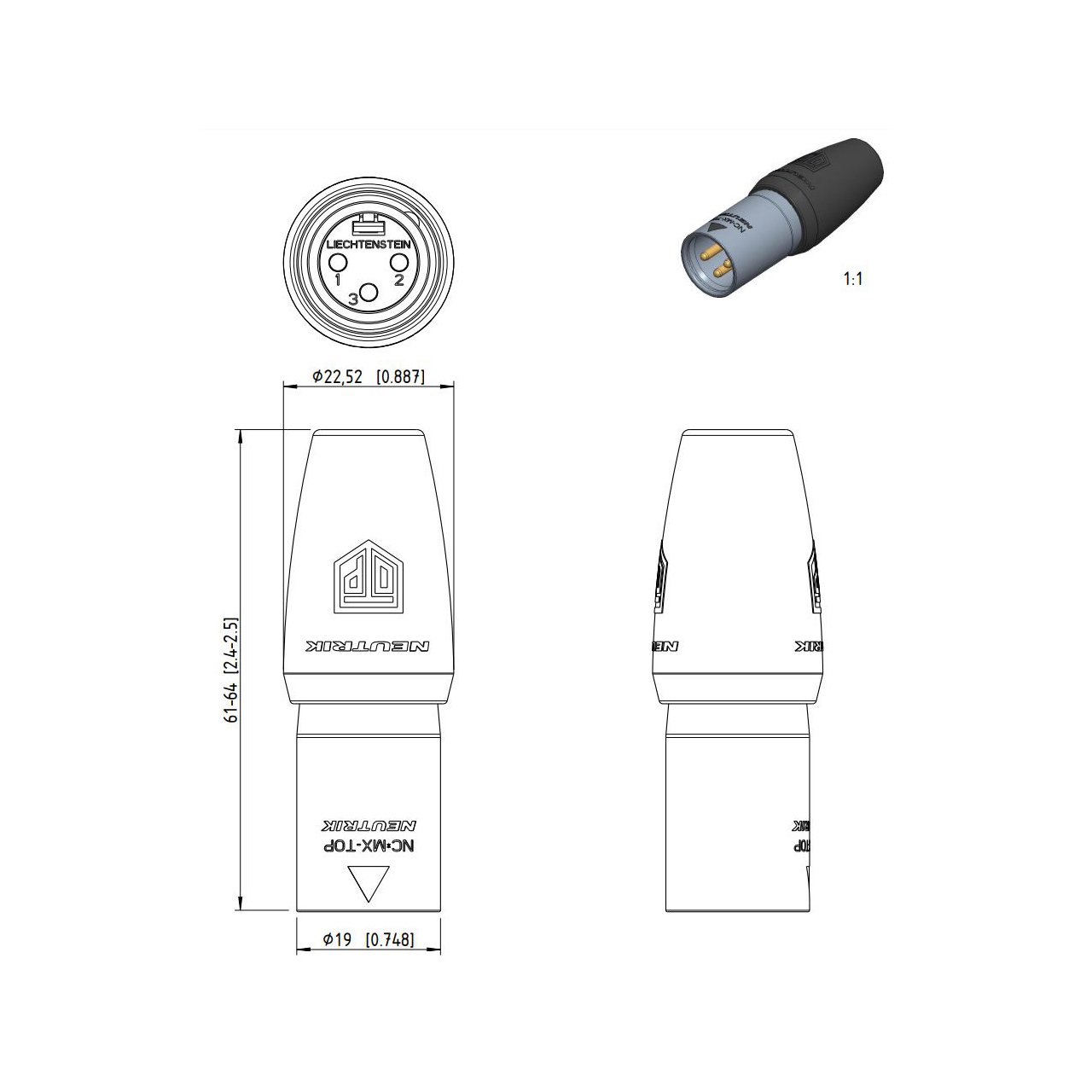

    Mechanical
  • Cable O.D.: 5.0mm - 8.0 mm
  • Insertion Force: ≤ 20N
  • Withdrawal Force: ≤ 20N
  • Lifetime: > 5000 mating cycles
  • Wiresize: Max. 1.5mm2
  • Wiresize: Max. 16 AWG
  • Wiring: Solder contacts
  • Locking Device: Latch lock

    Material
  • Bushing: UV-resistant rubber
  • Contact Plating: Gold (Au) over Nickel (Ni)
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA66)
  • Locking Element: Stainless steel
  • Shell: Stainless steel
  • Strain Relief: Polyacetal

    Environmental
  • Approvals: UL
  • Flammability: UL 94 V-0
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP65, UL50E enclosure type 4 (mated)
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)
