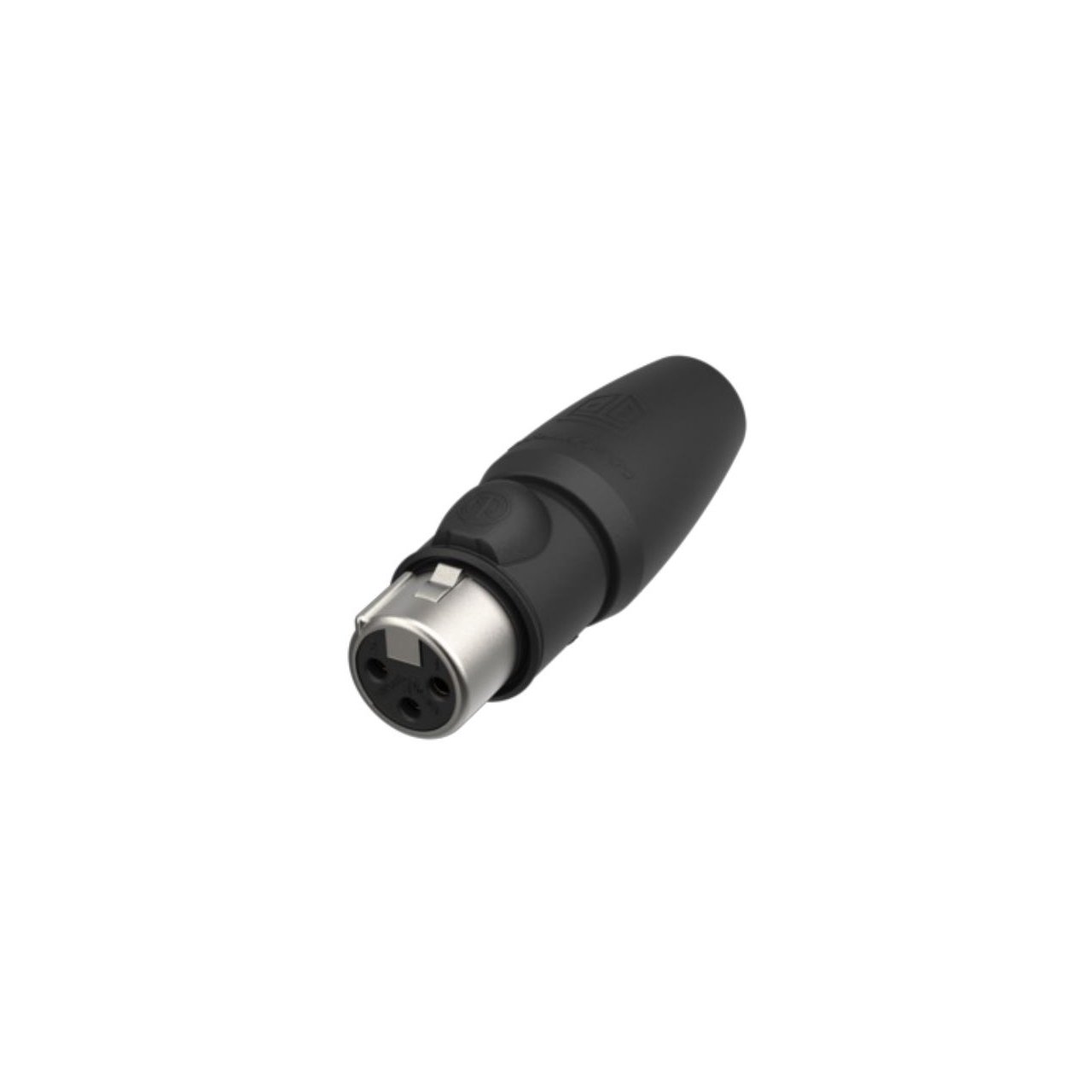

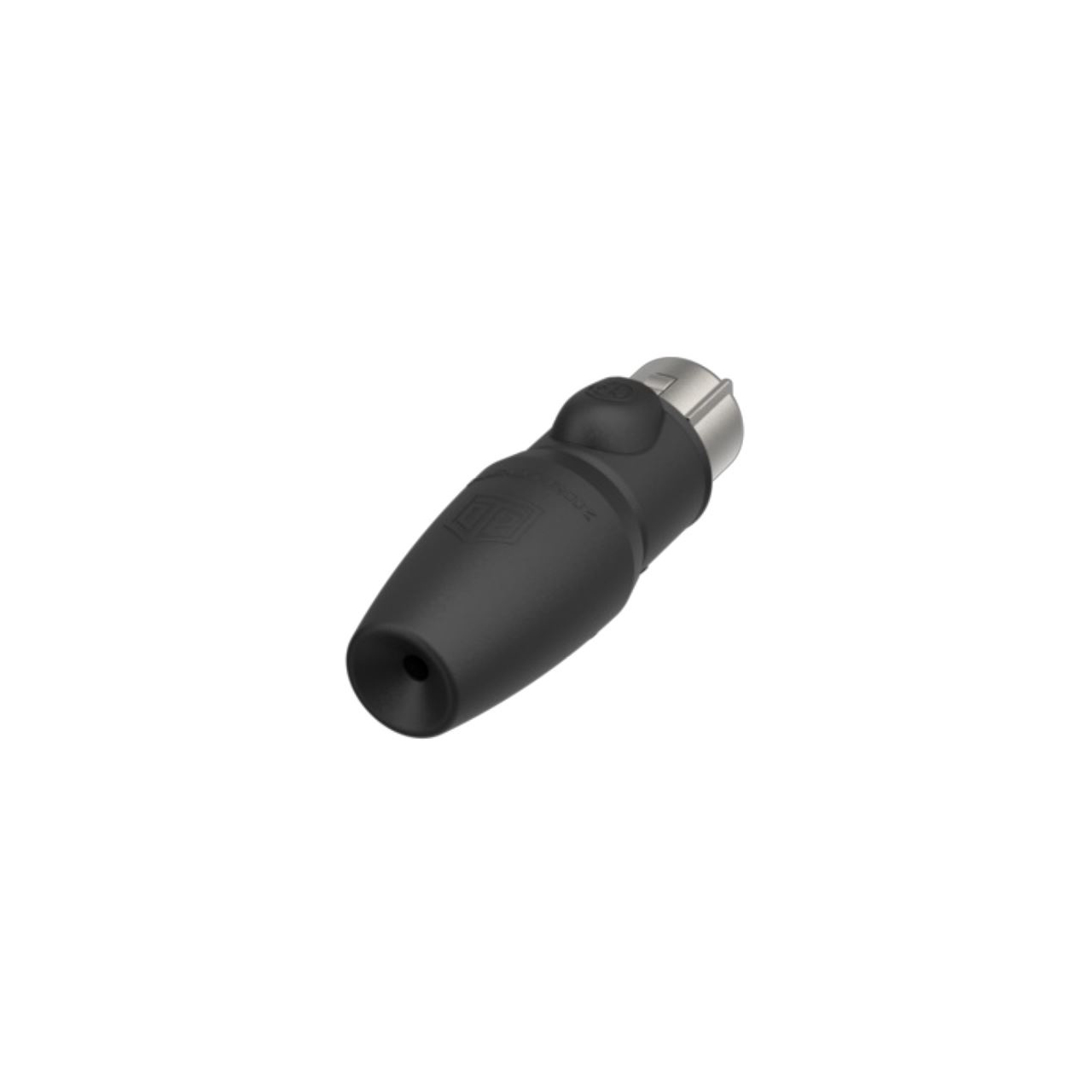

Neutrik NC3FX1-TOP XLR Cable End - X1-TOP Series 3-pole Female - Nickel/Gold - IP 65 and UV Rated for Cable OD 5-10 mm

NC3FX1-TOP - Overview

• Features:

  • Heavy-duty sealed XLR connector range for harsh and demanding environment.
  • Outdoor protection according to IP65.
  • Uses high impact UV-resistant materials.
  • TOP - True Outdoor Protection in consideration of UL50E.


• Specifications:

  • Title: NC3FX1-TOP
  • Connection Type: XLR
  • Gender: Female
  • Capacitance Between Contacts: = 4 pF
  • Contact Resistance: = 3mΩ
  • Dielectric Strength: 1.5kV DC
  • Insulation Resistance: > 10GΩ (initial)
  • Rated Current per Contact: 16A
  • Rated Voltage: < 50V
  • Cable O.D.: 5.0mm - 8.0mm
  • Insertion Force: = 20N
  • Withdrawal Force: = 20N
  • Lifetime: > 5000 mating cycles
  • Wiresize: Max. 1.5 mm²
  • Wiresize: Max. 16 AWG
  • Wiring: Solder contacts
  • Locking Device: Latch lock
  • Bushing: UV-resistant rubber
  • Contact Plating: Gold (Au) over Nickel (Ni)
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA66)
  • Locking Element: St3K32 (latch)/Ck 67 (spring)
  • Shell: Zinc diecast (ZnAI4Cu1)
  • Shell Plating: Nickel
  • Strain Relief: Polyacetal
  • Sealing Jacket: UV-resistant rubber
  • Flammability Acc. to UL94: V0 (insert)
  • Standard Compliance: IEC 61076-2-103
  • Protection Class Acc. to OEC 60529: IP 65 (mated)
  • Solderability Standard: IEC 60068-2-20
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)
  • Polltion Degree Acc. to IEC 60664-1: II
